IslandPath Analysis: Nitratiruptor sp. SB155-2

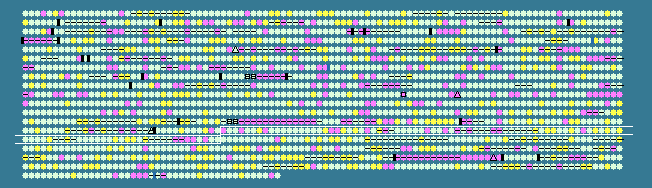

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1334	 34.91	-1	1356807..1358648	+	613	152991087	-	NIS_1344	-	hypothetical protein
1335	 37.50	0	1358648..1359055	+	135	152991088	-	NIS_1345	-	hypothetical protein
1336	 37.26	0	1359067..1362201	+	1044	152991089	-	NIS_1346	-	two-component sensor histidine kinase/response regulator
1337	 34.13	-1	1362198..1362572	+	124	152991090	-	NIS_1347	-	hypothetical protein
1338	 42.06	0	1362583..1365000	-	805	152991091	lon	NIS_1348	-	ATP-dependent Lon protease
1339	 37.72	0	1365014..1365652	-	212	152991092	-	NIS_1349	-	hypothetical protein
1340	 43.95	+1	1365723..1366457	+	244	152991093	proC	NIS_1350	-	pyrroline-5-carboxylate reductase
1341	 34.13	-1	1366567..1369332	+	921	152991094	-	NIS_1351	-	hypothetical protein
1342	 41.24	0	1369329..1370036	+	235	152991095	-	NIS_1352	-	hypothetical protein
1343	 40.79	0	1370033..1370944	+	303	152991096	-	NIS_1353	-	hypothetical protein
1344	 39.95	0	1370941..1371378	+	145	152991097	-	NIS_1354	-	hypothetical protein
1345	 39.78	0	1371428..1371970	+	180	152991098	-	NIS_1355	-	sigma 54 modulation protein/ribosomal protein S30EA
1346	 39.02	0	1371967..1373760	-	597	152991099	recG	NIS_1356	-	ATP-dependent DNA recombinase RecG
1347	 40.66	0	1373757..1374998	-	413	152991100	-	NIS_1357	-	processing protease
1348	 42.31	0	1375040..1376086	-	348	152991101	-	NIS_1358	-	hypothetical protein
1349	 40.70	0	1376083..1376625	-	180	152991102	-	NIS_1359	-	hypothetical protein
1350	 40.71	0	1376606..1377025	-	139	152991103	nusB	NIS_1360	-	transcription antitermination protein NusB
1351	 44.73	+1	1377025..1377489	-	154	152991104	ribE	NIS_1361	-	riboflavin synthase subunit beta
1352	 31.90	-1	1377490..1377909	-	139	152991105	-	NIS_1362	-	hypothetical protein
1353	 33.87	-1	1377899..1378270	-	123	152991106	-	NIS_1363	-	nucleotidyltransferase
1354	 43.82	+1	1378263..1379063	-	266	152991107	kdsA	NIS_1364	-	2-dehydro-3-deoxyphosphooctonate aldolase
1355	 40.22	0	1379060..1379596	-	178	152991108	-	NIS_1365	-	hypothetical protein
1356	 43.00	0	1379598..1380476	-	292	152991109	-	NIS_1366	-	hypothetical protein
1357	 36.44	0	1380469..1381209	-	246	152991110	-	NIS_1367	-	hypothetical protein
1358	 35.59	-1	1381261..1383213	+	650	152991111	-	NIS_1368	-	hypothetical protein
1359	 40.32	0	1383210..1384598	+	462	152991112	-	NIS_1369	-	GTP-binding protein EngA
1360	 43.10	0	1384610..1385602	+	330	152991113	trpS	NIS_1370	-	tryptophanyl-tRNA synthetase
1361	 31.59	-2	1385586..1385930	+	114	152991114	-	NIS_1371	-	nucleotidyltransferase
1362	 36.20	0	1385900..1386283	+	127	152991115	-	NIS_1372	-	nucleotide-binding protein
1363	 38.51	0	1386280..1386627	+	115	152991116	-	NIS_1373	-	hypothetical protein
1364	 37.47	0	1386624..1387010	+	128	152991117	crcB	NIS_1374	-	camphor resistance protein CrcB
1365	 41.56	0	1387010..1387240	+	76	152991118	-	NIS_1375	-	hypothetical protein
1366	 38.18	0	1387240..1388208	+	322	152991119	-	NIS_1376	-	hypothetical protein
1367	 40.82	0	1388181..1388861	+	226	152991120	-	NIS_1377	-	glutamine amidotransferase, class I
1368	 35.14	-1	1388881..1389267	-	128	152991121	-	NIS_1378	-	hypothetical protein
1369	 41.93	0	1389400..1390644	+	414	152991122	serS	NIS_1379	-	seryl-tRNA synthetase
1370	 38.75	0	1390653..1392017	+	454	152991123	-	NIS_1380	-	mannose-1-phosphate guanylyltransferase
1371	 35.36	-1	1392018..1392806	+	262	152991124	-	NIS_1381	-	ABC transporter, permease
1372	 36.61	0	1392838..1394148	-	436	152991125	-	NIS_1382	-	hypothetical protein
1373	 34.94	-1	1394196..1395191	-	331	152991126	-	NIS_1383	-	hypothetical protein
1374	 38.57	0	1395185..1396291	-	368	152991127	-	NIS_1384	-	glycosyl transferase
1375	 33.45	-1	1396275..1397159	-	294	152991128	-	NIS_1385	-	NAD-dependent epimerase/dehydratase
1376	 40.19	0	1397159..1398193	-	344	152991129	gmd	NIS_1386	-	GDP-mannose 4,6-dehydratase
1377	 38.04	0	1398273..1399886	-	537	152991130	-	NIS_1387	-	hypothetical protein
1378	 42.41	0	1400000..1402786	-	928	152991131	-	NIS_1388	-	hypothetical protein
1379	 26.60	-2	1403002..1403283	+	93	152991132	-	NIS_1389	-	hypothetical protein
1380	 26.21	-2	1403264..1403698	+	144	152991133	-	NIS_1390	-	hypothetical protein
1381	 39.41	0	1403857..1408350	-	1497	152991134	-	NIS_1391	-	hypothetical protein
1382	 39.11	0	1409390..1413094	-	1234	152991135	-	NIS_1393	-	hypothetical protein
1383	 38.89	0	1413179..1414330	-	383	152991136	-	NIS_1394	-	glycosyl transferase
1384	 41.98	0	1414327..1415529	-	400	152991137	-	NIS_1395	-	glycosyl transferase
1385	 40.68	0	1415571..1416836	+	421	152991138	-	NIS_1396	-	hypothetical protein
1386	 43.90	+1	1416833..1418005	-	390	152991139	-	NIS_1397	-	ABC transporter, ATP-binding protein
1387	 41.31	0	1418030..1419859	-	609	152991140	-	NIS_1398	-	hypothetical protein
1388	 43.72	+1	1419868..1420281	-	137	152991141	-	NIS_1399	-	hypothetical protein
1389	 43.06	0	1420271..1420486	-	71	152991142	-	NIS_1400	-	hypothetical protein
1390	 36.18	0	1420467..1421765	-	432	152991143	-	NIS_1401	-	type I secretion system outer membrane protein
1391	 37.37	0	1421755..1423041	-	428	152991144	-	NIS_1402	-	type I secretion system membrane fusion protein
1392	 43.27	0	1423041..1424750	-	569	152991145	-	NIS_1403	-	type I secretion system ATPase
1393	 38.98	0	1424810..1425907	+	365	152991146	-	NIS_1404	-	glycosyl transferase
1394	 35.57	-1	1425904..1427247	+	447	152991147	-	NIS_1405	-	glycosyl transferase
1395	 40.02	0	1427297..1428223	+	308	152991148	-	NIS_1406	-	hypothetical protein
1396	 43.56	+1	1428220..1429764	-	514	152991149	leuA	NIS_1407	-	2-isopropylmalate synthase
1397	 39.97	0	1429903..1430655	-	250	152991150	-	NIS_1408	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1398	 45.44	+1	1430658..1432640	-	660	152991151	-	NIS_1409	-	cell division protein FtsH
1399	 39.62	0	1432630..1433472	-	280	152991152	-	NIS_1410	-	ribosomal protein L11 methyltransferase
1400	 47.70	+2	1433465..1434181	-	238	152991153	hisA	NIS_1411	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1401	 42.60	0	1434182..1434796	-	204	152991154	hisH	NIS_1412	-	imidazole glycerol phosphate synthase subunit HisH
1402	 39.05	0	1434793..1435701	-	302	152991155	-	NIS_1413	-	general glycosylation pathway protein
1403	 37.53	0	1435688..1436473	-	261	152991156	-	NIS_1414	-	polysaccharide biosynthesis protein
1404	 37.52	0	1436532..1438082	+	516	152991157	-	NIS_1415	-	hypothetical protein
1405	 44.06	+1	1438079..1439131	+	350	152991158	-	NIS_1416	-	NAD-dependent epimerase/dehydratase
1406	 39.66	0	1439100..1439684	+	194	152991159	-	NIS_1417	-	PAP2 family phosphoesterase
1407	 39.95	0	1439674..1441185	+	503	152991160	-	NIS_1418	-	glycosyl transferase
1408	 43.52	+1	1441182..1441613	+	143	152991161	-	NIS_1419	-	hypothetical protein
1409	 41.96	0	1441613..1441867	+	84	152991162	-	NIS_1420	-	hypothetical protein
1410	 41.20	0	1441860..1443092	+	410	152991163	-	NIS_1421	-	hypothetical protein
1411	 39.43	0	1443064..1443867	-	267	152991164	-	NIS_1422	-	periplasmic protein TonB
1412	 37.12	0	1443864..1444259	-	131	152991165	-	NIS_1423	-	biopolymer  ExbD/TolR family transporter
1413	 42.30	0	1444228..1444662	-	144	152991166	-	NIS_1424	-	biopolymer ExbB/TolQ family transporter
1414	 37.08	0	1444659..1445486	-	275	152991167	-	NIS_1425	-	two-component sensor histidine kinase
1415	 38.81	0	1445476..1446132	-	218	152991168	-	NIS_1426	-	two-component response regulator
1416	 44.44	+1	1446122..1447129	-	335	152991169	pyrC	NIS_1427	-	dihydroorotase
1417	 42.65	0	1447120..1448493	-	457	152991170	-	NIS_1428	-	phosphomannomutase
1418	 44.09	+1	1448502..1449719	-	405	152991171	-	NIS_1429	-	ammonium transporter
1419	 44.54	+1	1449728..1450066	-	112	152991172	-	NIS_1430	-	nitrogen regulatory protein P-II
1420	 38.56	0	1450161..1452668	+	835	152991173	-	NIS_1431	-	nucleotidyltransferase
1421	 43.58	+1	1452750..1454027	+	425	152991174	-	NIS_1432	-	NarK/NasA family nitrate transporter
1422	 39.96	0	1454028..1455641	+	537	152991175	-	NIS_1433	-	hypothetical protein
1423	 41.28	0	1455707..1457266	+	519	152991176	-	NIS_1434	-	molybdopterin oxidoreductase, iron sulfur subunit
1424	 42.16	0	1457276..1459552	+	758	152991177	-	NIS_1435	-	nitrate reductase catalytic subunit
1425	 39.13	0	1459549..1461447	+	632	152991178	-	NIS_1436	-	ferredoxin--nitrite reductase
1426	 32.64	-1	1461666..1462097	-	143	152991179	-	NIS_1437	-	hypothetical protein
1427	 32.23	-1	1462329..1463504	-	391	152991180	-	NIS_1438	-	hypothetical protein
1428	 34.02	-1	1463488..1464357	-	289	152991181	-	NIS_1439	-	hypothetical protein
1429	 32.39	-1	1464354..1464986	-	210	152991182	-	NIS_1440	-	hypothetical protein
1430	 38.38	0	1464983..1466686	-	567	152991183	-	NIS_1441	-	asparagine synthase, glutamine-hydrolyzing
1431	 35.66	0	1466679..1467665	-	328	152991184	-	NIS_1442	-	glycosyl transferase
1432	 37.60	0	1467829..1468905	-	358	152991185	-	NIS_1443	-	glycosyl transferase
1433	 39.20	0	1468902..1469771	-	289	152991186	-	NIS_1444	-	hypothetical protein
39.50	MEAN

3.88	STD DEV
