IslandPath Analysis: Nitratiruptor sp. SB155-2

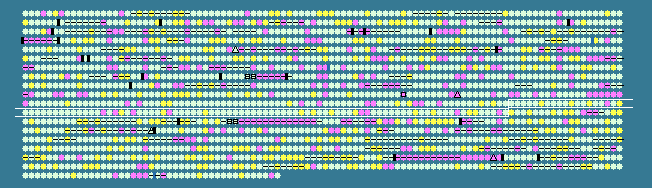

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.50 STD DEV: 3.88
Nitratiruptor sp. SB155-2, complete genome - 1..1877931
1843 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1082	 41.16	0	1107932..1108429	-	165	152990835	-	NIS_1091	-	histidine triad family protein
1083	 40.84	0	1108429..1110279	-	616	152990836	-	NIS_1092	-	C4-dicarboxylate transporter, permease
1084	 39.58	0	1110397..1111821	-	474	152990837	-	NIS_1093	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6- diaminopimelate--D-alanyl-D-alanine ligase
1085	 39.28	0	1112074..1112796	-	240	152990838	-	NIS_1094	-	2-hydroxy-6-oxohepta-2,4-dienoate hydrolase
1086	 42.57	0	1113100..1113705	-	201	152990839	-	NIS_1095	-	hypothetical protein
1087	 44.77	+1	1113683..1114819	-	378	152990840	-	NIS_1096	-	hypothetical protein
1088	 37.41	0	1114816..1115844	-	342	152990841	ddlA	NIS_1097	-	D-alanyl-alanine synthetase A
1089	 42.16	0	1115853..1116407	-	184	152990842	ruvA	NIS_1098	-	Holliday junction DNA helicase motor protein
1090	 40.71	0	1116406..1117653	+	415	152990843	-	NIS_1099	-	hypothetical protein
1091	 40.67	0	1117685..1119088	+	467	152990844	mviN	NIS_1100	-	virulence factor MviN
1092	 42.99	0	1119072..1120469	+	465	152990845	cysS	NIS_1101	-	cysteinyl-tRNA synthetase
1093	 41.11	0	1120466..1122175	+	569	152990846	-	NIS_1102	-	multidrug ABC transporter, ATP-binding protein and permease
1094	 39.60	0	1122172..1123464	+	430	152990847	glmU	NIS_1103	-	glucosamine-1-phosphate N-acetyltransferase/UDP-N-acetylglucosamine pyrophosphorylase
1095	 43.02	0	1123464..1124723	+	419	152990848	dfp	NIS_1104	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
1096	 40.27	0	1124716..1125393	+	225	152990849	uppS	NIS_1105	-	undecaprenyl diphosphate synthase
1097	 40.96	0	1125390..1126202	+	270	152990850	-	NIS_1106	-	type 4 prepilin peptidase
1098	 35.20	-1	1126195..1127211	+	338	152990851	-	NIS_1107	-	hypothetical protein
1099	 40.22	0	1127211..1127936	+	241	152990852	truA	NIS_1108	-	tRNA pseudouridine synthase A
1100	 44.28	+1	1127933..1128727	-	264	152990853	-	NIS_1109	-	hypothetical protein
1101	 37.63	0	1128778..1130220	+	480	152990854	-	NIS_1110	-	hypothetical protein
1102	 39.12	0	1130217..1130855	+	212	152990855	-	NIS_1111	-	membrane-associated phospholipid phosphatase
1103	 41.85	0	1130852..1131790	+	312	152990856	-	NIS_1112	-	glycosyl transferase
1104	 39.28	0	1131787..1132644	+	285	152990857	-	NIS_1113	-	hypothetical protein
1105	 41.90	0	1132627..1133817	-	396	152990858	allB	NIS_1114	-	dihydroorotase
1106	 36.39	0	1133807..1134199	-	130	152990859	-	NIS_1115	-	hypothetical protein
1107	 41.21	0	1134196..1135959	-	587	152990860	dsbD	NIS_1116	-	thiol:disulfide interchange protein DsbD
1108	 40.73	0	1136053..1137972	+	639	152990861	-	NIS_1117	-	hypothetical protein
1109	 41.52	0	1137965..1138489	+	174	152990862	msrA	NIS_1118	-	peptide methionine sulfoxide reductase
1110	 36.98	0	1138731..1139279	-	182	152990863	-	NIS_1119	-	hypothetical protein
1111	 38.10	0	1139276..1140871	-	531	152990864	-	NIS_1120	-	hypothetical protein
1112	 42.83	0	1140983..1142878	-	631	152990865	dnaK	NIS_1121	-	molecular chaperone DnaK
1113	 39.04	0	1142953..1143495	-	180	152990866	grpE	NIS_1122	-	co-chaperone protein GrpE
1114	 33.08	-1	1143506..1144282	-	258	152990867	-	NIS_1123	-	heat-inducible transcription repressor HrcA
1115	 37.41	0	1144497..1144766	-	89	152990868	rpsO	NIS_1124	-	30S ribosomal protein S15
1116	 35.31	-1	1144821..1145885	-	354	152990869	-	NIS_1125	-	hypothetical protein
1117	 43.53	+1	1146029..1146430	+	133	152990870	-	NIS_1126	-	BadM/Rrf2 family transcriptional regulator
1118	 39.50	0	1146433..1147437	+	334	152990871	-	NIS_1127	-	hypothetical protein
1119	 31.20	-2	1147438..1149267	-	609	152990872	-	NIS_1128	-	signal transduction response regulator
1120	 37.50	0	1149264..1149983	-	239	152990873	-	NIS_1129	-	methyltransferase
1121	 39.97	0	1149970..1151988	-	672	152990874	-	NIS_1130	-	hypothetical protein
1122	 40.40	0	1151979..1152770	-	263	152990875	ribF	NIS_1131	-	bifunctional riboflavin kinase/FMN adenylyltransferase
1123	 41.70	0	1152775..1153479	-	234	152990876	-	NIS_1132	-	hemolysin A
1124	 43.17	0	1153469..1155451	-	660	152990877	ligA	NIS_1133	-	NAD-dependent DNA ligase LigA
1125	 35.13	-1	1155444..1157498	-	684	152990878	-	NIS_1134	-	hypothetical protein
1126	 37.80	0	1157491..1158363	-	290	152990879	-	NIS_1135	-	cytochrome c peroxidase
1127	 38.49	0	1158403..1159566	-	387	152990880	-	NIS_1136	-	hypothetical protein
1128	 41.16	0	1159563..1160699	-	378	152990881	-	NIS_1137	-	dihydropteroate synthase
1129	 36.30	0	1160696..1161301	-	201	152990882	-	NIS_1138	-	DNA polymerase III, delta' subunit
1130	 40.50	0	1161298..1161855	-	185	152990883	-	NIS_1139	-	hypothetical protein
1131	 45.33	+1	1161852..1163060	-	402	152990884	-	NIS_1140	-	aspartate kinase
1132	 38.68	0	1163057..1163524	-	155	152990885	-	NIS_1141	-	dinucleoside polyphosphate hydrolase
1133	 39.69	0	1163612..1164649	+	345	152990886	-	NIS_1142	-	coproporphyrinogen III oxidase
1134	 37.06	0	1164632..1165624	-	330	152990887	-	NIS_1143	-	hypothetical protein
1135	 40.74	0	1165720..1166097	+	125	152990888	-	NIS_1144	-	twin-arginine translocation system component TatB
1136	 42.65	0	1166090..1166830	+	246	152990889	tatC	NIS_1145	-	twin-arginine translocation system component TatC
1137	 42.91	0	1166830..1167852	+	340	152990890	queA	NIS_1146	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1138	 40.88	0	1167908..1168384	+	158	152990891	-	NIS_1147	-	phosphohistidine phosphatase
1139	 40.68	0	1168553..1169341	+	262	152990892	xthA	NIS_1148	-	exodeoxyribonuclease III
1140	 40.20	0	1169322..1170617	+	431	152990893	-	NIS_1149	-	voltage-gated chloride channel
1141	 38.10	0	1170611..1171051	-	146	152990894	-	NIS_1150	-	peroxide stress regulator
1142	 42.25	0	1171193..1171708	+	171	152990895	-	NIS_1151	-	bacterioferritin
1143	 39.95	0	1171705..1172565	+	286	152990896	-	NIS_1152	-	thiosulfate sulfurtransferase
1144	 39.25	0	1172569..1173075	+	168	152990897	-	NIS_1153	-	hypothetical protein
1145	 39.11	0	1173082..1174623	-	513	152990898	-	NIS_1154	-	ABC transporter
1146	 40.82	0	1174613..1174879	-	88	152990899	-	NIS_1155	-	hypothetical protein
1147	 46.79	+1	1174910..1176001	-	363	152990900	-	NIS_1156	-	peptidase S1, chymotrypsin
1148	 36.41	0	1175998..1176354	-	118	152990901	-	NIS_1157	-	hypothetical protein
1149	 45.14	+1	1176354..1177073	-	239	152990902	-	NIS_1158	-	DNA processing protein A
1150	 41.87	0	1177066..1178400	-	444	152990903	-	NIS_1159	-	sodium:sulphate symporter
1151	 39.60	0	1178410..1179414	-	334	152990904	-	NIS_1160	-	hypothetical protein
1152	 43.01	0	1179440..1180462	-	340	152990905	ilvC	NIS_1161	-	ketol-acid reductoisomerase
1153	 40.84	0	1180626..1182557	+	643	152990906	-	NIS_1162	-	ribonuclease
1154	 36.25	0	1182550..1183509	+	319	152990907	-	NIS_1163	-	DNA polymerase III subunit delta
1155	 38.24	0	1183587..1183973	+	128	152990908	rpsF	NIS_1164	-	30S ribosomal protein S6
1156	 46.14	+1	1183966..1184418	+	150	152990909	ssb	NIS_1165	-	single-strand DNA binding protein
1157	 34.78	-1	1184432..1184707	+	91	152990910	rpsR	NIS_1166	-	30S ribosomal protein S18
1158	 35.18	-1	1184729..1186567	-	612	152990911	-	NIS_1167	-	hypothetical protein
1159	 38.47	0	1186567..1187247	-	226	152990912	-	NIS_1168	-	hypothetical protein
1160	 39.16	0	1187237..1187854	-	205	152990913	hisG	NIS_1169	-	ATP phosphoribosyltransferase catalytic subunit
1161	 39.08	0	1187848..1188456	-	202	152990914	-	NIS_1170	-	pantothenate kinase
1162	 39.45	0	1188443..1188769	-	108	152990915	-	NIS_1171	-	hypothetical protein
1163	 38.31	0	1188766..1189770	-	334	152990916	-	NIS_1172	-	hypothetical protein
1164	 36.65	0	1189767..1190369	-	200	152990917	-	NIS_1173	-	hypothetical protein
1165	 37.50	0	1190428..1190763	+	111	152990918	-	NIS_1174	-	glutamyl-tRNA amidotransferase subunit C
1166	 44.88	+1	1190772..1191836	+	354	152990919	-	NIS_1175	-	twitching motility protein PilT
1167	 39.29	0	1191849..1192469	+	206	152990920	-	NIS_1176	-	colicin V production protein
1168	 41.62	0	1192472..1193980	+	502	152990921	-	NIS_1177	-	lysyl-tRNA synthetase
1169	 44.07	+1	1193984..1195231	+	415	152990922	glyA	NIS_1178	-	serine hydroxymethyltransferase
1170	 36.61	0	1195312..1196043	+	243	152990923	-	NIS_1179	-	hypothetical protein
1171	 41.22	0	1196043..1197449	+	468	152990924	trpE	NIS_1180	-	anthranilate synthase component I
1172	 40.38	0	1197446..1198240	+	264	152990925	aroE	NIS_1181	-	shikimate 5-dehydrogenase
1173	 35.73	0	1198229..1199605	-	458	152990926	-	NIS_1182	-	hypothetical protein
1174	 41.32	0	1199995..1200357	-	120	152990927	-	NIS_1183	-	hypothetical protein
1175	 43.26	0	1200354..1201703	-	449	152990928	-	NIS_1184	-	3-deoxy-7-phosphoheptulonate synthase, class II
1176	 43.11	0	1201753..1202325	-	190	152990929	recR	NIS_1185	-	recombination protein RecR
1177	 41.71	0	1202430..1203551	+	373	152990930	dnaJ	NIS_1186	-	co-chaperone protein DnaJ
1178	 40.93	0	1203569..1206703	-	1044	152990931	-	NIS_1187	-	CcmF/CcyK/CcsA family cytochrome c biogenesis protein
1179	 40.34	0	1206791..1209457	-	888	152990932	polA	NIS_1188	-	DNA polymerase I
1180	 35.17	-1	1209508..1209834	+	108	152990933	-	NIS_1189	-	hypothetical protein
1181	 40.72	0	1210024..1210632	-	202	152990934	-	NIS_1190	-	hypothetical protein
39.50	MEAN

3.88	STD DEV
