IslandPathversion 1.0

IslandPath Analysis: Nitrosopumilus maritimus SCM1

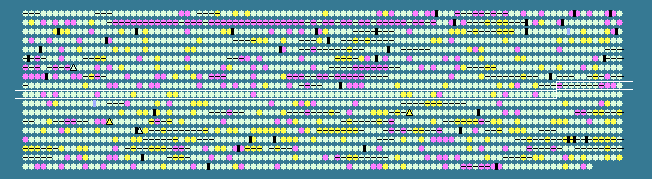

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.31 STD DEV: 3.47
Nitrosopumilus maritimus SCM1, complete genome - 1..1645259
1795 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
890	 27.71	-1	783332..783580	-	82	161528402	-	Nmar_0894	-	hypothetical protein
891	 34.52	0	783883..784473	+	196	161528403	-	Nmar_0895	-	hypothetical protein
892	 31.21	0	784509..784838	+	109	161528404	-	Nmar_0896	-	hypothetical protein
893	 37.18	0	785551..785784	+	77	161528405	-	Nmar_0897	-	hypothetical protein
894	 33.76	0	785852..786319	+	155	161528406	-	Nmar_0898	-	hypothetical protein
895	 31.62	0	786988..787221	-	77	161528407	-	Nmar_0899	-	hypothetical protein
896	 32.76	0	787291..787641	+	116	161528408	-	Nmar_0900	-	hypothetical protein
897	 27.62	-1	788095..788304	+	69	161528409	-	Nmar_0901	-	hypothetical protein
898	 30.76	-1	788330..788872	+	180	161528410	-	Nmar_0902	-	hypothetical protein
899	 26.86	-2	788897..789313	-	138	161528411	-	Nmar_0903	-	hypothetical protein
900	 32.33	0	789419..789718	+	99	161528412	-	Nmar_0904	-	hypothetical protein
901	 35.96	0	789744..790391	-	215	161528413	-	Nmar_0905	-	hypothetical protein
902	 33.93	0	791128..791799	-	223	161528414	-	Nmar_0906	-	hypothetical protein
903	 30.85	0	791835..792236	-	133	161528415	-	Nmar_0907	-	hypothetical protein
904	 30.30	-1	792290..792487	+	65	161528416	-	Nmar_0908	-	hypothetical protein
905	 32.13	0	792948..793280	+	110	161528417	-	Nmar_0909	-	hypothetical protein
906	 29.60	-1	793511..794554	+	347	161528418	-	Nmar_0910	-	hypothetical protein
907	 35.41	0	794959..796308	+	449	161528419	-	Nmar_0911	-	anthranilate synthase
908	 34.84	0	796305..796901	+	198	161528420	-	Nmar_0912	-	glutamine amidotransferase of anthranilate synthase
909	 34.77	0	796898..797944	+	348	161528421	-	Nmar_0913	-	anthranilate phosphoribosyltransferase
910	 33.59	0	797937..798713	+	258	161528422	-	Nmar_0914	-	indole-3-glycerol-phosphate synthase
911	 36.70	0	798710..799897	+	395	161528423	-	Nmar_0915	-	tryptophan synthase subunit beta
912	 32.59	0	799884..800690	+	268	161528424	-	Nmar_0916	-	tryptophan synthase, alpha subunit
913	 29.82	-1	801081..801764	-	227	161528425	-	Nmar_0917	-	hypothetical protein
914	 36.54	0	802019..802861	-	280	161528426	-	Nmar_0918	-	hypothetical protein
915	 35.39	0	802942..804543	+	533	161528427	-	Nmar_0919	-	CTP synthetase
916	 32.94	0	804551..806068	-	505	161528428	-	Nmar_0920	-	histidine kinase
917	 33.63	0	806078..807076	-	332	161528429	-	Nmar_0921	-	NAD(+) kinase
918	 33.33	0	807118..807987	-	289	161528430	-	Nmar_0922	-	ribokinase-like domain-containing protein
919	 37.85	+1	808250..808537	+	95	161528431	-	Nmar_0923	-	30S ribosomal protein S26e
920	 34.38	0	808540..809112	-	190	161528432	-	Nmar_0924	-	CDP-alcohol phosphatidyltransferase
921	 35.73	0	809190..810065	-	291	161528433	-	Nmar_0925	-	putative agmatinase
922	 34.57	0	810069..811934	-	621	161528434	-	Nmar_0926	-	threonyl-tRNA synthetase
923	 34.82	0	811992..812327	-	111	161528435	-	Nmar_0927	-	hypothetical protein
924	 33.90	0	812404..813468	+	354	161528436	-	Nmar_0928	-	deoxyhypusine synthase-like protein
925	 38.97	+1	813482..813694	-	70	161528437	-	Nmar_0929	-	hypothetical protein
926	 37.82	+1	813793..814104	+	103	161528438	-	Nmar_0930	-	small subunit ribosomal protein S25e
927	 34.42	0	814086..814361	-	91	161528439	-	Nmar_0931	-	hypothetical protein
928	 35.70	0	814486..815034	+	182	161528440	-	Nmar_0932	-	RNA polymerase Rpb6
929	 35.24	0	815086..815400	+	104	161528441	-	Nmar_0933	-	Alba, DNA/RNA-binding protein
930	 36.21	0	815397..815813	-	138	161528442	-	Nmar_0934	-	hypothetical protein
931	 32.35	0	815847..816866	+	339	161528443	-	Nmar_0935	-	asparagine synthase
932	 37.70	0	817055..817420	-	121	161528444	-	Nmar_0936	-	hypothetical protein
933	 35.06	0	817489..818589	-	366	161528445	-	Nmar_0937	-	aldo/keto reductase
934	 35.24	0	818620..819510	-	296	161528446	-	Nmar_0938	-	UbiA prenyltransferase
935	 32.34	0	819822..820223	-	133	161528447	-	Nmar_0939	-	hypothetical protein
936	 35.74	0	820283..820573	+	96	161528448	-	Nmar_0940	-	hypothetical protein
937	 31.85	0	820570..820974	+	134	161528449	-	Nmar_0941	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
938	 33.69	0	821297..821575	+	92	161528450	-	Nmar_0942	-	PpiC-type peptidyl-prolyl cis-trans isomerase
939	 26.45	-2	821589..821864	+	91	161528451	-	Nmar_0943	-	hypothetical protein
940	 33.93	0	821861..823369	-	502	161528452	-	Nmar_0944	-	DEAD/DEAH box helicase domain-containing protein
941	 32.52	0	823542..823787	+	81	161528453	-	Nmar_0945	-	hypothetical protein
942	 34.92	0	823811..823999	-	62	161528454	-	Nmar_0946	-	hypothetical protein
943	 37.31	0	824040..824642	+	200	161528455	-	Nmar_0947	-	CMP/dCMP deaminase zinc-binding
944	 33.41	0	824647..827205	+	852	161528456	-	Nmar_0948	-	DNA polymerase I
945	 32.62	0	827214..827495	+	93	161528457	-	Nmar_0949	-	hypothetical protein
946	 32.72	0	827535..828191	+	218	161528458	-	Nmar_0950	-	triosephosphate isomerase
947	 35.62	0	828219..830882	+	887	161528459	-	Nmar_0951	-	pyruvate phosphate dikinase
948	 34.77	0	830925..831482	+	185	161528460	-	Nmar_0952	-	XRE family transcriptional regulator
949	 37.12	0	831494..831889	-	131	161528461	-	Nmar_0953	-	glyoxalase/bleomycin resistance protein/dioxygenase
950	 37.27	0	831890..833488	-	532	161528462	-	Nmar_0954	-	methylmalonyl-CoA mutase, large subunit
951	 34.75	0	833495..834412	-	305	161528463	-	Nmar_0955	-	LAO/AO transport system ATPase
952	 36.52	0	834456..834863	-	135	161528464	-	Nmar_0956	-	hypothetical protein
953	 33.85	0	834865..837357	-	830	161528465	-	Nmar_0957	-	peptidase M1 membrane alanine aminopeptidase
954	 36.88	0	837459..837881	+	140	161528466	-	Nmar_0958	-	cobalamin B12-binding domain-containing protein
955	 37.24	0	837893..838891	-	332	161528467	-	Nmar_0959	-	ketol-acid reductoisomerase
956	 32.02	0	839050..839580	-	176	161528468	-	Nmar_0960	-	cytidyltransferase-like protein
957	 34.96	0	839615..840535	-	306	161528469	-	Nmar_0961	-	elongation factor Tu domain-containing protein
958	 34.40	0	840580..841332	-	250	161528470	-	Nmar_0962	-	hypothetical protein
959	 34.30	0	841334..842989	-	551	161528471	-	Nmar_0963	-	methionyl-tRNA synthetase
960	 37.60	0	843027..844268	-	413	161528472	-	Nmar_0964	-	adenosylhomocysteinase
961	 37.62	0	844342..844644	+	100	161528473	-	Nmar_0965	-	Rieske (2Fe-2S) domain-containing protein
962	 33.89	0	844775..845488	+	237	161528474	-	Nmar_0966	-	NAD+ synthetase
963	 34.05	0	845485..846873	+	462	161528475	-	Nmar_0967	-	cysteinyl-tRNA synthetase
964	 38.41	+1	846886..847200	-	104	161528476	-	Nmar_0968	-	hypothetical protein
965	 39.09	+1	847271..847600	-	109	161528477	-	Nmar_0969	-	hypothetical protein
966	 33.69	0	847835..848116	+	93	161528478	-	Nmar_0970	-	hypothetical protein
967	 35.41	0	848117..848935	-	272	161528479	-	Nmar_0971	-	MscS mechanosensitive ion channel
968	 31.66	0	848940..849716	-	258	161528480	-	Nmar_0972	-	hypothetical protein
969	 38.44	+1	849754..850653	-	299	161528481	-	Nmar_0973	-	hypothetical protein
970	 27.27	-2	850799..851326	+	175	161528482	-	Nmar_0974	-	hypothetical protein
971	 36.44	0	851328..852485	-	385	161528483	-	Nmar_0975	-	hypothetical protein
972	 32.69	0	852580..853506	+	308	161528484	-	Nmar_0976	-	periplasmic binding protein
973	 33.99	0	853513..854892	-	459	161528485	-	Nmar_0977	-	NAD-dependent epimerase/dehydratase
974	 32.27	0	855102..855944	+	280	161528486	-	Nmar_0978	-	response regulator receiver protein
975	 35.53	0	856416..857327	+	303	161528487	-	Nmar_0979	-	transcription factor TFIIB cyclin-related
976	 34.82	0	857503..858714	-	403	161528488	-	Nmar_0980	-	translation-associated GTPase
977	 33.88	0	858749..859114	-	121	161528489	-	Nmar_0981	-	hypothetical protein
978	 37.23	0	859116..859526	-	136	161528490	-	Nmar_0982	-	CoA-binding domain-containing protein
979	 38.31	+1	859607..860128	+	173	161528491	-	Nmar_0983	-	hypothetical protein
980	 32.94	0	860165..861172	+	335	161528492	-	Nmar_0984	-	biotin--acetyl-CoA-carboxylase ligase
981	 30.58	-1	861173..861535	-	120	161528493	-	Nmar_0985	-	hypothetical protein
982	 33.19	0	861646..863085	+	479	161528494	-	Nmar_0986	-	TPR repeat-containing protein
983	 37.03	0	863158..864105	+	315	161528495	-	Nmar_0987	-	transcription factor TFIIB cyclin-related
984	 32.35	0	864108..864515	-	135	161528496	-	Nmar_0988	-	phosphoribosyltransferase-like protein
985	 36.13	0	864552..864944	-	130	161528497	-	Nmar_0989	-	hypothetical protein
986	 30.40	-1	864998..865576	+	192	161528498	-	Nmar_0990	-	hypothetical protein
987	 36.15	0	865566..866630	+	354	161528499	-	Nmar_0991	-	poly(R)-hydroxyalkanoic acid synthase, class III, PhaC subunit
988	 34.97	0	866668..867096	-	142	161528500	-	Nmar_0992	-	hypothetical protein
989	 37.79	+1	867093..867518	-	141	161528501	-	Nmar_0993	-	AbrB family transcriptional regulator
34.31	MEAN

3.47	STD DEV
