IslandPath Analysis: Nitrosopumilus maritimus SCM1

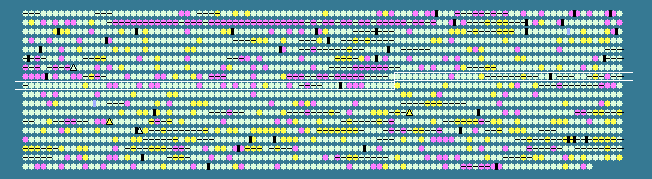

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.31 STD DEV: 3.47
Nitrosopumilus maritimus SCM1, complete genome - 1..1645259
1795 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
763	 36.13	0	688854..689246	+	130	161528275	-	Nmar_0767	-	hypothetical protein
764	 36.55	0	689395..689643	+	82	161528276	-	Nmar_0768	-	hypothetical protein
765	 37.55	0	689640..689900	-	86	161528277	-	Nmar_0769	-	hypothetical protein
766	 34.62	0	690338..691429	-	363	161528278	-	Nmar_0770	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase-like protein
767	 35.66	0	691728..692285	+	185	161528279	-	Nmar_0771	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
768	 33.10	0	692293..692721	+	142	161528280	-	Nmar_0772	-	hypothetical protein
769	 33.82	0	692718..692924	-	68	161528281	-	Nmar_0773	-	sec-independent translocation protein mttA/Hcf106
770	 36.87	0	692953..693744	-	263	161528282	-	Nmar_0774	-	Sec-independent protein translocase, TatC subunit
771	 35.05	0	693772..694236	-	154	161528283	-	Nmar_0775	-	hypothetical protein
772	 29.97	-1	694554..694940	+	128	161528284	-	Nmar_0776	-	hypothetical protein
773	 34.10	0	695077..695337	+	86	161528285	-	Nmar_0777	-	phosphoribosylformylglycinamidine synthase, purS
774	 31.91	0	695334..695756	-	140	161528286	-	Nmar_0778	-	signal transduction protein
775	 34.35	0	695828..696514	+	228	161528287	-	Nmar_0779	-	phosphoribosylformylglycinamidine synthase I
776	 35.73	0	696511..698676	+	721	161528288	-	Nmar_0780	-	phosphoribosylformylglycinamidine synthase II
777	 38.78	+1	698669..700138	+	489	161528289	-	Nmar_0781	-	glutamine amidotransferase class-II
778	 33.69	0	700141..700419	+	92	161528290	-	Nmar_0782	-	hypothetical protein
779	 35.66	0	700454..700840	+	128	161528291	-	Nmar_0783	-	hypothetical protein
780	 34.42	0	700874..701698	+	274	161528292	-	Nmar_0784	-	phosphoribosylaminoimidazolesuccinocarboxamide synthase
781	 32.54	0	702047..702550	+	167	161528293	-	Nmar_0785	-	ArsR family transcriptional regulator
782	 34.58	0	702588..702908	+	106	161528294	-	Nmar_0786	-	hypothetical protein
783	 32.35	0	702901..703305	+	134	161528295	-	Nmar_0787	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
784	 46.12	+2	703382..703780	-	132	161528296	-	Nmar_0788	-	histone protein
785	 34.56	0	703882..704370	-	162	161528297	-	Nmar_0789	-	hypothetical protein
786	 35.86	0	704520..705113	+	197	161528298	-	Nmar_0790	-	hypothetical protein
787	 34.00	0	705832..706281	-	149	161528299	-	Nmar_0791	-	hypothetical protein
788	 36.55	0	706645..706893	-	82	161528300	-	Nmar_0792	-	hypothetical protein
789	 34.38	0	707231..707518	-	95	161528301	-	Nmar_0793	-	hypothetical protein
790	 31.90	0	707534..708091	-	185	161528302	-	Nmar_0794	-	ribosomal protein L6
791	 32.82	0	708081..708473	-	130	161528303	-	Nmar_0795	-	30S ribosomal protein S8P
792	 35.56	0	708480..708659	-	59	161528304	-	Nmar_0796	-	ribosomal protein S14
793	 36.21	0	708659..709180	-	173	161528305	-	Nmar_0797	-	50S ribosomal protein L5P
794	 33.75	0	709185..709901	-	238	161528306	-	Nmar_0798	-	30S ribosomal protein S4e
795	 35.50	0	709901..710407	-	168	161528307	-	Nmar_0799	-	KOW domain-containing protein
796	 38.53	+1	710412..710834	-	140	161528308	-	Nmar_0800	-	ribosomal protein L14b/L23e
797	 34.57	0	710834..711157	-	107	161528309	-	Nmar_0801	-	ribosomal protein S17
798	 30.71	-1	711154..711420	-	88	161528310	-	Nmar_0802	-	ribonuclease P, Rpp29
799	 35.75	0	711417..711623	-	68	161528311	-	Nmar_0803	-	ribosomal protein L29
800	 37.70	0	711620..712375	-	251	161528312	-	Nmar_0804	-	ribosomal protein S3
801	 36.17	0	712378..712836	-	152	161528313	-	Nmar_0805	-	ribosomal protein L22
802	 34.85	0	712842..713237	-	131	161528314	-	Nmar_0806	-	30S ribosomal protein S19P
803	 34.08	0	713265..713531	-	88	161528315	-	Nmar_0807	-	ribosomal protein L25/L23
804	 37.01	0	713528..714343	-	271	161528316	-	Nmar_0808	-	50S ribosomal protein L4P
805	 36.45	0	714340..715335	-	331	161528317	-	Nmar_0809	-	50S ribosomal protein L3P
806	 33.21	0	715541..716353	-	270	161528318	-	Nmar_0810	-	hypothetical protein
807	 36.86	0	716385..717122	-	245	161528319	-	Nmar_0811	-	proteasome subunit alpha
808	 33.81	0	717175..717591	+	138	161528320	-	Nmar_0812	-	hypothetical protein
809	 32.46	0	717819..718160	+	113	161528321	-	Nmar_0813	-	hypothetical protein
810	 35.69	0	718317..718655	-	112	161528322	-	Nmar_0814	-	hypothetical protein
811	 38.58	+1	718761..720380	-	539	161528323	-	Nmar_0815	-	blue (type1) copper domain-containing protein
812	 36.56	0	720467..721117	-	216	161528324	-	Nmar_0816	-	SNF7
813	 33.42	0	721209..722318	-	369	161528325	-	Nmar_0817	-	redoxin domain-containing protein
814	 31.70	0	722323..723057	-	244	161528326	-	Nmar_0818	-	cytochrome c biogenesis protein transmembrane region
815	 29.51	-1	723259..724383	-	374	161528327	-	Nmar_0819	-	8-amino-7-oxononanoate synthase
816	 30.48	-1	724551..725285	+	244	161528328	-	Nmar_0820	-	peptidase M10A and M12B matrixin and adamalysin
817	 35.37	0	725326..726306	-	326	161528329	-	Nmar_0821	-	biotin synthase
818	 34.27	0	726380..727660	-	426	161528330	-	Nmar_0822	-	aminotransferase class-III
819	 31.88	0	728011..728697	+	228	161528331	-	Nmar_0823	-	dethiobiotin synthase
820	 29.82	-1	728698..728925	-	75	161528332	-	Nmar_0824	-	hypothetical protein
821	 36.23	0	729208..730071	+	287	161528333	-	Nmar_0825	-	band 7 protein
822	 30.27	-1	730087..730380	-	97	161528334	-	Nmar_0826	-	hypothetical protein
823	 29.69	-1	730421..730969	-	182	161528335	-	Nmar_0827	-	hypothetical protein
824	 36.34	0	730969..732363	-	464	161528336	-	Nmar_0828	-	hydroxymethylglutaryl-CoA synthase
825	 36.29	0	732469..733179	-	236	161528337	-	Nmar_0829	-	DSBA oxidoreductase
826	 31.83	0	733217..733948	-	243	161528338	-	Nmar_0830	-	hypothetical protein
827	 35.42	0	734100..735152	+	350	161528339	-	Nmar_0831	-	glyceraldehyde-3-phosphate dehydrogenase
828	 35.25	0	735149..736402	-	417	161528340	-	Nmar_0832	-	hypothetical protein
829	 35.87	0	736555..737892	-	445	161528341	-	Nmar_0833	-	threonine synthase
830	 29.46	-1	737983..738369	+	128	161528342	-	Nmar_0834	-	hypothetical protein
831	 32.70	0	738666..738980	-	104	161528343	-	Nmar_0835	-	hypothetical protein
832	 36.43	0	739036..739842	-	268	161528344	-	Nmar_0836	-	hypothetical protein
833	 35.52	0	739895..740443	-	182	161528345	-	Nmar_0837	-	resolvase, Holliday junction-type
834	 27.69	-1	740761..740955	+	64	161528346	-	Nmar_0838	-	hypothetical protein
835	 32.49	0	741001..741828	+	275	161528347	-	Nmar_0839	-	hypothetical protein
836	 30.42	-1	741821..742129	-	102	161528348	-	Nmar_0840	-	hypothetical protein
837	 33.78	0	742126..743241	-	371	161528349	-	Nmar_0841	-	Propanoyl-CoA C-acyltransferase
838	 32.30	0	743238..744203	-	321	161528350	-	Nmar_0842	-	luciferase family protein
839	 29.45	-1	744462..745130	-	222	161528351	-	Nmar_0843	-	nucleotidyl transferase
840	 32.21	0	745167..745433	-	88	161528352	-	Nmar_0844	-	hypothetical protein
841	 39.19	+1	745568..745960	-	130	161528353	-	Nmar_0845	-	hypothetical protein
842	 34.56	0	745994..747136	-	380	161528354	-	Nmar_0846	-	phosphoribosylaminoimidazole carboxylase, ATPase subunit
843	 34.90	0	747236..747811	+	191	161528355	-	Nmar_0847	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
844	 36.64	0	747812..749020	-	402	161528356	-	Nmar_0848	-	threonine dehydratase
845	 29.63	-1	749201..750037	-	278	161528357	-	Nmar_0849	-	hypothetical protein
846	 33.81	0	750195..751031	+	278	161528358	-	Nmar_0850	-	adenylate/guanylate cyclase
847	 34.95	0	751329..751700	+	123	161528359	-	Nmar_0851	-	hypothetical protein
848	 27.65	-1	751758..752144	+	128	161528360	-	Nmar_0852	-	hypothetical protein
849	 37.47	0	752141..752551	-	136	161528361	-	Nmar_0853	-	glyoxalase/bleomycin resistance protein/dioxygenase
850	 36.99	0	752586..752804	-	72	161528362	-	Nmar_0854	-	AsnC family transcriptional regulator
851	 32.50	0	752798..753037	-	79	161528363	-	Nmar_0855	-	hypothetical protein
852	 34.08	0	753166..753432	+	88	161528364	-	Nmar_0856	-	hypothetical protein
853	 30.90	0	753628..753915	+	95	161528365	-	Nmar_0857	-	hypothetical protein
854	 31.84	0	754081..754617	-	178	161528366	-	Nmar_0858	-	ATP--cobalamin adenosyltransferase
855	 28.84	-1	754698..755231	+	177	161528367	-	Nmar_0859	-	metal dependent phosphohydrolase
856	 28.44	-1	755231..755455	+	74	161528368	-	Nmar_0860	-	hypothetical protein
857	 29.87	-1	755452..755826	-	124	161528369	-	Nmar_0861	-	hypothetical protein
858	 33.62	0	755829..756176	+	115	161528370	-	Nmar_0862	-	hypothetical protein
859	 35.29	0	756232..757455	+	407	161528371	-	Nmar_0863	-	LOR/SDH bifunctional protein
860	 32.36	0	757600..758112	+	170	161528372	-	Nmar_0864	-	hypothetical protein
861	 33.55	0	758109..759467	-	452	161528373	-	Nmar_0865	-	aminotransferase class I and II
862	 34.48	0	759537..761462	-	641	161528374	-	Nmar_0866	-	AMP-dependent synthetase and ligase
34.31	MEAN

3.47	STD DEV
