IslandPath Analysis: Nitrosopumilus maritimus SCM1

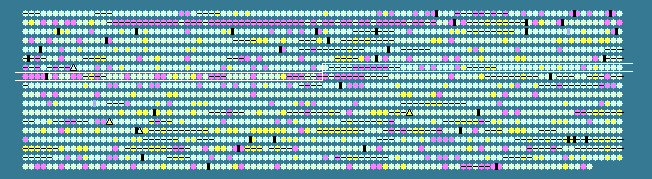

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.31 STD DEV: 3.47
Nitrosopumilus maritimus SCM1, complete genome - 1..1645259
1795 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
651	 34.24	0	594507..595166	-	219	161528163	-	Nmar_0655	-	DSBA oxidoreductase
652	 30.86	0	595230..596483	+	417	161528164	-	Nmar_0656	-	histidine kinase
653	 33.64	0	596491..597801	-	436	161528165	-	Nmar_0657	-	hypothetical protein
654	 35.76	0	597843..599285	-	480	161528166	-	Nmar_0658	-	prolyl-tRNA synthetase
655	 37.19	0	599345..599629	-	94	161528167	-	Nmar_0659	-	hypothetical protein
656	 25.94	-2	600147..602594	+	815	161528168	-	Nmar_0660	-	hypothetical protein
657	 29.42	-1	602646..603284	+	212	161528169	-	Nmar_0661	-	peptidase C26
658	 26.77	-2	603278..604069	+	263	161528170	-	Nmar_0662	-	hypothetical protein
659	 28.94	-1	604071..605186	+	371	161528171	-	Nmar_0663	-	sulfatase
660	 24.31	-2	605261..606412	-	383	161528172	-	Nmar_0664	-	CDP-glycerol:poly(glycerophosphate) glycerophosphotransferase
661	 26.13	-2	606588..608129	+	513	161528173	-	Nmar_0665	-	hypothetical protein
662	 33.47	0	608181..608897	+	238	161528174	-	Nmar_0666	-	phosphoserine phosphatase SerB
663	 33.47	0	608932..609657	+	241	161528175	-	Nmar_0667	-	F420-dependent oxidoreductase, putative
664	 33.11	0	609714..610628	+	304	161528176	-	Nmar_0668	-	phosphotransferase domain-containing protein
665	 32.91	0	610696..610932	+	78	161528177	-	Nmar_0669	-	SirA family protein
666	 35.65	0	610941..611933	+	330	161528178	-	Nmar_0670	-	pyridoxal-5'-phosphate-dependent protein beta subunit
667	 27.64	-1	611934..612407	-	157	161528179	-	Nmar_0671	-	hypothetical protein
668	 36.72	0	612652..613656	-	334	161528180	-	Nmar_0672	-	thioredoxin reductase
669	 28.51	-1	613707..614204	-	165	161528181	-	Nmar_0673	-	signal-transduction protein
670	 31.02	0	614254..614685	+	143	161528182	-	Nmar_0674	-	UspA domain-containing protein
671	 34.20	0	614682..615029	+	115	161528183	-	Nmar_0675	-	hypothetical protein
672	 32.57	0	615047..615958	+	303	161528184	-	Nmar_0676	-	lactate/malate dehydrogenase
673	 28.66	-1	615949..616719	-	256	161528185	-	Nmar_0677	-	hypothetical protein
674	 38.58	+1	616743..617561	-	272	161528186	-	Nmar_0678	-	ribulose-1,5-biphosphate synthetase
675	 36.54	0	617751..619559	+	602	161528187	-	Nmar_0679	-	sulfite reductase (ferredoxin)
676	 35.84	0	619556..620353	+	265	161528188	-	Nmar_0680	-	rhodanese domain-containing protein
677	 31.91	0	620354..621481	-	375	161528189	-	Nmar_0681	-	TPR repeat-containing protein
678	 46.53	+2	621596..623224	+	542	161528190	-	Nmar_0682	-	triple helix repeat-containing collagen
679	 45.14	+2	623360..623740	-	126	161528191	-	Nmar_0683	-	histone protein
680	 33.42	0	624050..625159	-	369	161528192	-	Nmar_0684	-	small GTP-binding protein
681	 35.92	0	625481..626176	+	231	161528193	-	Nmar_0685	-	SPP-like hydrolase
682	 32.96	0	626178..628064	+	628	161528194	-	Nmar_0686	-	arginyl-tRNA synthetase
683	 33.72	0	628174..629472	+	432	161528195	-	Nmar_0687	-	peptidyl-arginine deiminase
684	 31.77	0	629474..629986	-	170	161528196	-	Nmar_0688	-	hypothetical protein
685	 34.50	0	630214..630555	-	113	161528197	-	Nmar_0689	-	hypothetical protein
686	 35.15	0	631181..632062	+	293	161528198	-	Nmar_0690	-	tRNA methyltransferase complex GCD14 subunit
687	 38.08	+1	632107..632970	+	287	161528199	-	Nmar_0691	-	carbohydrate kinase, YjeF related protein
688	 35.18	0	632975..634327	+	450	161528200	-	Nmar_0692	-	peptidase M20
689	 37.65	0	634324..634740	-	138	161528201	-	Nmar_0693	-	DoxX family protein
690	 38.69	+1	634836..635432	+	198	161528202	-	Nmar_0694	-	proteasome endopeptidase complex
691	 32.29	0	635442..635918	-	158	161528203	-	Nmar_0695	-	PUA domain-containing protein
692	 37.49	0	635915..636925	-	336	161528204	-	Nmar_0696	-	homoserine dehydrogenase
693	 37.50	0	637018..637425	-	135	161528205	-	Nmar_0697	-	methionine-R-sulfoxide reductase
694	 29.55	-1	637462..639099	-	545	161528206	-	Nmar_0698	-	thymidylate synthase complementing protein ThyX
695	 35.71	0	639111..639404	-	97	161528207	-	Nmar_0699	-	hypothetical protein
696	 39.25	+1	639538..640416	+	292	161528208	-	Nmar_0700	-	hypothetical protein
697	 37.30	0	640471..642387	+	638	161528209	-	Nmar_0701	-	acetate--CoA ligase
698	 33.52	0	642384..642908	-	174	161528210	-	Nmar_0702	-	putative PAS/PAC sensor protein
699	 33.63	0	642950..643972	-	340	161528211	-	Nmar_0703	-	flap endonuclease-1
700	 32.46	0	644012..644812	-	266	161528212	-	Nmar_0704	-	hypothetical protein
701	 28.05	-1	644805..645656	-	283	161528213	-	Nmar_0705	-	transcriptional regulator, TrmB
702	 30.27	-1	645838..646848	+	336	161528214	-	Nmar_0706	-	peptidase M10A and M12B matrixin and adamalysin
703	 30.11	-1	646845..647495	+	216	161528215	-	Nmar_0707	-	response regulator receiver protein
704	 25.64	-2	647501..647773	+	90	161528216	-	Nmar_0708	-	hypothetical protein
705	 34.41	0	648158..648805	+	215	161528217	-	Nmar_0709	-	nitroreductase
706	 30.77	-1	648858..649091	+	77	161528218	-	Nmar_0710	-	AsnC/Lrp family regulatory protein
707	 30.95	0	649352..649729	+	125	161528219	-	Nmar_0711	-	hypothetical protein
708	 37.43	0	649883..650224	-	113	161528220	-	Nmar_0712	-	hypothetical protein
709	 29.87	-1	650279..650740	-	153	161528221	-	Nmar_0713	-	hypothetical protein
710	 29.04	-1	650813..652093	+	426	161528222	-	Nmar_0714	-	hypothetical protein
711	 34.08	0	652125..652526	+	133	161528223	-	Nmar_0715	-	Mov34/MPN/PAD-1 family protein
712	 45.45	+2	652664..652927	+	87	161528224	-	Nmar_0716	-	hypothetical protein
713	 30.45	-1	652930..653241	+	103	161528225	-	Nmar_0717	-	hypothetical protein
714	 33.85	0	653242..654609	-	455	161528226	-	Nmar_0718	-	binding-protein-dependent transport systems inner membrane component
715	 35.52	0	654606..655655	-	349	161528227	-	Nmar_0719	-	binding-protein-dependent transport systems inner membrane component
716	 32.04	0	655859..656167	+	102	161528228	-	Nmar_0720	-	hypothetical protein
717	 31.28	0	656186..656428	+	80	161528229	-	Nmar_0721	-	hypothetical protein
718	 27.47	-1	656430..656702	-	90	161528230	-	Nmar_0722	-	arsenate reductase and related
719	 34.07	0	657033..657980	-	315	161528231	-	Nmar_0723	-	hypothetical protein
720	 31.06	0	658136..658795	+	219	161528232	-	Nmar_0724	-	hypothetical protein
721	 32.89	0	658983..659663	-	226	161528233	-	Nmar_0725	-	hypothetical protein
722	 33.57	0	659913..661637	+	574	161528234	-	Nmar_0726	-	SNF2-related protein
723	 28.29	-1	661638..662252	-	204	161528235	-	Nmar_0727	-	hypothetical protein
724	 25.35	-2	662287..662850	-	187	161528236	-	Nmar_0728	-	hypothetical protein
725	 33.65	0	662927..663550	+	207	161528237	-	Nmar_0729	-	superoxide dismutase
726	 40.34	+1	663600..664898	+	432	161528238	-	Nmar_0730	-	hypothetical protein
727	 33.87	0	665007..665381	+	124	161528239	-	Nmar_0731	-	hypothetical protein
728	 34.13	0	665435..665686	+	83	161528240	-	Nmar_0732	-	hypothetical protein
729	 41.67	+2	665703..665846	-	47	161528241	-	Nmar_0733	-	hypothetical protein
730	 25.66	-2	666166..667611	-	481	161528242	-	Nmar_0734	-	FAD linked oxidase domain-containing protein
731	 31.74	0	667620..668933	-	437	161528243	-	Nmar_0735	-	hypothetical protein
732	 30.12	-1	669032..669436	+	134	161528244	-	Nmar_0736	-	hypothetical protein
733	 28.96	-1	669433..669981	-	182	161528245	-	Nmar_0737	-	heat shock protein DnaJ domain-containing protein
734	 29.95	-1	669992..670435	-	147	161528246	-	Nmar_0738	-	AsnC family transcriptional regulator
735	 35.53	0	670559..670786	+	75	161528247	-	Nmar_0739	-	TPR repeat-containing protein
736	 32.91	0	670859..671335	+	158	161528248	-	Nmar_0740	-	TPR repeat-containing protein
737	 35.06	0	671322..671495	-	57	161528249	-	Nmar_0741	-	hypothetical protein
738	 34.43	0	671572..672669	+	365	161528250	-	Nmar_0742	-	radical SAM domain-containing protein
739	 29.74	-1	672666..672971	-	101	161528251	-	Nmar_0743	-	hypothetical protein
740	 37.61	0	673009..673242	-	77	161528252	-	Nmar_0744	-	hypothetical protein
741	 32.99	0	673391..673681	-	96	161528253	-	Nmar_0745	-	hypothetical protein
742	 34.30	0	673708..674535	-	275	161528254	-	Nmar_0746	-	hypothetical protein
743	 33.75	0	674573..675526	+	317	161528255	-	Nmar_0747	-	hypothetical protein
744	 38.30	+1	675576..677768	+	730	161528256	-	Nmar_0748	-	elongation factor EF-2
745	 30.57	-1	677860..678438	+	192	161528257	-	Nmar_0749	-	hypothetical protein
746	 30.30	-1	678482..678712	+	76	161528258	-	Nmar_0750	-	hypothetical protein
747	 28.57	-1	678747..678977	+	76	161528259	-	Nmar_0751	-	hypothetical protein
748	 31.69	0	678980..679405	-	141	161528260	-	Nmar_0752	-	hypothetical protein
749	 33.33	0	679479..679691	-	70	161528261	-	Nmar_0753	-	hypothetical protein
750	 29.89	-1	679820..681301	+	493	161528262	-	Nmar_0754	-	hypothetical protein
34.31	MEAN

3.47	STD DEV
