IslandPath Analysis: Nitrosopumilus maritimus SCM1

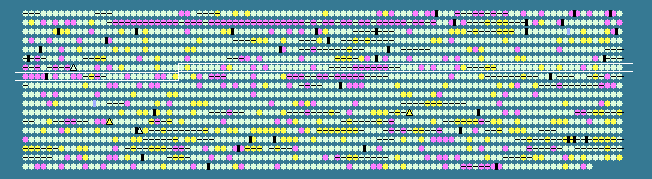

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.31 STD DEV: 3.47
Nitrosopumilus maritimus SCM1, complete genome - 1..1645259
1795 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
627	 34.49	0	573682..574890	-	402	161528139	-	Nmar_0631	-	geranylgeranyl reductase
628	 38.10	+1	574939..575148	-	69	161528140	-	Nmar_0632	-	hypothetical protein
629	 31.79	0	575347..575928	+	193	161528141	-	Nmar_0633	-	hypothetical protein
630	 36.75	0	575917..576678	-	253	161528142	-	Nmar_0634	-	short-chain dehydrogenase/reductase SDR
631	 31.63	0	576732..577610	-	292	161528143	-	Nmar_0635	-	2-hydroxy-3-oxopropionate reductase
632	 37.73	0	577614..578000	-	128	161528144	-	Nmar_0636	-	hypothetical protein
633	 32.79	0	578082..578450	+	122	161528145	-	Nmar_0637	-	zinc finger C2H2-type domain-containing protein
634	 29.70	-1	578441..578743	-	100	161528146	-	Nmar_0638	-	hypothetical protein
635	 39.82	+1	579023..579685	+	220	161528147	-	Nmar_0639	-	DSBA oxidoreductase
636	 35.42	0	579686..580165	+	159	161528148	-	Nmar_0640	-	hypothetical protein
637	 37.79	+1	580411..581352	+	313	161528149	-	Nmar_0641	-	hypothetical protein
638	 32.24	0	581336..582430	-	364	161528150	-	Nmar_0642	-	DNA-directed DNA polymerase
639	 28.17	-1	582503..582754	+	83	161528151	-	Nmar_0643	-	hypothetical protein
640	 33.33	0	583285..583518	+	77	161528152	-	Nmar_0644	-	DNA-binding protein
641	 25.83	-2	583499..583738	+	79	161528153	-	Nmar_0645	-	hypothetical protein
642	 32.69	0	583735..584355	-	206	161528154	-	Nmar_0646	-	lysine exporter protein LysE/YggA
643	 32.77	0	584407..585120	-	237	161528155	-	Nmar_0647	-	hypothetical protein
644	 35.03	0	585157..586098	-	313	161528156	-	Nmar_0648	-	putative deoxyhypusine synthase
645	 35.62	0	586202..587296	+	364	161528157	-	Nmar_0649	-	myo-inositol-1-phosphate synthase
646	 34.96	0	587297..588034	-	245	161528158	-	Nmar_0650	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
647	 32.79	0	588210..591734	+	1174	161528159	-	Nmar_0651	-	SMC domain-containing protein
648	 33.54	0	591731..592699	-	322	161528160	-	Nmar_0652	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
649	 30.59	-1	592793..593812	+	339	161528161	-	Nmar_0653	-	hypothetical protein
650	 32.98	0	593853..594419	-	188	161528162	-	Nmar_0654	-	NADPH-dependent FMN reductase
651	 34.24	0	594507..595166	-	219	161528163	-	Nmar_0655	-	DSBA oxidoreductase
652	 30.86	0	595230..596483	+	417	161528164	-	Nmar_0656	-	histidine kinase
653	 33.64	0	596491..597801	-	436	161528165	-	Nmar_0657	-	hypothetical protein
654	 35.76	0	597843..599285	-	480	161528166	-	Nmar_0658	-	prolyl-tRNA synthetase
655	 37.19	0	599345..599629	-	94	161528167	-	Nmar_0659	-	hypothetical protein
656	 25.94	-2	600147..602594	+	815	161528168	-	Nmar_0660	-	hypothetical protein
657	 29.42	-1	602646..603284	+	212	161528169	-	Nmar_0661	-	peptidase C26
658	 26.77	-2	603278..604069	+	263	161528170	-	Nmar_0662	-	hypothetical protein
659	 28.94	-1	604071..605186	+	371	161528171	-	Nmar_0663	-	sulfatase
660	 24.31	-2	605261..606412	-	383	161528172	-	Nmar_0664	-	CDP-glycerol:poly(glycerophosphate) glycerophosphotransferase
661	 26.13	-2	606588..608129	+	513	161528173	-	Nmar_0665	-	hypothetical protein
662	 33.47	0	608181..608897	+	238	161528174	-	Nmar_0666	-	phosphoserine phosphatase SerB
663	 33.47	0	608932..609657	+	241	161528175	-	Nmar_0667	-	F420-dependent oxidoreductase, putative
664	 33.11	0	609714..610628	+	304	161528176	-	Nmar_0668	-	phosphotransferase domain-containing protein
665	 32.91	0	610696..610932	+	78	161528177	-	Nmar_0669	-	SirA family protein
666	 35.65	0	610941..611933	+	330	161528178	-	Nmar_0670	-	pyridoxal-5'-phosphate-dependent protein beta subunit
667	 27.64	-1	611934..612407	-	157	161528179	-	Nmar_0671	-	hypothetical protein
668	 36.72	0	612652..613656	-	334	161528180	-	Nmar_0672	-	thioredoxin reductase
669	 28.51	-1	613707..614204	-	165	161528181	-	Nmar_0673	-	signal-transduction protein
670	 31.02	0	614254..614685	+	143	161528182	-	Nmar_0674	-	UspA domain-containing protein
671	 34.20	0	614682..615029	+	115	161528183	-	Nmar_0675	-	hypothetical protein
672	 32.57	0	615047..615958	+	303	161528184	-	Nmar_0676	-	lactate/malate dehydrogenase
673	 28.66	-1	615949..616719	-	256	161528185	-	Nmar_0677	-	hypothetical protein
674	 38.58	+1	616743..617561	-	272	161528186	-	Nmar_0678	-	ribulose-1,5-biphosphate synthetase
675	 36.54	0	617751..619559	+	602	161528187	-	Nmar_0679	-	sulfite reductase (ferredoxin)
676	 35.84	0	619556..620353	+	265	161528188	-	Nmar_0680	-	rhodanese domain-containing protein
677	 31.91	0	620354..621481	-	375	161528189	-	Nmar_0681	-	TPR repeat-containing protein
678	 46.53	+2	621596..623224	+	542	161528190	-	Nmar_0682	-	triple helix repeat-containing collagen
679	 45.14	+2	623360..623740	-	126	161528191	-	Nmar_0683	-	histone protein
680	 33.42	0	624050..625159	-	369	161528192	-	Nmar_0684	-	small GTP-binding protein
681	 35.92	0	625481..626176	+	231	161528193	-	Nmar_0685	-	SPP-like hydrolase
682	 32.96	0	626178..628064	+	628	161528194	-	Nmar_0686	-	arginyl-tRNA synthetase
683	 33.72	0	628174..629472	+	432	161528195	-	Nmar_0687	-	peptidyl-arginine deiminase
684	 31.77	0	629474..629986	-	170	161528196	-	Nmar_0688	-	hypothetical protein
685	 34.50	0	630214..630555	-	113	161528197	-	Nmar_0689	-	hypothetical protein
686	 35.15	0	631181..632062	+	293	161528198	-	Nmar_0690	-	tRNA methyltransferase complex GCD14 subunit
687	 38.08	+1	632107..632970	+	287	161528199	-	Nmar_0691	-	carbohydrate kinase, YjeF related protein
688	 35.18	0	632975..634327	+	450	161528200	-	Nmar_0692	-	peptidase M20
689	 37.65	0	634324..634740	-	138	161528201	-	Nmar_0693	-	DoxX family protein
690	 38.69	+1	634836..635432	+	198	161528202	-	Nmar_0694	-	proteasome endopeptidase complex
691	 32.29	0	635442..635918	-	158	161528203	-	Nmar_0695	-	PUA domain-containing protein
692	 37.49	0	635915..636925	-	336	161528204	-	Nmar_0696	-	homoserine dehydrogenase
693	 37.50	0	637018..637425	-	135	161528205	-	Nmar_0697	-	methionine-R-sulfoxide reductase
694	 29.55	-1	637462..639099	-	545	161528206	-	Nmar_0698	-	thymidylate synthase complementing protein ThyX
695	 35.71	0	639111..639404	-	97	161528207	-	Nmar_0699	-	hypothetical protein
696	 39.25	+1	639538..640416	+	292	161528208	-	Nmar_0700	-	hypothetical protein
697	 37.30	0	640471..642387	+	638	161528209	-	Nmar_0701	-	acetate--CoA ligase
698	 33.52	0	642384..642908	-	174	161528210	-	Nmar_0702	-	putative PAS/PAC sensor protein
699	 33.63	0	642950..643972	-	340	161528211	-	Nmar_0703	-	flap endonuclease-1
700	 32.46	0	644012..644812	-	266	161528212	-	Nmar_0704	-	hypothetical protein
701	 28.05	-1	644805..645656	-	283	161528213	-	Nmar_0705	-	transcriptional regulator, TrmB
702	 30.27	-1	645838..646848	+	336	161528214	-	Nmar_0706	-	peptidase M10A and M12B matrixin and adamalysin
703	 30.11	-1	646845..647495	+	216	161528215	-	Nmar_0707	-	response regulator receiver protein
704	 25.64	-2	647501..647773	+	90	161528216	-	Nmar_0708	-	hypothetical protein
705	 34.41	0	648158..648805	+	215	161528217	-	Nmar_0709	-	nitroreductase
706	 30.77	-1	648858..649091	+	77	161528218	-	Nmar_0710	-	AsnC/Lrp family regulatory protein
707	 30.95	0	649352..649729	+	125	161528219	-	Nmar_0711	-	hypothetical protein
708	 37.43	0	649883..650224	-	113	161528220	-	Nmar_0712	-	hypothetical protein
709	 29.87	-1	650279..650740	-	153	161528221	-	Nmar_0713	-	hypothetical protein
710	 29.04	-1	650813..652093	+	426	161528222	-	Nmar_0714	-	hypothetical protein
711	 34.08	0	652125..652526	+	133	161528223	-	Nmar_0715	-	Mov34/MPN/PAD-1 family protein
712	 45.45	+2	652664..652927	+	87	161528224	-	Nmar_0716	-	hypothetical protein
713	 30.45	-1	652930..653241	+	103	161528225	-	Nmar_0717	-	hypothetical protein
714	 33.85	0	653242..654609	-	455	161528226	-	Nmar_0718	-	binding-protein-dependent transport systems inner membrane component
715	 35.52	0	654606..655655	-	349	161528227	-	Nmar_0719	-	binding-protein-dependent transport systems inner membrane component
716	 32.04	0	655859..656167	+	102	161528228	-	Nmar_0720	-	hypothetical protein
717	 31.28	0	656186..656428	+	80	161528229	-	Nmar_0721	-	hypothetical protein
718	 27.47	-1	656430..656702	-	90	161528230	-	Nmar_0722	-	arsenate reductase and related
719	 34.07	0	657033..657980	-	315	161528231	-	Nmar_0723	-	hypothetical protein
720	 31.06	0	658136..658795	+	219	161528232	-	Nmar_0724	-	hypothetical protein
721	 32.89	0	658983..659663	-	226	161528233	-	Nmar_0725	-	hypothetical protein
722	 33.57	0	659913..661637	+	574	161528234	-	Nmar_0726	-	SNF2-related protein
723	 28.29	-1	661638..662252	-	204	161528235	-	Nmar_0727	-	hypothetical protein
724	 25.35	-2	662287..662850	-	187	161528236	-	Nmar_0728	-	hypothetical protein
725	 33.65	0	662927..663550	+	207	161528237	-	Nmar_0729	-	superoxide dismutase
726	 40.34	+1	663600..664898	+	432	161528238	-	Nmar_0730	-	hypothetical protein
34.31	MEAN

3.47	STD DEV
