IslandPathversion 1.0

IslandPath Analysis: Nitrosopumilus maritimus SCM1

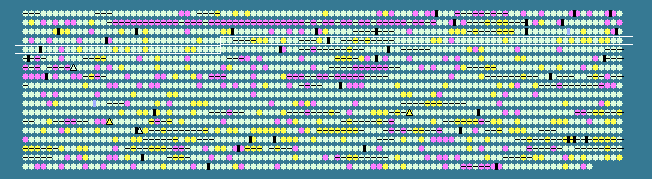

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.31 STD DEV: 3.47
Nitrosopumilus maritimus SCM1, complete genome - 1..1645259
1795 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
334	 35.30	0	301284..302198	-	304	161527846	-	Nmar_0338	-	malate dehydrogenase
335	 31.20	0	302289..303509	+	406	161527847	-	Nmar_0339	-	hypothetical protein
336	 32.71	0	303510..304307	+	265	161527848	-	Nmar_0340	-	ExsB family protein
337	 33.85	0	304304..305470	+	388	161527849	-	Nmar_0341	-	cysteine desulfurase
338	 33.71	0	305467..306258	-	263	161527850	-	Nmar_0342	-	hypothetical protein
339	 40.11	+1	306364..307248	-	294	161527851	-	Nmar_0343	-	hypothetical protein
340	 38.11	+1	307311..308168	-	285	161527852	-	Nmar_0344	-	hypothetical protein
341	 38.45	+1	308232..309071	-	279	161527853	-	Nmar_0345	-	hypothetical protein
342	 33.33	0	309252..309503	+	83	161527854	-	Nmar_0346	-	RNA polymerase Rpb5
343	 37.43	0	309504..312851	+	1115	161527855	-	Nmar_0347	-	DNA-directed RNA polymerase subunit beta
344	 37.92	+1	312851..316642	+	1263	161527856	-	Nmar_0348	-	DNA-directed RNA polymerase subunit A'
345	 33.74	0	316647..316889	+	80	161527857	-	Nmar_0349	-	like-Sm ribonucleoprotein core
346	 34.10	0	316926..318104	+	392	161527858	-	Nmar_0350	-	hypothetical protein
347	 31.89	0	318160..319821	+	553	161527859	-	Nmar_0351	-	TPR repeat-containing protein
348	 31.17	0	319896..320219	+	107	161527860	-	Nmar_0352	-	ribosomal protein L7Ae/L30e/S12e/Gadd45
349	 35.27	0	320271..320735	+	154	161527861	-	Nmar_0353	-	NusA family protein
350	 38.13	+1	320739..321176	+	145	161527862	-	Nmar_0354	-	30S ribosomal protein S12P
351	 36.00	0	321179..321778	+	199	161527863	-	Nmar_0355	-	30S ribosomal protein S7P
352	 30.91	0	321937..322266	-	109	161527864	-	Nmar_0356	-	hypothetical protein
353	 35.89	0	322289..322993	+	234	161527865	-	Nmar_0357	-	hypothetical protein
354	 32.44	0	322995..323444	+	149	161527866	-	Nmar_0358	-	GCN5-related N-acetyltransferase
355	 34.63	0	323446..324444	-	332	161527867	-	Nmar_0359	-	dehydrogenase (flavoprotein)-like protein
356	 38.14	+1	324760..325362	+	200	161527868	-	Nmar_0360	-	nitroreductase
357	 36.18	0	325543..325788	+	81	161527869	-	Nmar_0361	-	hypothetical protein
358	 38.89	+1	326058..326291	+	77	161527870	-	Nmar_0362	-	hypothetical protein
359	 35.66	0	326498..328084	-	528	161527871	-	Nmar_0363	-	putative periplasmic ligand-binding sensor protein
360	 33.91	0	328905..329423	+	172	161527872	-	Nmar_0364	-	hypothetical protein
361	 35.29	0	329707..330012	-	101	161527873	-	Nmar_0365	-	hypothetical protein
362	 36.54	0	330106..330759	-	217	161527874	-	Nmar_0366	-	uracil-DNA glycosylase superfamily protein
363	 36.61	0	330772..333639	-	955	161527875	-	Nmar_0367	-	leucyl-tRNA synthetase
364	 36.40	0	333646..336315	-	889	161527876	-	Nmar_0368	-	alanyl-tRNA synthetase
365	 35.51	0	336389..337354	+	321	161527877	-	Nmar_0369	-	alcohol dehydrogenase
366	 35.37	0	337401..337793	+	130	161527878	-	Nmar_0370	-	hypothetical protein
367	 36.66	0	337790..339022	-	410	161527879	-	Nmar_0371	-	glucose sorbosone dehydrogenase
368	 32.21	0	339073..340590	-	505	161527880	-	Nmar_0372	-	histidine kinase
369	 37.84	+1	340670..341179	+	169	161527881	-	Nmar_0373	-	hypothetical protein
370	 46.23	+2	341230..341547	+	105	161527882	-	Nmar_0374	-	50S ribosomal protein L12P
371	 36.18	0	341630..342262	+	210	161527883	-	Nmar_0375	-	hypothetical protein
372	 30.42	-1	342391..342768	+	125	161527884	-	Nmar_0376	-	response regulator receiver protein
373	 32.55	0	342779..343666	-	295	161527885	-	Nmar_0377	-	hypothetical protein
374	 31.02	0	343754..343969	-	71	161527886	-	Nmar_0378	-	hypothetical protein
375	 33.11	0	343966..344403	-	145	161527887	-	Nmar_0379	-	hypothetical protein
376	 34.26	0	344405..345478	-	357	161527888	-	Nmar_0380	-	hypothetical protein
377	 37.72	0	345558..346424	-	288	161527889	-	Nmar_0381	-	acidic ribosomal protein P0
378	 36.80	0	346417..347079	-	220	161527890	-	Nmar_0382	-	ribosomal protein L1
379	 33.79	0	347271..347708	+	145	161527891	-	Nmar_0383	-	AsnC family transcriptional regulator
380	 34.04	0	348189..348329	+	46	161527892	-	Nmar_0384	-	hypothetical protein
381	 39.38	+1	348548..349027	-	159	161527893	-	Nmar_0385	-	ribosomal protein L11
382	 35.73	0	349062..349520	-	152	161527894	-	Nmar_0386	-	NusG antitermination factor
383	 36.68	0	349736..350512	+	258	161527895	-	Nmar_0387	-	hypothetical protein
384	 35.00	0	350509..350808	+	99	161527896	-	Nmar_0388	-	methylated-DNA--protein-cysteine methyltransferase
385	 35.86	0	350810..351205	-	131	161527897	-	Nmar_0389	-	glyoxalase/bleomycin resistance protein/dioxygenase
386	 36.40	0	351250..351705	-	151	161527898	-	Nmar_0390	-	50S ribosomal protein L19e
387	 37.28	0	351689..352093	-	134	161527899	-	Nmar_0391	-	ribosomal protein L32e
388	 37.53	0	352349..353848	+	499	161527900	-	Nmar_0392	-	phosphoenolpyruvate carboxykinase
389	 36.21	0	353850..355832	-	660	161527901	-	Nmar_0393	-	peptidase S8 and S53 subtilisin kexin sedolisin
390	 39.45	+1	355951..356571	+	206	161527902	-	Nmar_0394	-	superoxide dismutase
391	 36.53	0	356654..357091	+	145	161527903	-	Nmar_0395	-	prefoldin, alpha subunit
392	 38.00	+1	357095..358636	+	513	161527904	-	Nmar_0396	-	signal recognition particle-docking protein FtsY
393	 36.28	0	358633..359547	+	304	161527905	-	Nmar_0397	-	ornithine carbamoyltransferase
394	 38.92	+1	359584..360066	+	160	161527906	-	Nmar_0398	-	50S ribosomal protein L18P
395	 38.91	+1	360068..360784	+	238	161527907	-	Nmar_0399	-	30S ribosomal protein S5P
396	 35.90	0	360791..361258	+	155	161527908	-	Nmar_0400	-	50S ribosomal protein L30P
397	 43.01	+2	361260..361724	+	154	161527909	-	Nmar_0401	-	ribosomal protein L15
398	 42.28	+2	361717..363147	+	476	161527910	-	Nmar_0402	-	preprotein translocase, SecY subunit
399	 37.13	0	363134..363712	+	192	161527911	-	Nmar_0403	-	adenylate kinase
400	 37.18	0	363716..364339	+	207	161527912	-	Nmar_0404	-	membrane protein-like protein
401	 36.36	0	364336..364896	+	186	161527913	-	Nmar_0405	-	cytidylate kinase
402	 36.34	0	364893..365891	+	332	161527914	-	Nmar_0406	-	pseudouridylate synthase subunit TruB
403	 32.89	0	365895..366341	+	148	161527915	-	Nmar_0407	-	hypothetical protein
404	 37.47	0	366847..367329	+	160	161527916	-	Nmar_0408	-	secreted protein
405	 35.69	0	367332..368645	-	437	161527917	-	Nmar_0409	-	FAD dependent oxidoreductase
406	 36.17	0	368734..369015	+	93	161527918	-	Nmar_0410	-	hypothetical protein
407	 29.92	-1	369033..369413	+	126	161527919	-	Nmar_0411	-	hypothetical protein
408	 33.75	0	369607..370575	-	322	161527920	-	Nmar_0412	-	glyoxylate reductase
409	 35.95	0	370822..372732	+	636	161527921	-	Nmar_0413	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
410	 38.11	+1	372722..373684	+	320	161527922	-	Nmar_0414	-	pyruvate ferredoxin/flavodoxin oxidoreductase, beta subunit
411	 33.11	0	373734..374174	+	146	161527923	-	Nmar_0415	-	hypothetical protein
412	 32.58	0	374167..374700	-	177	161527924	-	Nmar_0416	-	hypothetical protein
413	 37.10	0	374758..375129	+	123	161527925	-	Nmar_0417	-	hypothetical protein
414	 33.33	0	375131..375700	-	189	161527926	-	Nmar_0418	-	hypothetical protein
415	 34.74	0	375731..376510	-	259	161527927	-	Nmar_0419	-	hypothetical protein
416	 39.40	+1	376584..377852	+	422	161527928	-	Nmar_0420	-	3-isopropylmalate dehydratase
417	 35.82	0	377852..378334	+	160	161527929	-	Nmar_0421	-	3-isopropylmalate dehydratase, small subunit
418	 38.91	+1	378343..379758	+	471	161527930	-	Nmar_0422	-	3-isopropylmalate dehydratase, large subunit
419	 33.33	0	379760..380344	+	194	161527931	-	Nmar_0423	-	3-isopropylmalate dehydratase, small subunit
420	 33.33	0	380322..381041	-	239	161527932	-	Nmar_0424	-	nucleotidyl transferase
421	 38.00	+1	381045..381494	-	149	161527933	-	Nmar_0425	-	ribosomal protein S9
422	 34.41	0	381491..381955	-	154	161527934	-	Nmar_0426	-	ribosomal protein L13
423	 35.06	0	381948..382295	-	115	161527935	-	Nmar_0427	-	ribosomal protein L15
424	 36.49	0	382339..383004	-	221	161527936	-	Nmar_0428	-	RNA polymerase insert
425	 32.77	0	383085..383438	+	117	161527937	-	Nmar_0429	-	hypothetical protein
426	 35.37	0	383542..384228	+	228	161527938	-	Nmar_0430	-	putative RNA-associated protein
427	 37.30	0	384228..384908	+	226	161527939	-	Nmar_0431	-	exosome complex RNA-binding protein Rrp4
428	 39.05	+1	384908..385642	+	244	161527940	-	Nmar_0432	-	exosome complex exonuclease 1
429	 38.22	+1	385645..386463	+	272	161527941	-	Nmar_0433	-	exosome complex RNA-binding protein Rrp42
430	 34.74	0	386465..386677	+	70	161527942	-	Nmar_0434	-	hypothetical protein
431	 33.33	0	386661..386906	+	81	161527943	-	Nmar_0435	-	hypothetical protein
432	 36.67	0	386930..387319	+	129	161527944	-	Nmar_0436	-	prefoldin, beta subunit
433	 35.66	0	387372..388058	+	228	161527945	-	Nmar_0437	-	ERCC4 domain-containing protein
34.31	MEAN

3.47	STD DEV
