IslandPathversion 1.0

IslandPath Analysis: Nitrosopumilus maritimus SCM1

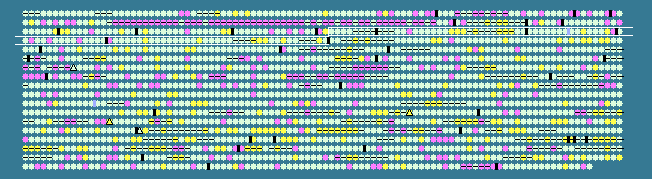

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.31 STD DEV: 3.47
Nitrosopumilus maritimus SCM1, complete genome - 1..1645259
1795 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
252	 35.41	0	225951..226817	-	288	161527764	-	Nmar_0256	-	putative methylisocitrate lyase
253	 32.55	0	227020..227529	-	169	161527765	-	Nmar_0257	-	PadR-like family transcriptional regulator
254	 37.65	0	227624..229336	+	570	161527766	-	Nmar_0258	-	succinate dehydrogenase or fumarate reductase, flavoprotein subunit
255	 36.81	0	229337..229768	+	143	161527767	-	Nmar_0259	-	hypothetical protein
256	 34.20	0	229770..230114	+	114	161527768	-	Nmar_0260	-	hypothetical protein
257	 35.87	0	230117..230866	+	249	161527769	-	Nmar_0261	-	succinate dehydrogenase and fumarate reductase iron-sulfur protein
258	 32.49	0	230863..231219	-	118	161527770	-	Nmar_0262	-	hypothetical protein
259	 31.89	0	231236..232693	+	485	161527771	-	Nmar_0263	-	argininosuccinate lyase
260	 35.93	0	233062..233793	+	243	161527772	-	Nmar_0264	-	hypothetical protein
261	 33.98	0	233806..234882	+	358	161527773	-	Nmar_0265	-	glutamyl-tRNA reductase
262	 35.12	0	234888..235055	-	55	161527774	-	Nmar_0266	-	hypothetical protein
263	 35.94	0	235140..235982	-	280	161527775	-	Nmar_0267	-	oxidoreductase FAD/NAD(P)-binding subunit
264	 34.08	0	236068..236868	-	266	161527776	-	Nmar_0268	-	inositol-phosphate phosphatase
265	 30.21	-1	236951..238072	+	373	161527777	-	Nmar_0269	-	hypothetical protein
266	 32.64	0	238081..239238	+	385	161527778	-	Nmar_0270	-	ATPase central domain-containing protein
267	 35.05	0	239256..239546	+	96	161527779	-	Nmar_0271	-	hypothetical protein
268	 36.18	0	239653..241200	+	515	161527780	-	Nmar_0272	-	carboxyl transferase
269	 35.28	0	241206..242693	+	495	161527781	-	Nmar_0273	-	carbamoyl-phosphate synthase L chain ATP-binding
270	 33.53	0	242700..243212	+	170	161527782	-	Nmar_0274	-	biotin/lipoyl attachment domain-containing protein
271	 35.91	0	243229..243693	-	154	161527783	-	Nmar_0275	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
272	 39.94	+1	243850..244182	+	110	161527784	-	Nmar_0276	-	NADH-ubiquinone/plastoquinone oxidoreductase chain 3
273	 38.86	+1	244223..244747	+	174	161527785	-	Nmar_0277	-	NADH-quinone oxidoreductase, B subunit
274	 37.98	+1	244747..245349	+	200	161527786	-	Nmar_0278	-	NADH dehydrogenase (ubiquinone) 30 kDa subunit
275	 36.50	0	245352..246488	+	378	161527787	-	Nmar_0279	-	NADH dehydrogenase (quinone)
276	 38.49	+1	246489..247787	+	432	161527788	-	Nmar_0280	-	NADH dehydrogenase (quinone)
277	 36.55	0	247787..248284	+	165	161527789	-	Nmar_0281	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
278	 36.84	0	248277..248789	+	170	161527790	-	Nmar_0282	-	NADH-ubiquinone/plastoquinone oxidoreductase chain 6
279	 36.27	0	248770..249075	+	101	161527791	-	Nmar_0283	-	NADH-ubiquinone oxidoreductase chain 4L
280	 38.35	+1	249075..250628	+	517	161527792	-	Nmar_0284	-	proton-translocating NADH-quinone oxidoreductase, chain M
281	 38.86	+1	250630..252708	+	692	161527793	-	Nmar_0285	-	proton-translocating NADH-quinone oxidoreductase, chain L
282	 37.85	+1	252721..254205	+	494	161527794	-	Nmar_0286	-	proton-translocating NADH-quinone oxidoreductase, chain N
283	 31.10	0	254195..255046	-	283	161527795	-	Nmar_0287	-	polyprenyl synthetase
284	 32.79	0	255156..255896	+	246	161527796	-	Nmar_0288	-	TENA/THI-4 domain-containing protein
285	 32.18	0	256122..256727	-	201	161527797	-	Nmar_0289	-	orotate phosphoribosyltransferase
286	 31.58	0	256778..257860	+	360	161527798	-	Nmar_0290	-	hypothetical protein
287	 34.33	0	257852..258958	-	368	161527799	-	Nmar_0291	-	peptidase M50
288	 34.50	0	259014..259529	+	171	161527800	-	Nmar_0292	-	ribosomal-protein-alanine acetyltransferase
289	 35.62	0	259567..259785	+	72	161527801	-	Nmar_0293	-	transcription regulator
290	 33.21	0	259787..260614	-	275	161527802	-	Nmar_0294	-	protein of unknown function Met10
291	 33.78	0	260620..262407	-	595	161527803	-	Nmar_0295	-	putative ATPase RIL
292	 32.17	0	262794..264260	-	488	161527804	-	Nmar_0296	-	leucyl aminopeptidase
293	 31.91	0	264300..264440	-	46	161527805	-	Nmar_0297	-	hypothetical protein
294	 38.83	+1	264765..265073	-	102	161527806	-	Nmar_0298	-	hypothetical protein
295	 35.43	0	265235..266902	+	555	161527807	-	Nmar_0299	-	ribulose-phosphate 3-epimerase
296	 36.41	0	266899..267873	+	324	161527808	-	Nmar_0300	-	transketolase central region
297	 34.23	0	267870..268538	+	222	161527809	-	Nmar_0301	-	putative transaldolase
298	 41.00	+1	268579..268839	-	86	161527810	-	Nmar_0302	-	hypothetical protein
299	 30.11	-1	268906..269928	-	340	161527811	-	Nmar_0303	-	Mg2 transporter protein CorA family protein
300	 31.79	0	270335..270724	-	129	161527812	-	Nmar_0304	-	hypothetical protein
301	 32.76	0	270781..271128	-	115	161527813	-	Nmar_0305	-	hypothetical protein
302	 30.31	-1	271169..271930	-	253	161527814	-	Nmar_0306	-	hypothetical protein
303	 33.33	0	271956..272225	-	89	161527815	-	Nmar_0307	-	hypothetical protein
304	 37.22	0	272261..272569	-	102	161527816	-	Nmar_0308	-	Rieske (2Fe-2S) domain-containing protein
305	 28.70	-1	272612..273388	+	258	161527817	-	Nmar_0309	-	GCN5-related N-acetyltransferase
306	 33.22	0	273380..274249	-	289	161527818	-	Nmar_0310	-	5-carboxymethyl-2-hydroxymuconate Delta-isomerase
307	 33.04	0	274255..275964	-	569	161527819	-	Nmar_0311	-	glutamyl-tRNA synthetase
308	 34.15	0	275986..276966	-	326	161527820	-	Nmar_0312	-	polyprenyl synthetase
309	 32.72	0	276953..277603	-	216	161527821	-	Nmar_0313	-	isopentenyl-diphosphate delta-isomerase, type 1
310	 30.65	-1	277603..278346	-	247	161527822	-	Nmar_0314	-	aspartate/glutamate/uridylate kinase
311	 30.89	0	278371..279312	-	313	161527823	-	Nmar_0315	-	mevalonate kinase
312	 35.26	0	279341..279964	-	207	161527824	-	Nmar_0316	-	30S ribosomal protein S2
313	 35.43	0	279972..281210	-	412	161527825	-	Nmar_0317	-	phosphopyruvate hydratase
314	 31.87	0	281212..281484	-	90	161527826	-	Nmar_0318	-	DNA-directed RNA polymerase subunit N
315	 28.29	-1	281601..282215	-	204	161527827	-	Nmar_0319	-	translin family protein
316	 34.57	0	282289..282936	+	215	161527828	-	Nmar_0320	-	carbohydrate kinase, YjeF related protein
317	 33.50	0	282933..283541	+	202	161527829	-	Nmar_0321	-	beta-lactamase domain-containing protein
318	 33.33	0	283546..284607	+	353	161527830	-	Nmar_0322	-	hypothetical protein
319	 32.94	0	284600..286360	-	586	161527831	-	Nmar_0323	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
320	 36.30	0	286452..287057	-	201	161527832	-	Nmar_0324	-	30S ribosomal protein S4
321	 41.54	+2	287067..287651	-	194	161527833	-	Nmar_0325	-	30S ribosomal protein S13P
322	 33.01	0	287984..288292	+	102	161527834	-	Nmar_0326	-	hypothetical protein
323	 33.33	0	288284..288787	-	167	161527835	-	Nmar_0327	-	hypothetical protein
324	 37.35	0	288926..289897	+	323	161527836	-	Nmar_0328	-	periplasmic solute binding protein
325	 36.32	0	289894..290664	+	256	161527837	-	Nmar_0329	-	ABC transporter related
326	 35.87	0	290680..291624	+	314	161527838	-	Nmar_0330	-	ABC-3 protein
327	 35.32	0	291621..292727	+	368	161527839	-	Nmar_0331	-	ABC-3 protein
328	 32.37	0	292745..294097	-	450	161527840	-	Nmar_0332	-	cation diffusion facilitator family transporter
329	 34.23	0	294247..297375	+	1042	161527841	-	Nmar_0333	-	hypothetical protein
330	 39.05	+1	297421..298452	+	343	161527842	-	Nmar_0334	-	hypothetical protein
331	 33.95	0	298503..298826	+	107	161527843	-	Nmar_0335	-	hypothetical protein
332	 35.93	0	298821..300401	-	526	161527844	-	Nmar_0336	-	radical SAM domain-containing protein
333	 33.72	0	300474..301250	-	258	161527845	-	Nmar_0337	-	1-(5-phosphoribosyl)-5-amino-4-imidazole-carboxylate (AIR) carboxylase
334	 35.30	0	301284..302198	-	304	161527846	-	Nmar_0338	-	malate dehydrogenase
335	 31.20	0	302289..303509	+	406	161527847	-	Nmar_0339	-	hypothetical protein
336	 32.71	0	303510..304307	+	265	161527848	-	Nmar_0340	-	ExsB family protein
337	 33.85	0	304304..305470	+	388	161527849	-	Nmar_0341	-	cysteine desulfurase
338	 33.71	0	305467..306258	-	263	161527850	-	Nmar_0342	-	hypothetical protein
339	 40.11	+1	306364..307248	-	294	161527851	-	Nmar_0343	-	hypothetical protein
340	 38.11	+1	307311..308168	-	285	161527852	-	Nmar_0344	-	hypothetical protein
341	 38.45	+1	308232..309071	-	279	161527853	-	Nmar_0345	-	hypothetical protein
342	 33.33	0	309252..309503	+	83	161527854	-	Nmar_0346	-	RNA polymerase Rpb5
343	 37.43	0	309504..312851	+	1115	161527855	-	Nmar_0347	-	DNA-directed RNA polymerase subunit beta
344	 37.92	+1	312851..316642	+	1263	161527856	-	Nmar_0348	-	DNA-directed RNA polymerase subunit A'
345	 33.74	0	316647..316889	+	80	161527857	-	Nmar_0349	-	like-Sm ribonucleoprotein core
346	 34.10	0	316926..318104	+	392	161527858	-	Nmar_0350	-	hypothetical protein
347	 31.89	0	318160..319821	+	553	161527859	-	Nmar_0351	-	TPR repeat-containing protein
348	 31.17	0	319896..320219	+	107	161527860	-	Nmar_0352	-	ribosomal protein L7Ae/L30e/S12e/Gadd45
349	 35.27	0	320271..320735	+	154	161527861	-	Nmar_0353	-	NusA family protein
350	 38.13	+1	320739..321176	+	145	161527862	-	Nmar_0354	-	30S ribosomal protein S12P
351	 36.00	0	321179..321778	+	199	161527863	-	Nmar_0355	-	30S ribosomal protein S7P
34.31	MEAN

3.47	STD DEV
