IslandPath Analysis: Nitrosopumilus maritimus SCM1

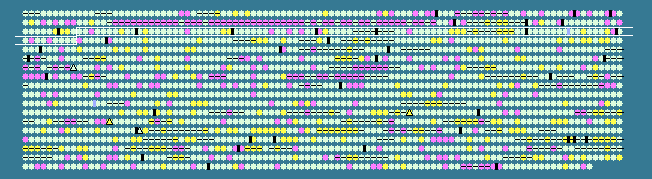

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.31 STD DEV: 3.47
Nitrosopumilus maritimus SCM1, complete genome - 1..1645259
1795 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
210	 36.34	0	190720..192114	+	464	161527722	-	Nmar_0214	-	dihydropyrimidinase
211	 33.70	0	192117..192944	-	275	161527723	-	Nmar_0215	-	hypothetical protein
212	 28.80	-1	192965..193582	-	205	161527724	-	Nmar_0216	-	AMMECR1 domain-containing protein
213	 33.61	0	193616..194686	+	356	161527725	-	Nmar_0217	-	radical SAM domain-containing protein
214	 32.00	0	194923..195597	-	224	161527726	-	Nmar_0218	-	ribose 5-phosphate isomerase
215	 32.50	0	195598..196557	-	319	161527727	-	Nmar_0219	-	hypothetical protein
216	 37.50	0	196558..196725	-	55	161527728	-	Nmar_0220	-	50S ribosomal protein L37e
217	 38.82	+1	196736..196972	-	78	161527729	-	Nmar_0221	-	like-Sm ribonucleoprotein core
218	 32.09	0	197030..197752	-	240	161527730	-	Nmar_0222	-	creatininase
219	 30.92	0	197758..198627	-	289	161527731	-	Nmar_0223	-	formyl transferase domain-containing protein
220	 34.22	0	198788..200137	+	449	161527732	-	Nmar_0224	-	phosphoglucosamine mutase
221	 41.09	+1	200199..200585	+	128	161527733	-	Nmar_0225	-	50S ribosomal protein L7Ae
222	 34.74	0	200582..200794	+	70	161527734	-	Nmar_0226	-	30S ribosomal protein S28e
223	 36.32	0	200804..201004	+	66	161527735	-	Nmar_0227	-	ribosomal protein L24E
224	 34.08	0	201007..201408	+	133	161527736	-	Nmar_0228	-	nucleoside-diphosphate kinase
225	 35.19	0	201415..203196	+	593	161527737	-	Nmar_0229	-	translation initiation factor IF-2
226	 32.09	0	203199..203600	-	133	161527738	-	Nmar_0230	-	thioredoxin
227	 34.17	0	203816..205486	-	556	161527739	-	Nmar_0231	-	Ig family protein
228	 29.98	-1	205565..205981	-	138	161527740	-	Nmar_0232	-	hypothetical protein
229	 35.23	0	206024..206392	-	122	161527741	-	Nmar_0233	-	glyoxalase
230	 35.20	0	206483..207019	+	178	161527742	-	Nmar_0234	-	SNARE associated Golgi protein
231	 35.48	0	207209..207394	-	61	161527743	-	Nmar_0235	-	hypothetical protein
232	 32.24	0	207468..208751	+	427	161527744	-	Nmar_0236	-	histidyl-tRNA synthetase
233	 33.48	0	208732..209397	-	221	161527745	-	Nmar_0237	-	translation initiation factor IF-6
234	 39.23	+1	209508..209999	+	163	161527746	-	Nmar_0238	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
235	 40.22	+1	210113..210649	+	178	161527747	-	Nmar_0239	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
236	 33.12	0	210817..211767	-	316	161527748	-	Nmar_0240	-	replication factor C
237	 32.18	0	211964..212482	+	172	161527749	-	Nmar_0241	-	hypothetical protein
238	 35.54	0	212475..214562	+	695	161527750	-	Nmar_0242	-	MCM family protein
239	 34.18	0	214559..216688	+	709	161527751	-	Nmar_0243	-	DEAD/DEAH box helicase domain-containing protein
240	 33.74	0	216685..217677	+	330	161527752	-	Nmar_0244	-	glycosyl transferase family protein
241	 35.43	0	217901..218377	-	158	161527753	-	Nmar_0245	-	acetyltransferase
242	 29.63	-1	218381..218650	-	89	161527754	-	Nmar_0246	-	hypothetical protein
243	 31.73	0	218647..219582	-	311	161527755	-	Nmar_0247	-	oxidoreductase domain-containing protein
244	 33.88	0	219583..220500	-	305	161527756	-	Nmar_0248	-	branched-chain amino acid aminotransferase
245	 29.06	-1	220541..221920	-	459	161527757	-	Nmar_0249	-	histidine kinase
246	 34.19	0	221922..222851	-	309	161527758	-	Nmar_0250	-	ABC-type phosphate/phosphonate transport system periplasmic component-like protein
247	 29.92	-1	222904..223284	+	126	161527759	-	Nmar_0251	-	response regulator receiver protein
248	 31.85	0	223281..223886	-	201	161527760	-	Nmar_0252	-	hypothetical protein
249	 36.41	0	223939..224784	-	281	161527761	-	Nmar_0253	-	oxidoreductase FAD/NAD(P)-binding subunit
250	 27.19	-2	224986..225522	-	178	161527762	-	Nmar_0254	-	hypothetical protein
251	 38.54	+1	225638..225925	+	95	161527763	-	Nmar_0255	-	Alba, DNA/RNA-binding protein
252	 35.41	0	225951..226817	-	288	161527764	-	Nmar_0256	-	putative methylisocitrate lyase
253	 32.55	0	227020..227529	-	169	161527765	-	Nmar_0257	-	PadR-like family transcriptional regulator
254	 37.65	0	227624..229336	+	570	161527766	-	Nmar_0258	-	succinate dehydrogenase or fumarate reductase, flavoprotein subunit
255	 36.81	0	229337..229768	+	143	161527767	-	Nmar_0259	-	hypothetical protein
256	 34.20	0	229770..230114	+	114	161527768	-	Nmar_0260	-	hypothetical protein
257	 35.87	0	230117..230866	+	249	161527769	-	Nmar_0261	-	succinate dehydrogenase and fumarate reductase iron-sulfur protein
258	 32.49	0	230863..231219	-	118	161527770	-	Nmar_0262	-	hypothetical protein
259	 31.89	0	231236..232693	+	485	161527771	-	Nmar_0263	-	argininosuccinate lyase
260	 35.93	0	233062..233793	+	243	161527772	-	Nmar_0264	-	hypothetical protein
261	 33.98	0	233806..234882	+	358	161527773	-	Nmar_0265	-	glutamyl-tRNA reductase
262	 35.12	0	234888..235055	-	55	161527774	-	Nmar_0266	-	hypothetical protein
263	 35.94	0	235140..235982	-	280	161527775	-	Nmar_0267	-	oxidoreductase FAD/NAD(P)-binding subunit
264	 34.08	0	236068..236868	-	266	161527776	-	Nmar_0268	-	inositol-phosphate phosphatase
265	 30.21	-1	236951..238072	+	373	161527777	-	Nmar_0269	-	hypothetical protein
266	 32.64	0	238081..239238	+	385	161527778	-	Nmar_0270	-	ATPase central domain-containing protein
267	 35.05	0	239256..239546	+	96	161527779	-	Nmar_0271	-	hypothetical protein
268	 36.18	0	239653..241200	+	515	161527780	-	Nmar_0272	-	carboxyl transferase
269	 35.28	0	241206..242693	+	495	161527781	-	Nmar_0273	-	carbamoyl-phosphate synthase L chain ATP-binding
270	 33.53	0	242700..243212	+	170	161527782	-	Nmar_0274	-	biotin/lipoyl attachment domain-containing protein
271	 35.91	0	243229..243693	-	154	161527783	-	Nmar_0275	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
272	 39.94	+1	243850..244182	+	110	161527784	-	Nmar_0276	-	NADH-ubiquinone/plastoquinone oxidoreductase chain 3
273	 38.86	+1	244223..244747	+	174	161527785	-	Nmar_0277	-	NADH-quinone oxidoreductase, B subunit
274	 37.98	+1	244747..245349	+	200	161527786	-	Nmar_0278	-	NADH dehydrogenase (ubiquinone) 30 kDa subunit
275	 36.50	0	245352..246488	+	378	161527787	-	Nmar_0279	-	NADH dehydrogenase (quinone)
276	 38.49	+1	246489..247787	+	432	161527788	-	Nmar_0280	-	NADH dehydrogenase (quinone)
277	 36.55	0	247787..248284	+	165	161527789	-	Nmar_0281	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
278	 36.84	0	248277..248789	+	170	161527790	-	Nmar_0282	-	NADH-ubiquinone/plastoquinone oxidoreductase chain 6
279	 36.27	0	248770..249075	+	101	161527791	-	Nmar_0283	-	NADH-ubiquinone oxidoreductase chain 4L
280	 38.35	+1	249075..250628	+	517	161527792	-	Nmar_0284	-	proton-translocating NADH-quinone oxidoreductase, chain M
281	 38.86	+1	250630..252708	+	692	161527793	-	Nmar_0285	-	proton-translocating NADH-quinone oxidoreductase, chain L
282	 37.85	+1	252721..254205	+	494	161527794	-	Nmar_0286	-	proton-translocating NADH-quinone oxidoreductase, chain N
283	 31.10	0	254195..255046	-	283	161527795	-	Nmar_0287	-	polyprenyl synthetase
284	 32.79	0	255156..255896	+	246	161527796	-	Nmar_0288	-	TENA/THI-4 domain-containing protein
285	 32.18	0	256122..256727	-	201	161527797	-	Nmar_0289	-	orotate phosphoribosyltransferase
286	 31.58	0	256778..257860	+	360	161527798	-	Nmar_0290	-	hypothetical protein
287	 34.33	0	257852..258958	-	368	161527799	-	Nmar_0291	-	peptidase M50
288	 34.50	0	259014..259529	+	171	161527800	-	Nmar_0292	-	ribosomal-protein-alanine acetyltransferase
289	 35.62	0	259567..259785	+	72	161527801	-	Nmar_0293	-	transcription regulator
290	 33.21	0	259787..260614	-	275	161527802	-	Nmar_0294	-	protein of unknown function Met10
291	 33.78	0	260620..262407	-	595	161527803	-	Nmar_0295	-	putative ATPase RIL
292	 32.17	0	262794..264260	-	488	161527804	-	Nmar_0296	-	leucyl aminopeptidase
293	 31.91	0	264300..264440	-	46	161527805	-	Nmar_0297	-	hypothetical protein
294	 38.83	+1	264765..265073	-	102	161527806	-	Nmar_0298	-	hypothetical protein
295	 35.43	0	265235..266902	+	555	161527807	-	Nmar_0299	-	ribulose-phosphate 3-epimerase
296	 36.41	0	266899..267873	+	324	161527808	-	Nmar_0300	-	transketolase central region
297	 34.23	0	267870..268538	+	222	161527809	-	Nmar_0301	-	putative transaldolase
298	 41.00	+1	268579..268839	-	86	161527810	-	Nmar_0302	-	hypothetical protein
299	 30.11	-1	268906..269928	-	340	161527811	-	Nmar_0303	-	Mg2 transporter protein CorA family protein
300	 31.79	0	270335..270724	-	129	161527812	-	Nmar_0304	-	hypothetical protein
301	 32.76	0	270781..271128	-	115	161527813	-	Nmar_0305	-	hypothetical protein
302	 30.31	-1	271169..271930	-	253	161527814	-	Nmar_0306	-	hypothetical protein
303	 33.33	0	271956..272225	-	89	161527815	-	Nmar_0307	-	hypothetical protein
304	 37.22	0	272261..272569	-	102	161527816	-	Nmar_0308	-	Rieske (2Fe-2S) domain-containing protein
305	 28.70	-1	272612..273388	+	258	161527817	-	Nmar_0309	-	GCN5-related N-acetyltransferase
306	 33.22	0	273380..274249	-	289	161527818	-	Nmar_0310	-	5-carboxymethyl-2-hydroxymuconate Delta-isomerase
307	 33.04	0	274255..275964	-	569	161527819	-	Nmar_0311	-	glutamyl-tRNA synthetase
308	 34.15	0	275986..276966	-	326	161527820	-	Nmar_0312	-	polyprenyl synthetase
309	 32.72	0	276953..277603	-	216	161527821	-	Nmar_0313	-	isopentenyl-diphosphate delta-isomerase, type 1
34.31	MEAN

3.47	STD DEV
