IslandPathversion 1.0

IslandPath Analysis: Nitrosopumilus maritimus SCM1

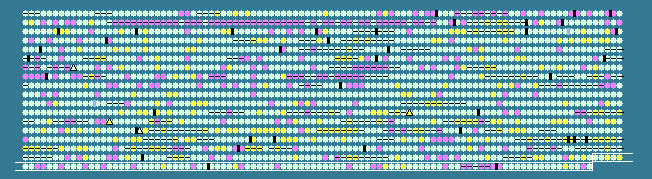

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.31 STD DEV: 3.47
Nitrosopumilus maritimus SCM1, complete genome - 1..1645259
1795 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1696	 35.46	0	1560670..1561704	+	344	161529208	-	Nmar_1700	-	H(+)-transporting two-sector ATPase
1697	 36.57	0	1561983..1562630	+	215	161529209	-	Nmar_1701	-	hypothetical protein
1698	 51.35	+2	1562675..1562785	-	36	161529210	-	Nmar_1702	-	hypothetical protein
1699	 35.86	0	1562875..1563429	-	184	161529211	-	Nmar_1703	-	hypothetical protein
1700	 38.18	+1	1563501..1563851	+	116	161529212	-	Nmar_1704	-	hypothetical protein
1701	 34.06	0	1563854..1564537	-	227	161529213	-	Nmar_1705	-	uridylate kinase, putative
1702	 32.69	0	1564534..1565769	-	411	161529214	-	Nmar_1706	-	metal dependent phosphohydrolase
1703	 30.76	-1	1565766..1566347	-	193	161529215	-	Nmar_1707	-	thymidylate kinase
1704	 30.45	-1	1566629..1567009	+	126	161529216	-	Nmar_1708	-	heat shock protein Hsp20
1705	 33.85	0	1567013..1568557	-	514	161529217	-	Nmar_1709	-	hypothetical protein
1706	 31.51	0	1568561..1568944	-	127	161529218	-	Nmar_1710	-	hypothetical protein
1707	 27.78	-1	1569248..1569589	-	113	161529219	-	Nmar_1711	-	hypothetical protein
1708	 33.33	0	1569640..1570932	-	430	161529220	-	Nmar_1712	-	hypothetical protein
1709	 35.26	0	1570929..1571552	-	207	161529221	-	Nmar_1713	-	ABC transporter related
1710	 34.93	0	1571629..1572816	-	395	161529222	-	Nmar_1714	-	hypothetical protein
1711	 28.24	-1	1572933..1573835	+	300	161529223	-	Nmar_1715	-	AsnC family transcriptional regulator
1712	 32.95	0	1573861..1574376	+	171	161529224	-	Nmar_1716	-	NUDIX hydrolase
1713	 31.70	0	1574377..1575357	-	326	161529225	-	Nmar_1717	-	phosphate uptake regulator, PhoU
1714	 29.28	-1	1575422..1576333	+	303	161529226	-	Nmar_1718	-	GHMP kinase
1715	 34.12	0	1576344..1577108	+	254	161529227	-	Nmar_1719	-	hypothetical protein
1716	 35.71	0	1577101..1577940	+	279	161529228	-	Nmar_1720	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
1717	 33.25	0	1577930..1579174	+	414	161529229	-	Nmar_1721	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
1718	 32.27	0	1579343..1580185	+	280	161529230	-	Nmar_1722	-	methyltransferase type 11
1719	 30.64	-1	1580200..1580682	+	160	161529231	-	Nmar_1723	-	hypothetical protein
1720	 33.62	0	1580685..1581749	-	354	161529232	-	Nmar_1724	-	peptidase M24
1721	 33.83	0	1581822..1582835	+	337	161529233	-	Nmar_1725	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1722	 32.26	0	1582909..1583187	+	92	161529234	-	Nmar_1726	-	hypothetical protein
1723	 35.70	0	1583179..1585119	-	646	161529235	-	Nmar_1727	-	beta-lactamase domain-containing protein
1724	 37.91	+1	1585127..1585759	-	210	161529236	-	Nmar_1728	-	proteasome endopeptidase complex
1725	 33.99	0	1585837..1586901	+	354	161529237	-	Nmar_1729	-	3-dehydroquinate synthase
1726	 32.40	0	1586903..1587649	-	248	161529238	-	Nmar_1730	-	peptidylprolyl isomerase FKBP-type
1727	 35.78	0	1587692..1588837	-	381	161529239	-	Nmar_1731	-	Serine--pyruvate transaminase
1728	 31.52	0	1588879..1589373	-	164	161529240	-	Nmar_1732	-	cytidyltransferase-like protein
1729	 29.20	-1	1589437..1590453	+	338	161529241	-	Nmar_1733	-	RNA-3'-phosphate cyclase
1730	 32.13	0	1590433..1590930	-	165	161529242	-	Nmar_1734	-	hypothetical protein
1731	 34.34	0	1591012..1591506	+	164	161529243	-	Nmar_1735	-	hypothetical protein
1732	 34.32	0	1591671..1592381	+	236	161529244	-	Nmar_1736	-	cob(II)yrinic acid a,c-diamide reductase
1733	 32.00	0	1592549..1593073	+	174	161529245	-	Nmar_1737	-	NADPH-dependent FMN reductase
1734	 32.47	0	1593432..1593893	-	153	161529246	-	Nmar_1738	-	hypothetical protein
1735	 36.36	0	1593978..1594208	-	76	161529247	-	Nmar_1739	-	hypothetical protein
1736	 37.95	+1	1594446..1594922	+	158	161529248	-	Nmar_1740	-	peptidylprolyl isomerase
1737	 30.10	-1	1594923..1595819	+	298	161529249	-	Nmar_1741	-	hypothetical protein
1738	 32.77	0	1595806..1595982	-	58	161529250	-	Nmar_1742	-	hypothetical protein
1739	 31.47	0	1596190..1596672	-	160	161529251	-	Nmar_1743	-	hypothetical protein
1740	 32.89	0	1596801..1597250	+	149	161529252	-	Nmar_1744	-	hypothetical protein
1741	 32.66	0	1597262..1598155	+	297	161529253	-	Nmar_1745	-	ribokinase-like domain-containing protein
1742	 35.06	0	1598195..1598542	+	115	161529254	-	Nmar_1746	-	dUTPase
1743	 27.78	-1	1598547..1599014	-	155	161529255	-	Nmar_1747	-	tetrahydromethanopterin S-methyltransferase 23 kD subunit
1744	 31.57	0	1599007..1600140	-	377	161529256	-	Nmar_1748	-	glutamine--scyllo-inositol transaminase
1745	 33.16	0	1600176..1600748	+	190	161529257	-	Nmar_1749	-	hypothetical protein
1746	 32.86	0	1600994..1601203	-	69	161529258	-	Nmar_1750	-	hypothetical protein
1747	 31.14	0	1601298..1602344	+	348	161529259	-	Nmar_1751	-	tyrosyl-tRNA synthetase
1748	 33.46	0	1602341..1603135	-	264	161529260	-	Nmar_1752	-	precorrin-3B C17-methyltransferase
1749	 36.33	0	1603180..1604646	-	488	161529261	-	Nmar_1753	-	hypothetical protein
1750	 33.40	0	1604682..1606085	-	467	161529262	-	Nmar_1754	-	aspartate kinase
1751	 33.73	0	1606121..1606867	-	248	161529263	-	Nmar_1755	-	proliferating cell nuclear antigen PcnA
1752	 36.16	0	1606902..1607219	-	105	161529264	-	Nmar_1756	-	transcription termination factor Tfs
1753	 32.62	0	1607221..1607499	-	92	161529265	-	Nmar_1757	-	hypothetical protein
1754	 35.38	0	1607551..1608087	+	178	161529266	-	Nmar_1758	-	hypothetical protein
1755	 23.13	-2	1608281..1608427	+	48	161529267	-	Nmar_1759	-	hypothetical protein
1756	 34.31	0	1608424..1608933	-	169	161529268	-	Nmar_1760	-	dual specificity protein phosphatase
1757	 31.62	0	1608962..1609603	-	213	161529269	-	Nmar_1761	-	cyclase family protein
1758	 33.33	0	1609679..1609936	+	85	161529270	-	Nmar_1762	-	AsnC family transcriptional regulator
1759	 30.80	-1	1609931..1611076	-	381	161529271	-	Nmar_1763	-	aminotransferase class V
1760	 30.82	-1	1611103..1611699	+	198	161529272	-	Nmar_1764	-	hypothetical protein
1761	 41.33	+2	1611819..1612118	+	99	161529273	-	Nmar_1765	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1762	 31.87	0	1612286..1614061	+	591	161529274	-	Nmar_1766	-	adenylate/guanylate cyclase with integral membrane sensor
1763	 32.38	0	1614058..1615212	-	384	161529275	-	Nmar_1767	-	heat shock protein DnaJ domain-containing protein
1764	 39.95	+1	1615312..1615734	-	140	161529276	-	Nmar_1768	-	UspA domain-containing protein
1765	 34.02	0	1615819..1617138	+	439	161529277	-	Nmar_1769	-	amino acid permease-associated region
1766	 35.16	0	1617135..1617791	-	218	161529278	-	Nmar_1770	-	hypothetical protein
1767	 33.82	0	1617863..1619308	-	481	161529279	-	Nmar_1771	-	glutamine synthetase, type I
1768	 33.78	0	1619396..1620742	-	448	161529280	-	Nmar_1772	-	lysine 2,3-aminomutase related protein
1769	 33.88	0	1620969..1622612	+	547	161529281	-	Nmar_1773	-	MscS mechanosensitive ion channel
1770	 31.51	0	1622652..1623530	+	292	161529282	-	Nmar_1774	-	ribose-phosphate pyrophosphokinase
1771	 28.06	-1	1623530..1624477	+	315	161529283	-	Nmar_1775	-	putative RNA methylase
1772	 31.22	0	1624474..1625373	+	299	161529284	-	Nmar_1776	-	ribonuclease Z
1773	 32.92	0	1625370..1626098	+	242	161529285	-	Nmar_1777	-	silent information regulator protein Sir2
1774	 29.42	-1	1626093..1626833	-	246	161529286	-	Nmar_1778	-	hypothetical protein
1775	 28.64	-1	1626908..1627312	-	134	161529287	-	Nmar_1779	-	hypothetical protein
1776	 32.15	0	1627309..1627902	-	197	161529288	-	Nmar_1780	-	dephospho-CoA kinase, CoaE
1777	 29.47	-1	1627930..1628472	+	180	161529289	-	Nmar_1781	-	2'-5' RNA ligase
1778	 29.43	-1	1628469..1629800	+	443	161529290	-	Nmar_1782	-	tRNA cytidylyltransferase
1779	 29.40	-1	1629775..1630536	+	253	161529291	-	Nmar_1783	-	putative serine/threonine protein kinase
1780	 30.00	-1	1630667..1630876	+	69	161529292	-	Nmar_1784	-	hypothetical protein
1781	 32.64	0	1630877..1632025	-	382	161529293	-	Nmar_1785	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1782	 34.28	0	1632027..1632767	-	246	161529294	-	Nmar_1786	-	short-chain dehydrogenase/reductase SDR
1783	 34.68	0	1632871..1633092	+	73	161529295	-	Nmar_1787	-	AN1-type Zinc finger protein
1784	 35.44	0	1633089..1633373	-	94	161529296	-	Nmar_1788	-	hypothetical protein
1785	 32.80	0	1633406..1633963	-	185	161529297	-	Nmar_1789	-	hypothetical protein
1786	 35.71	0	1634005..1635477	+	490	161529298	-	Nmar_1790	-	glutamine synthetase, type I
1787	 33.69	0	1635474..1635752	-	92	161529299	-	Nmar_1791	-	hypothetical protein
1788	 37.71	0	1635808..1637520	-	570	161529300	-	Nmar_1792	-	thermosome
1789	 36.13	0	1637624..1638946	+	440	161529301	-	Nmar_1793	-	serine hydroxymethyltransferase
1790	 37.12	0	1638948..1642325	-	1125	161529302	-	Nmar_1794	-	DNA polymerase II large subunit
1791	 40.37	+1	1642337..1643089	-	250	161529303	-	Nmar_1795	-	geranylgeranylglyceryl phosphate synthase-like protein
1792	 33.06	0	1643155..1643517	+	120	161529304	-	Nmar_1796	-	hypothetical protein
1793	 35.32	0	1643644..1644246	+	200	161529305	-	Nmar_1797	-	hypothetical protein
1794	 30.25	-1	1644373..1644534	+	53	161529306	-	Nmar_1798	-	AbrB family transcriptional regulator
1795	 34.88	0	1644540..1644926	-	128	161529307	-	Nmar_1799	-	hypothetical protein
34.31	MEAN

3.47	STD DEV
