IslandPath Analysis: Nitrosopumilus maritimus SCM1

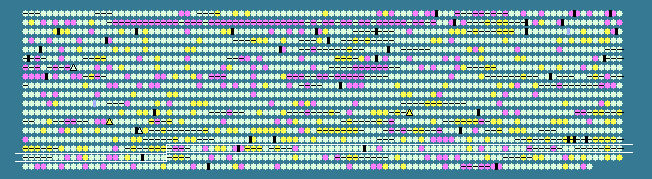

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.31 STD DEV: 3.47
Nitrosopumilus maritimus SCM1, complete genome - 1..1645259
1795 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1525	 32.85	0	1393809..1394834	+	341	161529037	-	Nmar_1529	-	tRNA-modifying enzyme
1526	 29.10	-1	1394794..1395360	-	188	161529038	-	Nmar_1530	-	RdgB/HAM1 family non-canonical purine NTP pyrophosphatase
1527	 29.31	-1	1395344..1395964	-	206	161529039	-	Nmar_1531	-	Mn2+-dependent serine/threonine protein kinase
1528	 32.10	0	1396002..1396325	+	107	161529040	-	Nmar_1532	-	hypothetical protein
1529	 36.69	0	1396322..1397305	-	327	161529041	-	Nmar_1533	-	metalloendopeptidase glycoprotease family
1530	 34.59	0	1397307..1398503	-	398	161529042	-	Nmar_1534	-	translation-associated GTPase
1531	 30.42	-1	1398567..1399115	+	182	161529043	-	Nmar_1535	-	hypothetical protein
1532	 32.09	0	1399135..1400658	+	507	161529044	-	Nmar_1536	-	tRNA-guanine transglycosylase
1533	 41.58	+2	1400699..1401001	-	100	161529045	-	Nmar_1537	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1534	 40.38	+1	1401142..1401354	-	70	161529046	-	Nmar_1538	-	hypothetical protein
1535	 34.76	0	1401468..1402733	+	421	161529047	-	Nmar_1539	-	beta-lactamase domain-containing protein
1536	 27.08	-2	1402714..1403577	+	287	161529048	-	Nmar_1540	-	HhH-GPD family protein
1537	 30.48	-1	1403726..1404076	+	116	161529049	-	Nmar_1541	-	hypothetical protein
1538	 38.71	+1	1404073..1404537	-	154	161529050	-	Nmar_1542	-	blue (type1) copper domain-containing protein
1539	 38.28	+1	1404590..1406185	-	531	161529051	-	Nmar_1543	-	cytochrome b/b6 domain-containing protein
1540	 41.25	+2	1406169..1406774	-	201	161529052	-	Nmar_1544	-	Rieske (2Fe-2S) domain-containing protein
1541	 33.12	0	1406818..1410627	-	1269	161529053	-	Nmar_1545	-	peptidase S8 and S53 subtilisin kexin sedolisin
1542	 33.33	0	1410659..1411663	-	334	161529054	-	Nmar_1546	-	hypothetical protein
1543	 42.23	+2	1411775..1416979	-	1734	161529055	-	Nmar_1547	-	hypothetical protein
1544	 34.01	0	1417196..1418527	-	443	161529056	-	Nmar_1548	-	UBA/THIF-type NAD/FAD binding protein
1545	 35.64	0	1418527..1419741	-	404	161529057	-	Nmar_1549	-	threonine synthase
1546	 30.61	-1	1419947..1420534	+	195	161529058	-	Nmar_1550	-	hypothetical protein
1547	 32.42	0	1420539..1420865	-	108	161529059	-	Nmar_1551	-	phosphoribosyl-AMP cyclohydrolase
1548	 34.21	0	1420888..1421688	-	266	161529060	-	Nmar_1552	-	imidazoleglycerol phosphate synthase, cyclase subunit
1549	 32.91	0	1421678..1422388	-	236	161529061	-	Nmar_1553	-	1-(5-phosphoribosyl)-5-((5-phosphoribosylamino)methylideneamino)imidazole-4-carboxamideisomerase
1550	 34.49	0	1422385..1422987	-	200	161529062	-	Nmar_1554	-	imidazole glycerol phosphate synthase, glutamine amidotransferase subunit
1551	 36.22	0	1422987..1423574	-	195	161529063	-	Nmar_1555	-	imidazoleglycerol-phosphate dehydratase
1552	 31.05	0	1423603..1424523	-	306	161529064	-	Nmar_1556	-	hydrolase
1553	 31.93	0	1424527..1425597	-	356	161529065	-	Nmar_1557	-	aminotransferase class I and II
1554	 34.52	0	1425594..1426856	-	420	161529066	-	Nmar_1558	-	histidinol dehydrogenase
1555	 34.36	0	1426856..1427833	-	325	161529067	-	Nmar_1559	-	ATP phosphoribosyltransferase
1556	 35.48	0	1427870..1429126	-	418	161529068	-	Nmar_1560	-	hydroxymethylglutaryl-CoA reductase, degradative
1557	 33.88	0	1429128..1430219	-	363	161529069	-	Nmar_1561	-	glucose sorbosone dehydrogenase
1558	 31.04	0	1430379..1431731	-	450	161529070	-	Nmar_1562	-	hypothetical protein
1559	 32.23	0	1431790..1432785	+	331	161529071	-	Nmar_1563	-	diphthamide biosynthesis protein
1560	 29.00	-1	1432780..1433379	-	199	161529072	-	Nmar_1564	-	TPR repeat-containing protein
1561	 36.56	0	1433386..1434471	-	361	161529073	-	Nmar_1565	-	alcohol dehydrogenase
1562	 33.33	0	1434547..1435098	+	183	161529074	-	Nmar_1566	-	RNA-binding protein
1563	 32.48	0	1435101..1435916	+	271	161529075	-	Nmar_1567	-	prephenate dehydratase
1564	 33.97	0	1435913..1436380	-	155	161529076	-	Nmar_1568	-	hypothetical protein
1565	 37.11	0	1436416..1437846	-	476	161529077	-	Nmar_1569	-	inosine-5'-monophosphate dehydrogenase
1566	 31.80	0	1437892..1438737	-	281	161529078	-	Nmar_1570	-	dihydropteroate synthase
1567	 28.30	-1	1438772..1439506	+	244	161529079	-	Nmar_1571	-	hypothetical protein
1568	 32.79	0	1439563..1440114	+	183	161529080	-	Nmar_1572	-	hypothetical protein
1569	 36.42	0	1440119..1441642	+	507	161529081	-	Nmar_1573	-	bifunctional GMP synthase/glutamine amidotransferase protein
1570	 31.93	0	1441652..1442008	+	118	161529082	-	Nmar_1574	-	hypothetical protein
1571	 33.33	0	1442021..1442281	+	86	161529083	-	Nmar_1575	-	hypothetical protein
1572	 32.87	0	1442282..1443151	-	289	161529084	-	Nmar_1576	-	ROK family protein
1573	 35.74	0	1443189..1444811	-	540	161529085	-	Nmar_1577	-	thermosome
1574	 34.27	0	1444856..1446571	-	571	161529086	-	Nmar_1578	-	adenine deaminase
1575	 37.94	+1	1446690..1446971	+	93	161529087	-	Nmar_1579	-	50S ribosomal protein L44e
1576	 34.85	0	1446968..1447165	+	65	161529088	-	Nmar_1580	-	ribosomal protein S27E
1577	 27.35	-2	1447148..1447732	-	194	161529089	-	Nmar_1581	-	5-deoxyadenosylcobinamide phosphate nucleotidyltransferase
1578	 35.81	0	1447729..1448454	-	241	161529090	-	Nmar_1582	-	cobalamin 5'-phosphate synthase
1579	 34.57	0	1448447..1449418	-	323	161529091	-	Nmar_1583	-	cobalamin biosynthesis protein CobD
1580	 32.98	0	1449415..1450254	-	279	161529092	-	Nmar_1584	-	cobyrinic acid ac-diamide synthase
1581	 29.17	-1	1450251..1451330	-	359	161529093	-	Nmar_1585	-	aminotransferase class I and II
1582	 36.40	0	1451414..1452490	+	358	161529094	-	Nmar_1586	-	aspartate-semialdehyde dehydrogenase
1583	 31.73	0	1452654..1453028	+	124	161529095	-	Nmar_1587	-	AsnC family transcriptional regulator
1584	 37.20	0	1453031..1453960	+	309	161529096	-	Nmar_1588	-	protoheme IX farnesyltransferase
1585	 28.10	-1	1453955..1454164	-	69	161529097	-	Nmar_1589	-	hypothetical protein
1586	 33.94	0	1454474..1454968	+	164	161529098	-	Nmar_1590	-	hypothetical protein
1587	 36.48	0	1454981..1456726	-	581	161529099	-	Nmar_1591	-	hypothetical protein
1588	 32.55	0	1456838..1457221	+	127	161529100	-	Nmar_1592	-	hypothetical protein
1589	 27.34	-2	1457218..1457901	+	227	161529101	-	Nmar_1593	-	hypothetical protein
1590	 32.28	0	1457903..1458568	-	221	161529102	-	Nmar_1594	-	hypothetical protein
1591	 33.82	0	1458608..1459021	-	137	161529103	-	Nmar_1595	-	hypothetical protein
1592	 35.19	0	1459073..1459558	-	161	161529104	-	Nmar_1596	-	thioesterase superfamily protein
1593	 33.86	0	1459613..1460944	-	443	161529105	-	Nmar_1597	-	UbiD family decarboxylase
1594	 35.09	0	1460937..1461278	-	113	161529106	-	Nmar_1598	-	hypothetical protein
1595	 34.68	0	1461296..1461742	-	148	161529107	-	Nmar_1599	-	hypothetical protein
1596	 33.18	0	1462053..1462715	-	220	161529108	-	Nmar_1600	-	hypothetical protein
1597	 37.54	0	1462737..1463069	-	110	161529109	-	Nmar_1601	-	hypothetical protein
1598	 41.52	+2	1463132..1463473	-	113	161529110	-	Nmar_1602	-	ubiquitin-associated domain-containing protein
1599	 35.23	0	1463470..1463943	-	157	161529111	-	Nmar_1603	-	PUA domain-containing protein
1600	 35.43	0	1464034..1465080	+	348	161529112	-	Nmar_1604	-	phosphate uptake regulator, PhoU
1601	 34.50	0	1465136..1466251	+	371	161529113	-	Nmar_1605	-	GTP1/OBG protein
1602	 34.83	0	1466241..1466774	+	177	161529114	-	Nmar_1606	-	hypothetical protein
1603	 35.27	0	1466801..1467316	+	171	161529115	-	Nmar_1607	-	transcription factor TFIIE, alpha subunit
1604	 35.89	0	1467443..1468774	+	443	161529116	-	Nmar_1608	-	aldehyde dehydrogenase
1605	 35.67	0	1468916..1469215	-	99	161529117	-	Nmar_1609	-	hypothetical protein
1606	 33.15	0	1469218..1469775	-	185	161529118	-	Nmar_1610	-	hemerythrin HHE cation binding domain-containing protein
1607	 34.90	0	1469869..1470123	-	84	161529119	-	Nmar_1611	-	fused DNA topoisomerase I/SWI domain-containing protein
1608	 30.14	-1	1470160..1470816	-	218	161529120	-	Nmar_1612	-	deaminase-reductase domain-containing protein
1609	 32.83	0	1470803..1471993	-	396	161529121	-	Nmar_1613	-	amidohydrolase
1610	 29.89	-1	1471987..1472742	-	251	161529122	-	Nmar_1614	-	GTP cyclohydrolase IIA
1611	 37.89	+1	1472739..1473155	-	138	161529123	-	Nmar_1615	-	6,7-dimethyl-8-ribityllumazine synthase
1612	 34.83	0	1473158..1473823	-	221	161529124	-	Nmar_1616	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
1613	 30.98	0	1473902..1474495	-	197	161529125	-	Nmar_1617	-	riboflavin synthase, alpha subunit
1614	 31.27	0	1474520..1475245	-	241	161529126	-	Nmar_1618	-	TPR repeat-containing protein
1615	 30.48	-1	1475511..1475861	-	116	161529127	-	Nmar_1619	-	response regulator receiver protein
1616	 27.42	-1	1475914..1476522	+	202	161529128	-	Nmar_1620	-	hypothetical protein
1617	 34.50	0	1476524..1477378	-	284	161529129	-	Nmar_1621	-	Citryl-CoA lyase
1618	 39.65	+1	1477386..1478462	-	358	161529130	-	Nmar_1622	-	alcohol dehydrogenase
1619	 34.40	0	1478505..1478786	-	93	161529131	-	Nmar_1623	-	DNA-binding TFAR19-related protein
1620	 37.53	0	1478794..1479246	-	150	161529132	-	Nmar_1624	-	30S ribosomal protein S19e
1621	 31.39	0	1479729..1480397	-	222	161529133	-	Nmar_1625	-	ribosome biogenesis protein
1622	 34.93	0	1480399..1481523	-	374	161529134	-	Nmar_1626	-	hypothetical protein
1623	 37.70	0	1481570..1484224	-	884	161529135	-	Nmar_1627	-	ribonucleoside-diphosphate reductase, adenosylcobalamin-dependent
1624	 35.17	0	1484428..1486599	-	723	161529136	-	Nmar_1628	-	regulatory protein ArsR
34.31	MEAN

3.47	STD DEV
