IslandPathversion 1.0

IslandPath Analysis: Nitrosopumilus maritimus SCM1

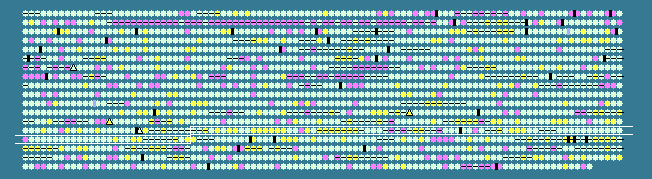

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.31 STD DEV: 3.47
Nitrosopumilus maritimus SCM1, complete genome - 1..1645259
1795 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1329	 31.78	0	1222782..1223168	+	128	161528841	-	Nmar_1333	-	hypothetical protein
1330	 35.12	0	1223212..1223658	+	148	161528842	-	Nmar_1334	-	UspA domain-containing protein
1331	 38.53	+1	1223763..1224590	-	275	161528843	-	Nmar_1335	-	MscS mechanosensitive ion channel
1332	 35.62	0	1224590..1225333	-	247	161528844	-	Nmar_1336	-	hypothetical protein
1333	 38.46	+1	1225396..1225746	-	116	161528845	-	Nmar_1337	-	hypothetical protein
1334	 37.47	0	1226368..1227165	-	265	161528846	-	Nmar_1338	-	transcriptional regulator protein-like protein
1335	 38.43	+1	1227383..1227637	-	84	161528847	-	Nmar_1339	-	hypothetical protein
1336	 41.15	+1	1227903..1228823	-	306	161528848	-	Nmar_1340	-	transcription factor TFIIB cyclin-related
1337	 37.53	0	1229190..1230119	+	309	161528849	-	Nmar_1341	-	transcription factor TFIIB cyclin-related
1338	 33.33	0	1230309..1230806	-	165	161528850	-	Nmar_1342	-	hypothetical protein
1339	 37.81	+1	1230831..1231745	-	304	161528851	-	Nmar_1343	-	ectoine hydroxylase
1340	 40.05	+1	1231747..1232133	-	128	161528852	-	Nmar_1344	-	L-ectoine synthase
1341	 37.89	+1	1232130..1233425	-	431	161528853	-	Nmar_1345	-	diaminobutyrate--2-oxoglutarate aminotransferase
1342	 39.68	+1	1233422..1233925	-	167	161528854	-	Nmar_1346	-	L-2,4-diaminobutyric acid acetyltransferase
1343	 37.83	+1	1233928..1234305	-	125	161528855	-	Nmar_1347	-	hypothetical protein
1344	 39.37	+1	1234431..1234745	+	104	161528856	-	Nmar_1348	-	translation initiation factor eIF-1A
1345	 34.38	0	1234843..1236567	-	574	161528857	-	Nmar_1349	-	sensor protein
1346	 31.05	0	1236680..1237030	+	116	161528858	-	Nmar_1350	-	hypothetical protein
1347	 28.87	-1	1237019..1237399	-	126	161528859	-	Nmar_1351	-	hypothetical protein
1348	 39.70	+1	1237860..1238660	-	266	161528860	-	Nmar_1352	-	ArsR family transcriptional regulator
1349	 37.20	0	1238728..1239270	-	180	161528861	-	Nmar_1353	-	hypothetical protein
1350	 41.12	+1	1239281..1240615	-	444	161528862	-	Nmar_1354	-	multicopper oxidase type 3
1351	 39.59	+1	1241821..1242507	-	228	161528863	-	Nmar_1355	-	hypothetical protein
1352	 41.14	+1	1242610..1243134	-	174	161528864	-	Nmar_1356	-	flavodoxin FldA
1353	 40.16	+1	1243214..1243858	+	214	161528865	-	Nmar_1357	-	nitroreductase
1354	 39.17	+1	1244511..1245950	-	479	161528866	-	Nmar_1358	-	beta-lactamase domain-containing protein
1355	 39.38	+1	1246066..1246743	-	225	161528867	-	Nmar_1359	-	ArsR family transcriptional regulator
1356	 41.83	+2	1246835..1247611	+	258	161528868	-	Nmar_1360	-	hypothetical protein
1357	 37.67	0	1247960..1248259	-	99	161528869	-	Nmar_1361	-	hypothetical protein
1358	 33.92	0	1248624..1248965	+	113	161528870	-	Nmar_1362	-	hypothetical protein
1359	 36.89	0	1249342..1250802	-	486	161528871	-	Nmar_1363	-	hypothetical protein
1360	 37.25	0	1251121..1251375	-	84	161528872	-	Nmar_1364	-	hypothetical protein
1361	 35.43	0	1251727..1252203	+	158	161528873	-	Nmar_1365	-	hypothetical protein
1362	 30.22	-1	1252200..1253066	-	288	161528874	-	Nmar_1366	-	methyltransferase type 11
1363	 33.58	0	1253150..1254346	+	398	161528875	-	Nmar_1367	-	hypothetical protein
1364	 29.79	-1	1254350..1255168	+	272	161528876	-	Nmar_1368	-	hypothetical protein
1365	 32.75	0	1255165..1255335	-	56	161528877	-	Nmar_1369	-	hypothetical protein
1366	 38.37	+1	1255511..1256839	-	442	161528878	-	Nmar_1370	-	hypothetical protein
1367	 40.26	+1	1256918..1257538	-	206	161528879	-	Nmar_1371	-	cation efflux protein
1368	 35.15	0	1257597..1257926	+	109	161528880	-	Nmar_1372	-	ArsR family transcriptional regulator
1369	 34.35	0	1257999..1258292	+	97	161528881	-	Nmar_1373	-	hypothetical protein
1370	 30.74	-1	1258585..1258893	-	102	161528882	-	Nmar_1374	-	hypothetical protein
1371	 33.23	0	1258902..1259879	-	325	161528883	-	Nmar_1375	-	hypothetical protein
1372	 32.30	0	1260107..1261366	+	419	161528884	-	Nmar_1376	-	hypothetical protein
1373	 32.15	0	1261372..1262889	-	505	161528885	-	Nmar_1377	-	hypothetical protein
1374	 32.54	0	1263279..1264037	-	252	161528886	-	Nmar_1378	-	metallophosphoesterase
1375	 37.40	0	1264147..1265178	+	343	161528887	-	Nmar_1379	-	isocitrate dehydrogenase (NAD(+))
1376	 30.35	-1	1265179..1265715	-	178	161528888	-	Nmar_1380	-	putative methylase
1377	 32.77	0	1265690..1266394	-	234	161528889	-	Nmar_1381	-	ribosomal RNA adenine methylase transferase
1378	 34.22	0	1266391..1266957	-	188	161528890	-	Nmar_1382	-	hypothetical protein
1379	 32.42	0	1266978..1267304	-	108	161528891	-	Nmar_1383	-	RNA polymerase Rpb4
1380	 39.00	+1	1267307..1267606	-	99	161528892	-	Nmar_1384	-	ribosomal protein L21e
1381	 37.22	0	1267663..1268718	-	351	161528893	-	Nmar_1385	-	radical SAM protein
1382	 39.59	+1	1268792..1269958	-	388	161528894	-	Nmar_1386	-	DNA repair and recombination protein RadA
1383	 40.44	+1	1270040..1270222	-	60	161528895	-	Nmar_1387	-	hypothetical protein
1384	 38.03	+1	1270263..1271987	-	574	161528896	-	Nmar_1388	-	radical SAM domain-containing protein
1385	 37.02	0	1272039..1272851	-	270	161528897	-	Nmar_1389	-	oxidoreductase FAD/NAD(P)-binding subunit
1386	 36.51	0	1272835..1273746	-	303	161528898	-	Nmar_1390	-	dihydroorotate dehydrogenase family protein
1387	 36.59	0	1273832..1275244	+	470	161528899	-	Nmar_1391	-	Pre-mRNA processing ribonucleoprotein
1388	 32.59	0	1275231..1275905	+	224	161528900	-	Nmar_1392	-	fibrillarin
1389	 33.33	0	1275902..1276519	-	205	161528901	-	Nmar_1393	-	ribonuclease HII
1390	 33.51	0	1276580..1277728	+	382	161528902	-	Nmar_1394	-	tRNA (guanine-N(2)-)-methyltransferase
1391	 36.87	0	1277718..1278311	-	197	161528903	-	Nmar_1395	-	ribosomal RNA methyltransferase RrmJ/FtsJ
1392	 32.88	0	1278308..1279183	-	291	161528904	-	Nmar_1396	-	hypothetical protein
1393	 35.64	0	1279233..1279709	-	158	161528905	-	Nmar_1397	-	hypothetical protein
1394	 32.71	0	1279813..1281906	+	697	161528906	-	Nmar_1398	-	hypothetical protein
1395	 34.58	0	1281980..1284148	+	722	161528907	-	Nmar_1399	-	hypothetical protein
1396	 32.75	0	1284188..1284700	+	170	161528908	-	Nmar_1400	-	adenine phosphoribosyltransferase
1397	 34.85	0	1284700..1285491	+	263	161528909	-	Nmar_1401	-	methylthioadenosine phosphorylase
1398	 33.33	0	1285488..1285772	-	94	161528910	-	Nmar_1402	-	hypothetical protein
1399	 35.34	0	1285781..1286179	-	132	161528911	-	Nmar_1403	-	hypothetical protein
1400	 32.48	0	1286201..1286551	-	116	161528912	-	Nmar_1404	-	hypothetical protein
1401	 30.63	-1	1286593..1286814	-	73	161528913	-	Nmar_1405	-	hypothetical protein
1402	 34.50	0	1286833..1287345	+	170	161528914	-	Nmar_1406	-	hypothetical protein
1403	 35.40	0	1287346..1288458	-	370	161528915	-	Nmar_1407	-	DNA topoisomerase VI subunit A
1404	 35.78	0	1288445..1290325	-	626	161528916	-	Nmar_1408	-	DNA topoisomerase VI, B subunit
1405	 34.21	0	1290312..1290884	-	190	161528917	-	Nmar_1409	-	putative RNA-processing protein
1406	 33.33	0	1290881..1291660	-	259	161528918	-	Nmar_1410	-	non-specific serine/threonine protein kinase
1407	 30.98	0	1291717..1292013	-	98	161528919	-	Nmar_1411	-	hypothetical protein
1408	 34.99	0	1292013..1292435	-	140	161528920	-	Nmar_1412	-	translation initiation factor IF2/IF5
1409	 37.65	0	1292507..1292668	-	53	161528921	-	Nmar_1413	-	hypothetical protein
1410	 34.14	0	1292904..1293401	+	165	161528922	-	Nmar_1414	-	hypothetical protein
1411	 37.00	0	1293472..1294617	+	381	161528923	-	Nmar_1415	-	hypothetical protein
1412	 35.86	0	1294697..1295488	+	263	161528924	-	Nmar_1416	-	undecaprenyl diphosphate synthase
1413	 34.05	0	1295485..1295904	+	139	161528925	-	Nmar_1417	-	NUDIX hydrolase
1414	 35.76	0	1295884..1296624	-	246	161528926	-	Nmar_1418	-	orotidine 5'-phosphate decarboxylase
1415	 35.67	0	1296605..1297288	-	227	161528927	-	Nmar_1419	-	hypothetical protein
1416	 39.52	+1	1297338..1298339	-	333	161528928	-	Nmar_1420	-	adenylosuccinate synthetase
1417	 33.12	0	1298420..1298881	+	153	161528929	-	Nmar_1421	-	hypothetical protein
1418	 35.44	0	1298878..1299162	-	94	161528930	-	Nmar_1422	-	hypothetical protein
1419	 39.20	+1	1299224..1299649	-	141	161528931	-	Nmar_1423	-	hypothetical protein
1420	 39.05	+1	1299803..1300012	+	69	161528932	-	Nmar_1424	-	hypothetical protein
1421	 33.64	0	1300073..1300714	+	213	161528933	-	Nmar_1425	-	hypothetical protein
1422	 35.07	0	1300835..1301122	+	95	161528934	-	Nmar_1426	-	hypothetical protein
1423	 33.84	0	1301276..1301872	+	198	161528935	-	Nmar_1427	-	Sua5/YciO/YrdC/YwlC family protein
1424	 36.78	0	1301869..1302390	+	173	161528936	-	Nmar_1428	-	THUMP domain-containing protein
1425	 32.30	0	1302382..1303155	-	257	161528937	-	Nmar_1429	-	thiamineS protein
1426	 39.74	+1	1303197..1303586	-	129	161528938	-	Nmar_1430	-	hypothetical protein
1427	 34.55	0	1303617..1304435	-	272	161528939	-	Nmar_1431	-	TatD-related deoxyribonuclease
1428	 39.24	+1	1304454..1304690	+	78	161528940	-	Nmar_1432	-	transcription factor CBF/NF-Y/histone domain-containing protein
34.31	MEAN

3.47	STD DEV
