IslandPathversion 1.0

IslandPath Analysis: Nitrosopumilus maritimus SCM1

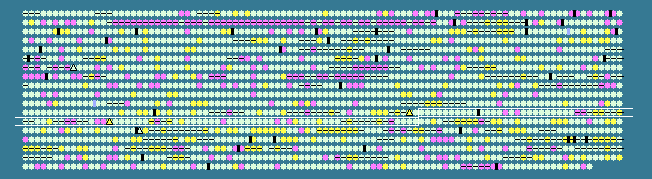

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.31 STD DEV: 3.47
Nitrosopumilus maritimus SCM1, complete genome - 1..1645259
1795 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1167	 34.38	0	1071457..1071837	+	126	161528679	-	Nmar_1171	-	hypothetical protein
1168	 35.82	0	1071834..1073081	-	415	161528680	-	Nmar_1172	-	vitamin K-dependent gamma-carboxylase
1169	 35.61	0	1073273..1073404	+	43	161528681	-	Nmar_1173	-	hypothetical protein
1170	 33.95	0	1073391..1073876	+	161	161528682	-	Nmar_1174	-	hypothetical protein
1171	 32.78	0	1073932..1074471	+	179	161528683	-	Nmar_1175	-	inorganic diphosphatase
1172	 35.27	0	1074473..1074730	+	85	161528684	-	Nmar_1176	-	zinc finger UBP-type protein
1173	 31.36	0	1075014..1076786	+	590	161528685	-	Nmar_1177	-	pepF/M3 family oligoendopeptidase
1174	 32.64	0	1076902..1077474	-	190	161528686	-	Nmar_1178	-	hypothetical protein
1175	 32.37	0	1077622..1078767	+	381	161528687	-	Nmar_1179	-	hypothetical protein
1176	 36.78	0	1078768..1079319	-	183	161528688	-	Nmar_1180	-	arginine decarboxylase, pyruvoyl-dependent
1177	 34.71	0	1079893..1080690	+	265	161528689	-	Nmar_1181	-	DSBA oxidoreductase
1178	 37.79	+1	1080792..1082114	+	440	161528690	-	Nmar_1182	-	DEAD/DEAH box helicase domain-containing protein
1179	 33.76	0	1082163..1082396	+	77	161528691	-	Nmar_1183	-	AsnC/Lrp family regulatory protein
1180	 35.40	0	1082430..1082720	+	96	161528692	-	Nmar_1184	-	hypothetical protein
1181	 29.89	-1	1082717..1083412	+	231	161528693	-	Nmar_1185	-	hypothetical protein
1182	 32.28	0	1083465..1084223	+	252	161528694	-	Nmar_1186	-	hypothetical protein
1183	 30.26	-1	1084186..1084641	-	151	161528695	-	Nmar_1187	-	hypothetical protein
1184	 33.08	0	1084732..1085529	+	265	161528696	-	Nmar_1188	-	hypothetical protein
1185	 31.01	0	1085567..1085911	+	114	161528697	-	Nmar_1189	-	hypothetical protein
1186	 32.95	0	1086156..1086416	+	86	161528698	-	Nmar_1190	-	hypothetical protein
1187	 33.88	0	1086413..1088440	-	675	161528699	-	Nmar_1191	-	hypothetical protein
1188	 36.32	0	1088479..1088712	-	77	161528700	-	Nmar_1192	-	hypothetical protein
1189	 35.85	0	1088792..1089826	+	344	161528701	-	Nmar_1193	-	alcohol dehydrogenase
1190	 36.74	0	1090267..1090794	-	175	161528702	-	Nmar_1194	-	hypothetical protein
1191	 36.55	0	1090876..1091124	+	82	161528703	-	Nmar_1195	-	hypothetical protein
1192	 33.77	0	1091128..1091814	-	228	161528704	-	Nmar_1196	-	hypothetical protein
1193	 29.44	-1	1092124..1092354	-	76	161528705	-	Nmar_1197	-	AsnC family transcriptional regulator
1194	 29.99	-1	1092421..1093617	-	398	161528706	-	Nmar_1198	-	tRNA pseudouridine synthase D TruD
1195	 35.52	0	1093614..1095215	-	533	161528707	-	Nmar_1199	-	hypothetical protein
1196	 38.93	+1	1095261..1095635	-	124	161528708	-	Nmar_1200	-	peptidyl-tRNA hydrolase
1197	 42.34	+2	1096377..1101503	-	1708	161528709	-	Nmar_1201	-	hypothetical protein
1198	 35.47	0	1101856..1102230	+	124	161528710	-	Nmar_1202	-	response regulator receiver protein
1199	 36.56	0	1102252..1103118	-	288	161528711	-	Nmar_1203	-	hypothetical protein
1200	 38.36	+1	1103274..1104188	+	304	161528712	-	Nmar_1204	-	hypothetical protein
1201	 34.75	0	1104185..1105030	+	281	161528713	-	Nmar_1205	-	hypothetical protein
1202	 37.67	0	1105027..1105464	-	145	161528714	-	Nmar_1206	-	response regulator receiver protein
1203	 36.56	0	1105436..1107169	-	577	161528715	-	Nmar_1207	-	histidine kinase
1204	 37.07	0	1107755..1108102	+	115	161528716	-	Nmar_1208	-	hypothetical protein
1205	 39.62	+1	1108392..1108916	+	174	161528717	-	Nmar_1209	-	hypothetical protein
1206	 31.34	0	1109414..1110718	-	434	161528718	-	Nmar_1210	-	metal dependent phosphohydrolase
1207	 31.17	0	1110705..1111259	-	184	161528719	-	Nmar_1211	-	hypothetical protein
1208	 28.04	-1	1111485..1112732	+	415	161528720	-	Nmar_1212	-	metallophosphoesterase
1209	 24.25	-2	1112729..1115149	+	806	161528721	-	Nmar_1213	-	SMC domain-containing protein
1210	 31.12	0	1115220..1116212	-	330	161528722	-	Nmar_1214	-	cobyrinic acid ac-diamide synthase
1211	 35.32	0	1116612..1117013	-	133	161528723	-	Nmar_1215	-	hypothetical protein
1212	 32.40	0	1117006..1118508	-	500	161528724	-	Nmar_1216	-	hypothetical protein
1213	 30.47	-1	1118505..1118783	-	92	161528725	-	Nmar_1217	-	hypothetical protein
1214	 30.19	-1	1118837..1119916	+	359	161528726	-	Nmar_1218	-	hypothetical protein
1215	 41.67	+2	1119907..1120962	-	351	161528727	-	Nmar_1219	-	integrase family protein
1216	 33.51	0	1121044..1122180	+	378	161528728	-	Nmar_1220	-	dehydrogenase (flavoprotein)-like protein
1217	 37.21	0	1122289..1122417	+	42	161528729	-	Nmar_1221	-	hypothetical protein
1218	 35.82	0	1122422..1122703	+	93	161528730	-	Nmar_1222	-	translation elongation factor aEF-1 beta
1219	 36.43	0	1122715..1124880	+	721	161528731	-	Nmar_1223	-	AAA family ATPase, CDC48 subfamily protein
1220	 33.33	0	1124883..1125179	+	98	161528732	-	Nmar_1224	-	hypothetical protein
1221	 37.59	0	1125183..1126052	-	289	161528733	-	Nmar_1225	-	protoheme IX farnesyltransferase
1222	 40.02	+1	1126185..1127261	+	358	161528734	-	Nmar_1226	-	blue (type1) copper domain-containing protein
1223	 30.79	-1	1127264..1127656	+	130	161528735	-	Nmar_1227	-	Mov34/MPN/PAD-1 family protein
1224	 35.42	0	1127657..1128040	-	127	161528736	-	Nmar_1228	-	hypothetical protein
1225	 40.31	+1	1128090..1128347	+	85	161528737	-	Nmar_1229	-	hypothetical protein
1226	 33.33	0	1128406..1128594	+	62	161528738	-	Nmar_1230	-	hypothetical protein
1227	 38.73	+1	1128591..1130630	-	679	161528739	-	Nmar_1231	-	membrane-bound proton-translocating pyrophosphatase
1228	 37.04	0	1130666..1131043	-	125	161528740	-	Nmar_1232	-	hypothetical protein
1229	 34.62	0	1131195..1131659	-	154	161528741	-	Nmar_1233	-	hypothetical protein
1230	 36.84	0	1131701..1132813	-	370	161528742	-	Nmar_1234	-	hypothetical protein
1231	 36.35	0	1132962..1133558	+	198	161528743	-	Nmar_1235	-	DNA-directed RNA polymerase subunit E'
1232	 35.98	0	1133560..1133748	+	62	161528744	-	Nmar_1236	-	DNA-directed RNA polymerase subunit E, RpoE2
1233	 32.72	0	1133788..1134606	+	272	161528745	-	Nmar_1237	-	nicotinate-nucleotide pyrophosphorylase
1234	 30.79	-1	1134603..1134995	-	130	161528746	-	Nmar_1238	-	TPR repeat-containing protein
1235	 34.38	0	1135009..1135965	-	318	161528747	-	Nmar_1239	-	quinolinate synthetase complex, A subunit
1236	 34.92	0	1136059..1136877	-	272	161528748	-	Nmar_1240	-	aspartate dehydrogenase
1237	 33.23	0	1136958..1137911	+	317	161528749	-	Nmar_1241	-	hypothetical protein
1238	 33.33	0	1137977..1138813	+	278	161528750	-	Nmar_1242	-	hypothetical protein
1239	 34.51	0	1138810..1140342	+	510	161528751	-	Nmar_1243	-	hypothetical protein
1240	 34.47	0	1140342..1141484	+	380	161528752	-	Nmar_1244	-	metallophosphoesterase
1241	 32.32	0	1141481..1143562	+	693	161528753	-	Nmar_1245	-	SMC domain-containing protein
1242	 31.98	0	1143628..1144143	+	171	161528754	-	Nmar_1246	-	hypothetical protein
1243	 29.43	-1	1144197..1145837	+	546	161528755	-	Nmar_1247	-	histidine kinase
1244	 31.07	0	1145914..1146222	+	102	161528756	-	Nmar_1248	-	response regulator receiver protein
1245	 28.65	-1	1146219..1147073	-	284	161528757	-	Nmar_1249	-	hypothetical protein
1246	 41.11	+1	1147717..1148436	-	239	161528758	-	Nmar_1250	-	protease inhibitor Kazal-type
1247	 36.81	0	1148438..1148926	-	162	161528759	-	Nmar_1251	-	HEAT repeat-containing PBS lyase
1248	 34.68	0	1149023..1149688	+	221	161528760	-	Nmar_1252	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
1249	 32.95	0	1149923..1150696	-	257	161528761	-	Nmar_1253	-	hypothetical protein
1250	 40.43	+1	1150749..1151213	-	154	161528762	-	Nmar_1254	-	50S ribosomal protein L15e
1251	 32.88	0	1151421..1152080	+	219	161528763	-	Nmar_1255	-	hypothetical protein
1252	 31.59	0	1152077..1152592	+	171	161528764	-	Nmar_1256	-	hypothetical protein
1253	 35.79	0	1152589..1153482	-	297	161528765	-	Nmar_1257	-	hypothetical protein
1254	 36.12	0	1153583..1154515	-	310	161528766	-	Nmar_1258	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
1255	 41.05	+1	1154583..1155995	-	470	161528767	-	Nmar_1259	-	hypothetical protein
1256	 35.02	0	1156106..1157467	+	453	161528768	-	Nmar_1260	-	fumarate lyase
1257	 37.51	0	1157471..1158739	+	422	161528769	-	Nmar_1261	-	MiaB-like tRNA modifying enzyme
1258	 35.54	0	1158813..1159763	+	316	161528770	-	Nmar_1262	-	tubulin/FtsZ GTPase
1259	 36.35	0	1159800..1160363	-	187	161528771	-	Nmar_1263	-	ribosomal protein L31e
1260	 41.51	+2	1160364..1160522	-	52	161528772	-	Nmar_1264	-	ribosomal protein L39e
1261	 33.88	0	1160560..1161111	-	183	161528773	-	Nmar_1265	-	NUDIX hydrolase
1262	 30.62	-1	1161181..1161918	+	245	161528774	-	Nmar_1266	-	5 10-methylenetetrahydrofolate reductase-like protein
1263	 35.97	0	1161915..1164413	-	832	161528775	-	Nmar_1267	-	methionine synthase
1264	 36.45	0	1164446..1165408	-	320	161528776	-	Nmar_1268	-	homocysteine S-methyltransferase
1265	 37.68	0	1165474..1166622	+	382	161528777	-	Nmar_1269	-	major facilitator transporter
1266	 36.11	0	1166630..1166953	-	107	161528778	-	Nmar_1270	-	hypothetical protein
34.31	MEAN

3.47	STD DEV
