IslandPath Analysis: Nitrosopumilus maritimus SCM1

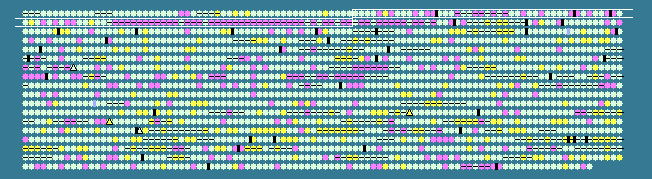

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 34.31   STD DEV: 3.47
Nitrosopumilus maritimus SCM1, complete genome - 1..1645259
1795 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
56	 36.06	0	45126..45602	+	158	161527568	-	Nmar_0056	-	hypothetical protein
57	 34.52	0	45627..46217	+	196	161527569	-	Nmar_0057	-	precorrin-6Y C5,15-methyltransferase (decarboxylating), CbiT subunit
58	 33.20	0	46253..46975	+	240	161527570	-	Nmar_0058	-	precorrin-2 C20-methyltransferase
59	 32.04	0	46968..47738	+	256	161527571	-	Nmar_0059	-	precorrin-4 C11-methyltransferase
60	 26.72	-2	47719..48474	-	251	161527572	-	Nmar_0060	-	glutamate racemase
61	 43.16	+2	48580..49230	+	216	161527573	-	Nmar_0061	-	hypothetical protein
62	 29.97	-1	49278..50438	-	386	161527574	-	Nmar_0062	-	glycosyl transferase family protein
63	 33.61	0	50600..52057	-	485	161527575	-	Nmar_0063	-	glycyl-tRNA synthetase
64	 31.90	0	52088..52927	-	279	161527576	-	Nmar_0064	-	apurinic endonuclease Apn1
65	 33.72	0	53013..54038	+	341	161527577	-	Nmar_0065	-	DNA primase, large subunit
66	 28.79	-1	54038..55159	+	373	161527578	-	Nmar_0066	-	DNA primase small subunit
67	 35.01	0	55201..58062	+	953	161527579	-	Nmar_0067	-	hypothetical protein
68	 26.70	-2	58063..58605	+	180	161527580	-	Nmar_0068	-	glutamine amidotransferase class-I
69	 30.22	-1	58640..59602	+	320	161527581	-	Nmar_0069	-	TPR repeat-containing protein
70	 34.48	0	59729..59902	+	57	161527582	-	Nmar_0070	-	hypothetical protein
71	 35.51	0	60101..60514	+	137	161527583	-	Nmar_0071	-	ribosomal protein S6e
72	 35.31	0	60546..61808	+	420	161527584	-	Nmar_0072	-	translation initiation factor IF-2 subunit gamma
73	 24.12	-2	61801..62169	+	122	161527585	-	Nmar_0073	-	hypothetical protein
74	 33.78	0	62205..62654	+	149	161527586	-	Nmar_0074	-	PEBP family protein
75	 31.74	0	62723..64861	+	712	161527587	-	Nmar_0075	-	dolichyl-diphosphooligosaccharide--protein glycotransferase
76	 27.56	-1	64864..65019	-	51	161527588	-	Nmar_0076	-	RNA-binding protein Nop10p
77	 29.32	-1	65021..65818	-	265	161527589	-	Nmar_0077	-	RNA-binding S1 domain-containing protein
78	 31.83	0	65859..66389	-	176	161527590	-	Nmar_0078	-	cob(I)alamin adenosyltransferase
79	 29.05	-1	66477..67829	+	450	161527591	-	Nmar_0079	-	cobyrinic acid a,c-diamide synthase
80	 35.51	0	67818..68459	-	213	161527592	-	Nmar_0080	-	precorrin-8X methylmutase CbiC/CobH
81	 30.15	-1	68449..69201	-	250	161527593	-	Nmar_0081	-	cobalamin (vitamin B12) biosynthesis CbiX protein
82	 31.81	0	69198..70250	-	350	161527594	-	Nmar_0082	-	cobalamin (vitamin B12) biosynthesis CbiG protein
83	 33.98	0	70282..71367	-	361	161527595	-	Nmar_0083	-	cobalamin biosynthesis protein CbiD
84	 27.82	-1	71458..72327	+	289	161527596	-	Nmar_0084	-	NAD-dependent epimerase/dehydratase
85	 34.88	0	72304..73470	-	388	161527597	-	Nmar_0085	-	methionine adenosyltransferase
86	 32.11	0	73486..73731	-	81	161527598	-	Nmar_0086	-	like-Sm ribonucleoprotein core
87	 25.84	-2	73840..74493	+	217	161527599	-	Nmar_0087	-	RecA/RadA recombinase-like protein
88	 31.77	0	74592..77333	+	913	161527600	-	Nmar_0088	-	DEAD/DEAH box helicase domain-containing protein
89	 32.98	0	77330..78730	-	466	161527601	-	Nmar_0089	-	nucleic acid binding OB-fold tRNA/helicase-type
90	 32.06	0	78944..79882	+	312	161527602	-	Nmar_0090	-	ABC transporter related
91	 32.28	0	79866..80627	+	253	161527603	-	Nmar_0091	-	ABC-2 type transporter
92	 30.09	-1	80633..81373	-	246	161527604	-	Nmar_0092	-	UDP-glucose/GDP-mannose dehydrogenase
93	 28.49	-1	81548..82600	-	350	161527605	-	Nmar_0093	-	hypothetical protein
94	 31.84	0	82664..83803	+	379	161527606	-	Nmar_0094	-	hypothetical protein
95	 27.84	-1	83839..84402	+	187	161527607	-	Nmar_0095	-	GrpE protein
96	 36.37	0	84405..86315	+	636	161527608	-	Nmar_0096	-	chaperone protein DnaK
97	 35.73	0	86365..87450	+	361	161527609	-	Nmar_0097	-	chaperone protein DnaJ
98	 29.03	-1	87456..87989	+	177	161527610	-	Nmar_0098	-	hypothetical protein
99	 29.82	-1	88308..90212	-	634	161527611	-	Nmar_0099	-	glutamyl-tRNA(Gln) amidotransferase subunit E
100	 32.71	0	90221..91510	-	429	161527612	-	Nmar_0100	-	glutamyl-tRNA(Gln) amidotransferase subunit D
101	 36.38	0	91543..93711	-	722	161527613	-	Nmar_0101	-	AAA family ATPase, CDC48 subfamily protein
102	 40.27	+1	93816..94550	+	244	161527614	-	Nmar_0102	-	50S ribosomal protein L2P
103	 34.77	0	94601..94879	+	92	161527615	-	Nmar_0103	-	acylphosphatase
104	 27.03	-2	94876..95208	-	110	161527616	-	Nmar_0104	-	hypothetical protein
105	 31.37	0	95588..96502	-	304	161527617	-	Nmar_0105	-	PP-loop domain-containing protein
106	 24.86	-2	96623..97543	+	306	161527618	-	Nmar_0106	-	methyltransferase type 12
107	 33.33	0	97656..98852	-	398	161527619	-	Nmar_0107	-	peptidase M50
108	 24.68	-2	98896..99207	+	103	161527620	-	Nmar_0108	-	CutA1 divalent ion tolerance protein
109	 29.90	-1	99204..100253	-	349	161527621	-	Nmar_0109	-	eRF1 domain-containing 1 protein
110	 32.13	0	100286..100699	-	137	161527622	-	Nmar_0110	-	hypothetical protein
111	 31.57	0	100838..101290	+	150	161527623	-	Nmar_0111	-	hypothetical protein
112	 38.18	+1	101295..101459	-	54	161527624	-	Nmar_0112	-	hypothetical protein
113	 36.42	0	101499..101951	-	150	161527625	-	Nmar_0113	-	DtxR family iron dependent repressor
114	 32.55	0	101953..102720	-	255	161527626	-	Nmar_0114	-	transcriptional regulator, TrmB
115	 35.36	0	102822..104501	+	559	161527627	-	Nmar_0115	-	radical SAM domain-containing protein
116	 29.73	-1	104553..105578	+	341	161527628	-	Nmar_0116	-	glycosyl transferase group 1
117	 28.77	-1	105630..106637	+	335	161527629	-	Nmar_0117	-	polysaccharide biosynthesis protein CapD
118	 23.66	-2	106639..108219	-	526	161527630	-	Nmar_0118	-	hypothetical protein
119	 29.90	-1	108318..109481	-	387	161527631	-	Nmar_0119	-	polysaccharide biosynthesis protein
120	 27.58	-1	109495..110676	-	393	161527632	-	Nmar_0120	-	glycosyl transferase group 1
121	 22.18	-2	110737..111624	-	295	161527633	-	Nmar_0121	-	NAD-dependent epimerase/dehydratase
122	 27.51	-1	111720..112664	+	314	161527634	-	Nmar_0122	-	NAD-dependent epimerase/dehydratase
123	 24.98	-2	112659..113699	-	346	161527635	-	Nmar_0123	-	glycosyl transferase family protein
124	 27.37	-2	113741..114796	-	351	161527636	-	Nmar_0124	-	glucose-1-phosphate thymidyltransferase
125	 26.36	-2	114842..115831	-	329	161527637	-	Nmar_0125	-	dTDP-glucose 4,6-dehydratase
126	 29.19	-1	116426..117607	-	393	161527638	-	Nmar_0126	-	GDSL family lipase
127	 33.98	0	117608..119311	-	567	161527639	-	Nmar_0127	-	carbamoyltransferase
128	 26.44	-2	119311..119658	-	115	161527640	-	Nmar_0128	-	hypothetical protein
129	 24.84	-2	119660..119812	-	50	161527641	-	Nmar_0129	-	hypothetical protein
130	 29.59	-1	119962..120735	-	257	161527642	-	Nmar_0130	-	hypothetical protein
131	 31.25	0	120842..121897	+	351	161527643	-	Nmar_0131	-	N-acylneuraminate-9-phosphate synthase
132	 28.47	-1	121900..122988	-	362	161527644	-	Nmar_0132	-	glutamine--scyllo-inositol transaminase
133	 21.80	-2	122985..123383	-	132	161527645	-	Nmar_0133	-	hypothetical protein
134	 26.77	-2	123483..124076	+	197	161527646	-	Nmar_0134	-	methionyl-tRNA formyltransferase-like protein
135	 24.51	-2	124078..124836	+	252	161527647	-	Nmar_0135	-	acylneuraminate cytidylyltransferase
136	 25.31	-2	124833..125879	-	348	161527648	-	Nmar_0136	-	oxidoreductase domain-containing protein
137	 26.88	-2	125943..127181	-	412	161527649	-	Nmar_0137	-	aminopeptidase domain-containing protein
138	 22.99	-2	127275..127622	+	115	161527650	-	Nmar_0138	-	4'-phosphopantetheinyl transferase
139	 22.94	-2	127631..129448	-	605	161527651	-	Nmar_0139	-	hypothetical protein
140	 29.37	-1	129568..130626	+	352	161527652	-	Nmar_0140	-	pyruvate carboxyltransferase
141	 23.94	-2	130601..132058	+	485	161527653	-	Nmar_0141	-	AMP-dependent synthetase and ligase
142	 29.61	-1	132142..132786	+	214	161527654	-	Nmar_0142	-	cyclase family protein
143	 23.17	-2	132804..133049	+	81	161527655	-	Nmar_0143	-	hypothetical protein
144	 27.61	-1	133033..133818	+	261	161527656	-	Nmar_0144	-	aminoglycoside N3'-acetyltransferase
145	 30.26	-1	133802..134257	-	151	161527657	-	Nmar_0145	-	hypothetical protein
146	 29.90	-1	134267..135256	-	329	161527658	-	Nmar_0146	-	polysaccharide biosynthesis protein CapD
147	 23.61	-2	135375..136670	+	431	161527659	-	Nmar_0147	-	hypothetical protein
148	 33.03	0	136667..137995	+	442	161527660	-	Nmar_0148	-	aminotransferase class-III
149	 25.40	-2	138001..138744	-	247	161527661	-	Nmar_0149	-	acylneuraminate cytidylyltransferase
150	 32.83	0	138746..139729	-	327	161527662	-	Nmar_0150	-	NAD-dependent epimerase/dehydratase
151	 28.87	-1	141684..142691	+	335	161527663	-	Nmar_0153	-	oxidoreductase domain-containing protein
152	 29.23	-1	142688..144052	+	454	161527664	-	Nmar_0154	-	sulfatase
153	 31.59	0	144143..145516	+	457	161527665	-	Nmar_0155	-	helix-turn-helix domain-containing protein
154	 28.00	-1	145547..146671	+	374	161527666	-	Nmar_0156	-	sulfatase
155	 25.40	-2	146673..147416	-	247	161527667	-	Nmar_0157	-	sugar nucleotidyltransferase-like protein
34.31	MEAN

3.47	STD DEV
