IslandPath Analysis: Neisseria meningitidis FAM18

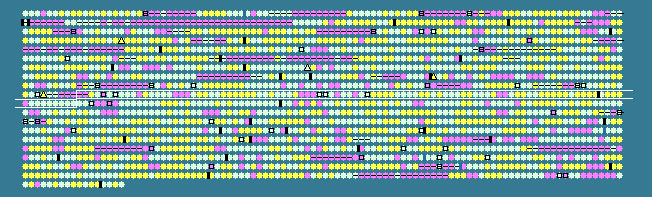

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.80   STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
910	 37.94	-1	992071..992982	+	303	121634811	-	NMC1000	-	hypothetical protein
911	 32.51	-2	992979..993461	+	160	121634812	-	NMC1001	-	hypothetical protein
912	 56.75	0	993551..994054	+	167	121634813	-	NMC1002	-	hypothetical protein
913	 50.36	0	994491..994901	+	136	121634814	-	NMC1005	-	hypothetical protein
914	 47.73	0	994906..995655	+	249	121634815	-	NMC1006	-	putative transposase
915	 50.66	0	996397..997002	-	201	121634816	-	NMC1007	-	hypothetical protein
916	 51.35	0	997069..998034	-	321	121634817	-	NMC1008	-	transposase for IS1655
917	 53.88	0	998811..999866	-	351	121634818	-	NMC1009	-	putative sulphate-binding protein
918	 51.35	0	999972..1000454	-	160	121634819	-	NMC1010	-	hypothetical protein
919	 53.30	0	1000501..1001637	-	378	121634820	purK	NMC1011	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
920	 36.08	-2	1001634..1002179	-	181	121634821	-	NMC1012	-	hypothetical protein
921	 55.83	0	1002176..1003651	-	491	121634822	trpE	NMC1013	-	anthranilate synthase component I
922	 50.00	0	1003762..1004127	-	121	121634823	-	NMC1014	-	hypothetical protein
923	 50.73	0	1004148..1006073	-	641	121634824	abcZ	NMC1015	-	putative ABC transporter ATP-binding protein
924	 51.47	0	1006077..1006721	-	214	121634825	dedA	NMC1016	-	DedA protein ortholog
925	 55.00	0	1006812..1008062	-	416	121634826	glyA	NMC1017	-	serine hydroxymethyltransferase
926	 47.18	0	1008543..1010318	-	591	121634827	ggt	NMC1018	-	gamma-glutamyltranspeptidase
927	 33.77	-2	1010889..1011116	+	75	121634828	-	NMC1020	-	hypothetical protein
928	 46.12	0	1011092..1011310	+	72	121634829	-	NMC1021	-	hypothetical protein
929	 53.64	0	1011469..1012443	-	324	121634830	fbp	NMC1022	-	fructose-1,6-bisphosphatase
930	 56.03	0	1012689..1013534	-	281	121634831	-	NMC1024	-	hypothetical protein
931	 55.89	0	1013622..1014224	-	200	121634832	-	NMC1026	-	putative integral membrane protein
932	 52.66	0	1014280..1014636	+	118	121634833	folB	NMC1027	-	dihydroneopterin aldolase
933	 52.51	0	1014670..1015206	+	178	121634834	-	NMC1028	-	hypothetical protein
934	 57.22	0	1016250..1016609	-	119	121634835	-	NMC1029	-	putative integral membrane protein
935	 56.53	0	1016638..1017318	-	226	121634836	-	NMC1030	-	putative integral membrane protein
936	 55.32	0	1017483..1020515	+	1010	121634837	-	NMC1031	-	putative cell-division protein
937	 57.96	0	1020740..1022002	-	420	121634838	proA	NMC1032	-	gamma-glutamyl phosphate reductase
938	 56.67	0	1022015..1023124	-	369	121634839	proB	NMC1033	-	gamma-glutamyl kinase
939	 55.34	0	1023610..1025163	+	517	121634840	leuA	NMC1034	-	2-isopropylmalate synthase
940	 52.04	0	1025363..1026025	+	220	121634841	-	NMC1035	-	hypothetical protein
941	 54.58	0	1026108..1026959	-	283	121634842	lgt	NMC1036	-	prolipoprotein diacylglyceryl transferase
942	 56.41	0	1027032..1028162	-	376	121634843	-	NMC1037	-	hypothetical protein
943	 53.73	0	1028332..1029228	+	298	121634844	argB	NMC1038	-	acetylglutamate kinase
944	 54.11	0	1031085..1031753	-	222	121634845	-	NMC1039	-	hypothetical protein
945	 54.64	0	1031750..1032481	-	243	121634846	-	NMC1040	-	hypothetical protein
946	 58.74	0	1032523..1033140	-	205	121634847	-	NMC1041	-	ABC transporter ATP-binding protein
947	 46.67	0	1033116..1033295	+	59	121634848	-	NMC1042	-	hypothetical protein
948	 38.89	-1	1033495..1034394	-	299	121634849	-	NMC1044	-	putative DNA-binding protein
949	 38.49	-1	1034438..1034689	+	83	121634850	-	NMC1045	-	putative DNA-binding protein (phage related)
950	 54.34	0	1034691..1036670	+	659	121634851	-	NMC1046	-	putative phage transposase
951	 50.82	0	1036706..1037620	+	304	121634852	-	NMC1048	-	putative phage transposase
952	 48.45	0	1037686..1037976	+	96	121634853	-	NMC1049	-	hypothetical protein
953	 44.44	-1	1037963..1038088	+	41	121634854	-	NMC1050	-	hypothetical protein
954	 52.87	0	1038085..1038258	+	57	121634855	-	NMC1051	-	hypothetical protein
955	 52.38	0	1038251..1038418	+	55	121634856	-	NMC1052	-	hypothetical protein
956	 35.53	-2	1038482..1038709	+	75	121634857	-	NMC1053	-	hypothetical protein
957	 52.22	0	1038724..1039242	+	172	121634858	gam	NMC1054	-	putative host-nuclease inhibitor protein
958	 51.35	0	1039375..1040340	-	321	121634859	-	NMC1055	-	transposase for IS1655
959	 61.68	+1	1041177..1041737	+	186	121634860	-	NMC1057	-	hypothetical protein
960	 58.21	0	1041748..1043721	+	657	121634861	-	NMC1058	-	putative phage tail fibre protein
961	 59.24	+1	1045258..1045863	+	201	121634862	-	NMC1059	-	hypothetical protein
962	 58.92	+1	1045842..1046138	+	98	121634863	-	NMC1060	-	hypothetical protein
963	 52.27	0	1046454..1047597	-	380	121634864	-	NMC1062	-	ABC transporter ATP-binding protein
964	 54.17	0	1048039..1048686	-	215	121634865	-	NMC1063	-	putative periplasmic protein
965	 52.42	0	1048683..1049054	-	123	121634866	-	NMC1065	-	putative periplasmic protein
966	 52.98	0	1049061..1049732	-	223	121634867	-	NMC1066	-	putative periplasmic protein
967	 58.47	0	1049897..1050616	-	239	121634868	-	NMC1067	-	short chain dehydrogenase
968	 64.99	+1	1050699..1052012	-	437	121634869	-	NMC1068	-	putative oxidoreductase
969	 53.95	0	1052409..1053281	-	290	121634870	-	NMC1069	-	putative poly-isoprenyl transferase
970	 58.20	0	1053296..1055314	+	672	121634871	hscA	NMC1070	-	chaperone protein HscA
971	 49.47	0	1055637..1056200	+	187	121634872	-	NMC1071	-	hypothetical protein
972	 53.10	0	1056483..1056998	+	171	121634873	-	NMC1072	-	hypothetical protein
973	 54.97	0	1057053..1057394	+	113	121634874	fdx	NMC1073	-	putative ferredoxin
974	 55.78	0	1057681..1058268	-	195	121634875	-	NMC1074	-	hypothetical protein
975	 58.08	0	1058481..1058678	+	65	121634876	-	NMC1076	-	hypothetical protein
976	 52.74	0	1058746..1059147	-	133	121634877	-	NMC1077	-	hypothetical protein
977	 52.71	0	1059358..1060317	+	319	121634878	accA	NMC1078	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
978	 52.39	0	1060358..1061695	+	445	121634879	-	NMC1080	-	hypothetical protein
979	 56.23	0	1061769..1062554	+	261	121634880	-	NMC1081	-	putative RNA methyltransferase
980	 42.62	-1	1062605..1062841	+	78	121634881	-	NMC1082	-	putative lipoprotein
981	 36.72	-2	1063023..1063376	+	117	121634882	-	NMC1083	-	hypothetical protein
982	 50.33	0	1063388..1063693	+	101	121634883	-	NMC1084	-	putative periplasmic protein
983	 58.61	0	1063755..1065131	+	458	121634884	mpl	NMC1085	-	putative UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso- diaminopimelate ligase
984	 56.27	0	1065140..1066390	+	416	121634885	bioB	NMC1087	-	putative biotin synthase
985	 50.75	0	1066374..1067102	-	242	121634886	-	NMC1088	-	hypothetical protein
986	 53.33	0	1067226..1067465	-	79	121634887	-	NMC1089	-	hypothetical protein
987	 58.12	0	1067748..1069607	-	619	121634888	ilvD	NMC1090	-	dihydroxy-acid dehydratase
988	 56.16	0	1069780..1071549	-	589	121634889	cysI	NMC1091	-	sulfite reductase subunit beta
989	 58.79	0	1071576..1073390	-	604	121634890	cysJ	NMC1092	-	putative sulphite reductase alpha subunit
990	 57.42	0	1073387..1074673	-	428	121634891	cysN	NMC1093	-	putative sulphate adenylate transferase subunit 1
991	 58.98	+1	1074712..1075635	-	307	121634892	cysD	NMC1094	-	sulfate adenylyltransferase subunit 2
992	 53.74	0	1075673..1076407	-	244	121634893	cysH	NMC1095	-	phosphoadenosine phosphosulfate reductase
993	 60.54	+1	1076423..1077874	-	483	121634894	cysG	NMC1096	-	sirohaem synthase
994	 55.56	0	1078324..1078980	-	218	121634895	-	NMC1097	-	hypothetical protein
995	 59.03	+1	1079045..1079935	+	296	121634896	-	NMC1098	-	hypothetical protein
996	 57.23	0	1080205..1082016	+	603	121634897	typA	NMC1099	-	putative GTP-binding protein
997	 52.90	0	1083004..1085379	+	791	121634898	vacB	NMC1102	-	putative ribonuclease
998	 57.17	0	1085718..1087181	-	487	121634899	guaB	NMC1103	-	inositol-5-monophosphate dehydrogenase
999	 57.09	0	1087328..1089886	-	852	121634900	glnD	NMC1104	-	putative [protein-PII] uridylyltransferase
1000	 55.45	0	1089935..1090255	-	106	121634901	-	NMC1106	-	transcriptional regulator
1001	 47.47	0	1090579..1091052	-	157	121634902	bfrB	NMC1107	-	bacterioferritin B
1002	 51.83	0	1091080..1091544	-	154	121634903	bfrA	NMC1108	-	bacterioferritin A
1003	 54.81	0	1092007..1093077	-	356	121634904	lipA	NMC1110	-	lipoyl synthase
1004	 54.80	0	1092983..1093555	-	190	121634905	lipB	NMC1111	-	lipoate-protein ligase B
1005	 52.90	0	1093608..1093883	-	91	121634906	-	NMC1112	-	hypothetical protein
1006	 53.31	0	1094068..1095138	+	356	121634907	-	NMC1113	-	putative integral membrane protein
1007	 52.43	0	1095385..1096332	-	315	121634908	-	NMC1114	-	putative periplasmic protein
1008	 52.62	0	1096347..1096766	-	139	121634909	-	NMC1115	-	hypothetical protein
1009	 54.24	0	1096835..1097494	+	219	121634910	-	NMC1116	-	uracil-DNA glycosylase
51.80	MEAN

7.07	STD DEV
