IslandPath Analysis: Neisseria meningitidis FAM18

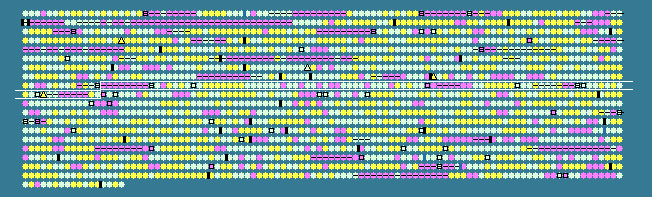

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
814	 36.90	-2	884729..885991	-	420	121634715	-	NMC0887	-	HlyD family secretion protein
815	 40.30	-1	885993..888089	-	698	121634716	-	NMC0888	-	putative ABC transporter
816	 44.64	-1	888125..888460	-	111	121634717	-	NMC0889	-	putative integral membrane protein
817	 19.76	-2	888453..888872	-	139	121634718	-	NMC0890	-	putative integral membrane protein
818	 32.03	-2	888876..890024	-	382	121634719	-	NMC0891	-	hypothetical protein
819	 27.35	-2	890118..890234	+	38	121634720	-	NMC0892	-	hypothetical protein
820	 35.29	-2	890200..890403	-	67	121634721	-	NMC0893	-	putative ParB protein
821	 38.14	-1	890446..891090	-	213	121634722	parA	NMC0895	-	ParA protein
822	 53.03	0	891437..892411	-	324	121634723	-	NMC0896	-	putative transposase for IS1106A3 (fragment)
823	 54.31	0	893798..896023	-	741	121634724	icd	NMC0897	-	putative isocitrate dehydrogenase
824	 46.59	0	896456..897571	+	371	121634725	lst	NMC0899	-	CMP-N-acetylneuraminate-beta-galactosamide-alpha-2,3-sialyltransferase
825	 55.77	0	897736..898194	-	152	121634726	-	NMC0900	-	putative C-type cytochrome
826	 53.04	0	898313..899134	+	273	121634727	-	NMC0901	-	putative oxidoreductase
827	 56.15	0	899185..899631	-	148	121634728	-	NMC0902	-	putative acyl-CoA hydrolase
828	 50.06	0	901047..901833	-	263	121634729	opaD	NMC0903	-	pseudogene (opacity protein)
829	 51.45	0	902518..903483	-	321	121634730	-	NMC0904	-	putative transposase for IS1655
830	 53.10	0	904126..905061	+	311	121634731	pip	NMC0905	-	proline iminopeptidase
831	 57.64	0	905118..906314	-	398	121634732	-	NMC0906	-	putative lipoprotein
832	 60.27	+1	906323..907198	-	291	121634733	dapA	NMC0907	-	dihydrodipicolinate synthase
833	 56.45	0	907487..908896	+	469	121634734	-	NMC0908	-	putative transmembrane transport protein
834	 57.37	0	908958..909710	-	250	121634735	-	NMC0909	-	putative RNA methylase
835	 58.49	0	909776..910264	-	162	121634736	-	NMC0910	-	hypothetical protein
836	 57.08	0	910269..910988	-	239	121634737	-	NMC0911	-	putative cytosine deaminase
837	 56.90	0	910992..911933	-	313	121634738	miaA	NMC0912	-	tRNA delta(2)-isopentenylpyrophosphate transferase
838	 53.13	0	912312..913685	-	456	121634739	-	NMC0913	-	hypothetical protein
839	 51.16	0	913923..914483	+	186	121634740	efp	NMC0915	-	elongation factor P
840	 53.07	0	914533..915378	-	281	121634741	-	NMC0916	-	putative lipoprotein
841	 53.30	0	915495..916085	-	196	121634742	-	NMC0917	-	hypothetical protein
842	 52.76	0	916073..917194	-	373	121634743	metX	NMC0918	-	homoserine O-acetyltransferase
843	 53.17	0	917661..917786	-	41	121634744	rpmJ	NMC0919	-	50S ribosomal protein L36
844	 47.10	0	917786..918061	-	91	121634745	rpmE2	NMC0920	-	50S ribosomal protein L31 type B
845	 52.45	0	918261..919139	+	292	121634746	metF	NMC0921	-	5,10-methylenetetrahydrofolate reductase
846	 52.13	0	919277..921553	+	758	121634747	metE	NMC0922	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
847	 47.97	0	921832..922569	+	245	121634748	-	NMC0923	-	putative redoxin
848	 54.49	0	922818..924221	+	467	121634749	lpdA2	NMC0924	-	dihydrolipoamide dehydrogenase
849	 48.94	0	924500..924877	+	125	121634750	sdhC	NMC0925	-	putative succinate dehydrogenase cytochrome B subunit
850	 46.48	0	924886..925212	+	108	121634751	sdhD	NMC0926	-	putative succinate dehydrogenase hydrophobic membrane anchor protein
851	 52.14	0	925203..926978	+	591	121634752	sdhA	NMC0927	-	putative succinate dehydrogenase flavoprotein subunit
852	 47.54	0	927075..927806	+	243	121634753	sdhB	NMC0928	-	succinate dehydrogenase iron-sulfur subunit
853	 42.17	-1	927810..928058	+	82	121634754	-	NMC0929	-	hypothetical protein
854	 52.73	0	928170..929453	+	427	121634755	gltA	NMC0930	-	type II citrate synthase
855	 50.94	0	929658..932486	+	942	121634756	kgd	NMC0931	-	alpha-ketoglutarate decarboxylase
856	 53.14	0	932586..933827	+	413	121634757	sucB	NMC0932	-	dihydrolipoamide acetyltransferase
857	 52.86	0	934192..935625	+	477	121634758	lpdA3	NMC0933	-	dihydrolipoamide dehydrogenase
858	 46.53	0	935750..936037	+	95	121634759	-	NMC0934	-	hypothetical protein
859	 52.19	0	936137..937303	+	388	121634760	sucC	NMC0935	-	succinyl-CoA synthetase subunit beta
860	 51.07	0	937314..938204	+	296	121634761	sucD	NMC0936	-	succinyl-CoA synthetase subunit alpha
861	 49.09	0	938439..938768	-	109	121634762	-	NMC0938	-	hypothetical protein
862	 28.42	-2	939748..941802	-	684	121634763	-	NMC0940	-	putative ATP-dependent helicase
863	 57.29	0	941817..944663	-	948	121634764	uvrA	NMC0941	-	excinuclease ABC subunit A
864	 53.13	0	944818..945615	+	265	121634765	-	NMC0942	-	phosphatidylserine decarboxylase
865	 55.42	0	947278..949572	-	764	121634766	-	NMC0944	-	putative outer-membrane receptor protein
866	 51.95	0	949976..950566	+	196	121634767	trpG	NMC0947	-	anthranilate synthase component II
867	 52.69	0	950631..951689	+	352	121634768	trpD	NMC0948	-	anthranilate phosphoribosyltransferase
868	 36.78	-2	951841..952014	-	57	121634769	-	NMC0949	-	putative transposase
869	 46.57	0	952467..953501	+	344	121634770	-	NMC0950	-	putative phage replication initiation protein
870	 46.96	0	953492..953836	+	114	121634771	-	NMC0951	-	hypothetical protein
871	 42.42	-1	953841..954038	+	65	121634772	-	NMC0952	-	hypothetical protein
872	 47.37	0	954046..954330	+	94	121634773	-	NMC0953	-	putative integral membrane protein
873	 45.16	0	954337..954615	+	92	121634774	-	NMC0954	-	putative integral membrane protein
874	 29.86	-2	954773..955060	+	95	121634775	-	NMC0955	-	hypothetical protein
875	 42.86	-1	955002..955442	+	146	121634776	-	NMC0956	-	putative cell-surface protein
876	 48.66	0	955953..956513	+	186	121634777	-	NMC0957	-	hypothetical protein
877	 55.19	0	956721..958106	-	461	121634778	pntB	NMC0958	-	pyridine nucleotide transhydrogenase
878	 58.07	0	958172..958555	-	127	121634779	-	NMC0959	-	hypothetical protein
879	 58.17	0	958559..960100	-	513	121634780	pntA	NMC0960	-	NAD(P) transhydrogenase subunit alpha
880	 55.40	0	960393..961226	+	277	121634781	serB	NMC0961	-	phosphoserine phosphatase
881	 59.18	+1	961271..962512	+	413	121634782	-	NMC0962	-	putative integral membrane protein
882	 58.00	0	962677..964257	+	526	121634783	purH	NMC0963	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
883	 53.71	0	964856..965812	+	318	121634784	-	NMC0964	-	putative transposase
884	 51.49	0	965966..966400	+	144	121634785	-	NMC0965	-	putative phage related protein
885	 49.32	0	966372..966809	+	145	121634786	-	NMC0966	-	putative phage related protein
886	 55.49	0	967117..967662	+	181	121634787	-	NMC0967	-	putative amidase
887	 52.90	0	967895..968032	+	45	121634788	-	NMC0969	-	putative phage related protein
888	 54.43	0	968035..968271	+	78	121634789	-	NMC0970	-	putative phage related protein
889	 53.04	0	968252..968662	+	136	121634790	-	NMC0971	-	putative phage related protein
890	 61.01	+1	968706..968864	+	52	121634791	-	NMC0972	-	putative phage related protein
891	 46.20	0	968909..969079	-	56	121634792	-	NMC0973	-	hypothetical protein
892	 42.01	-1	969092..969310	+	72	121634793	-	NMC0974	-	putative phage related protein
893	 51.35	0	969503..970468	-	321	121634794	-	NMC0976	-	putative transposase for IS1655
894	 53.08	0	970767..971774	-	335	121634795	-	NMC0977	-	putative transposase for IS1106
895	 49.04	0	971907..973676	-	589	121634796	-	NMC0978	-	putative surface fibril protein
896	 50.72	0	975798..976004	-	68	121634797	-	NMC0980	-	rubredoxin
897	 58.52	0	976440..977531	-	363	121634798	-	NMC0981	-	putative acyl-CoA dehydrogenase
898	 53.36	0	977666..978349	-	227	121634799	-	NMC0982	-	hypothetical protein
899	 59.14	+1	978369..978740	-	123	121634800	-	NMC0983	-	hypothetical protein
900	 54.79	0	979035..980726	-	563	121634801	dld	NMC0984	-	D-lactate dehydrogenase
901	 55.93	0	981164..985084	+	1306	121634802	-	NMC0985	-	putative oxidoreductase
902	 53.41	0	985137..986162	+	341	121634803	-	NMC0986	-	hypothetical protein
903	 52.78	0	986593..987600	+	335	121634804	-	NMC0988	-	putative transposase for IS1106
904	 59.94	+1	988668..989306	-	212	121634805	-	NMC0992	-	putative phage integrase
905	 52.40	0	989615..990490	-	291	121634806	-	NMC0993	-	hypothetical protein
906	 50.84	0	990535..990831	-	98	121634807	-	NMC0995	-	hypothetical protein
907	 41.27	-1	991130..991507	+	125	121634808	-	NMC0997	-	putative phage repressor
908	 41.46	-1	991536..991781	+	81	121634809	-	NMC0998	-	hypothetical protein
909	 44.09	-1	991867..991959	+	30	121634810	-	NMC0999	-	hypothetical protein
910	 37.94	-1	992071..992982	+	303	121634811	-	NMC1000	-	hypothetical protein
911	 32.51	-2	992979..993461	+	160	121634812	-	NMC1001	-	hypothetical protein
912	 56.75	0	993551..994054	+	167	121634813	-	NMC1002	-	hypothetical protein
913	 50.36	0	994491..994901	+	136	121634814	-	NMC1005	-	hypothetical protein
51.80	MEAN

7.07	STD DEV
