IslandPath Analysis: Neisseria meningitidis FAM18

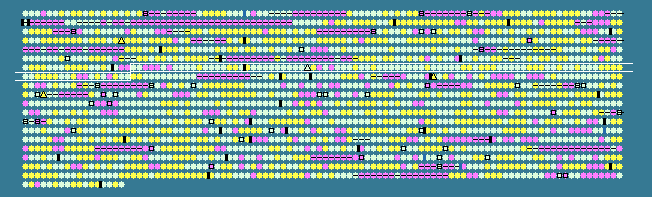

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
619	 50.83	0	697069..697428	+	119	121634520	rplT	NMC0675	-	50S ribosomal protein L20
620	 51.06	0	697774..698766	+	330	161723299	pheS	NMC0676	-	phenylalanyl-tRNA synthetase subunit alpha
621	 45.86	0	699090..699536	+	148	121634522	vsr	NMC0678	-	putative NmeDIP very-short-patch-repair endonuclease
622	 41.32	-1	699550..700701	+	383	121634523	nmeDIMP	NMC0679	-	putative modification methylase NmeDI
623	 42.99	-1	700673..701728	+	351	121634524	-	NMC0680	-	putative type II restriction enzyme NmeDIP
624	 55.16	0	701783..704146	+	787	121634525	pheT	NMC0681	-	phenylalanyl-tRNA synthetase subunit beta
625	 48.18	0	704220..704522	+	100	121634526	himA	NMC0682	-	putative integration host factor alpha-subunit
626	 52.58	0	704524..704814	+	96	121634527	-	NMC0683	-	hypothetical protein
627	 52.67	0	705144..705629	+	161	121634528	fxsA	NMC0684	-	FxsA
628	 53.84	0	706341..707642	+	433	121634529	bioA	NMC0685	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
629	 53.09	0	707639..708286	+	215	121634530	bioD	NMC0686	-	dithiobiotin synthetase
630	 55.81	0	708253..708777	+	174	121634531	-	NMC0687	-	hypothetical protein
631	 52.64	0	708807..709697	+	296	121634532	ubiA	NMC0688	-	4-hydroxybenzoate octaprenyltransferase
632	 54.00	0	709882..710331	+	149	121634533	-	NMC0689	-	putative regulatory protein
633	 53.58	0	710335..711297	+	320	121634534	-	NMC0690	-	HPr kinase/phosphorylase
634	 54.15	0	711278..712132	+	284	121634535	-	NMC0691	-	hypothetical protein
635	 55.31	0	712213..713154	+	313	121634536	rbgA	NMC0692	-	ribosomal biogenesis GTPase
636	 56.88	0	713255..713857	+	200	121634537	-	NMC0693	-	hypothetical protein
637	 52.69	0	714041..715714	+	557	121634538	recN	NMC0694	-	putative DNA repair protein
638	 58.70	0	716796..718415	-	539	121634539	-	NMC0695	-	hypothetical protein
639	 49.32	0	718535..718903	+	122	121634540	-	NMC0696	-	hypothetical protein
640	 51.90	0	718946..719683	+	245	121634541	ubiE	NMC0697	-	ubiquinone/menaquinone biosynthesis methyltransferase
641	 49.17	0	719903..720382	+	159	121634542	-	NMC0698	-	hypothetical protein
642	 54.75	0	720507..721001	-	164	121634543	folK	NMC0699	-	putative 2-amino-4-hydroxy-6-hydroxymethyldihydropteridine- pyrophosphokinase
643	 48.53	0	721011..721385	-	124	121634544	-	NMC0700	-	putative regulator
644	 52.91	0	721439..722005	-	188	121634545	-	NMC0701	-	hypothetical protein
645	 51.02	0	722089..722382	-	97	121634546	hfq	NMC0702	-	putative regulator
646	 52.89	0	722511..723461	-	316	121634547	-	NMC0703	-	putative D-alanyl-D-alanine-endopeptidase
647	 49.80	0	723707..724210	+	167	121634548	-	NMC0704	-	hypothetical protein
648	 55.02	0	724262..725137	+	291	121634549	xerD	NMC0705	-	putative integrase/recombinase
649	 57.71	0	725309..725509	+	66	121634550	-	NMC0706	-	putative ferredoxin
650	 43.59	-1	725675..725908	+	77	121634551	-	NMC0707	-	putative thioredoxin
651	 55.09	0	726383..727246	-	287	121634552	rfbD	NMC0708	-	putative dTDP-4-dehydrorhamnose reductase
652	 46.95	0	727259..728308	+	349	121634553	purC	NMC0709	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
653	 53.60	0	728530..730665	+	711	121634554	pnp	NMC0710	-	polynucleotide phosphorylase/polyadenylase
654	 52.02	0	730737..731405	-	222	121634555	-	NMC0711	-	hypothetical protein
655	 49.53	0	731419..731739	-	106	121634556	-	NMC0712	-	putative lipoprotein
656	 55.63	0	731852..732703	+	283	121634557	dapF	NMC0713	-	diaminopimelate epimerase
657	 52.15	0	732700..733305	+	201	121634558	-	NMC0714	-	putative integral membrane protein
658	 52.89	0	733445..734431	+	328	121634559	cysK	NMC0715	-	cysteine synthase
659	 55.45	0	734868..735848	+	326	121634560	-	NMC0717	-	putative integral membrane protein
660	 50.20	0	736262..737281	-	339	121634561	lepB	NMC0718	-	signal peptidase I
661	 52.17	0	737424..739217	-	597	121634562	lepA	NMC0719	-	GTP-binding protein LepA
662	 53.17	0	739360..740115	-	251	121634563	pfs	NMC0720	-	putative 5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
663	 53.73	0	740247..741359	+	370	121634564	pilT2	NMC0721	-	putative pilus retraction protein
664	 50.92	0	741394..742371	+	325	121634565	holB	NMC0722	-	DNA polymerase III subunit delta'
665	 49.00	0	742375..742725	+	116	121634566	-	NMC0723	-	putative pilus biogenesis protein
666	 52.82	0	742730..743509	+	259	121634567	-	NMC0724	-	hypothetical protein
667	 51.92	0	743851..744162	+	103	121634568	-	NMC0726	-	hypothetical protein
668	 55.82	0	744268..744894	+	208	121634569	upp	NMC0727	-	uracil phosphoribosyltransferase
669	 52.02	0	744917..745237	+	106	121634570	-	NMC0728	-	hypothetical protein
670	 49.17	0	745640..746062	+	140	121634571	-	NMC0729	-	putative secreted protein
671	 54.85	0	746089..746841	+	250	121634572	hemD	NMC0730	-	uroporphyrinogen-III synthase
672	 54.31	0	746856..748190	+	444	121634573	-	NMC0731	-	hypothetical protein
673	 54.84	0	748187..749404	+	405	121634574	-	NMC0732	-	hypothetical protein
674	 57.46	0	749479..750543	+	354	121634575	hemE	NMC0733	-	uroporphyrinogen decarboxylase
675	 58.85	0	750706..752100	+	464	121634576	radA	NMC0734	-	DNA repair protein RadA
676	 55.21	0	752375..752854	-	159	121634577	-	NMC0735	-	putative periplasmic protein
677	 55.41	0	752986..753429	-	147	121634578	-	NMC0736	-	putative periplasmic protein
678	 57.62	0	753384..756998	-	1204	121634579	recB	NMC0737	-	putative exodeoxyribonuclease V beta chain
679	 57.55	0	757231..758349	-	372	121634580	-	NMC0738	-	hypothetical protein
680	 53.14	0	758424..759251	+	275	121634581	-	NMC0739	-	putative amino acid permease substrate-binding protein
681	 51.74	0	759241..759957	+	238	121634582	-	NMC0741	-	putative amino acid permease integral membrane protein
682	 52.91	0	759967..760722	+	251	121634583	-	NMC0742	-	putative amino acid permease ATP-binding protein
683	 53.43	0	760742..762124	-	460	121634584	pgm	NMC0743	-	phosphoglucomutase
684	 51.37	0	762287..762796	-	169	121634585	ppiB	NMC0744	-	putative peptidyl-prolyl cis-trans isomerase B
685	 56.43	0	762915..764330	-	471	121634586	-	NMC0745	-	putative transmembrane transport protein
686	 58.02	0	764561..764884	-	107	121634587	-	NMC0746	-	hypothetical protein
687	 55.61	0	765187..765765	-	192	121634588	pth	NMC0747	-	peptidyl-tRNA hydrolase
688	 54.84	0	765818..766096	-	92	121634589	-	NMC0748	-	hypothetical protein
689	 50.00	0	766089..766532	-	147	121634590	-	NMC0749	-	hypothetical protein
690	 55.84	0	766741..768708	-	655	121634591	ftsH	NMC0750	-	putative ATP-dependent zinc metallopeptidase
691	 52.82	0	768772..769392	-	206	121634592	ftsJ	NMC0751	-	putative cell division protein
692	 49.84	0	769466..769786	+	106	121634593	-	NMC0752	-	hypothetical protein
693	 55.95	0	769954..770970	+	338	121634594	hemB	NMC0753	-	delta-aminolevulinic acid dehydratase
694	 51.92	0	771033..772259	-	408	121634595	-	NMC0754	-	putative carbon-sulphur lyase
695	 50.94	0	772520..773155	+	211	121634596	-	NMC0755	-	putative GTP cyclohydrolase
696	 52.55	0	773355..774020	+	221	121634597	-	NMC0756	-	putative NAD(P)H-flavin oxidoreductase
697	 56.39	0	774075..774833	-	252	121634598	-	NMC0757	-	putative RNA-binding protein
698	 57.35	0	774858..775748	-	296	121634599	ppnK	NMC0758	-	inorganic polyphosphate/ATP-NAD kinase
699	 60.67	+1	775768..776334	-	188	121634600	-	NMC0759	-	hypothetical protein
700	 60.10	+1	776385..777161	-	258	121634601	-	NMC0760	-	hypothetical protein
701	 54.53	0	777216..777866	-	216	121634602	-	NMC0761	-	TetR family transcriptional regulator
702	 55.04	0	777878..778918	-	346	121634603	murB	NMC0762	-	putative UDP-N-acetylenolpyruvoylglucosamine reductase
703	 56.81	0	779097..780476	-	459	121634604	-	NMC0763	-	multidrug efflux protein
704	 59.11	+1	780811..781962	+	383	121634605	hisZ	NMC0764	-	ATP phosphoribosyltransferase regulatory subunit
705	 56.93	0	782060..783364	+	434	121634606	purA	NMC0765	-	adenylosuccinate synthetase
706	 55.83	0	783751..784590	-	279	121634607	htpX	NMC0766	-	heat shock protein HtpX
707	 54.17	0	784805..785452	+	215	121634608	adk	NMC0767	-	adenylate kinase
708	 54.66	0	785978..786718	+	246	121634609	pyrF	NMC0768	-	orotidine 5'-phosphate decarboxylase
709	 56.58	0	786773..787744	+	323	121634610	rfaE	NMC0769	-	putative DP-heptose synthetase
710	 33.58	-2	787781..789016	+	411	121634611	nmgII	NMC0771	-	putative modification methylase
711	 31.90	-2	789018..790136	+	372	121634612	nmgI	NMC0772	-	putative type II restriction endonuclease
712	 51.44	0	790177..791181	+	334	121634613	rfaD	NMC0773	-	putative ADP-L-glycero-D-mannoheptose epimerase
713	 55.48	0	791245..793560	-	771	121634614	clpA	NMC0774	-	putative ATP-dependent protease ATP-binding protein
714	 51.49	0	793544..793846	-	100	121634615	-	NMC0775	-	hypothetical protein
715	 48.04	0	794089..794292	+	67	121634616	cspA	NMC0776	-	putative transcriptional regulator
716	 60.81	+1	794589..795920	-	443	121634617	-	NMC0777	-	hypothetical protein
717	 51.64	0	796063..796581	+	172	121634618	-	NMC0778	-	hypothetical protein
718	 53.28	0	796616..797362	+	248	121634619	-	NMC0779	-	hypothetical protein
51.80	MEAN

7.07	STD DEV
