IslandPath Analysis: Neisseria meningitidis FAM18

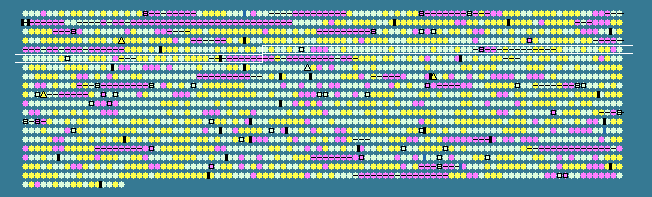

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
441	 51.28	0	512699..513088	-	129	121634342	-	NMC0487	-	putative pilin
442	 55.30	0	513314..514492	+	392	121634343	-	NMC0488	-	putative periplasmic protein
443	 55.25	0	514558..516492	+	644	121634344	-	NMC0489	-	putative ABC transporter ATP-binding protein
444	 53.62	0	516795..517637	-	280	121634345	-	NMC0490	-	putative thiol:disulphide interchange protein
445	 60.18	+1	517734..519923	+	729	121634346	priA	NMC0491	-	primosome assembly protein PriA
446	 54.27	0	519970..521082	-	370	121634347	-	NMC0493	-	putative integral membrane protein
447	 53.81	0	521091..522047	-	318	121634348	-	NMC0494	-	putative transposase
448	 51.84	0	523485..525413	-	642	121634349	dnaK	NMC0495	-	molecular chaperone DnaK
449	 44.69	-1	525621..525893	-	90	121634350	-	NMC0496	-	hypothetical protein
450	 46.58	0	526079..526765	+	228	121634351	-	NMC0497	-	putative transcriptional regulator
451	 45.13	0	526897..527235	+	112	121634352	-	NMC0498	-	iron-sulfur cluster insertion protein ErpA
452	 49.03	0	527395..527859	+	154	121634353	-	NMC0499	-	hypothetical protein
453	 55.03	0	527894..529405	+	503	121634354	ubiB	NMC0500	-	putative ubiquinone biosynthesis protein UbiB
454	 56.78	0	529762..530580	-	272	121634355	cysE	NMC0501	-	serine acetyltransferase
455	 54.75	0	530764..531342	+	192	121634356	grpE	NMC0502	-	heat shock protein
456	 52.31	0	531466..531681	-	71	121634357	-	NMC0503	-	putative periplasmic protein
457	 52.92	0	531707..532783	-	358	121634358	apbE	NMC0504	-	putative thiamine biosynthesis protein
458	 52.71	0	532914..534131	-	405	121634359	nqrF	NMC0505	-	Na(+)-translocating NADH-quinone reductase subunit F
459	 50.00	0	534145..534738	-	197	121634360	nqrE	NMC0506	-	Na(+)-translocating NADH-quinone reductase subunit E
460	 52.63	0	534742..535368	-	208	121634361	nqrD	NMC0507	-	Na(+)-translocating NADH-quinone reductase subunit D
461	 53.67	0	535368..536144	-	258	121634362	nqrC	NMC0508	-	Na(+)-translocating NADH-quinone reductase subunit C
462	 55.47	0	536137..537369	-	410	121634363	nqrB	NMC0509	-	Na(+)-translocating NADH-quinone reductase subunit B
463	 54.69	0	537372..538715	-	447	121634364	nqrA	NMC0510	-	Na(+)-translocating NADH-quinone reductase subunit A
464	 53.75	0	539063..540502	-	479	121634365	-	NMC0512	-	hypothetical protein
465	 55.28	0	540842..541201	-	119	121634366	-	NMC0513	-	hypothetical protein
466	 50.00	0	541198..541803	-	201	121634367	-	NMC0514	-	hypothetical protein
467	 52.38	0	541850..542332	-	160	121634368	-	NMC0515	-	AsnC family transcriptional regulator
468	 55.19	0	542838..543944	+	368	121634369	gcvT	NMC0516	-	glycine cleavage system aminomethyltransferase T
469	 55.30	0	544107..544493	+	128	121634370	gcvH	NMC0517	-	glycine cleavage system protein H
470	 53.53	0	544645..545892	+	415	121634371	hemA	NMC0518	-	glutamyl-tRNA reductase
471	 50.61	0	546168..546740	+	190	121634372	-	NMC0519	-	putative regulatory protein
472	 53.78	0	546743..547828	+	361	121634373	-	NMC0520	-	hypothetical protein
473	 58.29	0	547886..548506	+	206	121634374	-	NMC0521	-	putative ABC-transporter ATP-binding protein
474	 52.53	0	548723..549217	+	164	121634375	-	NMC0522	-	putative lipoprotein
475	 54.27	0	549351..551012	-	553	121634376	-	NMC0523	-	electron transfer flavoprotein-ubiquinone oxidoreductase
476	 50.64	0	551142..551684	-	180	121634377	-	NMC0524	-	putative peptidase
477	 47.40	0	552629..553282	-	217	121634378	-	NMC0525	-	putative transposase
478	 38.24	-1	553888..554703	+	271	121634379	-	NMC0526	-	putative outer membrane protein
479	 46.45	0	554720..560809	+	2029	121634380	frpC	NMC0527	-	iron-regulated protein FrpC
480	 53.33	0	561089..562003	-	304	121634381	-	NMC0528	-	putative periplasmic binding protein
481	 58.79	0	562080..562955	-	291	121634382	-	NMC0529	-	putative ABC-transporter membrane protein
482	 53.70	0	562979..563734	-	251	121634383	-	NMC0530	-	putative ABC-transporter ATP-binding protein
483	 54.10	0	564026..564391	-	121	121634384	rplS	NMC0531	-	50S ribosomal protein L19
484	 52.67	0	564407..565156	-	249	121634385	trmD	NMC0532	-	tRNA (guanine-N1)-methyltransferase
485	 50.00	0	565156..565665	-	169	121634386	rimM	NMC0533	-	16S rRNA-processing protein
486	 56.10	0	565681..565926	-	81	121634387	rpsP	NMC0534	-	30S ribosomal protein S16
487	 57.85	0	565971..568397	-	808	121634388	-	NMC0535	-	hypothetical protein
488	 53.80	0	568515..569921	-	468	121634389	-	NMC0536	-	putative two-component system sensor kinase
489	 56.78	0	569934..570611	-	225	121634390	-	NMC0537	-	putative two-component system regulator
490	 55.81	0	570801..572615	-	604	121634391	-	NMC0539	-	integral membrane protein
491	 51.41	0	572605..572958	-	117	121634392	-	NMC0540	-	hypothetical protein
492	 52.22	0	572967..573575	-	202	121634393	-	NMC0541	-	hypothetical protein
493	 51.75	0	573628..574398	-	256	121634394	tatC	NMC0542	-	putative sec-independent protein translocase component
494	 56.48	0	574412..575098	-	228	121634395	-	NMC0543	-	putative sec-independent protein translocase component
495	 51.54	0	575352..575675	-	107	121634396	-	NMC0545	-	putative nucleotide-binding protein
496	 50.62	0	575747..576070	-	107	121634397	hisE	NMC0546	-	putative phosphoribosyl-ATP cyclohydrolase
497	 55.77	0	576211..577275	-	354	121634398	-	NMC0547	-	putative zinc-binding alcohol dehydrogenase
498	 57.84	0	577638..578747	-	369	121634399	-	NMC0548	-	hypothetical protein
499	 47.19	0	578875..579141	+	88	121634400	-	NMC0549	-	hypothetical protein
500	 53.69	0	579350..581206	+	618	121634401	secD	NMC0550	-	preprotein translocase subunit SecD
501	 49.04	0	581210..582145	+	311	121634402	secF	NMC0551	-	preprotein translocase subunit SecF
502	 54.81	0	582368..582637	+	89	121634403	rpsO	NMC0552	-	30S ribosomal protein S15
503	 50.04	0	583019..584143	+	374	121634404	-	NMC0553	-	putative polyamine permease ATP-binding protein
504	 49.59	0	584159..585124	+	321	121634405	-	NMC0554	-	putative polyamine permease inner membrane protein
505	 50.00	0	585124..586011	+	295	121634406	-	NMC0555	-	putative polyamine permease inner membrane protein
506	 51.08	0	586137..587432	+	431	121634407	-	NMC0556	-	putative oxidoreductase
507	 57.32	0	587677..588981	-	434	121634408	amtB	NMC0557	-	putative ammonium transporter
508	 52.78	0	590199..590594	-	131	121634409	-	NMC0558	-	putative IS1106 transposase
509	 54.76	0	591470..592729	-	419	121634410	rho	NMC0560	-	transcription termination factor Rho
510	 54.93	0	592949..595333	-	794	121634411	ppsA	NMC0561	-	phosphoenolpyruvate synthase
511	 52.92	0	595744..596565	+	273	121634412	-	NMC0562	-	hypothetical protein
512	 60.63	+1	596804..597466	-	220	121634413	-	NMC0563	-	putative phosphatase
513	 56.96	0	597479..598333	-	284	121634414	-	NMC0565	-	hypothetical protein
514	 56.89	0	598734..599357	+	207	121634415	-	NMC0566	-	putative periplasmic carrier protein
515	 54.87	0	599609..600769	+	386	121634416	-	NMC0567	-	putative polyamine permease substrate-binding protein
516	 31.02	-2	600903..602082	+	390	121634417	-	NMC0568	-	putative glycosyl transferase
517	 58.57	0	602123..602653	+	176	121634418	-	NMC0569	-	hypothetical protein
518	 54.26	0	602822..604417	-	531	121634419	prfC	NMC0570	-	peptide chain release factor 3
519	 54.55	0	604524..604919	-	131	121634420	hisI	NMC0571	-	phosphoribosyl-AMP cyclohydrolase
520	 61.20	+1	604950..605717	-	255	121634421	hisF	NMC0572	-	imidazole glycerol phosphate synthase subunit HisF
521	 59.35	+1	605730..606467	-	245	121634422	hisA	NMC0573	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
522	 54.93	0	606500..607138	-	212	121634423	hisH	NMC0574	-	imidazole glycerol phosphate synthase subunit HisH
523	 59.82	+1	607269..608903	-	544	121634424	-	NMC0575	-	putative phosphate acyltransferase
524	 60.53	+1	608956..610014	-	352	121634425	fbpC	NMC0576	-	putative iron-uptake permease ATP-binding protein
525	 51.76	0	610035..611570	-	511	121634426	fbpB	NMC0577	-	putative iron-uptake permease inner membrane protein
526	 55.72	0	611620..612615	-	331	121634427	fbpA	NMC0578	-	major ferric iron binding protein
527	 51.17	0	612866..613336	-	156	121634428	-	NMC0579	-	hypothetical protein
528	 57.59	0	613394..614770	-	458	121634429	argH	NMC0580	-	argininosuccinate lyase
529	 57.47	0	614789..615658	-	289	121634430	galU	NMC0581	-	UTP--glucose-1-phosphate uridylyltransferase
530	 55.83	0	615686..616285	-	199	121634431	-	NMC0582	-	putative deoxyribonucleotide triphosphate pyrophosphatase
531	 55.98	0	616278..616511	-	77	121634432	-	NMC0583	-	hypothetical protein
532	 51.03	0	616619..617200	-	193	121634433	ppa	NMC0584	-	inorganic pyrophosphatase
533	 57.08	0	617253..617711	-	152	121634434	ntpA	NMC0585	-	dATP pyrophosphohydrolase
534	 49.21	0	618156..619982	+	608	121634435	mafB3	NMC0586	-	putative adhesin
535	 28.39	-2	619985..620449	+	154	121634436	-	NMC0587	-	hypothetical protein
536	 43.92	-1	620475..620663	+	62	121634437	-	NMC0588	-	putative lipoprotein
537	 25.69	-2	620832..621119	+	95	121634438	-	NMC0589	-	ribonuclease inhibitor barstar
538	 31.68	-2	622433..622855	+	140	121634439	-	NMC0591	-	hypothetical protein
539	 25.93	-2	623013..623255	+	80	121634440	-	NMC0592	-	hypothetical protein
540	 44.31	-1	623333..623578	+	81	121634441	-	NMC0593	-	hypothetical protein
51.80	MEAN

7.07	STD DEV
