IslandPathversion 1.0

IslandPath Analysis: Neisseria meningitidis FAM18

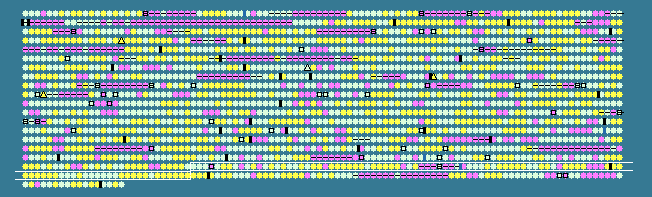

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1729	 55.03	0	1976585..1979017	+	810	121635630	hpuB	NMC1947	-	haemoglobin-haptoglobin-utilization protein
1730	 54.80	0	1979605..1981239	-	544	121635631	groEL	NMC1948	-	chaperonin GroEL
1731	 51.38	0	1981332..1981658	-	108	121635632	groES	NMC1949	-	co-chaperonin GroES
1732	 47.86	0	1981852..1982505	+	217	121635633	-	NMC1950	-	insertion element IS1016 transposase
1733	 54.47	0	1982622..1984253	+	543	121635634	-	NMC1951	-	putative sodium-dependent inner membrane transport protein
1734	 55.90	0	1984378..1985622	-	414	121635635	lysA	NMC1952	-	diaminopimelate decarboxylase
1735	 56.14	0	1985633..1985803	-	56	121635636	-	NMC1953	-	putative lipoprotein
1736	 53.40	0	1985874..1986197	+	107	121635637	cyaY	NMC1954	-	frataxin-like protein
1737	 45.95	0	1986228..1986647	+	139	121635638	-	NMC1955	-	hypothetical protein
1738	 54.44	0	1986669..1987175	+	168	121635639	-	NMC1956	-	S-ribosylhomocysteinase
1739	 57.50	0	1987321..1990113	+	930	121635640	polA	NMC1957	-	DNA polymerase I
1740	 45.78	0	1991459..1992181	+	240	121635641	-	NMC1958	-	hypothetical protein
1741	 50.79	0	1992290..1996654	-	1454	121635642	iga2	NMC1959	-	IgA-specific serine endopeptidase
1742	 56.94	0	1996788..1997219	-	143	121635643	-	NMC1960	-	putative inner membrane protein
1743	 53.85	0	1997216..1997371	-	51	121635644	-	NMC1961	-	hypothetical protein
1744	 59.69	+1	1997502..1998848	+	448	121635645	trmE	NMC1962	-	tRNA modification GTPase TrmE
1745	 53.33	0	2000909..2003053	+	714	121635646	fetA	NMC1963	-	putative iron-regulated outer membrane protein
1746	 54.44	0	2003309..2004322	+	337	121635647	fetB	NMC1964	-	putative membrane transport solute-binding protein
1747	 57.19	0	2004789..2005622	+	277	121635648	-	NMC1965	-	putative inner membrane transport protein
1748	 54.15	0	2005612..2006586	+	324	121635649	-	NMC1966	-	putative inner membrane transport protein
1749	 62.36	+1	2006631..2007257	+	208	121635650	-	NMC1967	-	hypothetical protein
1750	 58.89	+1	2007342..2008100	+	252	121635651	-	NMC1968	-	putative ABC transporter ATP-binding subunit
1751	 48.20	0	2008404..2009600	+	398	121635652	-	NMC1969	-	putative adhesin/invasin
1752	 56.93	0	2009666..2010004	-	112	121635653	glnB	NMC1971	-	nitrogen regulatory protein P-II 1
1753	 55.76	0	2010140..2014117	+	1325	121635654	purL	NMC1972	-	phosphoribosylformylglycinamidine synthase
1754	 59.29	+1	2014212..2014970	+	252	121635655	-	NMC1973	-	hydroxyacylglutathione hydrolase
1755	 58.01	0	2019991..2021445	+	484	121635656	-	NMC1976	-	hypothetical protein
1756	 57.58	0	2021531..2022532	-	333	121635657	hslO	NMC1977	-	Hsp33-like chaperonin
1757	 60.58	+1	2022684..2023439	+	251	121635658	-	NMC1978	-	hypothetical protein
1758	 52.05	0	2023458..2023676	+	72	121635659	-	NMC1979	-	hypothetical protein
1759	 57.10	0	2023821..2024165	+	114	121635660	-	NMC1980	-	hypothetical protein
1760	 58.01	0	2024165..2024857	+	230	121635661	-	NMC1981	-	hypothetical protein
1761	 61.02	+1	2024924..2026144	+	406	121635662	argJ	NMC1982	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1762	 61.38	+1	2026291..2027613	+	440	121635663	-	NMC1983	-	hypothetical protein
1763	 56.54	0	2027802..2029193	+	463	121635664	-	NMC1984	-	ATP-dependent DNA helicase
1764	 42.91	-1	2029294..2030421	+	375	121635665	-	NMC1985	-	hypothetical protein
1765	 49.21	0	2030602..2032176	+	524	121635666	-	NMC1986	-	putative inner membrane protein
1766	 56.73	0	2032242..2035541	+	1099	121635667	-	NMC1987	-	putative DNA helicase
1767	 37.73	-1	2035564..2035950	-	128	121635668	vsr	NMC1990	-	patch repair protein
1768	 36.90	-2	2035990..2037672	-	560	121635669	-	NMC1991	-	hypothetical protein
1769	 40.72	-1	2037650..2038705	-	351	121635670	-	NMC1992	-	modification methylase (cytosine-specific DNA methylase)
1770	 51.35	0	2039326..2040291	+	321	121635671	-	NMC1993	-	insertion element IS1655 transposase
1771	 35.19	-2	2040934..2041203	+	89	121635672	-	NMC1994	-	hypothetical protein
1772	 37.78	-1	2041364..2041813	-	149	121635673	-	NMC1995	-	putative pilin
1773	 54.62	0	2041901..2042365	-	154	121635674	-	NMC1996	-	putative DNA transport competence protein
1774	 48.10	0	2048049..2048759	-	236	121635675	-	NMC1997	-	putative psedouridine synthase
1775	 52.83	0	2048734..2049246	-	170	121635676	coaD	NMC1998	-	phosphopantetheine adenylyltransferase
1776	 54.68	0	2049370..2050053	-	227	121635677	-	NMC1999	-	putative integral membrane protein
1777	 55.06	0	2050210..2050476	-	88	121635678	-	NMC2000	-	hypothetical protein
1778	 60.93	+1	2050551..2051021	-	156	121635679	-	NMC2001	-	SPOUT methyltransferase superfamily protein
1779	 54.78	0	2051075..2051461	-	128	121635680	-	NMC2002	-	hypothetical protein
1780	 59.74	+1	2051520..2052125	-	201	121635681	-	NMC2003	-	hypothetical protein
1781	 55.50	0	2052122..2052721	-	199	121635682	-	NMC2004	-	hypothetical protein
1782	 61.08	+1	2052750..2054342	-	530	121635683	-	NMC2005	-	putative permease
1783	 59.81	+1	2054682..2056067	+	461	121635684	gntP	NMC2006	-	gluconate permease
1784	 58.19	0	2056087..2056605	+	172	121635685	-	NMC2007	-	putative glucokinase
1785	 54.90	0	2056944..2057861	-	305	121635686	thrB	NMC2008	-	homoserine kinase
1786	 54.93	0	2057898..2058647	-	249	121635687	ubiG	NMC2009	-	3-demethylubiquinone-9 3-methyltransferase
1787	 57.09	0	2058778..2060019	+	413	121635688	-	NMC2010	-	amino-acid transport protein
1788	 56.37	0	2060077..2061135	+	352	121635689	-	NMC2011	-	LgtG
1789	 53.96	0	2061202..2062854	-	550	121635690	-	NMC2012	-	putative integral membrane protein
1790	 35.31	-2	2063024..2063595	+	190	121635691	-	NMC2013	-	pseudogene (putative acetyltransferase)
1791	 55.85	0	2063592..2064155	+	187	121635692	-	NMC2014	-	D,D-heptose 1,7-bisphosphate phosphatase
1792	 55.51	0	2064185..2064928	+	247	121635693	nlaB	NMC2015	-	1-acyl-SN-glycerol-3-phosphate acyltransferase
1793	 60.32	+1	2064925..2065617	+	230	121635694	-	NMC2016	-	hypothetical protein
1794	 61.15	+1	2067123..2067920	+	265	121635695	truA	NMC2017	-	tRNA pseudouridine synthase A
1795	 45.00	0	2068043..2068282	+	79	121635696	-	NMC2018	-	hypothetical protein
1796	 47.84	0	2068270..2068593	+	107	121635697	chpA	NMC2019	-	PEMK-like protein
1797	 48.31	0	2069294..2070508	+	404	121635698	porB	NMC2020	-	porin, major outer membrane protein P.I
1798	 57.41	0	2072542..2074443	-	633	121635699	thiC	NMC2021	-	thiamine biosynthesis protein ThiC
1799	 57.42	0	2075041..2075916	+	291	121635700	-	NMC2022	-	hypothetical protein
1800	 57.19	0	2075925..2076863	+	312	121635701	-	NMC2023	-	ABC-transport system ATP-binding protein
1801	 57.77	0	2078138..2079913	-	591	121635702	ptsI	NMC2024	-	phosphoenolpyruvate-protein phosphotransferase
1802	 56.67	0	2079913..2080182	-	89	121635703	ptsH	NMC2025	-	sugar transport PTS system phosphocarrier protein HPr
1803	 58.22	0	2080251..2080688	-	145	121635704	-	NMC2026	-	sugar transport PTS system IIA component
1804	 55.50	0	2080769..2081332	-	187	121635705	hpt	NMC2027	-	hypoxanthine-guanine phosphoribosyltransferase
1805	 56.12	0	2081401..2082225	-	274	121635706	-	NMC2028	-	DNA ligase
1806	 56.16	0	2082284..2082949	+	221	121635707	-	NMC2029	-	putative hydrolase
1807	 53.84	0	2083156..2084940	-	594	121635708	-	NMC2030	-	putative periplasmic protein
1808	 48.76	0	2085279..2086082	-	267	121635709	petC	NMC2032	-	cytochrome C1 precursor
1809	 50.81	0	2086082..2087431	-	449	121635710	petB	NMC2033	-	cytochrome B
1810	 56.70	0	2087450..2088031	-	193	121635711	petA	NMC2034	-	ubiquinol-cytochrome c reductase iron-sulfur subunit
1811	 51.11	0	2088154..2088963	-	269	121635712	-	NMC2035	-	hypothetical protein
1812	 52.90	0	2089034..2089963	+	309	121635713	metR	NMC2036	-	putative transcriptional activator protein METR
1813	 53.44	0	2090219..2090611	-	130	121635714	rpsI	NMC2037	-	30S ribosomal protein S9
1814	 50.69	0	2090621..2091052	-	143	121635715	rplM	NMC2038	-	50S ribosomal protein L13
1815	 55.23	0	2091415..2091720	-	101	121635716	-	NMC2039	-	hypothetical protein
1816	 51.52	0	2091731..2092060	-	109	121635717	-	NMC2040	-	hypothetical protein
1817	 56.36	0	2092115..2093104	-	329	121635718	gpsA	NMC2041	-	glycerol-3-phosphate dehydrogenase
1818	 56.64	0	2093227..2095929	-	900	121635719	ppc	NMC2042	-	phosphoenolpyruvate carboxylase
1819	 58.65	0	2095918..2096865	+	315	121635720	thiF	NMC2043	-	ThiF protein
1820	 56.44	0	2097563..2097787	-	74	121635721	slyX	NMC2044	-	hypothetical protein
1821	 58.32	0	2097788..2099176	-	462	121635722	-	NMC2045	-	putative integral membrane protein
1822	 54.95	0	2099262..2100533	-	423	121635723	-	NMC2046	-	hemk protein
1823	 61.14	+1	2100598..2102082	-	494	121635724	tldD	NMC2047	-	TLDD protein
1824	 59.15	+1	2102430..2103653	+	407	121635725	-	NMC2048	-	putative permease
1825	 61.31	+1	2103650..2104750	+	366	121635726	-	NMC2049	-	putative oxidoreductase
1826	 62.62	+1	2104771..2105388	+	205	121635727	thiE	NMC2050	-	thiamin-phosphate pyrophosphorylase
1827	 57.95	0	2105811..2106005	+	64	121635728	-	NMC2051	-	hypothetical protein
1828	 61.09	+1	2106219..2107007	+	262	121635729	thiG	NMC2052	-	thiazole synthase
51.80	MEAN

7.07	STD DEV
