IslandPath Analysis: Neisseria meningitidis FAM18

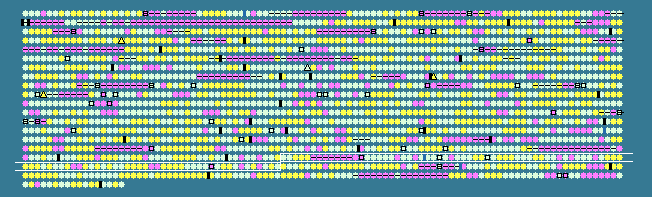

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1644	 51.27	0	1884675..1885148	+	157	121635545	-	NMC1854	-	7-cyano-7-deazaguanine reductase
1645	 52.55	0	1885223..1885909	+	228	121635546	-	NMC1855	-	hypothetical protein
1646	 61.02	+1	1886412..1887704	-	430	121635547	-	NMC1856	-	hypothetical protein
1647	 59.75	+1	1887781..1888749	+	322	121635548	-	NMC1857	-	hypothetical protein
1648	 55.31	0	1888950..1890419	-	489	121635549	-	NMC1858	-	hypothetical protein
1649	 40.45	-1	1893555..1894763	+	402	121635550	-	NMC1861	-	putative replication initiation factor
1650	 41.03	-1	1894784..1895095	+	103	121635551	-	NMC1862	-	hypothetical protein
1651	 36.32	-2	1895099..1895299	+	66	121635552	-	NMC1863	-	hypothetical protein
1652	 44.59	-1	1895537..1895767	+	76	121635553	-	NMC1864	-	hypothetical protein
1653	 42.90	-1	1895796..1896098	+	100	121635554	-	NMC1865	-	putative integral membrane protein
1654	 48.14	0	1896545..1898050	+	501	121635555	-	NMC1866	-	TspB protein
1655	 44.91	0	1898353..1898637	+	94	121635556	-	NMC1867	-	putative integral membrane protein
1656	 44.70	-1	1898638..1899825	+	395	121635557	-	NMC1868	-	hypothetical protein
1657	 39.29	-1	1900040..1900996	+	318	121635558	-	NMC1869	-	putative invertase/transposase
1658	 50.41	0	1902080..1902325	-	81	121635559	-	NMC1870	-	hypothetical protein
1659	 54.57	0	1902428..1902865	+	145	121635560	-	NMC1871	-	hypothetical protein
1660	 50.00	0	1902862..1903353	+	163	121635561	-	NMC1872	-	hypothetical protein
1661	 55.21	0	1903703..1904191	-	162	121635562	folA	NMC1873	-	dihydrofolate reductase
1662	 53.22	0	1904259..1905314	-	351	121635563	aroG	NMC1874	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1663	 34.01	-2	1905368..1905661	+	97	121635564	-	NMC1875	-	hypothetical protein
1664	 51.61	0	1905779..1905871	+	30	121635565	-	NMC1876	-	hypothetical protein
1665	 49.46	0	1905960..1906238	+	92	121635566	opcB	NMC1877	-	pseudogene (outer membrane protein)
1666	 45.86	0	1906495..1906941	-	148	121635567	-	NMC1879	-	hypothetical protein
1667	 55.05	0	1907066..1907530	-	154	121635568	-	NMC1880	-	putative DNA transport competence protein
1668	 51.30	0	1913331..1914137	-	268	121635569	-	NMC1882	-	hypothetical protein
1669	 52.88	0	1914357..1915727	+	456	121635570	ffh	NMC1883	-	signal recognition particle protein
1670	 51.35	0	1916101..1917066	+	321	121635571	-	NMC1884	-	putative transposase for IS1655
1671	 50.14	0	1917143..1917838	-	231	121635572	-	NMC1885	-	putative thiol:disulphide interchange protein
1672	 39.39	-1	1918009..1918668	-	219	121635573	-	NMC1886	-	hypothetical protein
1673	 54.12	0	1918871..1920982	-	703	121635574	-	NMC1887	-	putative TonB-dependent receptor protein
1674	 51.98	0	1921168..1921773	-	201	121635575	-	NMC1889	-	hypothetical protein
1675	 52.81	0	1921822..1922283	-	153	121635576	-	NMC1890	-	hypothetical protein
1676	 59.87	+1	1922328..1923239	+	303	121635577	-	NMC1891	-	LysR family transcriptional regulator
1677	 62.14	+1	1923229..1924530	+	433	121635578	phr	NMC1892	-	deoxyribodopyrimidine photolyase
1678	 52.48	0	1924635..1925219	+	194	121635579	-	NMC1894	-	putative IS1106 transposase (fragment)
1679	 51.45	0	1925685..1925960	+	91	121635580	-	NMC1896	-	hypothetical protein
1680	 56.10	0	1926177..1926971	-	264	121635581	-	NMC1898	-	hypothetical protein
1681	 58.82	0	1927180..1927905	+	241	121635582	-	NMC1899	-	hypothetical protein
1682	 55.89	0	1930082..1930888	-	268	121635583	lgtB2	NMC1900	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
1683	 50.00	0	1930930..1931025	-	31	121635584	-	NMC1900A	-	hypothetical protein
1684	 53.99	0	1931037..1931864	-	275	121635585	lgtB	NMC1901	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
1685	 50.81	0	1931906..1932952	-	348	121635586	lgtA	NMC1902	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
1686	 56.40	0	1932969..1935032	-	687	121635587	glyS	NMC1903	-	glycyl-tRNA synthetase subunit beta
1687	 56.08	0	1935149..1936045	-	298	121635588	glyQ	NMC1904	-	glycyl-tRNA synthetase subunit alpha
1688	 52.25	0	1936369..1936791	-	140	121635589	atpC	NMC1905	-	F0F1 ATP synthase subunit epsilon
1689	 52.36	0	1936802..1938199	-	465	121635590	atpD	NMC1906	-	F0F1 ATP synthase subunit beta
1690	 46.92	0	1938237..1939112	-	291	121635591	atpG	NMC1907	-	F0F1 ATP synthase subunit gamma
1691	 50.78	0	1939137..1940684	-	515	121635592	atpA	NMC1908	-	F0F1 ATP synthase subunit alpha
1692	 45.51	0	1940695..1941228	-	177	121635593	atpH	NMC1909	-	F0F1 ATP synthase subunit delta
1693	 51.80	0	1941233..1941703	-	156	121635594	atpF	NMC1910	-	F0F1 ATP synthase subunit B
1694	 49.79	0	1941774..1942010	-	78	121635595	atpE	NMC1911	-	F0F1 ATP synthase subunit C
1695	 50.29	0	1942067..1942933	-	288	121635596	atpB	NMC1912	-	F0F1 ATP synthase subunit A
1696	 48.02	0	1942923..1943276	-	117	121635597	atpI	NMC1913	-	putative ATP synthase I
1697	 49.85	0	1943644..1943982	-	112	121635598	-	NMC1914	-	hypothetical protein
1698	 56.91	0	1944117..1944977	-	286	121635599	-	NMC1915	-	putative chromosome segregation proteins
1699	 56.10	0	1945033..1945704	+	223	121635600	-	NMC1916	-	aromatic acid decarboxylase
1700	 55.79	0	1945766..1946629	-	287	121635601	-	NMC1917	-	putative lipoprotein
1701	 57.21	0	1946788..1947474	-	228	121635602	-	NMC1918	-	putative inner membrane transport protein
1702	 57.86	0	1947477..1948214	-	245	121635603	-	NMC1919	-	putative ABC transport ATP-binding subunit
1703	 59.47	+1	1948745..1950592	+	615	121635604	-	NMC1920	-	putative transglycosylase
1704	 53.99	0	1950881..1951093	+	70	121635605	rpsU	NMC1921	-	30S ribosomal protein S21
1705	 56.30	0	1951267..1951671	+	134	121635606	-	NMC1922	-	hypothetical protein
1706	 54.39	0	1951996..1952451	-	151	121635607	regG	NMC1924	-	ClpXP protease specificity-enhancing factor
1707	 53.96	0	1952459..1953064	-	201	121635608	regF	NMC1925	-	putative regulator of pilE expression
1708	 58.96	+1	1953334..1955046	-	570	121635609	-	NMC1926	-	putative inner membrane protein
1709	 35.05	-2	1955151..1955792	-	213	121635610	-	NMC1927	-	cadmium resistance protein
1710	 47.69	0	1956095..1956310	-	71	161723296	rpmE	NMC1928	-	50S ribosomal protein L31
1711	 56.95	0	1956545..1957062	+	172	121635612	-	NMC1929	-	putative acetyltransferase
1712	 51.53	0	1957146..1957634	-	162	121635613	-	NMC1930	-	putative periplasmic protein
1713	 59.90	+1	1957631..1958014	-	127	121635614	-	NMC1931	-	hypothetical protein
1714	 54.24	0	1958014..1958496	-	160	121635615	-	NMC1932	-	hypothetical protein
1715	 57.73	0	1958501..1959328	-	275	121635616	-	NMC1933	-	putative periplasmic/outer membrane protein
1716	 55.12	0	1959325..1959627	-	100	121635617	-	NMC1934	-	hypothetical protein
1717	 52.28	0	1959660..1960250	-	196	121635618	-	NMC1935	-	putative periplasmic transport protein
1718	 57.50	0	1960287..1960766	-	159	121635619	-	NMC1936	-	putative outer membrane transport protein
1719	 55.47	0	1960832..1961608	-	258	121635620	-	NMC1937	-	putative ABC transport inner membrane subunit
1720	 55.40	0	1961657..1962517	-	286	121635621	-	NMC1938	-	putative ABC transport ATP-binding protein
1721	 56.24	0	1962630..1963543	+	304	121635622	-	NMC1939	-	putative transcriptional regulator
1722	 25.90	-2	1963751..1964140	+	129	121635623	-	NMC1940	-	hypothetical protein
1723	 40.30	-1	1964149..1964349	+	66	121635624	-	NMC1941	-	hypothetical protein
1724	 57.38	0	1964384..1965826	+	480	121635625	aldA	NMC1942	-	aldehyde dehydrogenase A
1725	 56.42	0	1967026..1970228	+	1067	121635626	-	NMC1943	-	putative outer membrane peptidase
1726	 57.43	0	1971412..1973208	+	598	121635627	-	NMC1944	-	putative para-aminobenzoate synthase component I
1727	 55.73	0	1973267..1974784	-	505	121635628	-	NMC1945	-	hypothetical protein
1728	 52.53	0	1975529..1976554	+	341	121635629	hpuA	NMC1946	-	haemoglobin-haptoglobin-utilization protein
1729	 55.03	0	1976585..1979017	+	810	121635630	hpuB	NMC1947	-	haemoglobin-haptoglobin-utilization protein
1730	 54.80	0	1979605..1981239	-	544	121635631	groEL	NMC1948	-	chaperonin GroEL
1731	 51.38	0	1981332..1981658	-	108	121635632	groES	NMC1949	-	co-chaperonin GroES
1732	 47.86	0	1981852..1982505	+	217	121635633	-	NMC1950	-	insertion element IS1016 transposase
1733	 54.47	0	1982622..1984253	+	543	121635634	-	NMC1951	-	putative sodium-dependent inner membrane transport protein
1734	 55.90	0	1984378..1985622	-	414	121635635	lysA	NMC1952	-	diaminopimelate decarboxylase
1735	 56.14	0	1985633..1985803	-	56	121635636	-	NMC1953	-	putative lipoprotein
1736	 53.40	0	1985874..1986197	+	107	121635637	cyaY	NMC1954	-	frataxin-like protein
1737	 45.95	0	1986228..1986647	+	139	121635638	-	NMC1955	-	hypothetical protein
1738	 54.44	0	1986669..1987175	+	168	121635639	-	NMC1956	-	S-ribosylhomocysteinase
1739	 57.50	0	1987321..1990113	+	930	121635640	polA	NMC1957	-	DNA polymerase I
1740	 45.78	0	1991459..1992181	+	240	121635641	-	NMC1958	-	hypothetical protein
1741	 50.79	0	1992290..1996654	-	1454	121635642	iga2	NMC1959	-	IgA-specific serine endopeptidase
1742	 56.94	0	1996788..1997219	-	143	121635643	-	NMC1960	-	putative inner membrane protein
1743	 53.85	0	1997216..1997371	-	51	121635644	-	NMC1961	-	hypothetical protein
51.80	MEAN

7.07	STD DEV
