IslandPathversion 1.0

IslandPath Analysis: Neisseria meningitidis FAM18

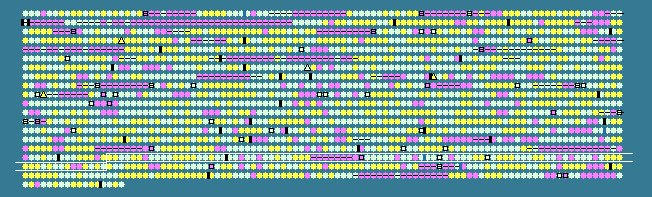

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1615	 58.95	+1	1856776..1857786	-	336	121635516	-	NMC1822	-	tRNA-dihydrouridine synthase A
1616	 56.10	0	1857817..1858308	-	163	121635517	-	NMC1823	-	D-tyrosyl-tRNA deacylase
1617	 53.33	0	1858382..1859101	-	239	121635518	-	NMC1824	-	hypothetical protein
1618	 50.98	0	1859211..1860077	-	288	121635519	-	NMC1825	-	hypothetical protein
1619	 58.42	0	1860126..1860404	-	92	121635520	-	NMC1826	-	hypothetical protein
1620	 55.67	0	1860404..1860694	-	96	161723297	-	NMC1827	-	YciI-like protein
1621	 47.72	0	1860697..1861245	-	182	121635522	-	NMC1828	-	putative morphogene
1622	 55.18	0	1861433..1864060	+	875	121635523	tspA	NMC1829	-	hypothetical protein
1623	 52.76	0	1864232..1864648	-	138	121635524	gloA	NMC1830	-	lactoylglutathione lyase
1624	 53.76	0	1864695..1865864	-	389	121635525	-	NMC1831	-	hypothetical protein
1625	 48.74	0	1865875..1866231	-	118	121635526	-	NMC1832	-	hypothetical protein
1626	 57.16	0	1866499..1867497	+	332	121635527	ilvE	NMC1833	-	branched-chain amino acid aminotransferase
1627	 57.63	0	1867683..1868468	-	261	121635528	fabI	NMC1834	-	enoyl-(acyl carrier protein) reductase
1628	 56.69	0	1868623..1869444	-	273	121635529	dapD	NMC1835	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1629	 58.80	0	1869654..1871408	-	584	121635530	pgi2	NMC1837	-	glucose-6-phosphate isomerase 2
1630	 52.72	0	1871807..1873039	+	410	121635531	pilG	NMC1838	-	pilus-assembly protein
1631	 53.66	0	1873113..1873973	+	286	121635532	pilD	NMC1839	-	type IV prepilin leader peptidase
1632	 55.92	0	1873975..1874607	+	210	121635533	-	NMC1841	-	hypothetical protein
1633	 52.38	0	1874600..1874809	+	69	121635534	-	NMC1842	-	hypothetical protein
1634	 52.83	0	1874894..1876570	-	558	121635535	pilF	NMC1844	-	type IV pilus assembly protein
1635	 49.66	0	1877062..1877508	-	148	121635536	-	NMC1845	-	hypothetical protein
1636	 50.97	0	1877513..1878487	-	324	121635537	-	NMC1846	-	octaprenyl-diphosphate synthase
1637	 48.22	0	1878711..1879019	+	102	121635538	rplU	NMC1847	-	50S ribosomal protein L21
1638	 51.28	0	1879044..1879316	+	90	121635539	rpmA	NMC1848	-	50S ribosomal protein L27
1639	 50.65	0	1879350..1880735	+	461	121635540	-	NMC1849	-	hypothetical protein
1640	 42.95	-1	1881006..1881161	-	51	121635541	rpmG	NMC1850	-	50S ribosomal protein L33
1641	 52.14	0	1881193..1881426	-	77	121635542	rpmB	NMC1851	-	50S ribosomal protein L28
1642	 53.51	0	1881676..1883226	-	516	121635543	emrB	NMC1852	-	multidrug resistance translocase
1643	 58.39	0	1883226..1884482	-	418	121635544	emrA	NMC1853	-	multidrug resistance translocase
1644	 51.27	0	1884675..1885148	+	157	121635545	-	NMC1854	-	7-cyano-7-deazaguanine reductase
1645	 52.55	0	1885223..1885909	+	228	121635546	-	NMC1855	-	hypothetical protein
1646	 61.02	+1	1886412..1887704	-	430	121635547	-	NMC1856	-	hypothetical protein
1647	 59.75	+1	1887781..1888749	+	322	121635548	-	NMC1857	-	hypothetical protein
1648	 55.31	0	1888950..1890419	-	489	121635549	-	NMC1858	-	hypothetical protein
1649	 40.45	-1	1893555..1894763	+	402	121635550	-	NMC1861	-	putative replication initiation factor
1650	 41.03	-1	1894784..1895095	+	103	121635551	-	NMC1862	-	hypothetical protein
1651	 36.32	-2	1895099..1895299	+	66	121635552	-	NMC1863	-	hypothetical protein
1652	 44.59	-1	1895537..1895767	+	76	121635553	-	NMC1864	-	hypothetical protein
1653	 42.90	-1	1895796..1896098	+	100	121635554	-	NMC1865	-	putative integral membrane protein
1654	 48.14	0	1896545..1898050	+	501	121635555	-	NMC1866	-	TspB protein
1655	 44.91	0	1898353..1898637	+	94	121635556	-	NMC1867	-	putative integral membrane protein
1656	 44.70	-1	1898638..1899825	+	395	121635557	-	NMC1868	-	hypothetical protein
1657	 39.29	-1	1900040..1900996	+	318	121635558	-	NMC1869	-	putative invertase/transposase
1658	 50.41	0	1902080..1902325	-	81	121635559	-	NMC1870	-	hypothetical protein
1659	 54.57	0	1902428..1902865	+	145	121635560	-	NMC1871	-	hypothetical protein
1660	 50.00	0	1902862..1903353	+	163	121635561	-	NMC1872	-	hypothetical protein
1661	 55.21	0	1903703..1904191	-	162	121635562	folA	NMC1873	-	dihydrofolate reductase
1662	 53.22	0	1904259..1905314	-	351	121635563	aroG	NMC1874	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1663	 34.01	-2	1905368..1905661	+	97	121635564	-	NMC1875	-	hypothetical protein
1664	 51.61	0	1905779..1905871	+	30	121635565	-	NMC1876	-	hypothetical protein
1665	 49.46	0	1905960..1906238	+	92	121635566	opcB	NMC1877	-	pseudogene (outer membrane protein)
1666	 45.86	0	1906495..1906941	-	148	121635567	-	NMC1879	-	hypothetical protein
1667	 55.05	0	1907066..1907530	-	154	121635568	-	NMC1880	-	putative DNA transport competence protein
1668	 51.30	0	1913331..1914137	-	268	121635569	-	NMC1882	-	hypothetical protein
1669	 52.88	0	1914357..1915727	+	456	121635570	ffh	NMC1883	-	signal recognition particle protein
1670	 51.35	0	1916101..1917066	+	321	121635571	-	NMC1884	-	putative transposase for IS1655
1671	 50.14	0	1917143..1917838	-	231	121635572	-	NMC1885	-	putative thiol:disulphide interchange protein
1672	 39.39	-1	1918009..1918668	-	219	121635573	-	NMC1886	-	hypothetical protein
1673	 54.12	0	1918871..1920982	-	703	121635574	-	NMC1887	-	putative TonB-dependent receptor protein
1674	 51.98	0	1921168..1921773	-	201	121635575	-	NMC1889	-	hypothetical protein
1675	 52.81	0	1921822..1922283	-	153	121635576	-	NMC1890	-	hypothetical protein
1676	 59.87	+1	1922328..1923239	+	303	121635577	-	NMC1891	-	LysR family transcriptional regulator
1677	 62.14	+1	1923229..1924530	+	433	121635578	phr	NMC1892	-	deoxyribodopyrimidine photolyase
1678	 52.48	0	1924635..1925219	+	194	121635579	-	NMC1894	-	putative IS1106 transposase (fragment)
1679	 51.45	0	1925685..1925960	+	91	121635580	-	NMC1896	-	hypothetical protein
1680	 56.10	0	1926177..1926971	-	264	121635581	-	NMC1898	-	hypothetical protein
1681	 58.82	0	1927180..1927905	+	241	121635582	-	NMC1899	-	hypothetical protein
1682	 55.89	0	1930082..1930888	-	268	121635583	lgtB2	NMC1900	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
1683	 50.00	0	1930930..1931025	-	31	121635584	-	NMC1900A	-	hypothetical protein
1684	 53.99	0	1931037..1931864	-	275	121635585	lgtB	NMC1901	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
1685	 50.81	0	1931906..1932952	-	348	121635586	lgtA	NMC1902	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
1686	 56.40	0	1932969..1935032	-	687	121635587	glyS	NMC1903	-	glycyl-tRNA synthetase subunit beta
1687	 56.08	0	1935149..1936045	-	298	121635588	glyQ	NMC1904	-	glycyl-tRNA synthetase subunit alpha
1688	 52.25	0	1936369..1936791	-	140	121635589	atpC	NMC1905	-	F0F1 ATP synthase subunit epsilon
1689	 52.36	0	1936802..1938199	-	465	121635590	atpD	NMC1906	-	F0F1 ATP synthase subunit beta
1690	 46.92	0	1938237..1939112	-	291	121635591	atpG	NMC1907	-	F0F1 ATP synthase subunit gamma
1691	 50.78	0	1939137..1940684	-	515	121635592	atpA	NMC1908	-	F0F1 ATP synthase subunit alpha
1692	 45.51	0	1940695..1941228	-	177	121635593	atpH	NMC1909	-	F0F1 ATP synthase subunit delta
1693	 51.80	0	1941233..1941703	-	156	121635594	atpF	NMC1910	-	F0F1 ATP synthase subunit B
1694	 49.79	0	1941774..1942010	-	78	121635595	atpE	NMC1911	-	F0F1 ATP synthase subunit C
1695	 50.29	0	1942067..1942933	-	288	121635596	atpB	NMC1912	-	F0F1 ATP synthase subunit A
1696	 48.02	0	1942923..1943276	-	117	121635597	atpI	NMC1913	-	putative ATP synthase I
1697	 49.85	0	1943644..1943982	-	112	121635598	-	NMC1914	-	hypothetical protein
1698	 56.91	0	1944117..1944977	-	286	121635599	-	NMC1915	-	putative chromosome segregation proteins
1699	 56.10	0	1945033..1945704	+	223	121635600	-	NMC1916	-	aromatic acid decarboxylase
1700	 55.79	0	1945766..1946629	-	287	121635601	-	NMC1917	-	putative lipoprotein
1701	 57.21	0	1946788..1947474	-	228	121635602	-	NMC1918	-	putative inner membrane transport protein
1702	 57.86	0	1947477..1948214	-	245	121635603	-	NMC1919	-	putative ABC transport ATP-binding subunit
1703	 59.47	+1	1948745..1950592	+	615	121635604	-	NMC1920	-	putative transglycosylase
1704	 53.99	0	1950881..1951093	+	70	121635605	rpsU	NMC1921	-	30S ribosomal protein S21
1705	 56.30	0	1951267..1951671	+	134	121635606	-	NMC1922	-	hypothetical protein
1706	 54.39	0	1951996..1952451	-	151	121635607	regG	NMC1924	-	ClpXP protease specificity-enhancing factor
1707	 53.96	0	1952459..1953064	-	201	121635608	regF	NMC1925	-	putative regulator of pilE expression
1708	 58.96	+1	1953334..1955046	-	570	121635609	-	NMC1926	-	putative inner membrane protein
1709	 35.05	-2	1955151..1955792	-	213	121635610	-	NMC1927	-	cadmium resistance protein
1710	 47.69	0	1956095..1956310	-	71	161723296	rpmE	NMC1928	-	50S ribosomal protein L31
1711	 56.95	0	1956545..1957062	+	172	121635612	-	NMC1929	-	putative acetyltransferase
1712	 51.53	0	1957146..1957634	-	162	121635613	-	NMC1930	-	putative periplasmic protein
1713	 59.90	+1	1957631..1958014	-	127	121635614	-	NMC1931	-	hypothetical protein
1714	 54.24	0	1958014..1958496	-	160	121635615	-	NMC1932	-	hypothetical protein
51.80	MEAN

7.07	STD DEV
