IslandPath Analysis: Neisseria meningitidis FAM18

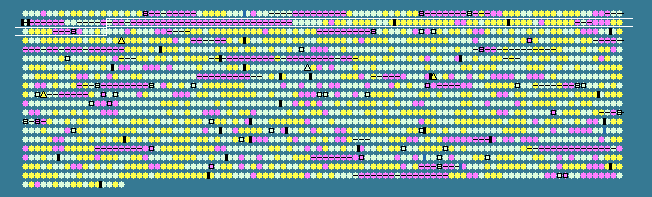

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
115	 50.23	0	139475..140119	+	214	121634016	rplC	NMC0132	-	50S ribosomal protein L3
116	 46.70	0	140119..140739	+	206	121634017	rplD	NMC0133	-	50S ribosomal protein L4
117	 44.24	-1	140730..141050	+	106	121634018	rplW	NMC0134	-	50S ribosomal protein L23
118	 51.80	0	141056..141889	+	277	121634019	rplB	NMC0135	-	50S ribosomal protein L2
119	 45.16	0	141896..142174	+	92	121634020	rpsS	NMC0136	-	30S ribosomal protein S19
120	 42.12	-1	142183..142512	+	109	121634021	rplV	NMC0137	-	50S ribosomal protein L22
121	 45.02	0	142522..143214	+	230	121634022	rpsC	NMC0138	-	30S ribosomal protein S3
122	 46.28	0	143198..143614	+	138	121634023	rplP	NMC0139	-	50S ribosomal protein L16
123	 38.54	-1	143614..143805	+	63	121634024	rpmC	NMC0140	-	50S ribosomal protein L29
124	 36.74	-2	143805..144068	+	87	121634025	rpsQ	NMC0141	-	30S ribosomal protein S17
125	 44.17	-1	144290..144658	+	122	121634026	rplN	NMC0142	-	50S ribosomal protein L14
126	 38.58	-1	144670..144993	+	107	121634027	rplX	NMC0143	-	50S ribosomal protein L24
127	 38.52	-1	145003..145542	+	179	121634028	rplE	NMC0144	-	50S ribosomal protein L5
128	 45.75	0	145545..145850	+	101	121634029	rpsN	NMC0145	-	30S ribosomal protein S14
129	 39.44	-1	145866..146258	+	130	121634030	rpsH	NMC0146	-	30S ribosomal protein S8
130	 40.82	-1	146272..146805	+	177	121634031	rplF	NMC0147	-	50S ribosomal protein L6
131	 43.79	-1	146819..147172	+	117	121634032	rplR	NMC0148	-	50S ribosomal protein L18
132	 43.74	-1	147191..147709	+	172	121634033	rpsE	NMC0149	-	30S ribosomal protein S5
133	 41.40	-1	147702..147887	+	61	121634034	rpmD	NMC0150	-	50S ribosomal protein L30
134	 43.22	-1	147889..148323	+	144	121634035	rplO	NMC0151	-	50S ribosomal protein L15
135	 37.07	-2	148335..149645	+	436	121634036	secY	NMC0152	-	preprotein translocase subunit SecY
136	 37.90	-1	149650..149868	+	72	121634037	infA	NMC0153	-	translation initiation factor IF-1
137	 38.60	-1	149889..150002	+	37	121634038	rpmJ	NMC0154	-	50S ribosomal protein L36
138	 46.56	0	150068..150430	+	120	121634039	rpsM	NMC0155	-	30S ribosomal protein S13
139	 45.20	0	150450..150845	+	131	121634040	rpsK	NMC0156	-	30S ribosomal protein S11
140	 44.28	-1	150865..151485	+	206	121634041	rpsD	NMC0157	-	30S ribosomal protein S4
141	 42.45	-1	151511..152497	+	328	121634042	rpoA	NMC0158	-	DNA-directed RNA polymerase subunit alpha
142	 46.34	0	152521..152889	+	122	121634043	rplQ	NMC0159	-	50S ribosomal protein L17
143	 45.10	0	153036..153749	+	237	121634044	minC	NMC0160	-	septum formation inhibitor
144	 46.69	0	153777..154592	+	271	121634045	minD	NMC0161	-	septum site-determining protein
145	 44.32	-1	154596..154859	+	87	121634046	minE	NMC0162	-	cell division topological specificity factor
146	 53.09	0	154863..155783	+	306	121634047	oxyR	NMC0163	-	putative hydrogen peroxide-inducible genes activator
147	 54.90	0	156113..158950	-	945	121634048	valS	NMC0164	-	valyl-tRNA synthetase
148	 54.44	0	159047..159856	-	269	121634049	-	NMC0165	-	zinc transporter ZupT
149	 54.34	0	160037..161293	-	418	121634050	dadA	NMC0166	-	D-amino acid dehydrogenase small subunit
150	 53.74	0	161372..162763	-	463	121634051	-	NMC0167	-	putative amino-acid transporter
151	 58.94	+1	163121..163897	-	258	121634052	lpxA	NMC0168	-	UDP-N-acetylglucosamine acyltransferase
152	 35.55	-2	163940..164662	-	240	121634053	-	NMC0169	-	hypothetical protein
153	 56.89	0	164827..165276	-	149	121634054	fabZ	NMC0170	-	(3R)-hydroxymyristoyl-ACP dehydratase
154	 60.17	+1	165310..166356	-	348	121634055	lpxD	NMC0171	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
155	 53.09	0	166389..166889	-	166	121634056	-	NMC0172	-	putative outer membrane protein
156	 55.93	0	166955..169348	-	797	121634057	omp85	NMC0173	-	outer membrane protein OMP85
157	 59.13	+1	169405..170745	-	446	121634058	-	NMC0174	-	putative inner membrane protease
158	 58.25	0	170780..172015	-	411	121634059	dxr	NMC0175	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
159	 55.76	0	172020..172817	-	265	121634060	cdsA	NMC0176	-	phosphatidate cytidylyltransferase
160	 54.26	0	172821..173594	-	257	121634061	uppS	NMC0177	-	putative undecaprenyl diphosphate synthase
161	 54.30	0	173623..174180	-	185	121634062	frr	NMC0178	-	ribosome recycling factor
162	 61.26	+1	174361..175488	-	375	121634063	-	NMC0179	-	putative inner membrane protein
163	 60.33	+1	175739..176227	+	162	121634064	-	NMC0180	-	putative inner membrane protein
164	 57.05	0	176323..176946	+	207	121634065	gidB	NMC0181	-	glucose-inhibited division protein B
165	 58.91	+1	177045..177818	+	257	121634066	-	NMC0182	-	hypothetical protein
166	 57.78	0	178616..179200	-	194	121634067	rnhB	NMC0183	-	ribonuclease HII
167	 58.33	0	179268..181163	-	631	121634068	gidA	NMC0184	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
168	 55.60	0	181438..182865	-	475	121634069	-	NMC0185	-	putative inner membrane amino-acid transport protein
169	 60.40	+1	183025..184014	+	329	121634070	pdxA	NMC0186	-	pyridoxal phosphate biosynthetic protein
170	 57.97	0	185095..187854	-	919	121634071	rne	NMC0187	-	ribonuclease E
171	 57.40	0	188347..189339	+	330	121634072	rluC	NMC0190	-	ribosomal large subunit pseudouridine synthase C
172	 58.44	0	189405..190559	+	384	121634073	lpxB	NMC0191	-	lipid-A-disaccharide synthase
173	 28.72	-2	190769..191158	-	129	121634074	-	NMC0193	-	hypothetical protein
174	 36.33	-2	191492..191791	+	99	121634075	-	NMC0194	-	hypothetical protein
175	 60.62	+1	192055..192864	-	269	121634076	dapB	NMC0195	-	dihydrodipicolinate reductase
176	 57.94	0	192874..193251	-	125	121634077	-	NMC0196	-	putative outer membrane lipoprotein
177	 49.01	0	193409..193912	+	167	121634078	fur	NMC0197	-	ferric uptake regulation protein
178	 57.85	0	193982..194707	+	241	121634079	aat	NMC0198	-	leucyl/phenylalanyl-tRNA--protein transferase
179	 57.17	0	194955..195986	-	343	121634080	gapA	NMC0199	-	glyceraldehyde 3-phosphate dehydrogenase
180	 63.69	+1	196185..197024	-	279	121634081	-	NMC0200	-	putative ferredoxin
181	 55.69	0	197173..199149	+	658	121634082	-	NMC0201	-	putative inner membrane transport protein
182	 55.83	0	202007..204397	-	796	121634083	gyrB	NMC0204	-	DNA gyrase subunit B
183	 55.83	0	204553..205539	+	328	121634084	-	NMC0205	-	putative inner membrane protein
184	 57.14	0	205627..207663	+	678	121634085	prlC	NMC0206	-	oligopeptidase A
185	 58.38	0	207939..208505	-	188	121634086	-	NMC0207	-	putative integral membrane protein
186	 49.30	0	208969..209469	-	166	121634087	-	NMC0209	-	hypothetical protein
187	 47.87	0	209923..210369	-	148	121634088	pilE	NMC0210	-	class II pilin PilE
188	 57.95	0	211530..213044	-	504	121634089	katA	NMC0211	-	catalase
189	 55.63	0	213393..214244	+	283	121634090	-	NMC0212	-	RNA polymerase sigma factor
190	 60.34	+1	216671..217888	-	405	121634091	-	NMC0214	-	putative inner membrane transport protein
191	 57.26	0	218313..219269	+	318	121634092	-	NMC0215	-	putative inner membrane transport protein
192	 60.02	+1	219511..220758	-	415	121634093	fabF	NMC0216	-	3-oxoacyl-(acyl carrier protein) synthase II
193	 47.26	0	220914..221150	-	78	121634094	acpP	NMC0217	-	acyl carrier protein
194	 53.17	0	221382..222389	+	335	121634095	pyrD	NMC0218	-	dihydroorotate dehydrogenase 2
195	 35.80	-2	222723..223046	+	107	121634096	-	NMC0220	-	hypothetical protein
196	 40.78	-1	223133..223414	+	93	121634097	-	NMC0221	-	hypothetical protein
197	 40.30	-1	223467..223940	+	157	121634098	-	NMC0222	-	hypothetical protein
198	 39.88	-1	224194..224529	+	111	121634099	-	NMC0223	-	hypothetical protein
199	 57.38	0	224709..227399	+	896	121634100	glnE	NMC0224	-	glutamate-ammonia-ligase adenylyltransferase
200	 55.99	0	227699..228391	-	230	121634101	-	NMC0225	-	hypothetical protein
201	 54.77	0	228499..229692	-	397	121634102	-	NMC0226	-	putative inner membrane transport protein
202	 58.67	0	229821..230558	-	245	121634103	-	NMC0227	-	hypothetical protein
203	 56.77	0	230545..231474	-	309	121634104	-	NMC0228	-	hypothetical protein
204	 56.94	0	231471..232118	-	215	121634105	-	NMC0229	-	hypothetical protein
205	 57.11	0	232302..234509	+	735	121634106	uvrD	NMC0230	-	DNA helicase II
206	 45.74	0	234744..235283	+	179	121634107	-	NMC0231	-	hypothetical protein
207	 30.56	-2	235473..235688	-	71	121634108	-	NMC0232	-	hypothetical protein
208	 27.50	-2	235812..236171	-	119	121634109	-	NMC0233	-	hypothetical protein
209	 36.77	-2	236224..236601	+	125	121634110	-	NMC0234	-	putative IS1016 transposase
210	 45.35	0	236755..237420	+	221	121634111	-	NMC0235	-	putative inner membrane protein
211	 48.73	0	237401..238894	+	497	121634112	-	NMC0236	-	putative inner membrane protein
212	 51.26	0	239356..239712	+	118	121634113	nuoA	NMC0237	-	NADH dehydrogenase I chain A
213	 57.14	0	239703..240185	+	160	121634114	nuoB	NMC0238	-	NADH dehydrogenase subunit B
214	 51.52	0	240198..240791	+	197	121634115	nuoC	NMC0239	-	NADH dehydrogenase subunit C
51.80	MEAN

7.07	STD DEV
