IslandPath Analysis: Neisseria meningitidis FAM18

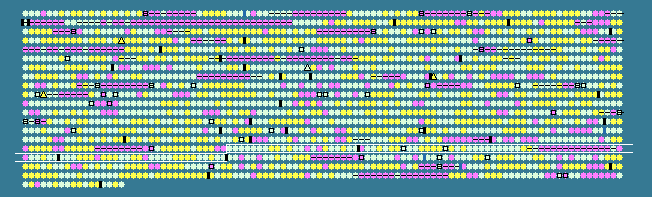

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1535	 52.29	0	1766923..1768077	-	384	121635436	prpC	NMC1732	-	methylcitrate synthase
1536	 53.47	0	1768163..1769041	-	292	121635437	prpB	NMC1733	-	2-methylisocitrate lyase
1537	 53.01	0	1769664..1770974	-	436	121635438	-	NMC1735	-	putative permease
1538	 54.11	0	1771113..1772291	-	392	121635439	ftsZ	NMC1737	-	cell division protein FtsZ
1539	 53.01	0	1772410..1773654	-	414	121635440	ftsA	NMC1738	-	cell division protein
1540	 53.64	0	1773740..1774468	-	242	121635441	ftsQ	NMC1739	-	cell division protein
1541	 52.68	0	1774458..1775372	-	304	121635442	ddl	NMC1740	-	D-alanine--D-alanine ligase
1542	 56.24	0	1775485..1776894	-	469	121635443	murC	NMC1741	-	UDP-N-acetylmuramate--L-alanine ligase
1543	 60.11	+1	1777048..1778115	-	355	121635444	murG	NMC1742	-	UDP-N-acetylglucosamine-N-acetylmuramyl-pentapeptide pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
1544	 53.29	0	1778119..1779426	-	435	121635445	ftsW	NMC1743	-	cell division protein
1545	 56.13	0	1779570..1780907	-	445	121635446	murD	NMC1745	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1546	 53.11	0	1780997..1781269	-	90	121635447	-	NMC1746	-	putative periplasmic protein
1547	 54.39	0	1781384..1782466	-	360	121635448	mraY	NMC1747	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1548	 46.99	0	1782713..1782895	-	60	121635449	-	NMC1748	-	putative periplasmic protein
1549	 54.24	0	1782892..1784331	-	479	121635450	murF	NMC1749	-	UDP-MurNAc-pentapeptide synthetase
1550	 48.09	0	1784374..1786020	-	548	121635451	-	NMC1750	-	pseudogene (putative integral membrane protein)
1551	 56.73	0	1786043..1787521	-	492	121635452	murE	NMC1751	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1552	 54.98	0	1787546..1789291	-	581	121635453	penA	NMC1753	-	penicillin-binding protein 2
1553	 49.63	0	1789352..1789621	-	89	121635454	-	NMC1754	-	putative small periplasmic protein
1554	 57.55	0	1789612..1790598	-	328	121635455	mraW	NMC1755	-	S-adenosyl-methyltransferase MraW
1555	 53.51	0	1790595..1791050	-	151	121635456	-	NMC1756	-	cell division protein MraZ
1556	 50.41	0	1791329..1792546	+	405	121635457	-	NMC1757	-	hypothetical protein
1557	 46.72	0	1793119..1793940	-	273	121635458	-	NMC1759	-	putative integral membrane antobiotic resistance protein
1558	 48.99	0	1793973..1794617	-	214	121635459	-	NMC1760	-	putative thiol:disulphide interchange protein
1559	 50.23	0	1794620..1795471	-	283	121635460	-	NMC1762	-	hypothetical protein
1560	 59.79	+1	1795571..1797067	-	498	121635461	-	NMC1763	-	putative chelatase
1561	 51.41	0	1797081..1797434	-	117	121635462	-	NMC1764	-	hypothetical protein
1562	 55.80	0	1797884..1799410	+	508	121635463	putP	NMC1765	-	sodium/proline symporter
1563	 58.44	0	1799442..1803264	+	1274	121635464	putA	NMC1766	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
1564	 52.23	0	1804266..1804847	-	193	121635465	-	NMC1767	-	putative putative transposase
1565	 54.60	0	1805789..1806559	-	256	121635466	xthA	NMC1768	-	exodeoxyribonuclease III
1566	 53.55	0	1806619..1806900	-	93	121635467	-	NMC1769	-	ArsR family transcriptional regulator
1567	 62.36	+1	1807368..1808249	-	293	121635468	nadC	NMC1770	-	nicotinate-nucleotide pyrophosphorylase
1568	 61.45	+1	1808324..1809262	-	312	121635469	-	NMC1771	-	putative cytoplasmic membrane protein
1569	 58.40	0	1809569..1810681	+	370	121635470	nadA	NMC1772	-	quinolinate synthetase
1570	 61.56	+1	1810887..1812395	+	502	121635471	nadB	NMC1773	-	L-aspartate oxidase
1571	 52.58	0	1813627..1814634	+	335	121635472	-	NMC1775	-	putative transposase for IS1106A3
1572	 61.11	+1	1814844..1815509	-	221	121635473	pgm2	NMC1776	-	beta-phosphoglucomutase
1573	 55.16	0	1815522..1817780	-	752	121635474	mapA	NMC1777	-	maltose phosphorylase
1574	 62.72	+1	1818014..1819051	-	345	121635475	galM	NMC1778	-	aldose 1-epimerase (mutarotase)
1575	 53.54	0	1819055..1820410	-	451	121635476	-	NMC1779	-	putative integral membrane transport protein
1576	 53.73	0	1820798..1822474	+	558	121635477	-	NMC1780	-	putative ABC transporter ATP-binding protein
1577	 52.88	0	1822534..1823019	-	161	121635478	pgpA	NMC1781	-	phosphatidylglycerophosphatase A
1578	 55.07	0	1823012..1823968	-	318	121635479	thiL	NMC1782	-	thiamine monophosphate kinase
1579	 52.54	0	1824789..1825517	-	242	121635480	rmpM	NMC1783	-	outer membrane protein class 4
1580	 52.58	0	1825881..1826831	+	316	121635481	-	NMC1784	-	transcriptional regulator CysB-like protein
1581	 52.38	0	1826944..1827678	-	244	121635482	-	NMC1785	-	putative anaerobic transcriptional regulatory protein
1582	 54.64	0	1827883..1829304	+	473	121635483	hemN	NMC1786	-	coproporphyrinogen III oxidase
1583	 53.08	0	1829657..1831231	-	524	121635484	-	NMC1787	-	putative phosphate permease
1584	 60.24	+1	1831553..1832656	+	367	121635485	anmK	NMC1788	-	anhydro-N-acetylmuramic acid kinase
1585	 59.34	+1	1832775..1833716	+	313	121635486	mafA2	NMC1789	-	adhesin MafA2
1586	 52.95	0	1833720..1835483	+	587	121635487	-	NMC1790	-	adhesin MafB2
1587	 33.02	-2	1835486..1835809	+	107	121635488	-	NMC1791	-	hypothetical protein
1588	 33.76	-2	1835862..1836095	+	77	121635489	-	NMC1792	-	hypothetical protein
1589	 36.10	-2	1836222..1836764	+	180	121635490	-	NMC1793	-	hypothetical protein
1590	 33.83	-2	1837582..1837980	+	132	121635491	-	NMC1795	-	hypothetical protein
1591	 34.92	-2	1838011..1838388	+	125	121635492	-	NMC1796	-	hypothetical protein
1592	 41.08	-1	1838520..1838984	+	154	121635493	-	NMC1797	-	hypothetical protein
1593	 33.33	-2	1838993..1839265	+	90	121635494	-	NMC1798	-	hypothetical protein
1594	 30.74	-2	1839432..1839662	+	76	121635495	-	NMC1799	-	hypothetical protein
1595	 46.03	0	1839813..1840442	+	209	121635496	-	NMC1800	-	hypothetical protein
1596	 33.95	-2	1840393..1840878	+	161	121635497	-	NMC1801	-	hypothetical protein
1597	 26.11	-2	1841099..1841458	+	119	121635498	-	NMC1802	-	putative lipoprotein
1598	 38.69	-1	1841470..1841805	+	111	121635499	-	NMC1803	-	hypothetical protein
1599	 49.33	0	1842109..1843233	+	374	121635500	-	NMC1804	-	hypothetical protein
1600	 40.58	-1	1843320..1843595	-	91	121635501	-	NMC1805	-	hypothetical protein
1601	 39.19	-1	1843612..1844379	-	255	121635502	-	NMC1806	-	hypothetical protein
1602	 53.62	0	1844804..1845079	-	91	121635503	-	NMC1807	-	hypothetical protein
1603	 54.52	0	1845076..1846359	-	427	121635504	-	NMC1808	-	putative integral membrane signal transducer protein
1604	 55.88	0	1846513..1847931	-	472	121635505	glnA	NMC1809	-	glutamine synthetase
1605	 54.69	0	1848753..1849562	+	269	121635506	aroE	NMC1810	-	shikimate dehydrogenase
1606	 55.13	0	1849564..1850265	+	233	121635507	mtgA	NMC1811	-	monofunctional biosynthetic peptidoglycan transglycosylase
1607	 51.24	0	1850734..1851498	-	254	121635508	-	NMC1812	-	putative ABC transporter ATP-binding protein
1608	 53.30	0	1851542..1852072	-	176	121635509	-	NMC1813	-	hypothetical protein
1609	 48.80	0	1852053..1852634	-	193	121635510	-	NMC1814	-	hypothetical protein
1610	 57.54	0	1852631..1853167	-	178	121635511	-	NMC1815	-	hypothetical protein
1611	 59.28	+1	1853232..1854206	-	324	121635512	-	NMC1816	-	hypothetical protein
1612	 57.67	0	1854303..1855358	+	351	121635513	tal	NMC1818	-	transaldolase
1613	 36.77	-2	1855512..1855802	+	96	121635514	-	NMC1819	-	hypothetical protein
1614	 61.94	+1	1855819..1856706	+	295	121635515	-	NMC1820	-	glutamyl-Q tRNA(Asp) synthetase
1615	 58.95	+1	1856776..1857786	-	336	121635516	-	NMC1822	-	tRNA-dihydrouridine synthase A
1616	 56.10	0	1857817..1858308	-	163	121635517	-	NMC1823	-	D-tyrosyl-tRNA deacylase
1617	 53.33	0	1858382..1859101	-	239	121635518	-	NMC1824	-	hypothetical protein
1618	 50.98	0	1859211..1860077	-	288	121635519	-	NMC1825	-	hypothetical protein
1619	 58.42	0	1860126..1860404	-	92	121635520	-	NMC1826	-	hypothetical protein
1620	 55.67	0	1860404..1860694	-	96	161723297	-	NMC1827	-	YciI-like protein
1621	 47.72	0	1860697..1861245	-	182	121635522	-	NMC1828	-	putative morphogene
1622	 55.18	0	1861433..1864060	+	875	121635523	tspA	NMC1829	-	hypothetical protein
1623	 52.76	0	1864232..1864648	-	138	121635524	gloA	NMC1830	-	lactoylglutathione lyase
1624	 53.76	0	1864695..1865864	-	389	121635525	-	NMC1831	-	hypothetical protein
1625	 48.74	0	1865875..1866231	-	118	121635526	-	NMC1832	-	hypothetical protein
1626	 57.16	0	1866499..1867497	+	332	121635527	ilvE	NMC1833	-	branched-chain amino acid aminotransferase
1627	 57.63	0	1867683..1868468	-	261	121635528	fabI	NMC1834	-	enoyl-(acyl carrier protein) reductase
1628	 56.69	0	1868623..1869444	-	273	121635529	dapD	NMC1835	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1629	 58.80	0	1869654..1871408	-	584	121635530	pgi2	NMC1837	-	glucose-6-phosphate isomerase 2
1630	 52.72	0	1871807..1873039	+	410	121635531	pilG	NMC1838	-	pilus-assembly protein
1631	 53.66	0	1873113..1873973	+	286	121635532	pilD	NMC1839	-	type IV prepilin leader peptidase
1632	 55.92	0	1873975..1874607	+	210	121635533	-	NMC1841	-	hypothetical protein
1633	 52.38	0	1874600..1874809	+	69	121635534	-	NMC1842	-	hypothetical protein
1634	 52.83	0	1874894..1876570	-	558	121635535	pilF	NMC1844	-	type IV pilus assembly protein
51.80	MEAN

7.07	STD DEV
