IslandPath Analysis: Neisseria meningitidis FAM18

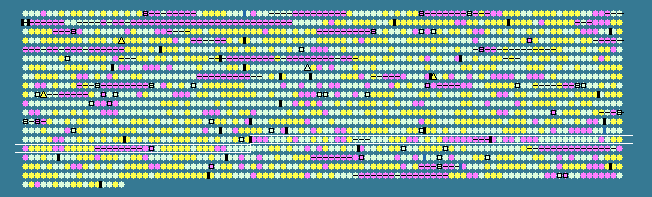

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.80   STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1439	 44.71	-1	1652172..1652936	+	254	121635340	lgtF	NMC1618	-	beta-1,4-glucosyltransferase
1440	 47.51	0	1652937..1654001	+	354	121635341	rfaK	NMC1619	-	alpha 1,2 N-acetylglucosamine transferase
1441	 42.69	-1	1654040..1654210	+	56	121635342	-	NMC1621	-	hypothetical protein
1442	 52.24	0	1654388..1655725	+	445	121635343	-	NMC1622	-	putative integral membrane ion transporter
1443	 54.61	0	1655897..1656557	-	220	121635344	-	NMC1623	-	putative periplasmic protein
1444	 52.83	0	1656566..1657360	-	264	121635345	thyA	NMC1624	-	thymidylate synthase
1445	 55.96	0	1657744..1659078	+	444	121635346	gdhA	NMC1625	-	glutamate dehydrogenase
1446	 31.71	-2	1659226..1659594	+	122	121635347	-	NMC1626	-	hypothetical protein
1447	 54.02	0	1660081..1660863	-	260	121635348	-	NMC1629	-	GntR family transcriptional regulator
1448	 53.33	0	1661395..1661694	+	99	121635349	-	NMC1630	-	putative integral membrane protein
1449	 55.58	0	1662062..1663513	-	483	121635350	mtrE	NMC1632	-	putative outer membrane lipoprotein
1450	 54.28	0	1663520..1666723	-	1067	121635351	mtrD	NMC1633	-	drug efflux protein
1451	 58.27	0	1666735..1667973	-	412	121635352	mtrC	NMC1634	-	membrane fusion protein
1452	 51.82	0	1668381..1669013	+	210	121635353	mtrR	NMC1635	-	transcriptional regulato
1453	 29.07	-2	1669292..1669549	-	85	121635354	-	NMC1636	-	hypothetical protein
1454	 48.25	0	1669838..1671406	+	522	121635355	-	NMC1637	-	hypothetical protein
1455	 55.61	0	1671476..1674685	-	1069	121635356	recC	NMC1638	-	exodeoxyribonuclease V
1456	 54.11	0	1674786..1676195	-	469	121635357	-	NMC1639	-	putative integral membrane protein
1457	 51.31	0	1677927..1678538	-	203	121635358	-	NMC1643	-	putative cytochrome oxidase subunit
1458	 51.31	0	1678565..1680010	-	481	121635359	-	NMC1645	-	cytochrome c oxidase subunit
1459	 51.54	0	1680316..1682073	+	585	121635360	-	NMC1646	-	hypothetical protein
1460	 55.13	0	1682099..1682566	+	155	121635361	-	NMC1647	-	hypothetical protein
1461	 51.72	0	1683253..1683687	-	144	121635362	exbD	NMC1648	-	biopolymer transport protein
1462	 55.35	0	1683690..1684352	-	220	121635363	exbB	NMC1649	-	biopolymer transport protein
1463	 55.56	0	1684418..1685254	-	278	121635364	tonB	NMC1650	-	TonB protein
1464	 56.34	0	1685509..1686147	+	212	121635365	-	NMC1651	-	hypothetical protein
1465	 37.33	-2	1686599..1687399	-	266	121635366	-	NMC1652	-	putative integral membrane protein
1466	 29.12	-2	1687535..1688056	-	173	121635367	-	NMC1653	-	hypothetical protein
1467	 51.32	0	1688378..1689022	-	214	121635368	grxB	NMC1654	-	glutaredoxin 2
1468	 57.45	0	1689347..1691560	+	737	121635369	relA	NMC1655	-	GTP pyrophosphokinase
1469	 52.28	0	1692854..1694257	-	467	121635370	natC	NMC1657	-	putative periplasmic type I secretion system protein
1470	 55.67	0	1694326..1695753	-	475	121635371	-	NMC1658	-	putative periplasmic type I secretion system protein
1471	 45.17	0	1696339..1696845	+	168	121635372	-	NMC1660	-	hypothetical protein
1472	 46.57	0	1697238..1698272	+	344	121635373	-	NMC1661	-	hypothetical protein
1473	 47.25	0	1698263..1698607	+	114	121635374	-	NMC1662	-	hypothetical protein
1474	 42.42	-1	1698612..1698809	+	65	121635375	-	NMC1663	-	hypothetical protein
1475	 47.37	0	1698817..1699101	+	94	121635376	-	NMC1664	-	putative integral membrane protein
1476	 45.88	0	1699108..1699386	+	92	121635377	-	NMC1665	-	putative integral membrane protein
1477	 30.21	-2	1699544..1699831	+	95	121635378	-	NMC1667	-	hypothetical protein
1478	 44.61	-1	1699812..1700210	+	132	121635379	-	NMC1668	-	putative cell-surface protein
1479	 46.67	0	1700877..1701236	-	119	121635380	-	NMC1669	-	hypothetical protein
1480	 48.68	0	1701259..1701903	-	214	121635381	-	NMC1670	-	hypothetical protein
1481	 44.32	-1	1701905..1702441	-	178	121635382	-	NMC1671	-	hypothetical protein
1482	 47.27	0	1702453..1703550	-	365	121635383	-	NMC1672	-	hypothetical protein
1483	 49.75	0	1703553..1704965	-	470	121635384	-	NMC1673	-	hypothetical protein
1484	 42.14	-1	1705209..1706003	-	264	121635385	-	NMC1674	-	hypothetical protein
1485	 44.14	-1	1705979..1706626	-	215	121635386	-	NMC1675	-	hypothetical protein
1486	 44.44	-1	1706636..1707778	-	380	121635387	bioF	NMC1676	-	8-amino-7-oxononanoate synthase
1487	 53.20	0	1708001..1709077	+	358	121635388	-	NMC1677	-	hypothetical protein
1488	 50.65	0	1709284..1710750	-	488	121635389	-	NMC1679	-	putative integral membrane transport protein
1489	 53.14	0	1710948..1711871	-	307	121635390	speB	NMC1680	-	agmatinase
1490	 49.60	0	1711970..1713862	-	630	121635391	speA	NMC1682	-	arginine decarboxylase
1491	 50.18	0	1714029..1714313	-	94	121635392	-	NMC1683	-	hypothetical protein
1492	 53.51	0	1714464..1716272	-	602	121635393	aspS	NMC1684	-	aspartyl-tRNA synthetase
1493	 51.76	0	1716330..1717067	-	245	121635394	-	NMC1686	-	putative integral membrane protein
1494	 54.17	0	1718482..1718745	-	87	121635395	rpsT	NMC1688	-	30S ribosomal protein S20
1495	 53.46	0	1719048..1720190	+	380	121635396	-	NMC1689	-	putative polyamine permease substrate-binding protein
1496	 49.50	0	1721463..1724189	-	908	121635397	tbpA	NMC1690	-	transferrin-binding protein A
1497	 44.78	0	1724276..1726075	-	599	121635398	tbpB	NMC1691	-	transferrin-binding protein B
1498	 54.24	0	1727770..1728582	-	270	121635399	glr	NMC1692	-	glutamate racemase
1499	 58.87	+1	1728772..1729233	+	153	121635400	-	NMC1693	-	hypothetical protein
1500	 59.39	+1	1729230..1730480	+	416	121635401	amiC	NMC1694	-	N-acetylmuramoyl-L-alanine amidase
1501	 44.65	-1	1730544..1731365	+	273	121635402	-	NMC1695	-	hypothetical protein
1502	 57.31	0	1731666..1732808	-	380	121635403	-	NMC1697	-	hypothetical protein
1503	 55.32	0	1732857..1733279	-	140	121635404	-	NMC1698	-	putative secreted protein
1504	 59.63	+1	1733272..1734081	-	269	121635405	-	NMC1699	-	MutT-related protein
1505	 56.08	0	1734163..1734540	-	125	121635406	acpS	NMC1700	-	holo-(acyl-carrier protein) synthase
1506	 35.03	-2	1734740..1735507	-	255	121635407	-	NMC1701	-	hypothetical protein
1507	 33.23	-2	1735517..1736449	-	253	121635408	-	NMC1702	-	hypothetical protein
1508	 58.16	0	1736601..1737329	-	242	121635409	pdxJ	NMC1703	-	pyridoxal phosphate biosynthetic protein PdxJ
1509	 59.87	+1	1737353..1738147	-	264	121635410	recO	NMC1704	-	DNA repair protein (recombination protein o)
1510	 59.50	+1	1738178..1739308	-	376	121635411	pheA	NMC1705	-	chorismate mutase
1511	 57.32	0	1739344..1740723	-	459	121635412	-	NMC1706	-	putative integral membrane efflux protein
1512	 58.19	0	1741096..1741980	-	294	121635413	-	NMC1708	-	hypothetical protein
1513	 40.45	-1	1743688..1744896	+	402	121635414	-	NMC1709	-	hypothetical protein
1514	 41.03	-1	1744917..1745228	+	103	121635415	-	NMC1710	-	hypothetical protein
1515	 36.32	-2	1745232..1745432	+	66	121635416	-	NMC1711	-	hypothetical protein
1516	 45.89	0	1745659..1745889	+	76	121635417	-	NMC1712	-	putative integral membrane protein
1517	 43.67	-1	1745917..1746216	+	99	121635418	-	NMC1713	-	putative integral membrane protein
1518	 33.33	-2	1746233..1746655	+	140	121635419	-	NMC1714	-	hypothetical protein
1519	 47.04	0	1746543..1748162	+	539	121635420	-	NMC1715	-	TspB protein
1520	 44.91	0	1748465..1748749	+	94	121635421	-	NMC1716	-	putative integral membrane protein
1521	 44.70	-1	1748750..1749937	+	395	121635422	-	NMC1717	-	hypothetical protein
1522	 39.29	-1	1750152..1751108	+	318	121635423	-	NMC1718	-	putative transposase
1523	 50.18	0	1751514..1752332	+	272	121635424	-	NMC1719	-	Opa1800 outer membrane protein precursor
1524	 61.13	+1	1754168..1754980	-	270	121635425	-	NMC1720	-	hypothetical protein
1525	 60.37	+1	1755065..1755937	+	290	121635426	-	NMC1721	-	putative oxidoreductase
1526	 57.44	0	1755994..1757196	-	400	121635427	-	NMC1722	-	hypothetical protein
1527	 56.10	0	1757193..1757561	-	122	121635428	-	NMC1724	-	hypothetical protein
1528	 56.08	0	1757735..1758178	+	147	121635429	-	NMC1725	-	hypothetical protein
1529	 55.03	0	1758305..1759069	-	254	121635430	-	NMC1726	-	hypothetical protein
1530	 55.92	0	1759032..1760231	-	399	121635431	ackA2	NMC1727	-	acetate kinase
1531	 57.01	0	1760646..1761815	-	389	121635432	-	NMC1728	-	hypothetical protein
1532	 56.58	0	1762168..1764774	-	868	121635433	acnA	NMC1729	-	aconitate hydratase
1533	 37.68	-1	1764877..1766094	-	405	121635434	-	NMC1730	-	putative integral membrane protein
1534	 42.29	-1	1766108..1766833	-	241	121635435	ddpX	NMC1731	-	putative D-alanyl-d-alanine dipeptidase
1535	 52.29	0	1766923..1768077	-	384	121635436	prpC	NMC1732	-	methylcitrate synthase
1536	 53.47	0	1768163..1769041	-	292	121635437	prpB	NMC1733	-	2-methylisocitrate lyase
1537	 53.01	0	1769664..1770974	-	436	121635438	-	NMC1735	-	putative permease
1538	 54.11	0	1771113..1772291	-	392	121635439	ftsZ	NMC1737	-	cell division protein FtsZ
51.80	MEAN

7.07	STD DEV
