IslandPath Analysis: Neisseria meningitidis FAM18

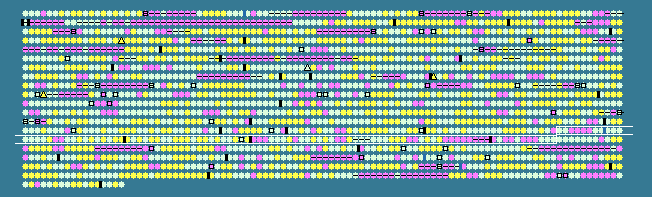

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.80   STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1390	 52.88	0	1593070..1594128	+	352	121635291	alr	NMC1567	-	alanine racemase
1391	 55.24	0	1594192..1595547	-	451	121635292	-	NMC1568	-	hypothetical protein
1392	 43.59	-1	1595563..1595835	-	90	121635293	-	NMC1569	-	hypothetical protein
1393	 45.66	0	1595961..1596698	-	245	121635294	-	NMC1570	-	putative periplasmic protein
1394	 46.16	0	1596979..1597890	-	303	121635295	-	NMC1571	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1395	 46.80	0	1598023..1598616	+	197	121635296	-	NMC1572	-	hypothetical protein
1396	 53.62	0	1598728..1599348	+	206	121635297	-	NMC1573	-	hypothetical protein
1397	 55.05	0	1599279..1599743	-	154	121635298	-	NMC1574	-	putative DNA transport competence protein
1398	 49.11	0	1605612..1606796	+	394	121635299	-	NMC1576	-	hypothetical protein
1399	 50.86	0	1606863..1609019	-	718	121635300	spoT	NMC1577	-	guanosine-3',5'-bis(diphosphate) 3'-pyrophophohydrolase
1400	 52.17	0	1609112..1609318	-	68	121635301	rpoZ	NMC1578	-	DNA-directed RNA polymerase omega chain
1401	 53.40	0	1609377..1609994	-	205	121635302	gmk	NMC1579	-	guanylate kinase
1402	 53.00	0	1610122..1610721	+	199	121635303	apt	NMC1580	-	adenine phosphoribosyltransferase
1403	 54.50	0	1610767..1611555	-	262	121635304	-	NMC1581	-	hypothetical protein
1404	 53.24	0	1611880..1613235	+	451	121635305	-	NMC1582	-	protease
1405	 59.96	+1	1613369..1613845	+	158	121635306	-	NMC1583	-	hypothetical protein
1406	 42.38	-1	1614450..1614836	-	128	121635307	-	NMC1584	-	hypothetical protein
1407	 40.24	-1	1614833..1615078	-	81	121635308	-	NMC1585	-	hypothetical protein
1408	 52.23	0	1615450..1617829	-	793	121635309	hmbR	NMC1586	-	pseudogene (haemoglobin receptor)
1409	 52.96	0	1618004..1618696	-	230	121635310	hemO	NMC1587	-	haem utilisation protein
1410	 55.94	0	1619127..1620431	+	434	121635311	-	NMC1588	-	hypothetical protein
1411	 52.22	0	1620424..1622064	+	546	121635312	-	NMC1589	-	hypothetical protein
1412	 58.19	0	1622064..1622582	+	172	121635313	-	NMC1590	-	putative lipoprotein
1413	 51.63	0	1622586..1623137	+	183	121635314	tag	NMC1591	-	DNA-3-methyladenine glycosylase I
1414	 55.77	0	1623145..1623768	+	207	121635315	-	NMC1592	-	putative lipase
1415	 53.40	0	1623990..1624298	+	102	121635316	-	NMC1593	-	putative integral membrane protein
1416	 56.05	0	1624329..1627181	+	950	121635317	gcvP	NMC1594	-	glycine dehydrogenase
1417	 55.48	0	1627646..1628485	-	279	121635318	-	NMC1595	-	putative cytochrome
1418	 55.95	0	1628910..1630103	-	397	121635319	tyrB	NMC1596	-	aromatic amino acid aminotransferase
1419	 48.73	0	1630109..1631212	-	367	121635320	trmA	NMC1597	-	tRNA (uracil-5-)-methyltransferase
1420	 59.13	+1	1631355..1632455	+	366	121635321	aroC	NMC1598	-	chorismate synthase
1421	 54.69	0	1632546..1632971	+	141	121635322	-	NMC1599	-	hypothetical protein
1422	 58.16	0	1633045..1635030	-	661	121635323	parE	NMC1600	-	DNA topoisomerase IV subunit B
1423	 57.52	0	1635097..1635621	-	174	121635324	-	NMC1601	-	dinucleoside polyphosphate hydrolase
1424	 54.09	0	1635786..1637081	+	431	121635325	serS	NMC1602	-	seryl-tRNA synthetase
1425	 53.39	0	1637159..1638160	-	333	121635326	ldhA	NMC1603	-	D-lactate dehydrogenase
1426	 57.94	0	1638282..1639358	-	358	121635327	prfA	NMC1604	-	peptide chain release factor 1
1427	 58.06	0	1639448..1640272	-	274	121635328	-	NMC1605	-	hypothetical protein
1428	 59.42	+1	1640221..1641213	-	330	121635329	ans	NMC1606	-	L-asparaginase
1429	 54.39	0	1641280..1641963	-	227	121635330	-	NMC1607	-	DedA family integral membrane protein
1430	 57.08	0	1642152..1643486	-	444	121635331	-	NMC1608	-	putative phosphoglucomutase/phosphomannomutase
1431	 58.33	0	1643616..1644467	-	283	121635332	dhpS	NMC1609	-	dihydropteroate synthase
1432	 54.61	0	1644634..1646856	+	740	121635333	-	NMC1610	-	hypothetical protein
1433	 55.82	0	1646921..1648405	-	494	121635334	-	NMC1611	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1434	 50.78	0	1648419..1648934	-	171	121635335	-	NMC1613	-	hypothetical protein
1435	 54.48	0	1648941..1649375	-	144	121635336	-	NMC1614	-	putative integral membrane protein
1436	 58.62	0	1649673..1650107	-	144	121635337	-	NMC1615	-	hypothetical protein
1437	 48.69	0	1650282..1650893	+	203	121635338	-	NMC1616	-	insertion element IS1016 transposase
1438	 59.63	+1	1650838..1651974	+	377	121635339	fabF2	NMC1617	-	3-oxoacyl-(acyl carrier protein) synthase II
1439	 44.71	-1	1652172..1652936	+	254	121635340	lgtF	NMC1618	-	beta-1,4-glucosyltransferase
1440	 47.51	0	1652937..1654001	+	354	121635341	rfaK	NMC1619	-	alpha 1,2 N-acetylglucosamine transferase
1441	 42.69	-1	1654040..1654210	+	56	121635342	-	NMC1621	-	hypothetical protein
1442	 52.24	0	1654388..1655725	+	445	121635343	-	NMC1622	-	putative integral membrane ion transporter
1443	 54.61	0	1655897..1656557	-	220	121635344	-	NMC1623	-	putative periplasmic protein
1444	 52.83	0	1656566..1657360	-	264	121635345	thyA	NMC1624	-	thymidylate synthase
1445	 55.96	0	1657744..1659078	+	444	121635346	gdhA	NMC1625	-	glutamate dehydrogenase
1446	 31.71	-2	1659226..1659594	+	122	121635347	-	NMC1626	-	hypothetical protein
1447	 54.02	0	1660081..1660863	-	260	121635348	-	NMC1629	-	GntR family transcriptional regulator
1448	 53.33	0	1661395..1661694	+	99	121635349	-	NMC1630	-	putative integral membrane protein
1449	 55.58	0	1662062..1663513	-	483	121635350	mtrE	NMC1632	-	putative outer membrane lipoprotein
1450	 54.28	0	1663520..1666723	-	1067	121635351	mtrD	NMC1633	-	drug efflux protein
1451	 58.27	0	1666735..1667973	-	412	121635352	mtrC	NMC1634	-	membrane fusion protein
1452	 51.82	0	1668381..1669013	+	210	121635353	mtrR	NMC1635	-	transcriptional regulato
1453	 29.07	-2	1669292..1669549	-	85	121635354	-	NMC1636	-	hypothetical protein
1454	 48.25	0	1669838..1671406	+	522	121635355	-	NMC1637	-	hypothetical protein
1455	 55.61	0	1671476..1674685	-	1069	121635356	recC	NMC1638	-	exodeoxyribonuclease V
1456	 54.11	0	1674786..1676195	-	469	121635357	-	NMC1639	-	putative integral membrane protein
1457	 51.31	0	1677927..1678538	-	203	121635358	-	NMC1643	-	putative cytochrome oxidase subunit
1458	 51.31	0	1678565..1680010	-	481	121635359	-	NMC1645	-	cytochrome c oxidase subunit
1459	 51.54	0	1680316..1682073	+	585	121635360	-	NMC1646	-	hypothetical protein
1460	 55.13	0	1682099..1682566	+	155	121635361	-	NMC1647	-	hypothetical protein
1461	 51.72	0	1683253..1683687	-	144	121635362	exbD	NMC1648	-	biopolymer transport protein
1462	 55.35	0	1683690..1684352	-	220	121635363	exbB	NMC1649	-	biopolymer transport protein
1463	 55.56	0	1684418..1685254	-	278	121635364	tonB	NMC1650	-	TonB protein
1464	 56.34	0	1685509..1686147	+	212	121635365	-	NMC1651	-	hypothetical protein
1465	 37.33	-2	1686599..1687399	-	266	121635366	-	NMC1652	-	putative integral membrane protein
1466	 29.12	-2	1687535..1688056	-	173	121635367	-	NMC1653	-	hypothetical protein
1467	 51.32	0	1688378..1689022	-	214	121635368	grxB	NMC1654	-	glutaredoxin 2
1468	 57.45	0	1689347..1691560	+	737	121635369	relA	NMC1655	-	GTP pyrophosphokinase
1469	 52.28	0	1692854..1694257	-	467	121635370	natC	NMC1657	-	putative periplasmic type I secretion system protein
1470	 55.67	0	1694326..1695753	-	475	121635371	-	NMC1658	-	putative periplasmic type I secretion system protein
1471	 45.17	0	1696339..1696845	+	168	121635372	-	NMC1660	-	hypothetical protein
1472	 46.57	0	1697238..1698272	+	344	121635373	-	NMC1661	-	hypothetical protein
1473	 47.25	0	1698263..1698607	+	114	121635374	-	NMC1662	-	hypothetical protein
1474	 42.42	-1	1698612..1698809	+	65	121635375	-	NMC1663	-	hypothetical protein
1475	 47.37	0	1698817..1699101	+	94	121635376	-	NMC1664	-	putative integral membrane protein
1476	 45.88	0	1699108..1699386	+	92	121635377	-	NMC1665	-	putative integral membrane protein
1477	 30.21	-2	1699544..1699831	+	95	121635378	-	NMC1667	-	hypothetical protein
1478	 44.61	-1	1699812..1700210	+	132	121635379	-	NMC1668	-	putative cell-surface protein
1479	 46.67	0	1700877..1701236	-	119	121635380	-	NMC1669	-	hypothetical protein
1480	 48.68	0	1701259..1701903	-	214	121635381	-	NMC1670	-	hypothetical protein
1481	 44.32	-1	1701905..1702441	-	178	121635382	-	NMC1671	-	hypothetical protein
1482	 47.27	0	1702453..1703550	-	365	121635383	-	NMC1672	-	hypothetical protein
1483	 49.75	0	1703553..1704965	-	470	121635384	-	NMC1673	-	hypothetical protein
1484	 42.14	-1	1705209..1706003	-	264	121635385	-	NMC1674	-	hypothetical protein
1485	 44.14	-1	1705979..1706626	-	215	121635386	-	NMC1675	-	hypothetical protein
1486	 44.44	-1	1706636..1707778	-	380	121635387	bioF	NMC1676	-	8-amino-7-oxononanoate synthase
1487	 53.20	0	1708001..1709077	+	358	121635388	-	NMC1677	-	hypothetical protein
1488	 50.65	0	1709284..1710750	-	488	121635389	-	NMC1679	-	putative integral membrane transport protein
1489	 53.14	0	1710948..1711871	-	307	121635390	speB	NMC1680	-	agmatinase
51.80	MEAN

7.07	STD DEV
