IslandPath Analysis: Neisseria meningitidis FAM18

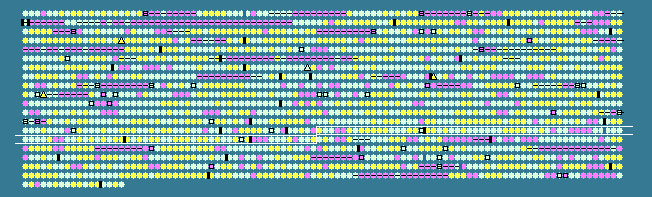

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1350	 56.04	0	1533197..1534099	+	300	121635251	-	NMC1515	-	hypothetical protein
1351	 51.19	0	1534140..1535270	-	376	121635252	-	NMC1516	-	putative polyamine permease substrate-binding protein
1352	 55.16	0	1535475..1538099	+	874	121635253	alaS	NMC1518	-	alanyl-tRNA synthetase
1353	 44.57	-1	1538188..1539210	-	340	121635254	-	NMC1519	-	hypothetical protein
1354	 42.80	-1	1539264..1540415	-	383	121635255	-	NMC1520	-	C-5 cytosine-specific DNA methylase
1355	 59.47	+1	1543413..1544357	+	314	121635256	-	NMC1523	-	potassium-tellurite ethidium and proflavin transporter
1356	 55.12	0	1544431..1545114	-	227	121635257	gpm	NMC1524	-	phosphoglycerate mutase
1357	 56.09	0	1545417..1547714	+	765	121635258	parC	NMC1525	-	DNA topoisomerase IV subunit A
1358	 57.18	0	1547734..1549251	+	505	121635259	-	NMC1526	-	putative two component sensor kinase
1359	 57.05	0	1549303..1549770	+	155	121635260	-	NMC1527	-	putative two component response regulator
1360	 60.56	+1	1549874..1550626	+	250	121635261	-	NMC1528	-	hypothetical protein
1361	 57.44	0	1552367..1553536	-	389	121635262	metZ	NMC1530	-	O-succinylhomoserine sulfhydrolase
1362	 54.59	0	1553834..1554595	-	253	121635263	-	NMC1531	-	hypothetical protein
1363	 53.97	0	1554695..1554946	+	83	121635264	-	NMC1532	-	hypothetical protein
1364	 51.55	0	1554998..1555804	+	268	121635265	hisJ	NMC1533	-	histidine-binding periplasmic protein
1365	 55.76	0	1555994..1557634	+	546	121635266	fumA	NMC1534	-	fumarate hydratase
1366	 58.53	0	1557732..1559144	+	470	121635267	trkA	NMC1535	-	potassium transporter peripheral membrane component
1367	 50.79	0	1559477..1560364	-	295	121635268	-	NMC1536	-	putative insertion element is1655 transposase (fragment)
1368	 57.13	0	1561494..1562300	-	268	121635269	thiD	NMC1538	-	phosphomethylpyrimidine kinase
1369	 57.31	0	1564531..1564968	+	145	121635270	rnhA	NMC1544	-	ribonuclease HI
1370	 54.32	0	1566542..1566946	+	134	121635271	-	NMC1545	-	hypothetical protein
1371	 57.30	0	1566986..1568170	+	394	121635272	-	NMC1546	-	hypothetical protein
1372	 48.50	0	1568233..1568766	-	177	121635273	gpxA	NMC1547	-	glutathione peroxidase
1373	 53.15	0	1568945..1571200	-	750	121635274	nor	NMC1548	-	nitric oxide reductase
1374	 55.60	0	1571574..1572733	+	386	121635275	aniA	NMC1549	-	nitrite reductase, major outer membrane copper-containing protein
1375	 54.37	0	1572858..1573613	+	251	121635276	-	NMC1550	-	hypothetical protein
1376	 50.00	0	1574776..1575569	+	264	121635277	opaB	NMC1551	-	pseudogene (opacity protein)
1377	 53.41	0	1575770..1576327	-	185	121635278	-	NMC1552	-	hypothetical protein
1378	 52.17	0	1576403..1578037	-	544	121635279	-	NMC1553	-	hypothetical protein
1379	 53.75	0	1578318..1579424	-	368	121635280	serC	NMC1554	-	phosphoserine aminotransferase
1380	 51.39	0	1579789..1580220	+	143	121635281	-	NMC1555	-	hypothetical protein
1381	 56.19	0	1580233..1581750	+	505	121635282	nusA	NMC1556	-	transcription elongation factor NusA
1382	 56.73	0	1581762..1584650	+	962	121635283	infB	NMC1557	-	translation initiation factor IF-2
1383	 59.50	+1	1584862..1586256	-	464	121635284	-	NMC1558	-	putative integral membrane protein
1384	 58.02	0	1586330..1587670	-	446	121635285	-	NMC1559	-	putative integral membrane protein
1385	 51.20	0	1587813..1588439	+	208	121635286	-	NMC1560	-	putative haemolysin
1386	 51.59	0	1588503..1589921	-	472	121635287	-	NMC1562	-	putative sodium:alanine symporter
1387	 55.83	0	1590248..1590976	+	242	121635288	-	NMC1563	-	hypothetical protein
1388	 52.46	0	1591035..1591724	-	229	121635289	-	NMC1564	-	putative disulphide bond formation protein
1389	 46.88	0	1592281..1592745	-	154	121635290	-	NMC1566	-	transcription regulator AsnC
1390	 52.88	0	1593070..1594128	+	352	121635291	alr	NMC1567	-	alanine racemase
1391	 55.24	0	1594192..1595547	-	451	121635292	-	NMC1568	-	hypothetical protein
1392	 43.59	-1	1595563..1595835	-	90	121635293	-	NMC1569	-	hypothetical protein
1393	 45.66	0	1595961..1596698	-	245	121635294	-	NMC1570	-	putative periplasmic protein
1394	 46.16	0	1596979..1597890	-	303	121635295	-	NMC1571	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1395	 46.80	0	1598023..1598616	+	197	121635296	-	NMC1572	-	hypothetical protein
1396	 53.62	0	1598728..1599348	+	206	121635297	-	NMC1573	-	hypothetical protein
1397	 55.05	0	1599279..1599743	-	154	121635298	-	NMC1574	-	putative DNA transport competence protein
1398	 49.11	0	1605612..1606796	+	394	121635299	-	NMC1576	-	hypothetical protein
1399	 50.86	0	1606863..1609019	-	718	121635300	spoT	NMC1577	-	guanosine-3',5'-bis(diphosphate) 3'-pyrophophohydrolase
1400	 52.17	0	1609112..1609318	-	68	121635301	rpoZ	NMC1578	-	DNA-directed RNA polymerase omega chain
1401	 53.40	0	1609377..1609994	-	205	121635302	gmk	NMC1579	-	guanylate kinase
1402	 53.00	0	1610122..1610721	+	199	121635303	apt	NMC1580	-	adenine phosphoribosyltransferase
1403	 54.50	0	1610767..1611555	-	262	121635304	-	NMC1581	-	hypothetical protein
1404	 53.24	0	1611880..1613235	+	451	121635305	-	NMC1582	-	protease
1405	 59.96	+1	1613369..1613845	+	158	121635306	-	NMC1583	-	hypothetical protein
1406	 42.38	-1	1614450..1614836	-	128	121635307	-	NMC1584	-	hypothetical protein
1407	 40.24	-1	1614833..1615078	-	81	121635308	-	NMC1585	-	hypothetical protein
1408	 52.23	0	1615450..1617829	-	793	121635309	hmbR	NMC1586	-	pseudogene (haemoglobin receptor)
1409	 52.96	0	1618004..1618696	-	230	121635310	hemO	NMC1587	-	haem utilisation protein
1410	 55.94	0	1619127..1620431	+	434	121635311	-	NMC1588	-	hypothetical protein
1411	 52.22	0	1620424..1622064	+	546	121635312	-	NMC1589	-	hypothetical protein
1412	 58.19	0	1622064..1622582	+	172	121635313	-	NMC1590	-	putative lipoprotein
1413	 51.63	0	1622586..1623137	+	183	121635314	tag	NMC1591	-	DNA-3-methyladenine glycosylase I
1414	 55.77	0	1623145..1623768	+	207	121635315	-	NMC1592	-	putative lipase
1415	 53.40	0	1623990..1624298	+	102	121635316	-	NMC1593	-	putative integral membrane protein
1416	 56.05	0	1624329..1627181	+	950	121635317	gcvP	NMC1594	-	glycine dehydrogenase
1417	 55.48	0	1627646..1628485	-	279	121635318	-	NMC1595	-	putative cytochrome
1418	 55.95	0	1628910..1630103	-	397	121635319	tyrB	NMC1596	-	aromatic amino acid aminotransferase
1419	 48.73	0	1630109..1631212	-	367	121635320	trmA	NMC1597	-	tRNA (uracil-5-)-methyltransferase
1420	 59.13	+1	1631355..1632455	+	366	121635321	aroC	NMC1598	-	chorismate synthase
1421	 54.69	0	1632546..1632971	+	141	121635322	-	NMC1599	-	hypothetical protein
1422	 58.16	0	1633045..1635030	-	661	121635323	parE	NMC1600	-	DNA topoisomerase IV subunit B
1423	 57.52	0	1635097..1635621	-	174	121635324	-	NMC1601	-	dinucleoside polyphosphate hydrolase
1424	 54.09	0	1635786..1637081	+	431	121635325	serS	NMC1602	-	seryl-tRNA synthetase
1425	 53.39	0	1637159..1638160	-	333	121635326	ldhA	NMC1603	-	D-lactate dehydrogenase
1426	 57.94	0	1638282..1639358	-	358	121635327	prfA	NMC1604	-	peptide chain release factor 1
1427	 58.06	0	1639448..1640272	-	274	121635328	-	NMC1605	-	hypothetical protein
1428	 59.42	+1	1640221..1641213	-	330	121635329	ans	NMC1606	-	L-asparaginase
1429	 54.39	0	1641280..1641963	-	227	121635330	-	NMC1607	-	DedA family integral membrane protein
1430	 57.08	0	1642152..1643486	-	444	121635331	-	NMC1608	-	putative phosphoglucomutase/phosphomannomutase
1431	 58.33	0	1643616..1644467	-	283	121635332	dhpS	NMC1609	-	dihydropteroate synthase
1432	 54.61	0	1644634..1646856	+	740	121635333	-	NMC1610	-	hypothetical protein
1433	 55.82	0	1646921..1648405	-	494	121635334	-	NMC1611	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1434	 50.78	0	1648419..1648934	-	171	121635335	-	NMC1613	-	hypothetical protein
1435	 54.48	0	1648941..1649375	-	144	121635336	-	NMC1614	-	putative integral membrane protein
1436	 58.62	0	1649673..1650107	-	144	121635337	-	NMC1615	-	hypothetical protein
1437	 48.69	0	1650282..1650893	+	203	121635338	-	NMC1616	-	insertion element IS1016 transposase
1438	 59.63	+1	1650838..1651974	+	377	121635339	fabF2	NMC1617	-	3-oxoacyl-(acyl carrier protein) synthase II
1439	 44.71	-1	1652172..1652936	+	254	121635340	lgtF	NMC1618	-	beta-1,4-glucosyltransferase
1440	 47.51	0	1652937..1654001	+	354	121635341	rfaK	NMC1619	-	alpha 1,2 N-acetylglucosamine transferase
1441	 42.69	-1	1654040..1654210	+	56	121635342	-	NMC1621	-	hypothetical protein
1442	 52.24	0	1654388..1655725	+	445	121635343	-	NMC1622	-	putative integral membrane ion transporter
1443	 54.61	0	1655897..1656557	-	220	121635344	-	NMC1623	-	putative periplasmic protein
1444	 52.83	0	1656566..1657360	-	264	121635345	thyA	NMC1624	-	thymidylate synthase
1445	 55.96	0	1657744..1659078	+	444	121635346	gdhA	NMC1625	-	glutamate dehydrogenase
1446	 31.71	-2	1659226..1659594	+	122	121635347	-	NMC1626	-	hypothetical protein
1447	 54.02	0	1660081..1660863	-	260	121635348	-	NMC1629	-	GntR family transcriptional regulator
1448	 53.33	0	1661395..1661694	+	99	121635349	-	NMC1630	-	putative integral membrane protein
1449	 55.58	0	1662062..1663513	-	483	121635350	mtrE	NMC1632	-	putative outer membrane lipoprotein
51.80	MEAN

7.07	STD DEV
