IslandPathversion 1.0

IslandPath Analysis: Neisseria meningitidis FAM18

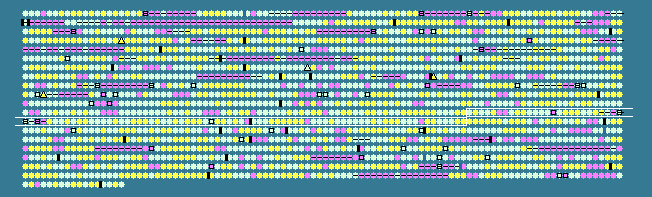

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1175	 54.72	0	1292212..1292772	-	186	121635076	-	NMC1305	-	hypothetical protein
1176	 56.39	0	1293116..1294312	+	398	121635077	argD	NMC1306	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
1177	 52.05	0	1294415..1295659	-	414	121635078	clpX	NMC1307	-	ATP-dependent protease ATP-binding subunit
1178	 54.57	0	1295850..1296221	+	123	121635079	rbfA	NMC1308	-	ribosome-binding factor A
1179	 56.04	0	1296227..1297186	+	319	121635080	truB	NMC1309	-	tRNA pseudouridine synthase B
1180	 37.14	-2	1297477..1299711	+	744	121635081	-	NMC1310	-	putative type III restriction/modification system modification methylase
1181	 38.13	-1	1299659..1302475	+	938	121635082	-	NMC1311	-	putative type III restriction/modification system enzyme
1182	 52.69	0	1302624..1303796	-	390	121635083	lldA	NMC1312	-	L-lactate dehydrogenase
1183	 58.84	0	1304085..1304531	+	148	121635084	-	NMC1314	-	DNA-binding protein
1184	 55.88	0	1304560..1305774	+	404	121635085	-	NMC1315	-	NifS-like aminotranfserase
1185	 52.45	0	1306035..1306421	+	128	121635086	-	NMC1317	-	scaffold protein
1186	 50.78	0	1306508..1306828	+	106	121635087	-	NMC1318	-	HesB-like protein
1187	 52.69	0	1307091..1307591	+	166	121635088	hscB	NMC1319	-	chaperone protein
1188	 54.89	0	1307689..1310439	+	916	121635089	gyrA	NMC1320	-	DNA gyrase subunit A
1189	 46.35	0	1311521..1311712	+	63	121635090	-	NMC1323	-	putative transposase (fragment)
1190	 49.82	0	1312043..1312594	-	183	121635091	-	NMC1325	-	hypothetical protein
1191	 55.43	0	1312608..1314254	-	548	121635092	pgi	NMC1326	-	glucose-6-phosphate isomerase
1192	 55.37	0	1314375..1315259	-	294	121635093	-	NMC1328	-	putative transcriptional regulator
1193	 57.35	0	1315273..1316259	-	328	121635094	glk	NMC1329	-	glucokinase
1194	 53.45	0	1316240..1316935	-	231	121635095	pgl	NMC1330	-	6-phosphogluconolactonase
1195	 52.70	0	1317215..1318660	-	481	121635096	zwf	NMC1331	-	glucose-6-phosphate 1-dehydrogenase
1196	 57.57	0	1319176..1321011	+	611	121635097	edd	NMC1332	-	phosphogluconate dehydratase
1197	 60.11	+1	1321129..1321830	+	233	121635098	eda	NMC1333	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1198	 55.05	0	1323283..1324332	+	349	121635099	mutY	NMC1336	-	adenine glycosylase
1199	 43.49	-1	1324749..1325309	+	186	121635100	sodC	NMC1339	-	superoxide dismutase
1200	 50.90	0	1325895..1326395	-	166	121635101	-	NMC1340	-	putative insertion element IS1106 transposase (fragment)
1201	 52.20	0	1326522..1326839	-	105	121635102	-	NMC1341	-	remnant of insertion element IS1106A3 transposase
1202	 52.71	0	1327063..1329291	-	742	121635103	-	NMC1342	-	putative cytolysin secretion ABC transporter
1203	 47.09	0	1329996..1330649	-	217	121635104	-	NMC1343	-	insertion element IS1016 transposase
1204	 38.24	-1	1331255..1332070	+	271	121635105	-	NMC1344	-	putative RTX iron-regulated frpc protein outer membrane
1205	 57.41	0	1338602..1341205	-	867	121635106	pepN	NMC1347	-	aminopeptidase N
1206	 52.20	0	1341417..1342211	-	264	121635107	-	NMC1348	-	hypothetical protein
1207	 51.84	0	1342961..1343830	-	289	121635108	-	NMC1351	-	lipid A biosynthesis lauroyl acyltransferase
1208	 60.96	+1	1343881..1344423	-	180	121635109	ruvC	NMC1352	-	Holliday junction resolvase
1209	 48.33	0	1344420..1344659	-	79	121635110	fis	NMC1353	-	factor-for-inversion-stimulation protein
1210	 59.64	+1	1344689..1345699	-	336	121635111	-	NMC1354	-	hypothetical protein
1211	 57.16	0	1345987..1347438	+	483	121635112	-	NMC1355	-	putative ATP-dependent RNA helicase
1212	 50.62	0	1348134..1349261	+	375	121635113	-	NMC1357	-	hypothetical protein
1213	 53.47	0	1349291..1350169	+	292	121635114	-	NMC1358	-	hypothetical protein
1214	 54.30	0	1350587..1352098	-	503	121635115	lysS	NMC1361	-	lysyl-tRNA synthetase
1215	 53.19	0	1352253..1353506	-	417	121635116	-	NMC1362	-	putative integral membrane protein
1216	 59.90	+1	1353781..1355760	+	659	121635117	-	NMC1363	-	putative aminopeptidase
1217	 53.02	0	1356569..1357726	-	385	121635118	porA	NMC1364	-	porin, class I outer membrane protein
1218	 53.88	0	1358694..1359170	-	158	121635119	greA	NMC1365	-	transcription elongation factor
1219	 57.45	0	1359565..1360866	+	433	121635120	aroA	NMC1366	-	3-phosphoshikimate 1-carboxyvinyltransferase
1220	 57.87	0	1360909..1361442	-	177	121635121	-	NMC1367	-	putative lipoprotein
1221	 56.97	0	1361650..1363227	-	525	121635122	-	NMC1368	-	phopholipase D-family protein
1222	 53.61	0	1363288..1364796	-	502	121635123	-	NMC1370	-	putative integral membrane protein
1223	 55.51	0	1364978..1365757	+	259	121635124	-	NMC1371	-	hypothetical protein
1224	 53.56	0	1365754..1366455	+	233	121635125	-	NMC1372	-	hypothetical protein
1225	 54.09	0	1366452..1367906	+	484	121635126	-	NMC1373	-	iron-sulphur protein
1226	 57.41	0	1368089..1368574	-	161	121635127	purE	NMC1374	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
1227	 55.23	0	1368623..1369339	-	238	121635128	-	NMC1375	-	putative periplasmic protein
1228	 55.31	0	1369339..1370007	-	222	121635129	-	NMC1376	-	putative methyltransferase
1229	 57.66	0	1370347..1372323	+	658	121635130	mutL	NMC1378	-	DNA mismatch repair protein
1230	 58.59	0	1372418..1374547	+	709	121635131	dnaZX	NMC1379	-	DNA polymerase III subunits gamma and tau
1231	 53.87	0	1374627..1374962	+	111	121635132	-	NMC1380	-	hypothetical protein
1232	 51.35	0	1377014..1377979	+	321	121635133	-	NMC1381	-	putative transposase for IS1655
1233	 56.06	0	1378364..1379410	-	348	121635134	recA	NMC1382	-	recombinase A
1234	 57.39	0	1379631..1380428	+	265	121635135	aroD	NMC1383	-	3-dehydroquinate dehydratase
1235	 53.06	0	1380391..1382463	+	690	121635136	rep	NMC1385	-	ATP-dependent DNA helicase
1236	 56.94	0	1382716..1383774	-	352	121635137	-	NMC1386	-	impB/mucB/samB family protein
1237	 52.95	0	1385612..1386391	+	259	121635138	-	NMC1389	-	putative ferredoxin NADP+ reductase
1238	 48.27	0	1386601..1388013	-	470	121635139	-	NMC1391	-	putative DNA polymerase III subunit
1239	 51.70	0	1388831..1390006	+	391	121635140	-	NMC1392	-	hypothetical protein
1240	 54.10	0	1390217..1390765	-	182	121635141	-	NMC1393	-	putative inner membrane protein
1241	 53.57	0	1390768..1392264	-	498	121635142	-	NMC1394	-	putative ferredoxin
1242	 55.86	0	1392793..1394772	+	659	121635143	tkt	NMC1395	-	transketolase
1243	 57.74	0	1394920..1396308	+	462	121635144	fumC	NMC1396	-	fumarate hydratase
1244	 55.41	0	1396373..1397296	-	307	121635145	-	NMC1397	-	hypothetical protein
1245	 59.05	+1	1397821..1398345	-	174	121635146	ssb	NMC1398	-	single-stranded binding protein
1246	 56.93	0	1398349..1399734	-	461	121635147	-	NMC1400	-	putative integral membrane transporter
1247	 59.13	+1	1399842..1400465	-	207	121635148	-	NMC1401	-	putative transglycosylase
1248	 47.36	0	1401610..1402101	-	163	121635149	-	NMC1402	-	hypothetical protein
1249	 49.69	0	1403533..1404333	-	266	121635150	opaA	NMC1403	-	pseudogene (opacity protein)
1250	 55.19	0	1405344..1406075	+	243	121635151	-	NMC1404	-	hypothetical protein
1251	 55.14	0	1406192..1407700	+	502	121635152	-	NMC1405	-	exopolyphosphatase
1252	 57.60	0	1408594..1408935	-	113	121635153	-	NMC1407	-	hypothetical protein
1253	 54.90	0	1408941..1409951	-	336	121635154	trpS	NMC1408	-	tryptophanyl-tRNA synthetase
1254	 52.83	0	1410212..1412791	+	859	121635155	clpB	NMC1409	-	ClpB protein
1255	 52.59	0	1412878..1414092	-	404	121635156	-	NMC1410	-	aminotransferase AlaT
1256	 53.33	0	1414181..1414390	-	69	121635157	-	NMC1411	-	putative tautomerase
1257	 54.15	0	1414735..1415541	+	268	121635158	-	NMC1412	-	hypothetical protein
1258	 52.76	0	1415599..1416864	-	421	121635159	-	NMC1413	-	putative glutamate dehydrogenase
1259	 56.68	0	1417271..1417981	+	236	121635160	-	NMC1414	-	phosphoglycolate phosphatase
1260	 53.25	0	1418054..1418515	+	153	121635161	recX	NMC1415	-	recombination regulator RecX
1261	 55.49	0	1418903..1419385	+	160	121635162	-	NMC1417	-	putative acyl-CoA hydrolase
1262	 58.01	0	1419745..1420992	-	415	121635163	-	NMC1418	-	putative membrane peptidase
1263	 56.49	0	1421248..1421994	-	248	121635164	surE	NMC1419	-	SurE protein
1264	 54.98	0	1422011..1423567	-	518	121635165	-	NMC1420	-	hypothetical protein
1265	 53.11	0	1423935..1424723	-	262	121635166	-	NMC1422	-	fimbrial assembly protein
1266	 54.74	0	1424832..1426265	-	477	121635167	gabD	NMC1423	-	succinate semialdehyde dehydrogenase
1267	 47.58	0	1426906..1427235	+	109	121635168	-	NMC1424	-	hypothetical protein
1268	 58.79	0	1427368..1427748	-	126	121635169	-	NMC1425	-	putative lipoprotein
1269	 55.62	0	1428224..1430305	+	693	121635170	-	NMC1426	-	putative integral membrane protein (CstA-like)
1270	 50.14	0	1431830..1434595	+	921	121635171	-	NMC1428	-	putative outer membrane substrate binding protein
1271	 55.17	0	1436088..1437305	-	405	121635172	lysC	NMC1429	-	aspartate kinase
1272	 55.28	0	1437507..1438235	-	242	121635173	rph	NMC1430	-	ribonuclease PH
1273	 55.91	0	1438317..1438781	-	154	121635174	-	NMC1431	-	hypothetical protein
1274	 56.63	0	1438998..1439774	+	258	121635175	-	NMC1432	-	hypothetical protein
51.80	MEAN

7.07	STD DEV
