IslandPath Analysis: Neisseria meningitidis FAM18

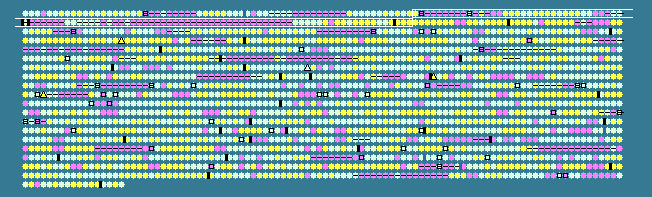

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
66	 59.95	+1	88308..89780	-	490	121633967	pykA	NMC0074	-	pyruvate kinase
67	 41.52	-1	90041..90370	+	109	121633968	-	NMC0075	-	IS1016 transposase, partial CDS
68	 38.40	-1	91332..91568	+	78	121633969	-	NMC0080	-	hypothetical protein
69	 34.21	-2	91562..91789	+	75	121633970	-	NMC0081	-	hypothetical protein
70	 22.75	-2	92161..92349	+	62	121633971	-	NMC0083	-	putative inner membrane protein
71	 47.06	0	92356..92508	+	50	121633972	-	NMC0083A	-	hypothetical protein
72	 26.81	-2	92609..92746	+	45	121633973	-	NMC0084	-	putative inner membrane protein
73	 37.44	-2	92791..94056	+	421	121633974	-	NMC0085	-	putative protein export protein
74	 34.29	-2	94059..96146	+	695	121633975	-	NMC0086	-	putative protein export protein
75	 53.87	0	96416..97423	+	335	121633976	-	NMC0088	-	putative IS1106 transposase
76	 34.69	-2	97605..97751	-	48	121633977	-	NMC0089	-	hypothetical protein
77	 58.88	+1	98556..99107	+	183	121633978	-	NMC0092	-	putative inner membrane protein
78	 37.73	-1	99384..100043	-	219	121633979	-	NMC0093	-	putative periplasmic peptidase (bacteriocin resistance)
79	 22.36	-2	100024..100260	-	78	121633980	-	NMC0094	-	putative inner membrane protein
80	 39.35	-1	100382..101057	-	224	121633981	-	NMC0095	-	hypothetical protein
81	 58.49	0	101184..101342	-	52	121633982	-	NMC0096	-	putative lipoprotein
82	 57.77	0	101339..102181	-	280	121633983	-	NMC0097	-	hypothetical protein
83	 56.79	0	102420..103340	+	306	121633984	pyrB	NMC0098	-	aspartate carbamoyltransferase catalytic subunit
84	 55.12	0	103350..103808	+	152	121633985	pyrI	NMC0099	-	aspartate carbamoyltransferase regulatory subunit
85	 52.85	0	103873..104538	+	221	121633986	-	NMC0100	-	putative inner membrane protein
86	 56.24	0	104601..105818	-	405	121633987	-	NMC0101	-	hypothetical protein
87	 55.75	0	106002..106505	+	167	121633988	def	NMC0102	-	peptide deformylase
88	 59.65	+1	106592..107518	+	308	121633989	fmt	NMC0103	-	methionyl-tRNA formyltransferase
89	 57.94	0	107597..108856	+	419	121633990	-	NMC0104	-	SUN-family protein
90	 54.67	0	108822..109421	+	199	121633991	-	NMC0105	-	hypothetical protein
91	 56.80	0	109421..111538	+	705	121633992	-	NMC0106	-	putative two-component sensor kinase
92	 56.65	0	111531..112808	+	425	121633993	-	NMC0107	-	putative two-component trancriptional regulator
93	 60.22	+1	112899..114092	+	397	121633994	smf	NMC0108	-	SMF-family protein
94	 53.25	0	114118..114579	+	153	121633995	-	NMC0109	-	SMG-family protein
95	 53.06	0	114651..116957	+	768	121633996	topA	NMC0110	-	DNA topoisomerase I
96	 44.54	-1	117030..117725	-	231	121633997	-	NMC0111	-	hypothetical protein
97	 33.45	-2	117745..118297	-	183	121633998	-	NMC0112	-	putative inner membrane protein
98	 46.03	0	118416..118793	+	125	121633999	-	NMC0113	-	hypothetical protein
99	 53.86	0	118882..119451	+	189	121634000	-	NMC0114	-	hypothetical protein
100	 49.60	0	119574..119825	+	83	121634001	-	NMC0115	-	putative ferredoxin
101	 54.18	0	120242..121426	+	394	121634002	-	NMC0116	-	elongation factor Tu
102	 37.28	-2	121623..121901	+	92	121634003	secE	NMC0117	-	preprotein translocase subunit SecE
103	 43.95	-1	121903..122439	+	178	121634004	nusG	NMC0118	-	transcription antitermination protein NusG
104	 44.83	0	122540..122974	+	144	121634005	rplK	NMC0119	-	50S ribosomal protein L11
105	 43.97	-1	122974..123669	+	231	121634006	rplA	NMC0120	-	50S ribosomal protein L1
106	 47.31	0	123899..124399	+	166	121634007	rplJ	NMC0121	-	50S ribosomal protein L10
107	 44.09	-1	124457..124828	+	123	121634008	rplL	NMC0122	-	50S ribosomal protein L7/L12
108	 49.82	0	125013..129197	+	1394	121634009	rpoB	NMC0123	-	DNA-directed RNA polymerase subunit beta
109	 51.05	0	129354..133529	+	1391	121634010	rpoC	NMC0124	-	DNA-directed RNA polymerase subunit beta'
110	 50.27	0	133787..134158	+	123	121634011	rpsL	NMC0125	-	30S ribosomal protein S12
111	 49.68	0	134276..134746	+	156	121634012	rpsG	NMC0126	-	30S ribosomal protein S7
112	 49.91	0	134765..136870	+	701	121634013	fusA	NMC0127	-	elongation factor G
113	 54.18	0	136958..138142	+	394	121634014	-	NMC0128	-	elongation factor Tu
114	 47.12	0	138160..138471	+	103	121634015	rpsJ	NMC0129	-	30S ribosomal protein S10
115	 50.23	0	139475..140119	+	214	121634016	rplC	NMC0132	-	50S ribosomal protein L3
116	 46.70	0	140119..140739	+	206	121634017	rplD	NMC0133	-	50S ribosomal protein L4
117	 44.24	-1	140730..141050	+	106	121634018	rplW	NMC0134	-	50S ribosomal protein L23
118	 51.80	0	141056..141889	+	277	121634019	rplB	NMC0135	-	50S ribosomal protein L2
119	 45.16	0	141896..142174	+	92	121634020	rpsS	NMC0136	-	30S ribosomal protein S19
120	 42.12	-1	142183..142512	+	109	121634021	rplV	NMC0137	-	50S ribosomal protein L22
121	 45.02	0	142522..143214	+	230	121634022	rpsC	NMC0138	-	30S ribosomal protein S3
122	 46.28	0	143198..143614	+	138	121634023	rplP	NMC0139	-	50S ribosomal protein L16
123	 38.54	-1	143614..143805	+	63	121634024	rpmC	NMC0140	-	50S ribosomal protein L29
124	 36.74	-2	143805..144068	+	87	121634025	rpsQ	NMC0141	-	30S ribosomal protein S17
125	 44.17	-1	144290..144658	+	122	121634026	rplN	NMC0142	-	50S ribosomal protein L14
126	 38.58	-1	144670..144993	+	107	121634027	rplX	NMC0143	-	50S ribosomal protein L24
127	 38.52	-1	145003..145542	+	179	121634028	rplE	NMC0144	-	50S ribosomal protein L5
128	 45.75	0	145545..145850	+	101	121634029	rpsN	NMC0145	-	30S ribosomal protein S14
129	 39.44	-1	145866..146258	+	130	121634030	rpsH	NMC0146	-	30S ribosomal protein S8
130	 40.82	-1	146272..146805	+	177	121634031	rplF	NMC0147	-	50S ribosomal protein L6
131	 43.79	-1	146819..147172	+	117	121634032	rplR	NMC0148	-	50S ribosomal protein L18
132	 43.74	-1	147191..147709	+	172	121634033	rpsE	NMC0149	-	30S ribosomal protein S5
133	 41.40	-1	147702..147887	+	61	121634034	rpmD	NMC0150	-	50S ribosomal protein L30
134	 43.22	-1	147889..148323	+	144	121634035	rplO	NMC0151	-	50S ribosomal protein L15
135	 37.07	-2	148335..149645	+	436	121634036	secY	NMC0152	-	preprotein translocase subunit SecY
136	 37.90	-1	149650..149868	+	72	121634037	infA	NMC0153	-	translation initiation factor IF-1
137	 38.60	-1	149889..150002	+	37	121634038	rpmJ	NMC0154	-	50S ribosomal protein L36
138	 46.56	0	150068..150430	+	120	121634039	rpsM	NMC0155	-	30S ribosomal protein S13
139	 45.20	0	150450..150845	+	131	121634040	rpsK	NMC0156	-	30S ribosomal protein S11
140	 44.28	-1	150865..151485	+	206	121634041	rpsD	NMC0157	-	30S ribosomal protein S4
141	 42.45	-1	151511..152497	+	328	121634042	rpoA	NMC0158	-	DNA-directed RNA polymerase subunit alpha
142	 46.34	0	152521..152889	+	122	121634043	rplQ	NMC0159	-	50S ribosomal protein L17
143	 45.10	0	153036..153749	+	237	121634044	minC	NMC0160	-	septum formation inhibitor
144	 46.69	0	153777..154592	+	271	121634045	minD	NMC0161	-	septum site-determining protein
145	 44.32	-1	154596..154859	+	87	121634046	minE	NMC0162	-	cell division topological specificity factor
146	 53.09	0	154863..155783	+	306	121634047	oxyR	NMC0163	-	putative hydrogen peroxide-inducible genes activator
147	 54.90	0	156113..158950	-	945	121634048	valS	NMC0164	-	valyl-tRNA synthetase
148	 54.44	0	159047..159856	-	269	121634049	-	NMC0165	-	zinc transporter ZupT
149	 54.34	0	160037..161293	-	418	121634050	dadA	NMC0166	-	D-amino acid dehydrogenase small subunit
150	 53.74	0	161372..162763	-	463	121634051	-	NMC0167	-	putative amino-acid transporter
151	 58.94	+1	163121..163897	-	258	121634052	lpxA	NMC0168	-	UDP-N-acetylglucosamine acyltransferase
152	 35.55	-2	163940..164662	-	240	121634053	-	NMC0169	-	hypothetical protein
153	 56.89	0	164827..165276	-	149	121634054	fabZ	NMC0170	-	(3R)-hydroxymyristoyl-ACP dehydratase
154	 60.17	+1	165310..166356	-	348	121634055	lpxD	NMC0171	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
155	 53.09	0	166389..166889	-	166	121634056	-	NMC0172	-	putative outer membrane protein
156	 55.93	0	166955..169348	-	797	121634057	omp85	NMC0173	-	outer membrane protein OMP85
157	 59.13	+1	169405..170745	-	446	121634058	-	NMC0174	-	putative inner membrane protease
158	 58.25	0	170780..172015	-	411	121634059	dxr	NMC0175	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
159	 55.76	0	172020..172817	-	265	121634060	cdsA	NMC0176	-	phosphatidate cytidylyltransferase
160	 54.26	0	172821..173594	-	257	121634061	uppS	NMC0177	-	putative undecaprenyl diphosphate synthase
161	 54.30	0	173623..174180	-	185	121634062	frr	NMC0178	-	ribosome recycling factor
162	 61.26	+1	174361..175488	-	375	121634063	-	NMC0179	-	putative inner membrane protein
163	 60.33	+1	175739..176227	+	162	121634064	-	NMC0180	-	putative inner membrane protein
164	 57.05	0	176323..176946	+	207	121634065	gidB	NMC0181	-	glucose-inhibited division protein B
165	 58.91	+1	177045..177818	+	257	121634066	-	NMC0182	-	hypothetical protein
51.80	MEAN

7.07	STD DEV
