IslandPath Analysis: Neisseria meningitidis FAM18

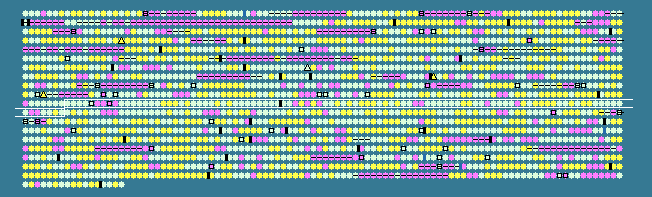

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1008	 52.62	0	1096347..1096766	-	139	121634909	-	NMC1115	-	hypothetical protein
1009	 54.24	0	1096835..1097494	+	219	121634910	-	NMC1116	-	uracil-DNA glycosylase
1010	 50.37	0	1097553..1098086	+	177	121634911	-	NMC1117	-	hypothetical protein
1011	 52.67	0	1098201..1098650	-	149	121634912	-	NMC1118	-	putative transcriptional regulator
1012	 54.02	0	1099113..1100069	-	318	121634913	-	NMC1120	-	putative transposase
1013	 47.31	0	1100551..1100643	+	30	121634914	-	NMC1121	-	hypothetical protein
1014	 48.00	0	1100666..1100815	+	49	121634915	-	NMC1122	-	hypothetical protein
1015	 42.95	-1	1100906..1101061	+	51	121634916	-	NMC1123	-	putative transposase (fragment)
1016	 45.06	0	1101279..1101602	-	107	121634917	-	NMC1124	-	hypothetical protein
1017	 48.45	0	1101647..1102162	-	171	121634918	-	NMC1125	-	putative periplasmic protein
1018	 51.33	0	1102628..1104550	-	640	121634919	-	NMC1126	-	putative ABC transporter ATP-binding protein
1019	 48.61	0	1104627..1105058	-	143	121634920	-	NMC1127	-	hypothetical protein
1020	 54.40	0	1105037..1106503	+	488	121634921	hom	NMC1128	-	homoserine dehydrogenase
1021	 50.57	0	1106496..1106930	+	144	121634922	-	NMC1129	-	hypothetical protein
1022	 54.07	0	1106989..1107258	-	89	121634923	hupB	NMC1130	-	putative DNA-binding protein
1023	 53.53	0	1107440..1109890	-	816	121634924	lon	NMC1131	-	putative ATP-dependent protease
1024	 56.12	0	1110249..1111244	+	331	121634925	-	NMC1132	-	hypothetical protein
1025	 58.02	0	1111272..1113017	-	581	121634926	recD	NMC1133	-	exodeoxyribonuclease V alpha subunit
1026	 58.81	0	1113085..1113771	-	228	121634927	-	NMC1134	-	putative ABC-transporter ATP-binding protein
1027	 54.97	0	1113773..1115020	-	415	121634928	-	NMC1135	-	putative integral membrane protein
1028	 55.33	0	1115213..1115503	+	96	121634929	-	NMC1136	-	putative periplasmic protein
1029	 54.27	0	1115559..1116179	-	206	121634930	recR	NMC1137	-	putative recombination protein
1030	 52.31	0	1116243..1117781	-	512	121634931	-	NMC1138	-	putative peptidyl-prolyl cis-trans isomerase
1031	 52.53	0	1117836..1118210	-	124	121634932	-	NMC1139	-	hypothetical protein
1032	 52.79	0	1118360..1119988	+	542	121634933	-	NMC1140	-	putative ABC-transporter ATP-binding protein
1033	 58.53	0	1120060..1121313	+	417	121634934	cca	NMC1142	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
1034	 53.40	0	1121536..1121844	+	102	121634935	-	NMC1143	-	hypothetical protein
1035	 59.59	+1	1121926..1122957	+	343	121634936	ruvB	NMC1144	-	Holliday junction DNA helicase B
1036	 54.32	0	1122980..1123708	-	242	121634937	rpe	NMC1145	-	ribulose-phosphate 3-epimerase
1037	 53.10	0	1123854..1124288	+	144	121634938	-	NMC1146	-	putative periplasmic protein
1038	 53.70	0	1124301..1125164	-	286	121634939	-	NMC1147	-	hypothetical protein
1039	 53.56	0	1125172..1125789	-	205	161723298	ribC	NMC1148	-	riboflavin synthase subunit alpha
1040	 53.02	0	1125952..1126530	-	192	121634941	-	NMC1149	-	putative molybdopterin-guanine dinucleotide biosynthesis protein A
1041	 51.44	0	1126772..1128544	+	590	121634942	-	NMC1150	-	putative two-component system sensor kinase
1042	 54.34	0	1128541..1129197	+	218	121634943	-	NMC1151	-	putative two-component system response regulator
1043	 50.92	0	1129671..1130705	-	344	121634944	purM	NMC1152	-	phosphoribosylaminoimidazole synthetase
1044	 54.72	0	1131464..1132141	+	225	121634945	-	NMC1154	-	hypothetical protein
1045	 54.88	0	1132134..1132727	+	197	121634946	ribA	NMC1155	-	GTP cyclohydrolase II
1046	 45.42	0	1132895..1133909	+	338	121634947	-	NMC1156	-	pseudogene (putative glycosyl transferase)
1047	 58.22	0	1134131..1135468	+	445	121634948	ribB	NMC1157	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
1048	 41.28	-1	1135776..1136102	-	108	121634949	-	NMC1158	-	putative type I restriction enzyme system modification protein
1049	 56.45	0	1136390..1137700	-	436	121634950	-	NMC1159	-	recombination factor protein RarA
1050	 33.95	-2	1137949..1138434	+	161	121634951	-	NMC1160	-	hypothetical protein
1051	 54.40	0	1139484..1140437	-	317	121634952	-	NMC1162	-	lysR family transcriptional regulator
1052	 51.98	0	1140612..1142123	+	503	121634953	-	NMC1163	-	putative integral membrane protein
1053	 58.33	0	1142375..1142746	+	123	121634954	-	NMC1164	-	putative lipoprotein
1054	 53.83	0	1142819..1144228	+	469	121634955	thrC	NMC1165	-	threonine synthase
1055	 56.10	0	1144274..1145068	+	264	121634956	-	NMC1166	-	hypothetical protein
1056	 52.25	0	1145256..1146032	+	258	121634957	fpr	NMC1168	-	ferredoxin--NADP reductase
1057	 59.10	+1	1146700..1149210	-	836	121634958	-	NMC1170	-	putative P-type cation-transporting ATPase
1058	 57.85	0	1149168..1150346	-	392	121634959	-	NMC1171	-	hypothetical protein
1059	 57.01	0	1150351..1151655	-	434	121634960	-	NMC1172	-	putative periplasmic protein
1060	 52.48	0	1151784..1152509	-	241	121634961	-	NMC1173	-	hypothetical protein
1061	 56.93	0	1152582..1153259	-	225	121634962	radC	NMC1174	-	DNA repair protein RadC
1062	 52.96	0	1153382..1154731	-	449	121634963	gshA	NMC1175	-	glutamate--cysteine ligase
1063	 56.95	0	1154991..1156400	+	469	121634964	leuC	NMC1176	-	isopropylmalate isomerase large subunit
1064	 55.23	0	1156446..1156751	+	101	121634965	-	NMC1178	-	putative lipoprotein
1065	 53.58	0	1156813..1157454	+	213	121634966	leuD	NMC1179	-	isopropylmalate isomerase small subunit
1066	 40.16	-1	1157624..1158893	+	423	121634967	-	NMC1180	-	DNA modification methylase
1067	 37.43	-2	1158909..1159640	+	242	121634968	-	NMC1181	-	type II restriction endonuclease
1068	 54.34	0	1159674..1160744	+	356	121634969	leuB	NMC1182	-	3-isopropylmalate dehydrogenase
1069	 53.72	0	1160907..1161470	+	187	121634970	-	NMC1183	-	putative periplasmic protein
1070	 53.00	0	1161930..1163327	+	465	121634971	aspA	NMC1185	-	aspartate ammonia-lyase
1071	 53.54	0	1163399..1164274	-	291	121634972	-	NMC1186	-	putative integral membrane protein
1072	 54.91	0	1164276..1164998	-	240	121634973	-	NMC1188	-	putative dnaJ-family protein
1073	 50.21	0	1165020..1165499	-	159	121634974	-	NMC1189	-	hypothetical protein
1074	 59.26	+1	1165560..1165937	+	125	121634975	-	NMC1190	-	hypothetical protein
1075	 55.48	0	1165969..1166835	+	288	121634976	-	NMC1191	-	hypothetical protein
1076	 52.81	0	1166933..1167892	+	319	121634977	-	NMC1192	-	hypothetical protein
1077	 48.37	0	1167986..1170925	-	979	121634978	-	NMC1193	-	putative type III restriction-modification system endonuclease protein
1078	 45.11	0	1170938..1172912	-	658	121634979	-	NMC1194	-	pseudogene (putative type III restriction-modification system modification protein)
1079	 51.43	0	1173028..1173585	-	185	121634980	ppiA	NMC1195	-	putative peptidyl-prolyl cis-trans isomerase A
1080	 53.29	0	1173650..1174576	-	308	121634981	-	NMC1196	-	hypothetical protein
1081	 52.02	0	1174564..1175157	-	197	121634982	-	NMC1197	-	putative cation uptake regulator
1082	 54.30	0	1175111..1175668	-	185	121634983	-	NMC1198	-	putative protein-tyrosine-phosphatase
1083	 41.94	-1	1175691..1176806	-	371	121634984	-	NMC1199	-	hypothetical protein
1084	 55.83	0	1176920..1178017	-	365	121634985	-	NMC1200	-	hypothetical protein
1085	 49.94	0	1178099..1179730	-	543	121634986	-	NMC1201	-	hypothetical protein
1086	 55.87	0	1179830..1180042	-	70	121634987	-	NMC1202	-	putative mercuric ion binding protein
1087	 56.78	0	1180672..1182108	+	478	121634988	-	NMC1203	-	putative polysaccharide modification protein
1088	 56.53	0	1182119..1183105	+	328	121634989	-	NMC1204	-	putative periplasmic protein
1089	 61.56	+1	1183102..1184295	+	397	121634990	-	NMC1205	-	putative periplasmic protein
1090	 54.61	0	1184505..1186097	+	530	121634991	-	NMC1207	-	acyl-CoA synthetase
1091	 51.48	0	1186187..1188214	-	675	121634992	-	NMC1208	-	putative transmembrane transport protein
1092	 57.35	0	1188503..1190509	+	668	121634993	gcr	NMC1210	-	site-specific recombinase
1093	 54.67	0	1190632..1191723	-	363	121634994	mltB	NMC1212	-	murein hydrolase
1094	 55.66	0	1191872..1193425	-	517	121634995	-	NMC1213	-	putative oxidoreductase
1095	 57.15	0	1193484..1197611	+	1375	121634996	mfd	NMC1214	-	transcription-repair coupling factor
1096	 53.91	0	1197760..1198143	+	127	121634997	panD	NMC1216	-	aspartate alpha-decarboxylase
1097	 51.48	0	1198165..1199007	+	280	121634998	kdsA	NMC1218	-	2-dehydro-3-deoxyphosphooctonate aldolase
1098	 54.20	0	1199022..1199462	+	146	121634999	-	NMC1219	-	hypothetical protein
1099	 54.62	0	1199509..1200795	+	428	121635000	eno	NMC1220	-	phosphopyruvate hydratase
1100	 48.39	0	1200809..1201087	+	92	121635001	-	NMC1221	-	hypothetical protein
1101	 54.30	0	1201128..1201418	-	96	121635002	-	NMC1222	-	putative iron-sulphur binding protein
1102	 47.88	0	1201643..1202776	-	377	121635003	nrdB	NMC1223	-	ribonucleotide-diphosphate reductase subunit beta
1103	 41.45	-1	1202990..1203913	-	307	121635004	-	NMC1225	-	hypothetical protein
1104	 52.06	0	1203936..1206215	-	759	121635005	nrdA	NMC1226	-	ribonucleotide-diphosphate reductase subunit alpha
1105	 54.49	0	1206744..1207055	+	103	121635006	-	NMC1229	-	hypothetical protein
1106	 55.34	0	1207366..1208133	-	255	121635007	-	NMC1231	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1107	 55.16	0	1208221..1209063	-	280	121635008	fpg	NMC1232	-	formamidopyrimidine-DNA glycosylase
51.80	MEAN

7.07	STD DEV
