IslandPath Analysis: Neisseria meningitidis Z2491

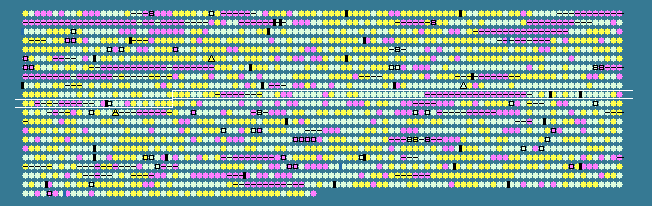

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
926	 57.24	0	979403..980293	-	296	15793973	ppnK	NMA1017	-	inorganic polyphosphate/ATP-NAD kinase
927	 61.02	+1	980313..980879	-	188	15793974	-	NMA1018	-	hypothetical protein
928	 59.59	+1	980930..981706	-	258	15793975	-	NMA1019	-	hypothetical protein
929	 54.53	0	981761..982411	-	216	15793976	-	NMA1020	-	TetR family transcriptional regulator
930	 55.04	0	982423..983463	-	346	15793977	murB	NMA1021	-	UDP-N-acetylenolpyruvoylglucosamine reductase
931	 57.03	0	983641..985020	-	459	15793978	-	NMA1022	-	multidrug efflux protein
932	 59.11	+1	985355..986506	+	383	15793979	hisZ	NMA1023	-	ATP phosphoribosyltransferase regulatory subunit
933	 56.81	0	986609..987907	+	432	15793980	purA	NMA1024	-	adenylosuccinate synthetase
934	 43.68	-1	988026..988286	+	86	15793981	-	NMA1025	-	hypothetical protein
935	 41.55	-1	988319..988756	+	145	15793982	-	NMA1026	-	hypothetical protein
936	 40.88	-1	988770..989180	+	136	15793983	-	NMA1027	-	DNA-binding protein
937	 45.29	0	989297..989689	+	130	15793984	-	NMA1028	-	DNA-binding protein
938	 48.68	0	989750..989977	+	75	15793985	-	NMA1029	-	hypothetical protein
939	 50.79	0	989952..990455	+	167	15793986	-	NMA1030	-	hypothetical protein
940	 55.48	0	990756..991595	-	279	15793987	htpX	NMA1031	-	heat shock protein HtpX
941	 54.17	0	991810..992457	+	215	15793988	adk	NMA1032	-	adenylate kinase
942	 54.66	0	992983..993723	+	246	15793989	pyrF	NMA1033	-	orotidine 5'-phosphate decarboxylase
943	 56.58	0	993778..994749	+	323	15793990	rfaE	NMA1034	-	DP-heptose synthetase
944	 33.82	-2	994786..996021	+	411	15793991	nmgII	NMA1035	-	modification methylase
945	 31.55	-2	996023..997141	+	372	15793992	nmgI	NMA1036	-	type II restriction endonuclease
946	 50.45	0	997182..998186	+	334	15793993	rfaD	NMA1037	-	ADP-L-glycero-D-mannoheptose epimerase
947	 52.17	0	998259..999803	+	514	15793994	-	NMA1038	-	type I restriction-modification system protein
948	 52.23	0	999800..1000810	+	336	15793995	-	NMA1039	-	DNA-binding protein
949	 54.47	0	1005418..1007697	-	759	15793996	clpA	NMA1045	-	ATP-dependent protease ATP-binding protein
950	 50.96	0	1007701..1008012	-	103	15793997	-	NMA1046	-	hypothetical protein
951	 46.57	0	1008270..1008473	+	67	15793998	cspA	NMA1047	-	transcriptional regulator
952	 60.44	+1	1008771..1010102	-	443	15793999	-	NMA1048	-	hypothetical protein
953	 51.56	0	1010193..1010768	+	191	15794000	-	NMA1049	-	hypothetical protein
954	 52.94	0	1010815..1011528	+	237	15794001	-	NMA1051	-	hypothetical protein
955	 57.26	0	1011597..1013297	+	566	15794002	recJ	NMA1052	-	single-stranded-DNA-specific exonuclease
956	 55.65	0	1013598..1014959	+	453	15794003	pcnB	NMA1053	-	poly(A) polymerase
957	 50.46	0	1015129..1015455	+	108	15794004	-	NMA1054	-	periplasmic protein
958	 54.72	0	1015560..1016513	-	317	15794005	-	NMA1056	-	hypothetical protein
959	 51.95	0	1016652..1017344	-	230	15794006	-	NMA1057	-	glycosyl transferase
960	 54.11	0	1017161..1017853	-	230	15794007	-	NMA1058	-	hypothetical protein
961	 51.21	0	1018045..1018749	+	234	15794008	-	NMA1059	-	periplasmic protein
962	 53.97	0	1018813..1019379	-	188	15794009	dcd	NMA1060	-	deoxycytidine triphosphate deaminase
963	 50.84	0	1019445..1019861	-	138	15794010	-	NMA1061	-	periplasmic protein
964	 52.44	0	1019913..1020812	-	299	15794011	rdgC	NMA1062	-	recombination associated protein
965	 53.09	0	1020843..1022300	-	485	15794012	engA	NMA1063	-	GTP-binding protein EngA
966	 51.43	0	1022454..1023083	-	209	15794013	-	NMA1064	-	membrane protein
967	 52.24	0	1023084..1024379	-	431	15794014	hisS	NMA1065	-	histidyl-tRNA synthetase
968	 46.42	0	1024473..1025129	-	218	15794015	-	NMA1066	-	periplasmic protein
969	 41.67	-1	1025187..1025378	-	63	15794016	-	NMA1067	-	hypothetical protein
970	 27.93	-2	1025411..1025947	-	178	15794017	-	NMA1068	-	hypothetical protein
971	 42.79	-1	1026115..1026315	-	66	15794018	-	NMA1070	-	hypothetical protein
972	 31.19	-2	1026430..1026849	-	139	15794019	-	NMA1071	-	hypothetical protein
973	 35.52	-2	1026907..1027272	-	121	15794020	-	NMA1072	-	hypothetical protein
974	 47.99	0	1027254..1027799	-	181	15794021	-	NMA1073	-	hypothetical protein
975	 26.37	-2	1027962..1028234	-	90	15794022	-	NMA1074	-	membrane protein
976	 44.44	-1	1028303..1028473	-	56	15794023	-	NMA1075	-	hypothetical protein
977	 35.25	-2	1028503..1028763	+	86	15794024	-	NMA1076	-	hypothetical protein
978	 28.51	-2	1029110..1029358	-	82	15794025	-	NMA1077	-	hypothetical protein
979	 46.61	0	1029404..1029772	-	122	15794026	-	NMA1078	-	hypothetical protein
980	 34.15	-2	1029914..1030159	-	81	15794027	-	NMA1079	-	hypothetical protein
981	 30.77	-2	1030388..1030504	-	38	15794028	-	NMA1080	-	hypothetical protein
982	 26.39	-2	1030563..1030850	-	95	15794029	-	NMA1081	-	membrane protein
983	 24.46	-2	1031157..1031528	-	123	15794030	-	NMA1082	-	hypothetical protein
984	 44.82	0	1031662..1032105	-	147	15794031	-	NMA1083	-	periplasmic protein
985	 52.64	0	1032148..1033017	-	289	15794032	-	NMA1084	-	periplasmic protein
986	 52.16	0	1033181..1034104	+	307	15794033	-	NMA1085	-	hypothetical protein
987	 57.48	0	1034182..1034823	-	213	15794034	-	NMA1086	-	hypothetical protein
988	 53.91	0	1034878..1035669	-	263	15794035	-	NMA1087	-	spermidine synthase
989	 56.44	0	1036052..1036843	+	263	15794036	panB	NMA1088	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
990	 53.88	0	1036966..1037802	+	278	15794037	panC	NMA1089	-	pantoate--beta-alanine ligase
991	 55.57	0	1037967..1039805	+	612	15794038	-	NMA1090	-	periplasmic protein
992	 53.61	0	1039945..1040526	+	193	15794039	lolB	NMA1091	-	outer membrane lipoprotein LolB
993	 49.53	0	1040536..1041381	+	281	15794040	-	NMA1092	-	hypothetical protein
994	 52.74	0	1041803..1042786	+	327	15794041	prsA	NMA1093	-	ribose-phosphate pyrophosphokinase
995	 50.09	0	1042853..1043425	+	190	15794042	-	NMA1094	-	50S ribosomal protein L25/general stress protein Ctc
996	 48.55	0	1043550..1044719	-	389	15794043	-	NMA1095	-	D-alanyl-D-alanine carboxypeptidase
997	 53.57	0	1044867..1046393	+	508	15794044	ilvA	NMA1096	-	threonine dehydratase
998	 52.89	0	1046450..1047523	-	357	15794045	cysA	NMA1097	-	sulphate permease ATP-binding protein
999	 56.79	0	1047520..1048380	-	286	15794046	cysW	NMA1098	-	sulphate permease inner membrane protein
1000	 40.21	-1	1048445..1048633	-	62	15794047	-	NMA1099	-	hypothetical protein
1001	 57.71	0	1048758..1049594	-	278	15794048	cysU	NMA1100	-	sulphate permease inner membrane protein
1002	 57.06	0	1049885..1050217	+	110	15794049	-	NMA1101	-	hypothetical protein
1003	 38.04	-1	1050549..1051058	+	169	15794050	-	NMA1102	-	integral membrane protein
1004	 53.40	0	1052308..1052895	-	195	15794051	sodB	NMA1104	-	superoxide dismutase
1005	 55.37	0	1053058..1054464	+	468	15794052	dnaB	NMA1105	-	replicative DNA helicase
1006	 49.10	0	1054773..1055438	+	221	15794053	-	NMA1106	-	hypothetical protein
1007	 46.99	0	1055468..1056082	+	204	15794054	-	NMA1107	-	membrane protein
1008	 43.14	-1	1056079..1057077	+	332	15794055	-	NMA1108	-	membrane protein
1009	 46.30	0	1057056..1057649	+	197	15794056	-	NMA1109	-	membrane protein
1010	 42.13	-1	1057639..1058127	+	162	15794057	-	NMA1110	-	pilin
1011	 49.69	0	1059437..1059919	-	160	15794058	-	NMA1111	-	hypothetical protein
1012	 49.45	0	1060062..1060514	+	150	15794059	dut	NMA1112	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1013	 51.35	0	1060590..1061777	+	395	15794060	-	NMA1113	-	hypothetical protein
1014	 47.69	0	1062039..1062818	+	259	15794061	-	NMA1114	-	hypothetical protein
1015	 53.17	0	1063489..1064496	-	335	15794062	-	NMA1115	-	IS1106A3 transposase
1016	 54.85	0	1065658..1067883	-	741	15794063	icd	NMA1116	-	isocitrate dehydrogenase
1017	 52.53	0	1067916..1068113	+	65	15794064	-	NMA1117	-	hypothetical protein
1018	 46.95	0	1068316..1069431	+	371	15794065	lst	NMA1118	-	CMP-N-acetylneuraminate-beta-galactosamide-alpha- 2,3-sialyltransferase
1019	 55.34	0	1069595..1070053	-	152	15794066	-	NMA1119	-	C-type cytochrome
1020	 53.28	0	1070172..1070993	+	273	15794067	-	NMA1120	-	oxidoreductase
1021	 57.27	0	1071044..1071490	-	148	15794068	-	NMA1121	-	acyl-CoA hydrolase
1022	 52.84	0	1071772..1072704	+	310	15794069	pip	NMA1122	-	proline iminopeptidase
1023	 58.07	0	1072761..1073888	-	375	15794070	-	NMA1123	-	lipoprotein
1024	 60.39	+1	1073966..1074841	-	291	15794071	dapA	NMA1124	-	dihydrodipicolinate synthase
1025	 56.61	0	1075149..1076540	+	463	15794072	-	NMA1126	-	transmembrane transport protein
51.77	MEAN

7.09	STD DEV
