IslandPath Analysis: Neisseria meningitidis Z2491

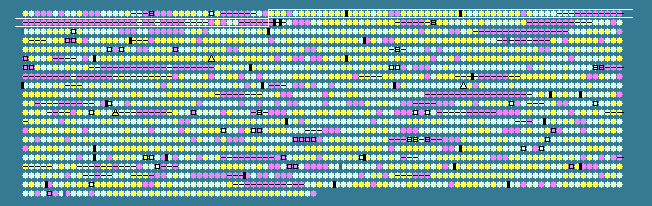

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
42	 59.94	+1	35272..36519	+	415	15793076	fabF	NMA0044	-	3-oxoacyl-(acyl carrier protein) synthase II
43	 57.26	0	36762..37718	-	318	15793077	-	NMA0046	-	transmembrane transport protein
44	 60.51	+1	38144..39361	+	405	15793078	-	NMA0047	-	transmembrane transport protein
45	 46.56	0	39717..40850	+	377	15793079	pglA	NMA0048	-	glycosyltransferase
46	 55.16	0	41790..42641	-	283	15793080	-	NMA0049	-	RNA polymerase sigma factor
47	 58.28	0	42989..44503	+	504	15793081	katA	NMA0050	-	catalase
48	 56.06	0	44683..45012	+	109	15793082	-	NMA0051	-	hypothetical protein
49	 59.44	+1	44988..45554	+	188	15793083	-	NMA0052	-	integral membrane protein
50	 54.35	0	45672..45947	-	91	15793084	-	NMA0053	-	hypothetical protein
51	 56.60	0	45987..48023	-	678	15793085	prlC	NMA0054	-	oligopeptidase A
52	 55.83	0	48111..49097	-	328	15793086	-	NMA0055	-	integral membrane protein
53	 56.17	0	49253..51643	+	796	15793087	gyrB	NMA0056	-	DNA gyrase subunit B
54	 60.68	+1	51962..53281	+	439	15793088	sdaA	NMA0057	-	L-serine dehydratase
55	 55.69	0	54687..56663	-	658	15793089	-	NMA0060	-	transmembrane transport protein
56	 63.45	+1	56812..57651	+	279	15793090	-	NMA0061	-	ferredoxin
57	 56.59	0	57851..58882	+	343	15793091	gapA	NMA0062	-	glyceraldehyde-3-phosphate dehydrogenase
58	 57.85	0	59138..59863	-	241	15793092	aat	NMA0063	-	leucyl/phenylalanyl-tRNA--protein transferase
59	 51.95	0	59933..60367	-	144	15793093	fur	NMA0064	-	ferric uptake regulation protein
60	 57.41	0	60586..60963	+	125	15793094	-	NMA0065	-	lipoprotein
61	 61.23	+1	60973..61782	+	269	15793095	dapB	NMA0066	-	dihydrodipicolinate reductase
62	 36.33	-2	62042..62341	-	99	15793096	-	NMA0067	-	hypothetical protein
63	 33.33	-2	62455..62700	-	81	15793097	-	NMA0068	-	hypothetical protein
64	 58.53	0	62708..63862	-	384	15793098	lpxB	NMA0069	-	lipid-A-disaccharide synthase
65	 57.50	0	63928..64920	-	330	15793099	rluC	NMA0070	-	ribosomal large subunit pseudouridine synthase C
66	 59.28	+1	65414..68173	+	919	15793100	rne	NMA0071	-	ribonuclease E
67	 60.40	+1	68960..69949	-	329	15793101	pdxA	NMA0072	-	pyridoxal phosphate biosynthetic protein
68	 55.60	0	70109..71536	+	475	15793102	-	NMA0073	-	amino-acid transport protein
69	 57.55	0	71870..73756	+	628	15793103	gidA	NMA0074	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
70	 57.78	0	73825..74409	+	194	15793104	rnhB	NMA0075	-	ribonuclease HII
71	 59.17	+1	75357..76130	-	257	15793105	-	NMA0076	-	parA family protein
72	 56.89	0	76229..76852	-	207	15793106	gidB	NMA0077	-	glucose-inhibited division protein B
73	 60.29	+1	76948..77433	-	161	15793107	-	NMA0078	-	integral membrane protein
74	 61.79	+1	77843..78970	+	375	15793108	-	NMA0079	-	integral membrane protein
75	 54.12	0	79151..79708	+	185	15793109	frr	NMA0080	-	ribosome recycling factor
76	 54.48	0	79764..80510	+	248	15793110	uppS	NMA0081	-	undecaprenyl diphosphate synthase
77	 56.39	0	80513..81310	+	265	15793111	cdsA	NMA0082	-	phosphatidate cytidylyltransferase
78	 58.31	0	81366..82550	+	394	15793112	dxr	NMA0083	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
79	 59.36	+1	82585..83925	+	446	15793113	-	NMA0084	-	integral membrane protein
80	 56.14	0	83982..86375	+	797	15793114	omp85	NMA0085	-	outer membrane protein OMP85
81	 53.29	0	86441..86941	+	166	15793115	-	NMA0086	-	hypothetical protein
82	 59.96	+1	86974..88017	+	347	15793116	lpxD	NMA0087	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
83	 57.56	0	88053..88502	+	149	15793117	fabZ	NMA0088	-	(3R)-hydroxymyristoyl-ACP dehydratase
84	 36.27	-2	88813..89493	+	226	15793118	-	NMA0089	-	hypothetical protein
85	 59.07	+1	89536..90312	+	258	15793119	lpxA	NMA0090	-	UDP-N-acetylglucosamine acyltransferase
86	 53.95	0	90669..92060	+	463	15793120	-	NMA0091	-	amino-acid transporter
87	 55.13	0	92139..93395	+	418	15793121	dadA	NMA0092	-	D-amino acid dehydrogenase small subunit
88	 54.44	0	93576..94385	+	269	15793122	-	NMA0093	-	zinc transporter ZupT
89	 55.00	0	94482..97319	+	945	15793123	valS	NMA0094	-	valyl-tRNA synthetase
90	 50.64	0	97474..97629	+	51	15793124	-	NMA0095	-	hypothetical protein
91	 50.77	0	97690..98079	-	129	15793125	-	NMA0096	-	hypothetical protein
92	 52.66	0	98653..99573	-	306	15793126	oxyR	NMA0098	-	hydrogen peroxide-inducible genes activator
93	 43.94	-1	99577..99840	-	87	15793127	minE	NMA0099	-	cell division topological specificity factor
94	 46.69	0	99844..100659	-	271	15793128	minD	NMA0100	-	septum site-determining protein
95	 45.10	0	100688..101401	-	237	15793129	minC	NMA0101	-	septum formation inhibitor
96	 46.34	0	101548..101916	-	122	15793130	rplQ	NMA0102	-	50S ribosomal protein L17
97	 42.45	-1	101940..102926	-	328	15793131	rpoA	NMA0103	-	DNA-directed RNA polymerase subunit alpha
98	 44.61	-1	102952..103572	-	206	15793132	rpsD	NMA0104	-	30S ribosomal protein S4
99	 44.95	0	103592..103987	-	131	15793133	rpsK	NMA0105	-	30S ribosomal protein S11
100	 46.56	0	104007..104369	-	120	15793134	rpsM	NMA0106	-	30S ribosomal protein S13
101	 38.60	-1	104435..104548	-	37	15793135	rpmJ	NMA0107	-	50S ribosomal protein L36
102	 37.90	-1	104569..104787	-	72	15793136	infA	NMA0108	-	translation initiation factor IF-1
103	 37.07	-2	104792..106102	-	436	15793137	secY	NMA0109	-	preprotein translocase subunit SecY
104	 43.22	-1	106114..106548	-	144	15793138	rplO	NMA0110	-	50S ribosomal protein L15
105	 41.40	-1	106550..106735	-	61	15793139	rpmD	NMA0111	-	50S ribosomal protein L30
106	 43.74	-1	106728..107246	-	172	15793140	rpsE	NMA0112	-	30S ribosomal protein S5
107	 43.79	-1	107265..107618	-	117	15793141	rplR	NMA0113	-	50S ribosomal protein L18
108	 41.01	-1	107632..108165	-	177	15793142	rplF	NMA0114	-	50S ribosomal protein L6
109	 39.19	-1	108179..108571	-	130	15793143	rpsH	NMA0115	-	30S ribosomal protein S8
110	 46.08	0	108587..108892	-	101	15793144	rpsN	NMA0116	-	30S ribosomal protein S14
111	 38.15	-1	108895..109434	-	179	15793145	rplE	NMA0117	-	50S ribosomal protein L5
112	 38.58	-1	109444..109767	-	107	15793146	rplX	NMA0118	-	50S ribosomal protein L24
113	 44.17	-1	109779..110147	-	122	15793147	rplN	NMA0119	-	50S ribosomal protein L14
114	 36.74	-2	110369..110632	-	87	15793148	rpsQ	NMA0120	-	30S ribosomal protein S17
115	 38.54	-1	110632..110823	-	63	15793149	rpmC	NMA0121	-	50S ribosomal protein L29
116	 46.28	0	110823..111239	-	138	15793150	rplP	NMA0122	-	50S ribosomal protein L16
117	 44.88	0	111223..111915	-	230	15793151	rpsC	NMA0123	-	30S ribosomal protein S3
118	 42.12	-1	111925..112254	-	109	15793152	rplV	NMA0124	-	50S ribosomal protein L22
119	 45.16	0	112263..112541	-	92	15793153	rpsS	NMA0125	-	30S ribosomal protein S19
120	 51.80	0	112548..113381	-	277	15793154	rplB	NMA0126	-	50S ribosomal protein L2
121	 43.30	-1	113387..113707	-	106	15793155	rplW	NMA0127	-	50S ribosomal protein L23
122	 46.54	0	113698..114318	-	206	15793156	rplD	NMA0128	-	50S ribosomal protein L4
123	 49.92	0	114318..114962	-	214	15793157	rplC	NMA0129	-	50S ribosomal protein L3
124	 48.10	0	115181..115864	-	227	15793158	-	NMA0131	-	hypothetical protein
125	 47.82	0	115873..116928	-	351	15793159	-	NMA0132	-	hypothetical protein
126	 41.76	-1	116903..117163	-	86	15793160	-	NMA0132A	-	hypothetical protein
127	 47.44	0	117216..117527	-	103	15793161	rpsJ	NMA0133	-	30S ribosomal protein S10
128	 52.57	0	117545..118729	-	394	15793162	tufA1	NMA0134	-	elongation factor Tu
129	 49.95	0	118817..120922	-	701	15793163	fusA	NMA0135	-	elongation factor G
130	 49.68	0	120941..121411	-	156	15793164	rpsG	NMA0136	-	30S ribosomal protein S7
131	 50.00	0	121529..121900	-	123	15793165	rpsL	NMA0137	-	30S ribosomal protein S12
132	 40.67	-1	122079..122228	-	49	15793166	-	NMA0138	-	hypothetical protein
133	 56.20	0	122225..122482	-	85	15793167	-	NMA0139	-	periplasmic protein
134	 48.00	0	122531..122680	-	49	15793168	-	NMA0140	-	hypothetical protein
135	 50.72	0	122773..126948	-	1391	15793169	rpoC	NMA0141	-	DNA-directed RNA polymerase subunit beta'
136	 50.25	0	127100..131278	-	1392	15793170	rpoB	NMA0142	-	DNA-directed RNA polymerase subunit beta
137	 43.82	-1	131469..131840	-	123	15793171	rplL	NMA0143	-	50S ribosomal protein L7/L12
138	 47.31	0	131898..132398	-	166	15793172	rplJ	NMA0144	-	50S ribosomal protein L10
139	 43.39	-1	132628..133323	-	231	15793173	rplA	NMA0145	-	50S ribosomal protein L1
140	 44.83	0	133323..133757	-	144	15793174	rplK	NMA0146	-	50S ribosomal protein L11
141	 44.13	-1	133858..134394	-	178	15793175	nusG	NMA0147	-	transcription antitermination protein NusG
51.77	MEAN

7.09	STD DEV
