IslandPath Analysis: Neisseria meningitidis Z2491

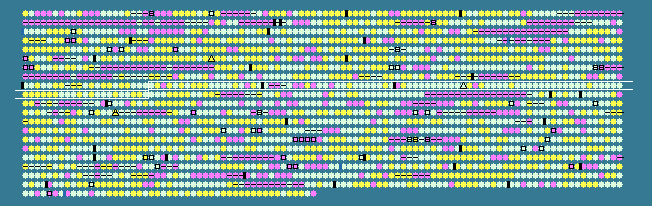

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.77   STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
822	 52.01	0	871997..872692	+	231	15793869	-	NMA0903	-	hypothetical protein
823	 58.52	0	872877..874079	+	400	15793870	trpB	NMA0904	-	tryptophan synthase subunit beta
824	 47.14	0	874258..879579	-	1773	15793871	iga	NMA0905	-	IgA1 protease
825	 60.16	+1	881651..883726	+	691	15793872	comA	NMA0906	-	competence protein
826	 54.35	0	883784..884587	-	267	15793873	comL	NMA0907	-	competence lipoprotein
827	 55.29	0	884586..885710	+	374	15793874	rluD	NMA0908	-	ribosomal large subunit pseudouridine synthase D
828	 53.80	0	885863..886810	-	315	15793875	-	NMA0909	-	transmembrane transport protein
829	 60.00	+1	887369..888148	+	259	15793876	-	NMA0911	-	hypothetical protein
830	 57.08	0	888200..888679	+	159	15793877	-	NMA0912	-	lipoprotein
831	 58.76	0	888681..889679	+	332	15793878	holA	NMA0913	-	DNA polymerase III subunit delta
832	 53.33	0	889800..890219	+	139	15793879	-	NMA0914	-	membrane protein
833	 53.22	0	890297..890809	+	170	15793880	-	NMA0915	-	membrane protein
834	 50.96	0	890893..891777	-	294	15793881	-	NMA0916	-	hypothetical protein
835	 55.21	0	892264..893136	-	290	15793882	rpoH	NMA0917	-	RNA polymerase factor sigma-32
836	 56.01	0	893391..894929	-	512	15793883	lnt	NMA0918	-	apolipoprotein N-acyltransferase
837	 53.05	0	897012..897503	-	163	15793884	-	NMA0925	-	cytochrome C
838	 40.74	-1	897514..897621	-	35	15793885	-	NMA0926	-	hypothetical protein
839	 55.89	0	897694..898704	-	336	15793886	hemH	NMA0927	-	ferrochelatase
840	 53.14	0	898786..899901	-	371	15793887	tgt	NMA0928	-	queuine tRNA-ribosyltransferase
841	 48.64	0	900210..902123	+	637	15793888	thrS	NMA0929	-	threonyl-tRNA synthetase
842	 48.08	0	902141..902662	+	173	15793889	infC	NMA0930	-	translation initiation factor IF-3
843	 44.44	-1	902809..903006	+	65	15793890	rpmI	NMA0931	-	50S ribosomal protein L35
844	 51.39	0	903019..903378	+	119	15793891	rplT	NMA0932	-	50S ribosomal protein L20
845	 51.06	0	903724..904716	+	330	15793892	pheS	NMA0933	-	phenylalanyl-tRNA synthetase subunit alpha
846	 33.62	-2	904893..905957	+	354	15793893	-	NMA0935	-	hypothetical protein
847	 30.83	-2	905964..906482	+	172	15793894	-	NMA0936	-	hypothetical protein
848	 55.58	0	906518..908881	+	787	15793895	pheT	NMA0937	-	phenylalanyl-tRNA synthetase subunit beta
849	 48.18	0	908955..909257	+	100	15793896	himA	NMA0938	-	integration host factor alpha-subunit
850	 52.58	0	909259..909549	+	96	15793897	-	NMA0939	-	hypothetical protein
851	 52.67	0	909879..910364	+	161	15793898	fxsA	NMA0940	-	FxsA
852	 46.25	0	910624..910863	+	79	15793899	-	NMA0941	-	hypothetical protein
853	 54.07	0	911076..912377	+	433	15793900	bioA	NMA0942	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
854	 53.70	0	912374..913021	+	215	15793901	bioD	NMA0943	-	dithiobiotin synthetase
855	 56.81	0	913036..913512	+	158	15793902	-	NMA0944	-	hypothetical protein
856	 52.97	0	913542..914432	+	296	15793903	ubiA	NMA0945	-	4-hydroxybenzoate octaprenyltransferase
857	 53.11	0	914617..915066	+	149	15793904	-	NMA0946	-	regulatory protein
858	 52.96	0	915070..916032	+	320	15793905	-	NMA0947	-	HPr kinase/phosphorylase
859	 52.98	0	916013..916867	+	284	15793906	-	NMA0948	-	hypothetical protein
860	 54.88	0	916948..917889	+	313	15793907	rbgA	NMA0950	-	ribosomal biogenesis GTPase
861	 56.72	0	917990..918592	+	200	15793908	-	NMA0951	-	hypothetical protein
862	 52.27	0	918776..920449	+	557	15793909	recN	NMA0952	-	DNA repair protein
863	 41.11	-1	921481..921570	+	29	15793910	-	NMA0953	-	hypothetical protein
864	 58.40	0	921567..923186	-	539	15793911	-	NMA0954	-	hypothetical protein
865	 49.36	0	923282..923674	+	130	15793912	-	NMA0955	-	hypothetical protein
866	 51.90	0	923717..924454	+	245	15793913	ubiE	NMA0956	-	ubiquinone/menaquinone biosynthesis methyltransferase
867	 50.83	0	924674..925153	+	159	15793914	-	NMA0957	-	hypothetical protein
868	 54.75	0	925280..925774	-	164	15793915	folK	NMA0958	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine- pyrophosphokinase
869	 48.53	0	925784..926158	-	124	15793916	-	NMA0959	-	regulator
870	 53.44	0	926212..926778	-	188	15793917	-	NMA0960	-	hypothetical protein
871	 48.64	0	926863..927156	-	97	15793918	hfq	NMA0961	-	regulator
872	 53.35	0	927285..928223	-	312	15793919	-	NMA0962	-	D-alanyl-D-alanine-endopeptidase
873	 49.80	0	928481..928984	+	167	15793920	-	NMA0963	-	hypothetical protein
874	 54.91	0	929036..929911	+	291	15793921	xerD	NMA0964	-	integrase/recombinase
875	 57.71	0	930083..930283	+	66	15793922	-	NMA0965	-	ferredoxin
876	 43.59	-1	930449..930682	+	77	15793923	-	NMA0966	-	thioredoxin
877	 55.44	0	931156..932019	-	287	15793924	rfbD	NMA0967	-	dTDP-4-dehydrorhamnose reductase
878	 48.84	0	932217..933080	+	287	15793925	hemH	NMA0968	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
879	 54.50	0	933317..935437	+	706	15793926	pnp	NMA0969	-	polynucleotide phosphorylase/polyadenylase
880	 52.02	0	935510..936178	-	222	15793927	-	NMA0970	-	hypothetical protein
881	 50.17	0	936192..936488	-	98	15793928	-	NMA0971	-	lipoprotein
882	 55.52	0	936625..937476	+	283	15793929	dapF	NMA0972	-	diaminopimelate epimerase
883	 51.98	0	937473..938078	+	201	15793930	-	NMA0973	-	integral membrane protein
884	 53.27	0	938272..939204	+	310	15793931	cysK	NMA0974	-	cysteine synthase
885	 54.84	0	939791..940669	+	292	15793932	-	NMA0975	-	integral membrane protein
886	 50.06	0	940934..941812	-	292	15793933	lepB	NMA0976	-	signal peptidase I
887	 52.01	0	942096..943889	-	597	15793934	lepA	NMA0977	-	GTP-binding protein LepA
888	 54.42	0	944034..944735	-	233	15793935	pfs	NMA0978	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
889	 53.55	0	944921..946033	+	370	15793936	pilT2	NMA0979	-	pilus retraction protein
890	 53.07	0	946067..947044	+	325	15793937	holB	NMA0980	-	DNA polymerase III subunit delta'
891	 50.43	0	947048..947398	+	116	15793938	-	NMA0981	-	pilus biogenesis protein
892	 53.33	0	947403..948182	+	259	15793939	-	NMA0982	-	hypothetical protein
893	 54.59	0	948231..948437	+	68	15793940	-	NMA0983	-	haemolysin
894	 52.24	0	948538..948849	+	103	15793941	-	NMA0984	-	hypothetical protein
895	 56.30	0	948955..949581	+	208	15793942	upp	NMA0985	-	uracil phosphoribosyltransferase
896	 51.40	0	949604..949924	+	106	15793943	-	NMA0986	-	hypothetical protein
897	 49.88	0	950175..950597	+	140	15793944	-	NMA0987	-	secreted protein
898	 54.93	0	950636..951376	+	246	15793945	hemD	NMA0988	-	uroporphyrinogen-III synthase
899	 54.59	0	951451..952725	+	424	15793946	-	NMA0989	-	hypothetical protein
900	 54.84	0	952722..953939	+	405	15793947	-	NMA0990	-	hypothetical protein
901	 57.00	0	954014..955078	+	354	15793948	hemE	NMA0991	-	uroporphyrinogen decarboxylase
902	 58.62	0	955264..956643	+	459	15793949	radA	NMA0992	-	DNA repair protein RadA
903	 55.62	0	956919..957398	-	159	15793950	-	NMA0993	-	periplasmic protein
904	 56.11	0	957530..957889	-	119	15793951	-	NMA0994	-	periplasmic protein
905	 58.01	0	957928..961542	-	1204	15793952	recB	NMA0995	-	exodeoxyribonuclease V beta chain
906	 58.75	0	961775..962683	-	302	15793953	-	NMA0996	-	hypothetical protein
907	 53.14	0	962968..963795	+	275	15793954	-	NMA0997	-	amino acid permease substrate-binding protein
908	 52.44	0	963785..964501	+	238	15793955	-	NMA0999	-	amino acid permease integral membrane protein
909	 52.91	0	964511..965266	+	251	15793956	-	NMA1000	-	amino acid permease ATP-binding protein
910	 55.31	0	965286..966668	-	460	15793957	pgm	NMA1001	-	phosphoglucomutase
911	 51.18	0	966831..967340	-	169	15793958	ppiB	NMA1002	-	peptidyl-prolyl cis-trans isomerase B
912	 55.58	0	967459..968874	-	471	15793959	-	NMA1003	-	transmembrane transport protein
913	 55.09	0	969731..970309	-	192	15793960	pth	NMA1004	-	peptidyl-tRNA hydrolase
914	 55.20	0	970362..970640	-	92	15793961	-	NMA1005	-	hypothetical protein
915	 49.77	0	970633..971076	-	147	15793962	-	NMA1006	-	hypothetical protein
916	 55.89	0	971286..973253	-	655	15793963	ftsH	NMA1007	-	ATP-dependent zinc metallopeptidase
917	 53.62	0	973317..973937	-	206	15793964	ftsJ	NMA1008	-	cell division protein
918	 51.93	0	974047..974331	+	94	15793965	-	NMA1009	-	hypothetical protein
919	 56.48	0	974353..974460	-	35	15793966	-	NMA1010	-	hypothetical protein
920	 56.05	0	974499..975515	+	338	15793967	hemB	NMA1011	-	delta-aminolevulinic acid dehydratase
921	 52.68	0	975578..976735	-	385	15793968	-	NMA1012	-	carbon-sulphur lyase
51.77	MEAN

7.09	STD DEV
