IslandPath Analysis: Neisseria meningitidis Z2491

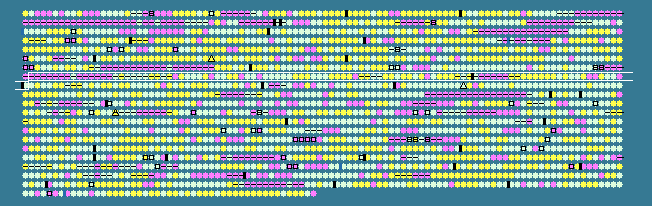

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
702	 42.02	-1	763535..764593	-	352	15793749	-	NMA0774	-	hypothetical protein
703	 40.28	-1	764596..764883	-	95	15793750	-	NMA0775	-	integral membrane protein
704	 43.63	-1	764885..766399	-	504	15793751	-	NMA0776	-	cell-surface protein
705	 29.08	-2	766341..766646	-	101	15793752	-	NMA0777	-	hypothetical protein
706	 42.75	-1	766775..767050	-	91	15793753	-	NMA0778	-	hypothetical protein
707	 47.49	0	767061..767279	-	72	15793754	-	NMA0779	-	integral membrane protein
708	 38.73	-1	767362..767565	-	67	15793755	-	NMA0780	-	hypothetical protein
709	 49.04	0	767583..767894	-	103	15793756	-	NMA0781	-	hypothetical protein
710	 46.96	0	767915..769264	-	449	15793757	-	NMA0782	-	phage replication protein
711	 41.20	-1	769261..769476	-	71	15793758	-	NMA0783	-	hypothetical protein
712	 29.12	-2	769762..770283	+	173	15793759	-	NMA0784	-	hypothetical protein
713	 34.22	-2	770333..770782	+	149	15793760	-	NMA0785	-	hypothetical protein
714	 21.30	-2	770816..771322	+	168	15793761	-	NMA0786	-	hypothetical protein
715	 46.16	0	771339..772406	+	355	15793762	-	NMA0787	-	hypothetical protein
716	 53.29	0	774834..775760	-	308	15793763	-	NMA0789	-	periplasmic binding protein
717	 58.22	0	775837..776712	-	291	15793764	-	NMA0790	-	ABC-transporter membrane protein
718	 53.44	0	776748..777503	-	251	15793765	-	NMA0791	-	ABC-transporter ATP-binding protein
719	 52.73	0	777791..778156	-	121	15793766	rplS	NMA0792	-	50S ribosomal protein L19
720	 53.07	0	778172..778921	-	249	15793767	trmD	NMA0793	-	tRNA (guanine-N1)-methyltransferase
721	 49.61	0	778921..779430	-	169	15793768	rimM	NMA0794	-	16S rRNA-processing protein
722	 56.10	0	779446..779691	-	81	15793769	rpsP	NMA0795	-	30S ribosomal protein S16
723	 57.97	0	779736..782162	-	808	15793770	-	NMA0796	-	hypothetical protein
724	 53.73	0	782280..783686	-	468	15793771	-	NMA0797	-	two-component system sensor kinase
725	 56.64	0	783700..784377	-	225	15793772	-	NMA0798	-	two-component system regulator
726	 45.33	0	784374..784523	-	49	15793773	-	NMA0799	-	hypothetical protein
727	 56.03	0	784567..786381	-	604	15793774	-	NMA0800	-	hypothetical protein
728	 51.13	0	786371..786724	-	117	15793775	-	NMA0801	-	hypothetical protein
729	 52.31	0	786740..787345	-	201	15793776	-	NMA0802	-	hypothetical protein
730	 51.62	0	787398..788168	-	256	15793777	tatC	NMA0803	-	sec-independent protein translocase component
731	 56.04	0	788182..788868	-	228	15793778	-	NMA0804	-	sec-independent protein translocase component
732	 46.57	0	788872..789075	-	67	15793779	-	NMA0805	-	sec-independent protein translocase component
733	 51.54	0	789122..789445	-	107	15793780	-	NMA0806	-	nucleotide-binding protein
734	 50.62	0	789517..789840	-	107	15793781	hisE	NMA0807	-	phosphoribosyl-ATP cyclohydrolase
735	 55.59	0	789981..791045	-	354	15793782	-	NMA0808	-	zinc-binding alcohol dehydrogenase
736	 58.38	0	791408..792565	-	385	15793783	-	NMA0810	-	hypothetical protein
737	 46.82	0	792645..792911	+	88	15793784	-	NMA0811	-	hypothetical protein
738	 53.69	0	793120..794976	+	618	15793785	secD	NMA0812	-	preprotein translocase subunit SecD
739	 48.82	0	794980..795915	+	311	15793786	secF	NMA0813	-	preprotein translocase subunit SecF
740	 45.76	0	795923..796099	+	58	15793787	-	NMA0814	-	hypothetical protein
741	 54.81	0	796138..796407	+	89	15793788	rpsO	NMA0815	-	30S ribosomal protein S15
742	 50.13	0	796788..797912	+	374	15793789	-	NMA0816	-	polyamine permease ATP-binding protein
743	 49.07	0	797928..798893	+	321	15793790	-	NMA0817	-	polyamine permease inner membrane protein
744	 50.23	0	798893..799780	+	295	15793791	-	NMA0818	-	polyamine permease inner membrane protein
745	 51.08	0	799906..801201	+	431	15793792	-	NMA0819	-	oxidoreductase
746	 57.47	0	801446..802750	-	434	15793793	amtB	NMA0820	-	ammonium transporter
747	 59.90	+1	802770..802961	+	63	15793794	-	NMA0821	-	hypothetical protein
748	 61.44	+1	805021..805173	+	50	15793795	-	NMA0824	-	hypothetical protein
749	 54.37	0	805239..806498	-	419	15793796	rho	NMA0825	-	transcription termination factor Rho
750	 54.93	0	806718..809102	-	794	15793797	ppsA	NMA0826	-	phosphoenolpyruvate synthase
751	 53.28	0	809514..810335	+	273	15793798	-	NMA0827	-	hypothetical protein
752	 61.69	+1	810575..811237	-	220	15793799	-	NMA0828	-	phosphatase
753	 56.52	0	811250..812077	-	275	15793800	-	NMA0829	-	hypothetical protein
754	 56.41	0	812507..813130	+	207	15793801	-	NMA0830	-	periplasmic carrier protein
755	 55.44	0	813403..814542	+	379	15793802	-	NMA0831	-	polyamine permease substrate-binding protein
756	 31.34	-2	814675..815826	+	383	15793803	-	NMA0832	-	glycosyl transferase
757	 58.95	+1	815867..816397	+	176	15793804	-	NMA0833	-	hypothetical protein
758	 56.94	0	816581..816652	-	23	15793805	-	NMA0835	-	peptide chain release factor 3 remnant
759	 54.76	0	816773..818368	-	531	15793806	prfC	NMA0836	-	peptide chain release factor 3
760	 54.29	0	818475..818870	-	131	15793807	hisI	NMA0837	-	phosphoribosyl-AMP cyclohydrolase
761	 61.46	+1	818901..819668	-	255	15793808	hisF	NMA0838	-	imidazole glycerol phosphate synthase subunit HisF
762	 59.21	+1	819681..820418	-	245	15793809	hisA	NMA0839	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
763	 54.93	0	820451..821089	-	212	15793810	hisH	NMA0840	-	imidazole glycerol phosphate synthase subunit HisH
764	 59.61	+1	821220..822722	-	500	15793811	-	NMA0841	-	phosphate acyltransferase
765	 60.53	+1	822907..823965	-	352	15793812	fbpC	NMA0842	-	iron-uptake permease ATP-binding protein
766	 51.76	0	823986..825515	-	509	15793813	fbpB	NMA0843	-	iron-uptake permease inner membrane protein
767	 55.62	0	825571..826566	-	331	15793814	fbpA	NMA0844	-	major ferric iron binding protein
768	 47.30	0	826817..827038	-	73	15793815	-	NMA0845	-	hypothetical protein
769	 52.94	0	827032..827286	-	84	15793816	-	NMA0846	-	hypothetical protein
770	 57.30	0	827343..828719	-	458	15793817	argH	NMA0847	-	argininosuccinate lyase
771	 56.78	0	828738..829607	-	289	15793818	galU	NMA0848	-	UTP--glucose-1-phosphate uridylyltransferase
772	 55.67	0	829635..830234	-	199	15793819	-	NMA0849	-	putative deoxyribonucleotide triphosphate pyrophosphatase
773	 55.98	0	830227..830460	-	77	15793820	-	NMA0850	-	hypothetical protein
774	 53.37	0	830568..831101	-	177	15793821	ppa	NMA0851	-	inorganic pyrophosphatase
775	 56.86	0	831203..831661	-	152	15793822	ntpA	NMA0852	-	dATP pyrophosphohydrolase
776	 50.39	0	832260..833930	+	556	15793823	mafB3	NMA0853	-	adhesin
777	 25.51	-2	833927..834169	+	80	15793824	-	NMA0854	-	hypothetical protein
778	 41.87	-1	834247..834492	+	81	15793825	-	NMA0855	-	hypothetical protein
779	 37.18	-2	834495..834884	+	129	15793826	-	NMA0856	-	hypothetical protein
780	 32.89	-2	835000..835449	+	149	15793827	-	NMA0857	-	hypothetical protein
781	 30.77	-2	835597..835986	+	129	15793828	-	NMA0858	-	hypothetical protein
782	 59.12	+1	836027..837484	-	485	15793829	-	NMA0859	-	transmembrane potassium transporter
783	 57.52	0	837499..838329	-	276	15793830	apaH	NMA0860	-	diadenosine tetraphosphatase
784	 62.05	+1	838407..838796	-	129	15793831	-	NMA0861	-	hypothetical protein
785	 58.48	0	838932..839456	-	174	15793832	nspA	NMA0862	-	outer membrane protein
786	 55.50	0	840042..841241	-	399	15793833	-	NMA0864	-	coproporphyrinogen III oxidase
787	 58.16	0	841274..843799	-	841	15793834	ligA	NMA0865	-	DNA ligase
788	 56.33	0	843947..845233	-	428	15793835	-	NMA0866	-	hypothetical protein
789	 55.85	0	845427..845999	-	190	15793836	ampD	NMA0867	-	N-acetyl-anhydromuranmyl-L-alanine amidase
790	 54.32	0	846083..847078	+	331	15793837	-	NMA0868	-	periplasmic protein
791	 56.20	0	847138..847758	+	206	15793838	tdk	NMA0869	-	thymidylate kinase
792	 54.88	0	847980..849260	+	426	15793839	maeA	NMA0870	-	malate oxidoreductase
793	 49.33	0	849527..849676	+	49	15793840	-	NMA0871	-	hypothetical protein
794	 56.71	0	849807..850841	+	344	15793841	lpxK	NMA0872	-	tetraacyldisaccharide 4'-kinase
795	 47.96	0	851041..851628	+	195	15793842	-	NMA0873	-	periplasmic protein
796	 48.09	0	851697..851879	+	60	15793843	-	NMA0874	-	hypothetical protein
797	 59.97	+1	851876..852637	+	253	15793844	kdsB	NMA0875	-	3-deoxy-manno-octulosonate cytidylyltransferase
798	 50.50	0	852660..853061	+	133	15793845	-	NMA0876	-	hypothetical protein
799	 50.30	0	853115..853279	+	54	15793846	-	NMA0877	-	hypothetical protein
800	 34.19	-2	853257..853373	+	38	15793847	-	NMA0878	-	hypothetical protein
801	 53.82	0	853953..854738	+	261	15793848	trpA	NMA0879	-	tryptophan synthase subunit alpha
51.77	MEAN

7.09	STD DEV
