IslandPath Analysis: Neisseria meningitidis Z2491

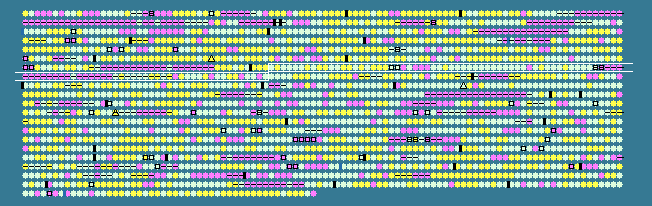

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
642	 54.13	0	700558..701187	-	209	15793689	nth	NMA0711	-	endonuclease III
643	 60.63	+1	701233..701646	-	137	15793690	-	NMA0712	-	membrane protein
644	 53.10	0	702236..703459	+	407	15793691	-	NMA0714	-	transmembrane hexose transporter
645	 54.49	0	703750..705129	+	459	15793692	-	NMA0715	-	transmembrane transport protein
646	 53.82	0	705258..706082	-	274	15793693	-	NMA0716	-	hypothetical protein
647	 53.88	0	706084..706599	-	171	15793694	-	NMA0717	-	hypothetical protein
648	 55.66	0	706718..707653	+	311	15793695	hemC	NMA0718	-	porphobilinogen deaminase
649	 51.68	0	708160..709353	-	397	15793696	aspC	NMA0719	-	aromatic amino acid aminotransferase
650	 57.03	0	709435..709932	-	165	15793697	-	NMA0720	-	hypothetical protein
651	 55.88	0	710048..710251	+	67	15793698	-	NMA0721	-	hypothetical protein
652	 54.06	0	710419..712005	-	528	15793699	-	NMA0722	-	transmembrane transport protein
653	 54.77	0	712274..712996	-	240	15793700	-	NMA0723	-	UDP-2,3-diacylglucosamine hydrolase
654	 58.89	+1	713245..716730	+	1161	15793701	-	NMA0724	-	hypothetical protein
655	 56.96	0	717081..718121	-	346	15793702	adhA	NMA0725	-	alcohol dehydrogenase
656	 54.36	0	718410..718799	-	129	15793703	-	NMA0726	-	pilin
657	 55.56	0	719025..720203	+	392	15793704	-	NMA0728	-	periplasmic protein
658	 55.04	0	720269..722203	+	644	15793705	-	NMA0729	-	ABC transporter ATP-binding protein
659	 55.68	0	722619..723401	-	260	15793706	-	NMA0730	-	thiol:disulphide interchange protein
660	 60.23	+1	723540..725729	+	729	15793707	priA	NMA0731	-	primosome assembly protein PriA
661	 56.52	0	725776..726849	-	357	15793708	-	NMA0732	-	integral membrane protein
662	 54.68	0	726897..727772	-	291	15793709	-	NMA0733	-	transposase
663	 53.21	0	727827..728777	-	316	15793710	-	NMA0734	-	IS1106A3 transposase
664	 41.07	-1	728808..728975	-	55	15793711	-	NMA0735	-	hypothetical protein
665	 51.74	0	729844..731772	-	642	15793712	dnaK	NMA0736	-	molecular chaperone DnaK
666	 44.69	0	731980..732252	-	90	15793713	-	NMA0737	-	hypothetical protein
667	 45.71	0	732438..733124	+	228	15793714	-	NMA0738	-	transcriptional regulator
668	 45.13	0	733256..733594	+	112	15793715	-	NMA0739	-	iron-sulfur cluster insertion protein ErpA
669	 49.46	0	733754..734218	+	154	15793716	-	NMA0740	-	hypothetical protein
670	 54.96	0	734253..735764	+	503	15793717	ubiB	NMA0741	-	putative ubiquinone biosynthesis protein UbiB
671	 56.78	0	736121..736939	-	272	15793718	cysE	NMA0742	-	serine acetyltransferase
672	 54.75	0	737123..737701	+	192	15793719	grpE	NMA0744	-	heat shock protein
673	 50.46	0	737825..738040	-	71	15793720	-	NMA0745	-	periplasmic protein
674	 52.65	0	738066..739121	-	351	15793721	apbE	NMA0746	-	thiamine biosynthesis protein
675	 53.37	0	739274..740491	-	405	15793722	nqrF	NMA0747	-	Na(+)-translocating NADH-quinone reductase subunit F
676	 50.67	0	740505..741098	-	197	15793723	nqrE	NMA0748	-	Na(+)-translocating NADH-quinone reductase subunit E
677	 53.11	0	741102..741728	-	208	15793724	nqrD	NMA0749	-	Na(+)-translocating NADH-quinone reductase subunit D
678	 53.15	0	741728..742504	-	258	15793725	nqrC	NMA0750	-	Na(+)-translocating NADH-quinone reductase subunit C
679	 54.10	0	742497..743729	-	410	15793726	nqrB	NMA0751	-	Na(+)-translocating NADH-quinone reductase subunit B
680	 54.17	0	743732..745075	-	447	15793727	nqrA	NMA0752	-	Na(+)-translocating NADH-quinone reductase subunit A
681	 53.73	0	745423..746844	-	473	15793728	-	NMA0753	-	membrane protein
682	 55.00	0	747202..747561	-	119	15793729	-	NMA0754	-	membrane protein
683	 49.83	0	747558..748163	-	201	15793730	-	NMA0755	-	hypothetical protein
684	 52.17	0	748210..748692	-	160	15793731	-	NMA0756	-	transcription regulator AsnC
685	 36.19	-2	748755..748859	+	34	15793732	-	NMA0757	-	hypothetical protein
686	 55.01	0	749198..750304	+	368	15793733	gcvT	NMA0758	-	glycine cleavage system aminomethyltransferase T
687	 55.30	0	750467..750853	+	128	15793734	gcvH	NMA0759	-	glycine cleavage system protein H
688	 53.53	0	751005..752252	+	415	15793735	hemA	NMA0760	-	glutamyl-tRNA reductase
689	 53.83	0	752579..753100	+	173	15793736	-	NMA0761	-	regulatory protein
690	 53.24	0	753154..754188	+	344	15793737	-	NMA0762	-	hypothetical protein
691	 58.06	0	754216..754866	+	216	15793738	-	NMA0763	-	ABC-transporter ATP-binding protein
692	 48.33	0	754968..755087	+	39	15793739	-	NMA0764	-	hypothetical protein
693	 51.92	0	755084..755578	+	164	15793740	-	NMA0765	-	lipoprotein
694	 53.98	0	755666..757423	-	585	15793741	-	NMA0766a	-	electron transfer flavoprotein-ubiquinone oxidoreductase
695	 52.52	0	757457..757873	-	138	15793742	-	NMA0767	-	hypothetical protein
696	 51.04	0	758873..759838	+	321	15793743	-	NMA0768	-	IS1655 transposase
697	 47.09	0	760370..761023	-	217	15793744	-	NMA0769	-	IS1016 transposase
698	 39.81	-1	761050..761265	-	71	15793745	-	NMA0770	-	hypothetical protein
699	 29.63	-2	761272..761406	-	44	15793746	-	NMA0771	-	hypothetical protein
700	 38.61	-1	761709..762674	-	321	15793747	-	NMA0772	-	DNA-invertase
701	 44.58	-1	762890..763138	+	82	15793748	-	NMA0773	-	hypothetical protein
702	 42.02	-1	763535..764593	-	352	15793749	-	NMA0774	-	hypothetical protein
703	 40.28	-1	764596..764883	-	95	15793750	-	NMA0775	-	integral membrane protein
704	 43.63	-1	764885..766399	-	504	15793751	-	NMA0776	-	cell-surface protein
705	 29.08	-2	766341..766646	-	101	15793752	-	NMA0777	-	hypothetical protein
706	 42.75	-1	766775..767050	-	91	15793753	-	NMA0778	-	hypothetical protein
707	 47.49	0	767061..767279	-	72	15793754	-	NMA0779	-	integral membrane protein
708	 38.73	-1	767362..767565	-	67	15793755	-	NMA0780	-	hypothetical protein
709	 49.04	0	767583..767894	-	103	15793756	-	NMA0781	-	hypothetical protein
710	 46.96	0	767915..769264	-	449	15793757	-	NMA0782	-	phage replication protein
711	 41.20	-1	769261..769476	-	71	15793758	-	NMA0783	-	hypothetical protein
712	 29.12	-2	769762..770283	+	173	15793759	-	NMA0784	-	hypothetical protein
713	 34.22	-2	770333..770782	+	149	15793760	-	NMA0785	-	hypothetical protein
714	 21.30	-2	770816..771322	+	168	15793761	-	NMA0786	-	hypothetical protein
715	 46.16	0	771339..772406	+	355	15793762	-	NMA0787	-	hypothetical protein
716	 53.29	0	774834..775760	-	308	15793763	-	NMA0789	-	periplasmic binding protein
717	 58.22	0	775837..776712	-	291	15793764	-	NMA0790	-	ABC-transporter membrane protein
718	 53.44	0	776748..777503	-	251	15793765	-	NMA0791	-	ABC-transporter ATP-binding protein
719	 52.73	0	777791..778156	-	121	15793766	rplS	NMA0792	-	50S ribosomal protein L19
720	 53.07	0	778172..778921	-	249	15793767	trmD	NMA0793	-	tRNA (guanine-N1)-methyltransferase
721	 49.61	0	778921..779430	-	169	15793768	rimM	NMA0794	-	16S rRNA-processing protein
722	 56.10	0	779446..779691	-	81	15793769	rpsP	NMA0795	-	30S ribosomal protein S16
723	 57.97	0	779736..782162	-	808	15793770	-	NMA0796	-	hypothetical protein
724	 53.73	0	782280..783686	-	468	15793771	-	NMA0797	-	two-component system sensor kinase
725	 56.64	0	783700..784377	-	225	15793772	-	NMA0798	-	two-component system regulator
726	 45.33	0	784374..784523	-	49	15793773	-	NMA0799	-	hypothetical protein
727	 56.03	0	784567..786381	-	604	15793774	-	NMA0800	-	hypothetical protein
728	 51.13	0	786371..786724	-	117	15793775	-	NMA0801	-	hypothetical protein
729	 52.31	0	786740..787345	-	201	15793776	-	NMA0802	-	hypothetical protein
730	 51.62	0	787398..788168	-	256	15793777	tatC	NMA0803	-	sec-independent protein translocase component
731	 56.04	0	788182..788868	-	228	15793778	-	NMA0804	-	sec-independent protein translocase component
732	 46.57	0	788872..789075	-	67	15793779	-	NMA0805	-	sec-independent protein translocase component
733	 51.54	0	789122..789445	-	107	15793780	-	NMA0806	-	nucleotide-binding protein
734	 50.62	0	789517..789840	-	107	15793781	hisE	NMA0807	-	phosphoribosyl-ATP cyclohydrolase
735	 55.59	0	789981..791045	-	354	15793782	-	NMA0808	-	zinc-binding alcohol dehydrogenase
736	 58.38	0	791408..792565	-	385	15793783	-	NMA0810	-	hypothetical protein
737	 46.82	0	792645..792911	+	88	15793784	-	NMA0811	-	hypothetical protein
738	 53.69	0	793120..794976	+	618	15793785	secD	NMA0812	-	preprotein translocase subunit SecD
739	 48.82	0	794980..795915	+	311	15793786	secF	NMA0813	-	preprotein translocase subunit SecF
740	 45.76	0	795923..796099	+	58	15793787	-	NMA0814	-	hypothetical protein
741	 54.81	0	796138..796407	+	89	15793788	rpsO	NMA0815	-	30S ribosomal protein S15
51.77	MEAN

7.09	STD DEV
