IslandPath Analysis: Neisseria meningitidis Z2491

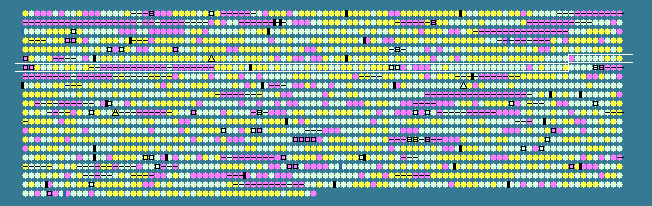

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
592	 47.85	0	639705..640820	-	371	15793639	pilM	NMA0654	-	pilus assembly protein
593	 51.52	0	640972..643368	+	798	15793640	ponA	NMA0655	-	penicillin-binding protein 1
594	 49.52	0	643489..644118	-	209	15793641	-	NMA0656	-	GTPase EngB
595	 50.64	0	644324..644947	+	207	15793642	cyc	NMA0658	-	cytochrome C
596	 49.67	0	645224..647176	+	650	15793643	-	NMA0659	-	membrane protein
597	 52.53	0	647169..648356	+	395	15793644	-	NMA0660	-	membrane protein
598	 58.40	0	648473..649537	+	354	15793645	gcp	NMA0661	-	O-sialoglycoprotein endopeptidase
599	 54.74	0	649581..650477	-	298	15793646	-	NMA0662	-	lipid A biosynthesis lauroyl acyltransferase
600	 56.58	0	650823..651992	+	389	15793647	metK	NMA0663	-	S-adenosylmethionine synthetase
601	 40.40	-1	652241..652693	+	150	15793648	-	NMA0664	-	IS1016 transposase
602	 37.50	-2	652692..652883	+	63	15793649	-	NMA0664a	-	IS1016 transposase
603	 56.52	0	652959..654368	-	469	15793650	-	NMA0665	-	peptidase
604	 50.26	0	654533..655099	+	188	15793651	-	NMA0666	-	oxidoreductase
605	 52.89	0	655668..656981	+	437	15793652	-	NMA0668	-	transmembrane transport protein
606	 56.83	0	657370..658620	+	416	15793653	-	NMA0670	-	two-component system sensor kinase
607	 49.40	0	658677..658844	+	55	15793654	-	NMA0671	-	hypothetical protein
608	 56.69	0	658879..660372	-	497	15793655	-	NMA0672	-	hypothetical protein
609	 58.53	0	660586..660843	+	85	15793656	-	NMA0673	-	glutaredoxin
610	 55.18	0	660864..661307	+	147	15793657	secB	NMA0674	-	preprotein translocase subunit SecB
611	 58.64	0	661393..663435	+	680	15793658	recG	NMA0675	-	DNA helicase
612	 62.26	+1	664694..665737	-	347	15793659	argC	NMA0676	-	N-acetyl-gamma-glutamyl-phosphate reductase
613	 54.08	0	665734..666027	-	97	15793660	-	NMA0677	-	hypothetical protein
614	 42.06	-1	666395..666715	+	106	15793661	-	NMA0678	-	hypothetical protein
615	 45.06	0	666734..667543	+	269	15793662	-	NMA0679a	-	hypothetical protein
616	 26.32	-2	667552..667779	+	75	15793663	-	NMA0680	-	lipoprotein
617	 43.79	-1	667772..668125	+	117	15793664	-	NMA0681	-	hypothetical protein
618	 44.88	0	670145..670447	+	100	15793665	-	NMA0684	-	hypothetical protein
619	 32.75	-2	670462..670632	+	56	15793666	-	NMA0685	-	hypothetical protein
620	 46.59	0	671031..672773	+	580	15793667	-	NMA0687	-	periplasmic protein
621	 47.69	0	672883..678930	+	2015	15793668	-	NMA0688	-	hypothetical protein
622	 25.52	-2	678935..679318	+	127	15793669	-	NMA0689	-	hypothetical protein
623	 46.46	0	679568..682249	+	893	15793670	-	NMA0690	-	hypothetical protein
624	 25.93	-2	682265..682696	+	143	15793671	-	NMA0691	-	hypothetical protein
625	 50.64	0	682841..685342	+	833	15793672	-	NMA0692	-	hypothetical protein
626	 30.47	-2	685339..685827	+	162	15793673	-	NMA0693	-	hypothetical protein
627	 32.23	-2	686015..686287	+	90	15793674	-	NMA0694	-	hypothetical protein
628	 43.55	-1	686491..687459	+	322	15793675	-	NMA0695	-	hypothetical protein
629	 44.66	-1	687462..688397	+	311	15793676	-	NMA0696	-	hypothetical protein
630	 41.60	-1	688810..689160	+	116	15793677	-	NMA0696A	-	hypothetical protein
631	 17.78	-2	689167..689346	+	59	15793678	-	NMA0697	-	hypothetical protein
632	 27.02	-2	689728..690186	+	152	15793679	-	NMA0698	-	periplasmic protein
633	 56.56	0	690700..691926	-	408	15793680	rbn	NMA0700	-	fused ribonuclease BN/uncharacterized domain-containing protein
634	 55.91	0	692470..693129	+	219	15793681	-	NMA0702	-	hypothetical protein
635	 57.42	0	693157..693675	+	172	15793682	-	NMA0703	-	hypothetical protein
636	 53.90	0	693682..694104	+	140	15793683	-	NMA0704	-	hypothetical protein
637	 55.91	0	694373..694744	+	123	15793684	-	NMA0706	-	membrane protein
638	 54.62	0	694741..695379	+	212	15793685	-	NMA0707	-	hypothetical protein
639	 58.56	0	696057..697142	-	361	15793686	-	NMA0708	-	beta-hexosaminidase
640	 56.15	0	697199..698719	-	506	15793687	-	NMA0709	-	integral membrane protein
641	 56.80	0	698921..700420	-	499	15793688	-	NMA0710	-	periplasmic serine protease
642	 54.13	0	700558..701187	-	209	15793689	nth	NMA0711	-	endonuclease III
643	 60.63	+1	701233..701646	-	137	15793690	-	NMA0712	-	membrane protein
644	 53.10	0	702236..703459	+	407	15793691	-	NMA0714	-	transmembrane hexose transporter
645	 54.49	0	703750..705129	+	459	15793692	-	NMA0715	-	transmembrane transport protein
646	 53.82	0	705258..706082	-	274	15793693	-	NMA0716	-	hypothetical protein
647	 53.88	0	706084..706599	-	171	15793694	-	NMA0717	-	hypothetical protein
648	 55.66	0	706718..707653	+	311	15793695	hemC	NMA0718	-	porphobilinogen deaminase
649	 51.68	0	708160..709353	-	397	15793696	aspC	NMA0719	-	aromatic amino acid aminotransferase
650	 57.03	0	709435..709932	-	165	15793697	-	NMA0720	-	hypothetical protein
651	 55.88	0	710048..710251	+	67	15793698	-	NMA0721	-	hypothetical protein
652	 54.06	0	710419..712005	-	528	15793699	-	NMA0722	-	transmembrane transport protein
653	 54.77	0	712274..712996	-	240	15793700	-	NMA0723	-	UDP-2,3-diacylglucosamine hydrolase
654	 58.89	+1	713245..716730	+	1161	15793701	-	NMA0724	-	hypothetical protein
655	 56.96	0	717081..718121	-	346	15793702	adhA	NMA0725	-	alcohol dehydrogenase
656	 54.36	0	718410..718799	-	129	15793703	-	NMA0726	-	pilin
657	 55.56	0	719025..720203	+	392	15793704	-	NMA0728	-	periplasmic protein
658	 55.04	0	720269..722203	+	644	15793705	-	NMA0729	-	ABC transporter ATP-binding protein
659	 55.68	0	722619..723401	-	260	15793706	-	NMA0730	-	thiol:disulphide interchange protein
660	 60.23	+1	723540..725729	+	729	15793707	priA	NMA0731	-	primosome assembly protein PriA
661	 56.52	0	725776..726849	-	357	15793708	-	NMA0732	-	integral membrane protein
662	 54.68	0	726897..727772	-	291	15793709	-	NMA0733	-	transposase
663	 53.21	0	727827..728777	-	316	15793710	-	NMA0734	-	IS1106A3 transposase
664	 41.07	-1	728808..728975	-	55	15793711	-	NMA0735	-	hypothetical protein
665	 51.74	0	729844..731772	-	642	15793712	dnaK	NMA0736	-	molecular chaperone DnaK
666	 44.69	0	731980..732252	-	90	15793713	-	NMA0737	-	hypothetical protein
667	 45.71	0	732438..733124	+	228	15793714	-	NMA0738	-	transcriptional regulator
668	 45.13	0	733256..733594	+	112	15793715	-	NMA0739	-	iron-sulfur cluster insertion protein ErpA
669	 49.46	0	733754..734218	+	154	15793716	-	NMA0740	-	hypothetical protein
670	 54.96	0	734253..735764	+	503	15793717	ubiB	NMA0741	-	putative ubiquinone biosynthesis protein UbiB
671	 56.78	0	736121..736939	-	272	15793718	cysE	NMA0742	-	serine acetyltransferase
672	 54.75	0	737123..737701	+	192	15793719	grpE	NMA0744	-	heat shock protein
673	 50.46	0	737825..738040	-	71	15793720	-	NMA0745	-	periplasmic protein
674	 52.65	0	738066..739121	-	351	15793721	apbE	NMA0746	-	thiamine biosynthesis protein
675	 53.37	0	739274..740491	-	405	15793722	nqrF	NMA0747	-	Na(+)-translocating NADH-quinone reductase subunit F
676	 50.67	0	740505..741098	-	197	15793723	nqrE	NMA0748	-	Na(+)-translocating NADH-quinone reductase subunit E
677	 53.11	0	741102..741728	-	208	15793724	nqrD	NMA0749	-	Na(+)-translocating NADH-quinone reductase subunit D
678	 53.15	0	741728..742504	-	258	15793725	nqrC	NMA0750	-	Na(+)-translocating NADH-quinone reductase subunit C
679	 54.10	0	742497..743729	-	410	15793726	nqrB	NMA0751	-	Na(+)-translocating NADH-quinone reductase subunit B
680	 54.17	0	743732..745075	-	447	15793727	nqrA	NMA0752	-	Na(+)-translocating NADH-quinone reductase subunit A
681	 53.73	0	745423..746844	-	473	15793728	-	NMA0753	-	membrane protein
682	 55.00	0	747202..747561	-	119	15793729	-	NMA0754	-	membrane protein
683	 49.83	0	747558..748163	-	201	15793730	-	NMA0755	-	hypothetical protein
684	 52.17	0	748210..748692	-	160	15793731	-	NMA0756	-	transcription regulator AsnC
685	 36.19	-2	748755..748859	+	34	15793732	-	NMA0757	-	hypothetical protein
686	 55.01	0	749198..750304	+	368	15793733	gcvT	NMA0758	-	glycine cleavage system aminomethyltransferase T
687	 55.30	0	750467..750853	+	128	15793734	gcvH	NMA0759	-	glycine cleavage system protein H
688	 53.53	0	751005..752252	+	415	15793735	hemA	NMA0760	-	glutamyl-tRNA reductase
689	 53.83	0	752579..753100	+	173	15793736	-	NMA0761	-	regulatory protein
690	 53.24	0	753154..754188	+	344	15793737	-	NMA0762	-	hypothetical protein
691	 58.06	0	754216..754866	+	216	15793738	-	NMA0763	-	ABC-transporter ATP-binding protein
51.77	MEAN

7.09	STD DEV
