IslandPath Analysis: Neisseria meningitidis Z2491

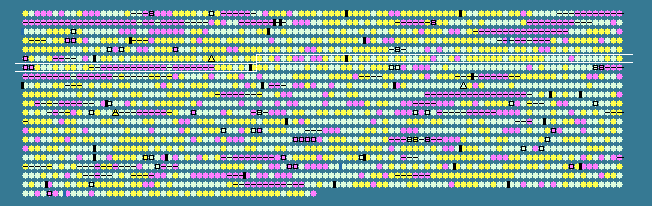

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
540	 57.89	0	570343..570798	-	151	15793587	accB	NMA0597	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
541	 50.31	0	570822..570980	+	52	15793588	-	NMA0598	-	hypothetical protein
542	 58.60	0	571154..572194	+	346	15793589	queA	NMA0599	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
543	 47.15	0	572565..573143	-	192	15793590	-	NMA0600	-	hypothetical protein
544	 51.78	0	573382..574281	+	299	15793591	-	NMA0601	-	LysR family transcriptional regulator
545	 56.78	0	574508..577723	-	1071	15793592	carB	NMA0602	-	carbamoyl phosphate synthase large subunit
546	 30.60	-2	577730..578278	-	182	15793593	-	NMA0603	-	hypothetical protein
547	 30.32	-2	578281..578844	-	187	15793594	-	NMA0604	-	hypothetical protein
548	 52.82	0	579695..580084	-	129	15793595	-	NMA0605	-	hypothetical protein
549	 43.33	-1	580081..580260	-	59	15793596	-	NMA0606	-	hypothetical protein
550	 44.20	-1	580363..580500	-	45	15793597	-	NMA0607	-	hypothetical protein
551	 57.41	0	580546..581679	-	377	15793598	carA	NMA0608	-	carbamoyl phosphate synthase small subunit
552	 51.03	0	583916..587029	-	1037	15793599	pilC1	NMA0609	-	pilus-associated protein
553	 59.26	+1	587168..587356	-	62	15793600	-	NMA0610	-	hypothetical protein
554	 58.33	0	587959..589086	-	375	15793601	-	NMA0611	-	hypothetical protein
555	 56.47	0	589403..589912	+	169	15793602	-	NMA0612	-	periplasmic thioredoxin
556	 51.47	0	590256..590696	+	146	15793603	-	NMA0613	-	MarR family transcriptional regulator
557	 55.49	0	590811..591311	+	166	15793604	-	NMA0614	-	NADH:FMN oxidoreductase
558	 59.63	+1	591329..592024	+	231	15793605	-	NMA0615	-	sugar-phosphate nucleotidyl transferase
559	 54.86	0	592270..592701	-	143	15793606	-	NMA0616	-	integral membrane protein
560	 55.46	0	592876..594552	+	558	15793607	fhs	NMA0617	-	formate--tetrahydrofolate ligase
561	 55.77	0	594667..595758	+	363	15793608	-	NMA0618	-	translation-associated GTPase
562	 53.02	0	596020..597888	+	622	15793609	-	NMA0619	-	lipopolysaccharide modification acyltransferase
563	 55.86	0	597950..599245	+	431	15793610	tyrS	NMA0620	-	tyrosyl-tRNA synthetase
564	 56.74	0	599508..600464	+	318	15793611	ribF	NMA0621	-	bifunctional riboflavin kinase/FMN adenylyltransferase
565	 55.16	0	600606..603395	+	929	15793612	ileS	NMA0622	-	isoleucyl-tRNA synthetase
566	 51.20	0	604582..605079	+	165	15793613	lspA	NMA0623	-	lipoprotein signal peptidase
567	 56.66	0	605108..606076	+	322	15793614	ispH	NMA0624	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
568	 60.62	+1	606164..606643	-	159	15793615	-	NMA0625	-	phosphatase
569	 44.34	-1	609568..609894	-	108	15793616	-	NMA0629	-	hypothetical protein
570	 49.40	0	609887..610801	-	304	15793617	-	NMA0630	-	hypothetical protein
571	 48.88	0	610868..614116	-	1082	15793618	-	NMA0631	-	hypothetical protein
572	 57.00	0	614394..617828	-	1144	15793619	dnaE	NMA0632	-	DNA polymerase III, alpha subunit
573	 47.46	0	618069..618245	-	58	15793620	-	NMA0632a	-	hypothetical protein
574	 54.70	0	618360..618593	+	77	15793621	-	NMA0633	-	hypothetical protein
575	 58.80	0	618565..618780	+	71	15793622	-	NMA0634	-	hypothetical protein
576	 60.33	+1	619076..619912	+	278	15793623	-	NMA0635	-	hypothetical protein
577	 57.08	0	619964..621256	-	430	15793624	avtA	NMA0636	-	valine--pyruvate transaminase
578	 56.78	0	621312..623222	-	636	15793625	pglD	NMA0637	-	pilin glycosylation protein
579	 55.64	0	623270..624484	-	404	15793626	pglC	NMA0638a	-	pilin glycosylation protein
580	 57.73	0	624523..625764	-	413	15793627	pglB	NMA0639	-	pilin glycosylation protein
581	 53.69	0	625757..626920	-	387	15793628	-	NMA0640	-	hypothetical protein
582	 60.55	+1	628018..629439	-	473	15793629	-	NMA0643	-	lipopolysaccharide biosynthesis translocase
583	 59.64	+1	629634..630743	-	369	15793630	ribD	NMA0644	-	diaminohydroxyphosphoribosylaminopyrimidine deaminase/phosphoribosylamino)uracil reductase
584	 61.94	+1	630775..631239	-	154	15793631	-	NMA0645	-	transcriptional regulator NrdR
585	 58.24	0	631269..632111	-	280	15793632	-	NMA0646	-	hypothetical protein
586	 59.54	+1	632755..633834	-	359	15793633	aroB	NMA0647	-	3-dehydroquinate synthase
587	 57.31	0	633914..634426	-	170	15793634	aroK	NMA0648	-	shikimate kinase
588	 52.67	0	635588..637873	-	761	15793635	pilQ	NMA0650	-	pilus secretin
589	 49.82	0	637892..638437	-	181	15793636	pilP	NMA0651	-	pilus assembly protein
590	 51.08	0	638455..639102	-	215	15793637	pilO	NMA0652	-	pilus assembly protein
591	 50.50	0	639103..639702	-	199	15793638	pilN	NMA0653	-	pilus assembly protein
592	 47.85	0	639705..640820	-	371	15793639	pilM	NMA0654	-	pilus assembly protein
593	 51.52	0	640972..643368	+	798	15793640	ponA	NMA0655	-	penicillin-binding protein 1
594	 49.52	0	643489..644118	-	209	15793641	-	NMA0656	-	GTPase EngB
595	 50.64	0	644324..644947	+	207	15793642	cyc	NMA0658	-	cytochrome C
596	 49.67	0	645224..647176	+	650	15793643	-	NMA0659	-	membrane protein
597	 52.53	0	647169..648356	+	395	15793644	-	NMA0660	-	membrane protein
598	 58.40	0	648473..649537	+	354	15793645	gcp	NMA0661	-	O-sialoglycoprotein endopeptidase
599	 54.74	0	649581..650477	-	298	15793646	-	NMA0662	-	lipid A biosynthesis lauroyl acyltransferase
600	 56.58	0	650823..651992	+	389	15793647	metK	NMA0663	-	S-adenosylmethionine synthetase
601	 40.40	-1	652241..652693	+	150	15793648	-	NMA0664	-	IS1016 transposase
602	 37.50	-2	652692..652883	+	63	15793649	-	NMA0664a	-	IS1016 transposase
603	 56.52	0	652959..654368	-	469	15793650	-	NMA0665	-	peptidase
604	 50.26	0	654533..655099	+	188	15793651	-	NMA0666	-	oxidoreductase
605	 52.89	0	655668..656981	+	437	15793652	-	NMA0668	-	transmembrane transport protein
606	 56.83	0	657370..658620	+	416	15793653	-	NMA0670	-	two-component system sensor kinase
607	 49.40	0	658677..658844	+	55	15793654	-	NMA0671	-	hypothetical protein
608	 56.69	0	658879..660372	-	497	15793655	-	NMA0672	-	hypothetical protein
609	 58.53	0	660586..660843	+	85	15793656	-	NMA0673	-	glutaredoxin
610	 55.18	0	660864..661307	+	147	15793657	secB	NMA0674	-	preprotein translocase subunit SecB
611	 58.64	0	661393..663435	+	680	15793658	recG	NMA0675	-	DNA helicase
612	 62.26	+1	664694..665737	-	347	15793659	argC	NMA0676	-	N-acetyl-gamma-glutamyl-phosphate reductase
613	 54.08	0	665734..666027	-	97	15793660	-	NMA0677	-	hypothetical protein
614	 42.06	-1	666395..666715	+	106	15793661	-	NMA0678	-	hypothetical protein
615	 45.06	0	666734..667543	+	269	15793662	-	NMA0679a	-	hypothetical protein
616	 26.32	-2	667552..667779	+	75	15793663	-	NMA0680	-	lipoprotein
617	 43.79	-1	667772..668125	+	117	15793664	-	NMA0681	-	hypothetical protein
618	 44.88	0	670145..670447	+	100	15793665	-	NMA0684	-	hypothetical protein
619	 32.75	-2	670462..670632	+	56	15793666	-	NMA0685	-	hypothetical protein
620	 46.59	0	671031..672773	+	580	15793667	-	NMA0687	-	periplasmic protein
621	 47.69	0	672883..678930	+	2015	15793668	-	NMA0688	-	hypothetical protein
622	 25.52	-2	678935..679318	+	127	15793669	-	NMA0689	-	hypothetical protein
623	 46.46	0	679568..682249	+	893	15793670	-	NMA0690	-	hypothetical protein
624	 25.93	-2	682265..682696	+	143	15793671	-	NMA0691	-	hypothetical protein
625	 50.64	0	682841..685342	+	833	15793672	-	NMA0692	-	hypothetical protein
626	 30.47	-2	685339..685827	+	162	15793673	-	NMA0693	-	hypothetical protein
627	 32.23	-2	686015..686287	+	90	15793674	-	NMA0694	-	hypothetical protein
628	 43.55	-1	686491..687459	+	322	15793675	-	NMA0695	-	hypothetical protein
629	 44.66	-1	687462..688397	+	311	15793676	-	NMA0696	-	hypothetical protein
630	 41.60	-1	688810..689160	+	116	15793677	-	NMA0696A	-	hypothetical protein
631	 17.78	-2	689167..689346	+	59	15793678	-	NMA0697	-	hypothetical protein
632	 27.02	-2	689728..690186	+	152	15793679	-	NMA0698	-	periplasmic protein
633	 56.56	0	690700..691926	-	408	15793680	rbn	NMA0700	-	fused ribonuclease BN/uncharacterized domain-containing protein
634	 55.91	0	692470..693129	+	219	15793681	-	NMA0702	-	hypothetical protein
635	 57.42	0	693157..693675	+	172	15793682	-	NMA0703	-	hypothetical protein
636	 53.90	0	693682..694104	+	140	15793683	-	NMA0704	-	hypothetical protein
637	 55.91	0	694373..694744	+	123	15793684	-	NMA0706	-	membrane protein
638	 54.62	0	694741..695379	+	212	15793685	-	NMA0707	-	hypothetical protein
639	 58.56	0	696057..697142	-	361	15793686	-	NMA0708	-	beta-hexosaminidase
51.77	MEAN

7.09	STD DEV
