IslandPath Analysis: Neisseria meningitidis Z2491

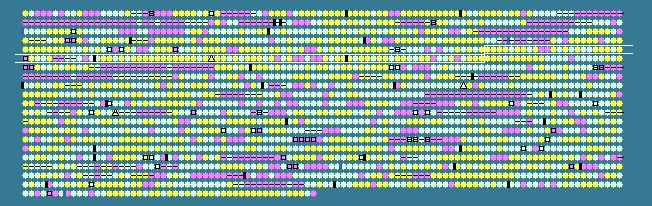

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
478	 55.51	0	504371..505177	+	268	15793524	lgtB2	NMA0527	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
479	 59.64	+1	507126..507851	-	241	15793525	-	NMA0528	-	hypothetical protein
480	 56.10	0	508060..508854	+	264	15793526	-	NMA0529	-	hypothetical protein
481	 57.97	0	512369..513115	-	248	15793528	fabG	NMA0533	-	3-ketoacyl-(acyl-carrier-protein) reductase
482	 54.53	0	513177..514742	-	521	15793529	guaA	NMA0534	-	bifunctional GMP synthase/glutamine amidotransferase protein
483	 57.23	0	514842..516707	-	621	15793530	-	NMA0535	-	ABC transporter ATP-binding protein
484	 59.98	+1	516845..517771	-	308	15793531	fabD	NMA0536	-	acyl-carrier-protein S-malonyltransferase
485	 54.92	0	517957..518322	-	121	15793532	-	NMA0537	-	integral membrane protein
486	 57.11	0	518369..519331	-	320	15793533	fabH	NMA0538	-	3-oxoacyl-(acyl carrier protein) synthase III
487	 36.38	-2	519581..520006	-	141	15793534	-	NMA0540	-	hypothetical protein
488	 39.29	-1	520024..520275	-	83	15793535	-	NMA0541	-	hypothetical protein
489	 57.58	0	520411..521466	-	351	15793536	plsX	NMA0542	-	putative glycerol-3-phosphate acyltransferase PlsX
490	 52.27	0	521554..522081	-	175	15793537	-	NMA0543	-	hypothetical protein
491	 57.22	0	522409..522588	-	59	15793538	rpmF	NMA0544	-	50S ribosomal protein L32
492	 50.99	0	522622..523125	-	167	15793539	-	NMA0545	-	hypothetical protein
493	 55.33	0	523273..523863	+	196	15793540	maf	NMA0546	-	Maf-like protein
494	 51.93	0	523910..524635	+	241	15793541	-	NMA0547	-	hypothetical protein
495	 54.95	0	524716..526353	-	545	15793542	-	NMA0548	-	putative inner membrane protein translocase component YidC
496	 56.36	0	526525..526815	-	96	15793543	-	NMA0549	-	hypothetical protein
497	 55.46	0	526812..527177	-	121	15793544	rnpA	NMA0550	-	ribonuclease P
498	 61.48	+1	527180..527314	-	44	15793545	rpmH	NMA0551	-	50S ribosomal protein L34
499	 55.23	0	527602..529158	+	518	15793546	dnaA	NMA0552	-	chromosomal replication initiator protein
500	 55.89	0	529238..530341	+	367	15793547	dnaN	NMA0553	-	DNA polymerase III subunit beta
501	 47.14	0	530526..531119	-	197	15793548	-	NMA0554	-	IS1016 transposase
502	 60.11	+1	531352..533409	-	685	15793549	ppk	NMA0555	-	polyphosphate kinase
503	 52.93	0	533578..534021	-	147	15793550	-	NMA0556	-	periplasmic protein
504	 54.46	0	534028..534543	-	171	15793551	mlp	NMA0557	-	lipoprotein
505	 55.73	0	534813..537545	+	910	15793552	leuS	NMA0559	-	leucyl-tRNA synthetase
506	 42.17	-1	537775..538566	+	263	15793553	drg	NMA0560	-	type II restriction endonuclease
507	 46.15	0	538898..539779	+	293	15793554	-	NMA0562	-	hypothetical protein
508	 50.00	0	540060..540155	-	31	15793555	-	NMA0563	-	hypothetical protein
509	 51.92	0	540161..540472	-	103	15793556	-	NMA0564	-	DNA-binding protein
510	 48.51	0	540469..540837	-	122	15793557	-	NMA0565	-	hypothetical protein
511	 38.10	-1	541086..541232	+	48	15793558	-	NMA0567	-	hypothetical protein
512	 50.00	0	541335..541538	+	67	15793559	-	NMA0568	-	hypothetical protein
513	 51.57	0	541736..542086	-	116	15793560	secG	NMA0569	-	preprotein translocase subunit SecG
514	 56.61	0	542093..542848	-	251	15793561	tpiA	NMA0570	-	triosephosphate isomerase
515	 56.63	0	543026..543553	+	175	15793562	-	NMA0571	-	hypothetical protein
516	 52.97	0	543655..544311	+	218	15793563	-	NMA0572	-	protein-L-isoaspartate O-methyltransferase
517	 55.56	0	544391..544714	+	107	15793564	-	NMA0573	-	hypothetical protein
518	 49.79	0	544723..544959	-	78	15793565	-	NMA0574	-	hypothetical protein
519	 62.49	+1	545129..547306	-	725	15793566	-	NMA0575	-	ferric siderophore receptor protein
520	 58.64	0	547420..547743	-	107	15793567	-	NMA0576	-	hypothetical protein
521	 60.97	+1	548781..549746	-	321	15793568	fetB2	NMA0577	-	ferric enterobactin transporter binding protein
522	 61.96	+1	549982..550938	+	318	15793569	-	NMA0578	-	AraC family transcription regulator
523	 56.94	0	551052..553067	-	671	15793570	-	NMA0579	-	prolyl endopeptidase
524	 62.93	+1	553268..554578	-	436	15793571	argA	NMA0580	-	N-acetylglutamate synthase
525	 56.78	0	554575..555009	-	144	15793572	-	NMA0581	-	hypothetical protein
526	 55.45	0	555083..555724	-	213	15793573	pyrE	NMA0582	-	orotate phosphoribosyltransferase
527	 62.06	+1	555786..556523	-	245	15793574	-	NMA0583	-	hypothetical protein
528	 58.73	0	556517..556957	-	146	15793575	-	NMA0584	-	acetyltransferase
529	 62.24	+1	556954..557631	-	225	15793576	-	NMA0585	-	hypothetical protein
530	 54.09	0	557771..558613	-	280	15793577	-	NMA0586	-	lipoprotein
531	 56.15	0	558939..560003	-	354	15793578	fba	NMA0587	-	fructose-1,6-bisphosphate aldolase
532	 61.87	+1	560197..561114	+	305	15793579	xerC	NMA0588	-	integrase/recombinase
533	 58.52	0	561199..563112	+	637	15793580	dxs	NMA0589	-	1-deoxy-D-xylulose-5-phosphate synthase
534	 56.28	0	563197..564525	-	442	15793581	-	NMA0590	-	hypothetical protein
535	 50.00	0	564983..565294	+	103	15793582	-	NMA0591	-	hypothetical protein
536	 58.26	0	565358..566641	+	427	15793583	hemL	NMA0592	-	glutamate-1-semialdehyde aminotransferase
537	 52.13	0	567140..567703	-	187	15793584	orn	NMA0594	-	oligoribonuclease
538	 59.57	+1	567721..568608	-	295	15793585	prmA	NMA0595	-	ribosomal protein L11 methyltransferase
539	 57.05	0	568869..570230	-	453	15793586	accC	NMA0596	-	acetyl-CoA carboxylase biotin carboxylase component
540	 57.89	0	570343..570798	-	151	15793587	accB	NMA0597	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
541	 50.31	0	570822..570980	+	52	15793588	-	NMA0598	-	hypothetical protein
542	 58.60	0	571154..572194	+	346	15793589	queA	NMA0599	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
543	 47.15	0	572565..573143	-	192	15793590	-	NMA0600	-	hypothetical protein
544	 51.78	0	573382..574281	+	299	15793591	-	NMA0601	-	LysR family transcriptional regulator
545	 56.78	0	574508..577723	-	1071	15793592	carB	NMA0602	-	carbamoyl phosphate synthase large subunit
546	 30.60	-2	577730..578278	-	182	15793593	-	NMA0603	-	hypothetical protein
547	 30.32	-2	578281..578844	-	187	15793594	-	NMA0604	-	hypothetical protein
548	 52.82	0	579695..580084	-	129	15793595	-	NMA0605	-	hypothetical protein
549	 43.33	-1	580081..580260	-	59	15793596	-	NMA0606	-	hypothetical protein
550	 44.20	-1	580363..580500	-	45	15793597	-	NMA0607	-	hypothetical protein
551	 57.41	0	580546..581679	-	377	15793598	carA	NMA0608	-	carbamoyl phosphate synthase small subunit
552	 51.03	0	583916..587029	-	1037	15793599	pilC1	NMA0609	-	pilus-associated protein
553	 59.26	+1	587168..587356	-	62	15793600	-	NMA0610	-	hypothetical protein
554	 58.33	0	587959..589086	-	375	15793601	-	NMA0611	-	hypothetical protein
555	 56.47	0	589403..589912	+	169	15793602	-	NMA0612	-	periplasmic thioredoxin
556	 51.47	0	590256..590696	+	146	15793603	-	NMA0613	-	MarR family transcriptional regulator
557	 55.49	0	590811..591311	+	166	15793604	-	NMA0614	-	NADH:FMN oxidoreductase
558	 59.63	+1	591329..592024	+	231	15793605	-	NMA0615	-	sugar-phosphate nucleotidyl transferase
559	 54.86	0	592270..592701	-	143	15793606	-	NMA0616	-	integral membrane protein
560	 55.46	0	592876..594552	+	558	15793607	fhs	NMA0617	-	formate--tetrahydrofolate ligase
561	 55.77	0	594667..595758	+	363	15793608	-	NMA0618	-	translation-associated GTPase
562	 53.02	0	596020..597888	+	622	15793609	-	NMA0619	-	lipopolysaccharide modification acyltransferase
563	 55.86	0	597950..599245	+	431	15793610	tyrS	NMA0620	-	tyrosyl-tRNA synthetase
564	 56.74	0	599508..600464	+	318	15793611	ribF	NMA0621	-	bifunctional riboflavin kinase/FMN adenylyltransferase
565	 55.16	0	600606..603395	+	929	15793612	ileS	NMA0622	-	isoleucyl-tRNA synthetase
566	 51.20	0	604582..605079	+	165	15793613	lspA	NMA0623	-	lipoprotein signal peptidase
567	 56.66	0	605108..606076	+	322	15793614	ispH	NMA0624	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
568	 60.62	+1	606164..606643	-	159	15793615	-	NMA0625	-	phosphatase
569	 44.34	-1	609568..609894	-	108	15793616	-	NMA0629	-	hypothetical protein
570	 49.40	0	609887..610801	-	304	15793617	-	NMA0630	-	hypothetical protein
571	 48.88	0	610868..614116	-	1082	15793618	-	NMA0631	-	hypothetical protein
572	 57.00	0	614394..617828	-	1144	15793619	dnaE	NMA0632	-	DNA polymerase III, alpha subunit
573	 47.46	0	618069..618245	-	58	15793620	-	NMA0632a	-	hypothetical protein
574	 54.70	0	618360..618593	+	77	15793621	-	NMA0633	-	hypothetical protein
575	 58.80	0	618565..618780	+	71	15793622	-	NMA0634	-	hypothetical protein
576	 60.33	+1	619076..619912	+	278	15793623	-	NMA0635	-	hypothetical protein
577	 57.08	0	619964..621256	-	430	15793624	avtA	NMA0636	-	valine--pyruvate transaminase
51.77	MEAN

7.09	STD DEV
