IslandPath Analysis: Neisseria meningitidis Z2491

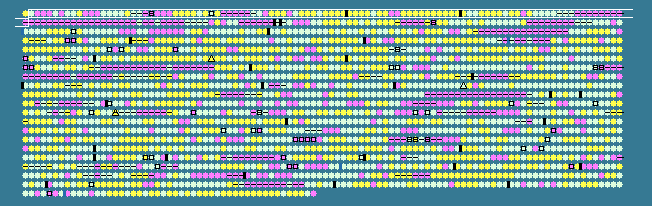

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2	 52.30	0	414..2438	-	674	15793036	nuoL	NMA0002	-	NADH dehydrogenase subunit L
3	 39.77	-1	2487..2828	-	113	15793037	-	NMA0003	-	hypothetical protein
4	 46.35	0	2952..3527	-	191	15793038	-	NMA0004	-	hypothetical protein
5	 47.71	0	3561..3866	-	101	15793039	nuoK	NMA0005	-	NADH dehydrogenase subunit K
6	 50.89	0	3863..4534	-	223	15793040	nuoJ	NMA0006	-	NADH dehydrogenase I chain J
7	 32.49	-2	4570..5277	-	235	15793041	-	NMA0007	-	hypothetical protein
8	 51.46	0	5308..5787	-	159	15793042	nuoI	NMA0008	-	NADH dehydrogenase subunit I
9	 51.72	0	5867..6943	-	358	15793043	nuoH	NMA0009	-	NADH dehydrogenase I chain H
10	 55.31	0	6946..9207	-	753	15793044	nuoG	NMA0010	-	NADH dehydrogenase subunit G
11	 38.89	-1	9489..9758	-	89	15793045	-	NMA0011	-	hypothetical protein
12	 39.33	-1	9778..9927	-	49	15793046	-	NMA0012	-	hypothetical protein
13	 33.11	-2	10044..10481	-	145	15793047	-	NMA0013	-	hypothetical protein
14	 53.76	0	10481..11782	-	433	15793048	nuoF	NMA0014	-	NADH dehydrogenase I chain F
15	 51.69	0	12172..12645	-	157	15793049	nuoE	NMA0015	-	NADH dehydrogenase subunit E
16	 54.73	0	12645..13901	-	418	15793050	nuoD	NMA0016	-	NADH dehydrogenase subunit D
17	 51.01	0	13891..14484	-	197	15793051	nuoC	NMA0017	-	NADH dehydrogenase subunit C
18	 56.31	0	14497..14979	-	160	15793052	nuoB	NMA0018	-	NADH dehydrogenase subunit B
19	 51.82	0	14970..15326	-	118	15793053	nuoA	NMA0019	-	NADH dehydrogenase I chain A
20	 48.82	0	15777..17261	-	494	15793054	-	NMA0020	-	hypothetical protein
21	 46.86	0	17251..17871	-	206	15793055	-	NMA0021	-	hypothetical protein
22	 36.77	-2	18070..18447	-	125	15793056	-	NMA0022	-	IS1016 transposase
23	 26.97	-2	18500..18829	+	109	15793057	-	NMA0023	-	hypothetical protein
24	 30.56	-2	18983..19198	+	71	15793058	-	NMA0024	-	hypothetical protein
25	 45.74	0	19388..19927	-	179	15793059	-	NMA0025	-	hypothetical protein
26	 57.34	0	20284..22491	-	735	15793060	uvrD	NMA0027	-	DNA helicase II
27	 56.94	0	22675..23322	+	215	15793061	-	NMA0028	-	hypothetical protein
28	 56.67	0	23319..24248	+	309	15793062	-	NMA0029	-	hypothetical protein
29	 58.81	0	24235..24972	+	245	15793063	-	NMA0030	-	hypothetical protein
30	 54.69	0	25101..26294	+	397	15793064	-	NMA0031	-	transmembrane transport protein
31	 55.70	0	26402..27094	+	230	15793065	-	NMA0032	-	hypothetical protein
32	 51.24	0	27359..28324	+	321	15793066	-	NMA0033	-	IS1655 transposase
33	 57.04	0	28626..31316	-	896	15793067	glnE	NMA0035	-	glutamate-ammonia-ligase adenylyltransferase
34	 39.88	-1	31491..31826	-	111	15793068	-	NMA0036	-	hypothetical protein
35	 40.30	-1	32080..32553	-	157	15793069	-	NMA0037	-	hypothetical protein
36	 40.78	-1	32606..32887	-	93	15793070	-	NMA0038	-	hypothetical protein
37	 36.11	-2	32974..33297	-	107	15793071	-	NMA0039	-	hypothetical protein
38	 33.33	-2	33299..33430	-	43	15793072	-	NMA0040	-	hypothetical protein
39	 50.56	0	33435..33614	-	59	15793073	-	NMA0041	-	hypothetical protein
40	 52.88	0	33630..34637	-	335	15793074	pyrD	NMA0042	-	dihydroorotate dehydrogenase 2
41	 47.26	0	34869..35105	+	78	15793075	acpP	NMA0043	-	acyl carrier protein
42	 59.94	+1	35272..36519	+	415	15793076	fabF	NMA0044	-	3-oxoacyl-(acyl carrier protein) synthase II
43	 57.26	0	36762..37718	-	318	15793077	-	NMA0046	-	transmembrane transport protein
44	 60.51	+1	38144..39361	+	405	15793078	-	NMA0047	-	transmembrane transport protein
45	 46.56	0	39717..40850	+	377	15793079	pglA	NMA0048	-	glycosyltransferase
46	 55.16	0	41790..42641	-	283	15793080	-	NMA0049	-	RNA polymerase sigma factor
47	 58.28	0	42989..44503	+	504	15793081	katA	NMA0050	-	catalase
48	 56.06	0	44683..45012	+	109	15793082	-	NMA0051	-	hypothetical protein
49	 59.44	+1	44988..45554	+	188	15793083	-	NMA0052	-	integral membrane protein
50	 54.35	0	45672..45947	-	91	15793084	-	NMA0053	-	hypothetical protein
51	 56.60	0	45987..48023	-	678	15793085	prlC	NMA0054	-	oligopeptidase A
52	 55.83	0	48111..49097	-	328	15793086	-	NMA0055	-	integral membrane protein
53	 56.17	0	49253..51643	+	796	15793087	gyrB	NMA0056	-	DNA gyrase subunit B
54	 60.68	+1	51962..53281	+	439	15793088	sdaA	NMA0057	-	L-serine dehydratase
55	 55.69	0	54687..56663	-	658	15793089	-	NMA0060	-	transmembrane transport protein
56	 63.45	+1	56812..57651	+	279	15793090	-	NMA0061	-	ferredoxin
57	 56.59	0	57851..58882	+	343	15793091	gapA	NMA0062	-	glyceraldehyde-3-phosphate dehydrogenase
58	 57.85	0	59138..59863	-	241	15793092	aat	NMA0063	-	leucyl/phenylalanyl-tRNA--protein transferase
59	 51.95	0	59933..60367	-	144	15793093	fur	NMA0064	-	ferric uptake regulation protein
60	 57.41	0	60586..60963	+	125	15793094	-	NMA0065	-	lipoprotein
61	 61.23	+1	60973..61782	+	269	15793095	dapB	NMA0066	-	dihydrodipicolinate reductase
62	 36.33	-2	62042..62341	-	99	15793096	-	NMA0067	-	hypothetical protein
63	 33.33	-2	62455..62700	-	81	15793097	-	NMA0068	-	hypothetical protein
64	 58.53	0	62708..63862	-	384	15793098	lpxB	NMA0069	-	lipid-A-disaccharide synthase
65	 57.50	0	63928..64920	-	330	15793099	rluC	NMA0070	-	ribosomal large subunit pseudouridine synthase C
66	 59.28	+1	65414..68173	+	919	15793100	rne	NMA0071	-	ribonuclease E
67	 60.40	+1	68960..69949	-	329	15793101	pdxA	NMA0072	-	pyridoxal phosphate biosynthetic protein
68	 55.60	0	70109..71536	+	475	15793102	-	NMA0073	-	amino-acid transport protein
69	 57.55	0	71870..73756	+	628	15793103	gidA	NMA0074	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
70	 57.78	0	73825..74409	+	194	15793104	rnhB	NMA0075	-	ribonuclease HII
71	 59.17	+1	75357..76130	-	257	15793105	-	NMA0076	-	parA family protein
72	 56.89	0	76229..76852	-	207	15793106	gidB	NMA0077	-	glucose-inhibited division protein B
73	 60.29	+1	76948..77433	-	161	15793107	-	NMA0078	-	integral membrane protein
74	 61.79	+1	77843..78970	+	375	15793108	-	NMA0079	-	integral membrane protein
75	 54.12	0	79151..79708	+	185	15793109	frr	NMA0080	-	ribosome recycling factor
76	 54.48	0	79764..80510	+	248	15793110	uppS	NMA0081	-	undecaprenyl diphosphate synthase
77	 56.39	0	80513..81310	+	265	15793111	cdsA	NMA0082	-	phosphatidate cytidylyltransferase
78	 58.31	0	81366..82550	+	394	15793112	dxr	NMA0083	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
79	 59.36	+1	82585..83925	+	446	15793113	-	NMA0084	-	integral membrane protein
80	 56.14	0	83982..86375	+	797	15793114	omp85	NMA0085	-	outer membrane protein OMP85
81	 53.29	0	86441..86941	+	166	15793115	-	NMA0086	-	hypothetical protein
82	 59.96	+1	86974..88017	+	347	15793116	lpxD	NMA0087	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
83	 57.56	0	88053..88502	+	149	15793117	fabZ	NMA0088	-	(3R)-hydroxymyristoyl-ACP dehydratase
84	 36.27	-2	88813..89493	+	226	15793118	-	NMA0089	-	hypothetical protein
85	 59.07	+1	89536..90312	+	258	15793119	lpxA	NMA0090	-	UDP-N-acetylglucosamine acyltransferase
86	 53.95	0	90669..92060	+	463	15793120	-	NMA0091	-	amino-acid transporter
87	 55.13	0	92139..93395	+	418	15793121	dadA	NMA0092	-	D-amino acid dehydrogenase small subunit
88	 54.44	0	93576..94385	+	269	15793122	-	NMA0093	-	zinc transporter ZupT
89	 55.00	0	94482..97319	+	945	15793123	valS	NMA0094	-	valyl-tRNA synthetase
90	 50.64	0	97474..97629	+	51	15793124	-	NMA0095	-	hypothetical protein
91	 50.77	0	97690..98079	-	129	15793125	-	NMA0096	-	hypothetical protein
92	 52.66	0	98653..99573	-	306	15793126	oxyR	NMA0098	-	hydrogen peroxide-inducible genes activator
93	 43.94	-1	99577..99840	-	87	15793127	minE	NMA0099	-	cell division topological specificity factor
94	 46.69	0	99844..100659	-	271	15793128	minD	NMA0100	-	septum site-determining protein
95	 45.10	0	100688..101401	-	237	15793129	minC	NMA0101	-	septum formation inhibitor
96	 46.34	0	101548..101916	-	122	15793130	rplQ	NMA0102	-	50S ribosomal protein L17
97	 42.45	-1	101940..102926	-	328	15793131	rpoA	NMA0103	-	DNA-directed RNA polymerase subunit alpha
98	 44.61	-1	102952..103572	-	206	15793132	rpsD	NMA0104	-	30S ribosomal protein S4
99	 44.95	0	103592..103987	-	131	15793133	rpsK	NMA0105	-	30S ribosomal protein S11
100	 46.56	0	104007..104369	-	120	15793134	rpsM	NMA0106	-	30S ribosomal protein S13
101	 38.60	-1	104435..104548	-	37	15793135	rpmJ	NMA0107	-	50S ribosomal protein L36
51.77	MEAN

7.09	STD DEV
