IslandPath Analysis: Neisseria meningitidis Z2491

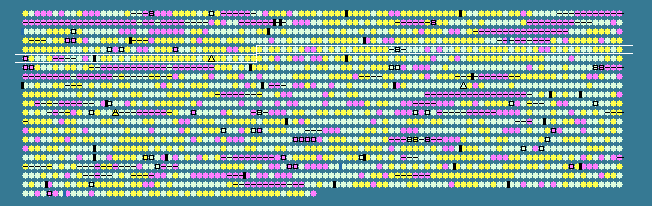

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
440	 56.77	0	473166..473660	+	164	15793486	-	NMA0487	-	outer membrane transport protein
441	 52.28	0	473697..474287	+	196	15793487	-	NMA0488	-	periplasmic transport protein
442	 57.10	0	474320..474622	+	100	15793488	-	NMA0489	-	hypothetical protein
443	 57.38	0	474619..475458	+	279	15793489	-	NMA0490	-	periplasmic/outer membrane protein
444	 54.45	0	475463..475945	+	160	15793490	-	NMA0491	-	hypothetical protein
445	 59.64	+1	475945..476328	+	127	15793491	-	NMA0492	-	hypothetical protein
446	 50.72	0	476325..476813	+	162	15793492	-	NMA0493	-	periplasmic protein
447	 57.89	0	476895..477407	-	170	15793493	-	NMA0494	-	acetyltransferase
448	 47.69	0	477642..477857	+	71	15793494	rpmE	NMA0495	-	50S ribosomal protein L31
449	 34.74	-2	478160..478801	+	213	15793495	cad	NMA0496	-	cadmium resistance protein
450	 59.57	+1	478957..480633	+	558	15793496	-	NMA0497	-	inner membrane protein
451	 54.13	0	480735..481340	+	201	15793497	regF	NMA0498	-	regulator of pilE expression
452	 57.00	0	481412..481804	+	130	15793498	regG	NMA0499	-	ClpXP protease specificity-enhancing factor
453	 49.28	0	481845..482051	+	68	15793499	-	NMA0500	-	hypothetical protein
454	 55.70	0	482129..482575	-	148	15793500	-	NMA0501	-	hypothetical protein
455	 54.46	0	482707..482919	-	70	15793501	rpsU	NMA0502	-	30S ribosomal protein S21
456	 60.29	+1	483208..485058	-	616	15793502	-	NMA0503	-	transglycosylase
457	 57.45	0	485588..486325	+	245	15793503	-	NMA0504	-	ABC transport ATP-binding subunit
458	 58.66	0	486327..487013	+	228	15793504	-	NMA0505	-	inner membrane transport protein
459	 55.67	0	487103..487966	+	287	15793505	-	NMA0506	-	lipoprotein
460	 58.25	0	488028..488597	-	189	15793506	-	NMA0507	-	aromatic acid decarboxylase
461	 56.68	0	488755..489615	+	286	15793507	-	NMA0508	-	chromosome segregation proteins
462	 50.15	0	489750..490088	+	112	15793508	-	NMA0510	-	hypothetical protein
463	 52.68	0	490197..490961	+	254	15793509	-	NMA0511	-	IS1655 transposase
464	 48.59	0	491540..491893	+	117	15793510	atpI	NMA0512	-	ATP synthase I
465	 50.63	0	491883..492749	+	288	15793511	atpB	NMA0513	-	F0F1 ATP synthase subunit A
466	 50.63	0	492806..493042	+	78	15793512	atpE	NMA0514	-	F0F1 ATP synthase subunit C
467	 51.59	0	493113..493583	+	156	15793513	atpF	NMA0515	-	F0F1 ATP synthase subunit B
468	 45.69	0	493588..494121	+	177	15793514	atpH	NMA0516	-	F0F1 ATP synthase subunit delta
469	 50.97	0	494132..495679	+	515	15793515	atpA	NMA0517	-	F0F1 ATP synthase subunit alpha
470	 46.80	0	495704..496579	+	291	15793516	atpG	NMA0518	-	F0F1 ATP synthase subunit gamma
471	 51.86	0	496617..498014	+	465	15793517	atpD	NMA0519	-	F0F1 ATP synthase subunit beta
472	 50.83	0	498025..498447	+	140	15793518	atpC	NMA0520	-	F0F1 ATP synthase subunit epsilon
473	 56.29	0	498802..499707	+	301	15793519	glyQ	NMA0521	-	glycyl-tRNA synthetase subunit alpha
474	 52.55	0	499784..500194	+	136	15793520	-	NMA0522	-	hypothetical protein
475	 56.01	0	500215..502278	+	687	15793521	glyS	NMA0523	-	glycyl-tRNA synthetase subunit beta
476	 51.49	0	502343..503383	+	346	15793522	lgtA	NMA0524	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
477	 55.83	0	503383..504222	+	279	15793523	lgtB	NMA0525	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
478	 55.51	0	504371..505177	+	268	15793524	lgtB2	NMA0527	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
479	 59.64	+1	507126..507851	-	241	15793525	-	NMA0528	-	hypothetical protein
480	 56.10	0	508060..508854	+	264	15793526	-	NMA0529	-	hypothetical protein
481	 57.97	0	512369..513115	-	248	15793528	fabG	NMA0533	-	3-ketoacyl-(acyl-carrier-protein) reductase
482	 54.53	0	513177..514742	-	521	15793529	guaA	NMA0534	-	bifunctional GMP synthase/glutamine amidotransferase protein
483	 57.23	0	514842..516707	-	621	15793530	-	NMA0535	-	ABC transporter ATP-binding protein
484	 59.98	+1	516845..517771	-	308	15793531	fabD	NMA0536	-	acyl-carrier-protein S-malonyltransferase
485	 54.92	0	517957..518322	-	121	15793532	-	NMA0537	-	integral membrane protein
486	 57.11	0	518369..519331	-	320	15793533	fabH	NMA0538	-	3-oxoacyl-(acyl carrier protein) synthase III
487	 36.38	-2	519581..520006	-	141	15793534	-	NMA0540	-	hypothetical protein
488	 39.29	-1	520024..520275	-	83	15793535	-	NMA0541	-	hypothetical protein
489	 57.58	0	520411..521466	-	351	15793536	plsX	NMA0542	-	putative glycerol-3-phosphate acyltransferase PlsX
490	 52.27	0	521554..522081	-	175	15793537	-	NMA0543	-	hypothetical protein
491	 57.22	0	522409..522588	-	59	15793538	rpmF	NMA0544	-	50S ribosomal protein L32
492	 50.99	0	522622..523125	-	167	15793539	-	NMA0545	-	hypothetical protein
493	 55.33	0	523273..523863	+	196	15793540	maf	NMA0546	-	Maf-like protein
494	 51.93	0	523910..524635	+	241	15793541	-	NMA0547	-	hypothetical protein
495	 54.95	0	524716..526353	-	545	15793542	-	NMA0548	-	putative inner membrane protein translocase component YidC
496	 56.36	0	526525..526815	-	96	15793543	-	NMA0549	-	hypothetical protein
497	 55.46	0	526812..527177	-	121	15793544	rnpA	NMA0550	-	ribonuclease P
498	 61.48	+1	527180..527314	-	44	15793545	rpmH	NMA0551	-	50S ribosomal protein L34
499	 55.23	0	527602..529158	+	518	15793546	dnaA	NMA0552	-	chromosomal replication initiator protein
500	 55.89	0	529238..530341	+	367	15793547	dnaN	NMA0553	-	DNA polymerase III subunit beta
501	 47.14	0	530526..531119	-	197	15793548	-	NMA0554	-	IS1016 transposase
502	 60.11	+1	531352..533409	-	685	15793549	ppk	NMA0555	-	polyphosphate kinase
503	 52.93	0	533578..534021	-	147	15793550	-	NMA0556	-	periplasmic protein
504	 54.46	0	534028..534543	-	171	15793551	mlp	NMA0557	-	lipoprotein
505	 55.73	0	534813..537545	+	910	15793552	leuS	NMA0559	-	leucyl-tRNA synthetase
506	 42.17	-1	537775..538566	+	263	15793553	drg	NMA0560	-	type II restriction endonuclease
507	 46.15	0	538898..539779	+	293	15793554	-	NMA0562	-	hypothetical protein
508	 50.00	0	540060..540155	-	31	15793555	-	NMA0563	-	hypothetical protein
509	 51.92	0	540161..540472	-	103	15793556	-	NMA0564	-	DNA-binding protein
510	 48.51	0	540469..540837	-	122	15793557	-	NMA0565	-	hypothetical protein
511	 38.10	-1	541086..541232	+	48	15793558	-	NMA0567	-	hypothetical protein
512	 50.00	0	541335..541538	+	67	15793559	-	NMA0568	-	hypothetical protein
513	 51.57	0	541736..542086	-	116	15793560	secG	NMA0569	-	preprotein translocase subunit SecG
514	 56.61	0	542093..542848	-	251	15793561	tpiA	NMA0570	-	triosephosphate isomerase
515	 56.63	0	543026..543553	+	175	15793562	-	NMA0571	-	hypothetical protein
516	 52.97	0	543655..544311	+	218	15793563	-	NMA0572	-	protein-L-isoaspartate O-methyltransferase
517	 55.56	0	544391..544714	+	107	15793564	-	NMA0573	-	hypothetical protein
518	 49.79	0	544723..544959	-	78	15793565	-	NMA0574	-	hypothetical protein
519	 62.49	+1	545129..547306	-	725	15793566	-	NMA0575	-	ferric siderophore receptor protein
520	 58.64	0	547420..547743	-	107	15793567	-	NMA0576	-	hypothetical protein
521	 60.97	+1	548781..549746	-	321	15793568	fetB2	NMA0577	-	ferric enterobactin transporter binding protein
522	 61.96	+1	549982..550938	+	318	15793569	-	NMA0578	-	AraC family transcription regulator
523	 56.94	0	551052..553067	-	671	15793570	-	NMA0579	-	prolyl endopeptidase
524	 62.93	+1	553268..554578	-	436	15793571	argA	NMA0580	-	N-acetylglutamate synthase
525	 56.78	0	554575..555009	-	144	15793572	-	NMA0581	-	hypothetical protein
526	 55.45	0	555083..555724	-	213	15793573	pyrE	NMA0582	-	orotate phosphoribosyltransferase
527	 62.06	+1	555786..556523	-	245	15793574	-	NMA0583	-	hypothetical protein
528	 58.73	0	556517..556957	-	146	15793575	-	NMA0584	-	acetyltransferase
529	 62.24	+1	556954..557631	-	225	15793576	-	NMA0585	-	hypothetical protein
530	 54.09	0	557771..558613	-	280	15793577	-	NMA0586	-	lipoprotein
531	 56.15	0	558939..560003	-	354	15793578	fba	NMA0587	-	fructose-1,6-bisphosphate aldolase
532	 61.87	+1	560197..561114	+	305	15793579	xerC	NMA0588	-	integrase/recombinase
533	 58.52	0	561199..563112	+	637	15793580	dxs	NMA0589	-	1-deoxy-D-xylulose-5-phosphate synthase
534	 56.28	0	563197..564525	-	442	15793581	-	NMA0590	-	hypothetical protein
535	 50.00	0	564983..565294	+	103	15793582	-	NMA0591	-	hypothetical protein
536	 58.26	0	565358..566641	+	427	15793583	hemL	NMA0592	-	glutamate-1-semialdehyde aminotransferase
537	 52.13	0	567140..567703	-	187	15793584	orn	NMA0594	-	oligoribonuclease
538	 59.57	+1	567721..568608	-	295	15793585	prmA	NMA0595	-	ribosomal protein L11 methyltransferase
539	 57.05	0	568869..570230	-	453	15793586	accC	NMA0596	-	acetyl-CoA carboxylase biotin carboxylase component
51.77	MEAN

7.09	STD DEV
