IslandPath Analysis: Neisseria meningitidis Z2491

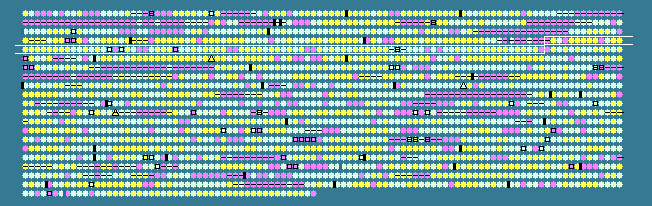

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.77   STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
388	 36.64	-2	401471..401893	+	140	15793434	vsr	NMA0429	-	patch repair protein
389	 57.01	0	401916..405041	-	1041	15793435	-	NMA0430	-	DNA helicase
390	 48.86	0	405107..406381	-	424	15793436	-	NMA0431	-	inner membrane protein
391	 42.91	-1	406562..407689	-	375	15793437	-	NMA0432	-	hypothetical protein
392	 57.40	0	407790..409181	-	463	15793438	hrpA'	NMA0433	-	ATP-dependent DNA helicase
393	 61.49	+1	409371..410780	-	469	15793439	-	NMA0434	-	hypothetical protein
394	 61.51	+1	410943..412163	-	406	15793440	argJ	NMA0435	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
395	 57.86	0	412230..412922	-	230	15793441	-	NMA0436	-	hypothetical protein
396	 56.81	0	412922..413266	-	114	15793442	-	NMA0437	-	hypothetical protein
397	 46.99	0	413263..413445	-	60	15793443	-	NMA0438	-	hypothetical protein
398	 52.05	0	413411..413629	-	72	15793444	-	NMA0439	-	hypothetical protein
399	 61.09	+1	413648..414490	-	280	15793445	-	NMA0440	-	hypothetical protein
400	 58.75	0	414735..415643	+	302	161353794	hslO	NMA0441	-	Hsp33-like chaperonin
401	 56.98	0	415729..417183	-	484	15793447	-	NMA0442	-	hypothetical protein
402	 60.29	+1	417417..418169	-	250	15793448	-	NMA0444	-	hydroxyacylglutathione hydrolase
403	 55.97	0	418264..422226	-	1320	15793449	purL	NMA0445	-	phosphoribosylformylglycinamidine synthase
404	 56.93	0	422690..423028	+	112	15793450	glnB	NMA0447	-	nitrogen regulatory protein P-II 1
405	 58.76	0	423084..423842	-	252	15793451	-	NMA0448	-	ABC transporter ATP-binding subunit
406	 62.20	+1	423973..424554	-	193	15793452	-	NMA0449	-	hypothetical protein
407	 55.59	0	424599..425546	-	315	15793453	-	NMA0450	-	inner membrane transport protein
408	 55.62	0	425563..426531	-	322	15793454	-	NMA0451	-	inner membrane transport protein
409	 54.04	0	426802..427767	-	321	15793455	fetB	NMA0452	-	membrane transport solute-binding protein
410	 53.52	0	428465..430609	-	714	15793456	fetA	NMA0453	-	iron-regulated outer membrane protein
411	 59.99	+1	432471..433817	-	448	15793457	trmE	NMA0454	-	tRNA modification GTPase TrmE
412	 53.85	0	433948..434103	+	51	15793458	-	NMA0455	-	hypothetical protein
413	 56.25	0	434100..434531	+	143	15793459	-	NMA0456	-	hypothetical protein
414	 51.91	0	434665..439014	+	1449	15793460	iga2	NMA0457	-	IgA-specific serine endopeptidase
415	 51.48	0	439330..440442	-	370	15793461	-	NMA0458	-	IS1106A3 transposase
416	 45.98	0	440504..441175	-	223	15793462	-	NMA0459	-	hypothetical protein
417	 53.77	0	441460..441777	+	105	15793463	-	NMA0461	-	truncated IS1106A2 transposase
418	 56.98	0	441995..444811	-	938	15793464	polA	NMA0462	-	DNA polymerase I
419	 53.25	0	444957..445463	-	168	15793465	-	NMA0463	-	S-ribosylhomocysteinase
420	 44.76	0	445485..445904	-	139	15793466	-	NMA0464	-	hypothetical protein
421	 39.13	-1	445930..446946	-	338	15793467	-	NMA0465	-	hypothetical protein
422	 53.40	0	446973..447296	-	107	15793468	cyaY	NMA0466	-	frataxin-like protein
423	 55.56	0	447367..447537	+	56	15793469	-	NMA0467	-	lipoprotein
424	 55.77	0	447548..448768	+	406	15793470	lysA	NMA0468	-	diaminopimelate decarboxylase
425	 56.05	0	448917..450452	-	511	15793471	-	NMA0470	-	sodium-dependent inner membrane transport protein
426	 47.55	0	450665..451318	-	217	15793472	-	NMA0471	-	IS1016 transposase
427	 54.64	0	451547..451837	+	96	15793473	groES	NMA0472	-	co-chaperonin GroES
428	 54.80	0	451930..453564	+	544	15793474	groEL	NMA0473	-	chaperonin GroEL
429	 55.45	0	454152..456584	-	810	15793475	hpuB	NMA0474	-	haemoglobin-haptoglobin-utilization protein
430	 53.72	0	456615..457688	-	357	15793476	hpuA	NMA0475	-	haemoglobin-haptoglobin-utilization protein
431	 56.19	0	458956..460473	+	505	15793477	-	NMA0476	-	hypothetical protein
432	 57.71	0	460532..462328	-	598	15793478	-	NMA0477	-	para-aminobenzoate synthase component I
433	 56.41	0	463713..466919	-	1068	15793479	-	NMA0478	-	outer membrane peptidase
434	 57.10	0	468118..469560	-	480	15793480	aldA	NMA0480	-	aldehyde dehydrogenase A
435	 40.80	-1	469595..469795	-	66	15793481	-	NMA0481	-	hypothetical protein
436	 25.90	-2	469804..470193	-	129	15793482	-	NMA0482	-	hypothetical protein
437	 56.54	0	470401..471318	-	305	15793483	-	NMA0483	-	transcriptional regulator
438	 55.75	0	471431..472291	+	286	15793484	-	NMA0485	-	ABC transport ATP-binding protein
439	 55.34	0	472339..473115	+	258	15793485	-	NMA0486	-	ABC transport inner membrane subunit
440	 56.77	0	473166..473660	+	164	15793486	-	NMA0487	-	outer membrane transport protein
441	 52.28	0	473697..474287	+	196	15793487	-	NMA0488	-	periplasmic transport protein
442	 57.10	0	474320..474622	+	100	15793488	-	NMA0489	-	hypothetical protein
443	 57.38	0	474619..475458	+	279	15793489	-	NMA0490	-	periplasmic/outer membrane protein
444	 54.45	0	475463..475945	+	160	15793490	-	NMA0491	-	hypothetical protein
445	 59.64	+1	475945..476328	+	127	15793491	-	NMA0492	-	hypothetical protein
446	 50.72	0	476325..476813	+	162	15793492	-	NMA0493	-	periplasmic protein
447	 57.89	0	476895..477407	-	170	15793493	-	NMA0494	-	acetyltransferase
448	 47.69	0	477642..477857	+	71	15793494	rpmE	NMA0495	-	50S ribosomal protein L31
449	 34.74	-2	478160..478801	+	213	15793495	cad	NMA0496	-	cadmium resistance protein
450	 59.57	+1	478957..480633	+	558	15793496	-	NMA0497	-	inner membrane protein
451	 54.13	0	480735..481340	+	201	15793497	regF	NMA0498	-	regulator of pilE expression
452	 57.00	0	481412..481804	+	130	15793498	regG	NMA0499	-	ClpXP protease specificity-enhancing factor
453	 49.28	0	481845..482051	+	68	15793499	-	NMA0500	-	hypothetical protein
454	 55.70	0	482129..482575	-	148	15793500	-	NMA0501	-	hypothetical protein
455	 54.46	0	482707..482919	-	70	15793501	rpsU	NMA0502	-	30S ribosomal protein S21
456	 60.29	+1	483208..485058	-	616	15793502	-	NMA0503	-	transglycosylase
457	 57.45	0	485588..486325	+	245	15793503	-	NMA0504	-	ABC transport ATP-binding subunit
458	 58.66	0	486327..487013	+	228	15793504	-	NMA0505	-	inner membrane transport protein
459	 55.67	0	487103..487966	+	287	15793505	-	NMA0506	-	lipoprotein
460	 58.25	0	488028..488597	-	189	15793506	-	NMA0507	-	aromatic acid decarboxylase
461	 56.68	0	488755..489615	+	286	15793507	-	NMA0508	-	chromosome segregation proteins
462	 50.15	0	489750..490088	+	112	15793508	-	NMA0510	-	hypothetical protein
463	 52.68	0	490197..490961	+	254	15793509	-	NMA0511	-	IS1655 transposase
464	 48.59	0	491540..491893	+	117	15793510	atpI	NMA0512	-	ATP synthase I
465	 50.63	0	491883..492749	+	288	15793511	atpB	NMA0513	-	F0F1 ATP synthase subunit A
466	 50.63	0	492806..493042	+	78	15793512	atpE	NMA0514	-	F0F1 ATP synthase subunit C
467	 51.59	0	493113..493583	+	156	15793513	atpF	NMA0515	-	F0F1 ATP synthase subunit B
468	 45.69	0	493588..494121	+	177	15793514	atpH	NMA0516	-	F0F1 ATP synthase subunit delta
469	 50.97	0	494132..495679	+	515	15793515	atpA	NMA0517	-	F0F1 ATP synthase subunit alpha
470	 46.80	0	495704..496579	+	291	15793516	atpG	NMA0518	-	F0F1 ATP synthase subunit gamma
471	 51.86	0	496617..498014	+	465	15793517	atpD	NMA0519	-	F0F1 ATP synthase subunit beta
472	 50.83	0	498025..498447	+	140	15793518	atpC	NMA0520	-	F0F1 ATP synthase subunit epsilon
473	 56.29	0	498802..499707	+	301	15793519	glyQ	NMA0521	-	glycyl-tRNA synthetase subunit alpha
474	 52.55	0	499784..500194	+	136	15793520	-	NMA0522	-	hypothetical protein
475	 56.01	0	500215..502278	+	687	15793521	glyS	NMA0523	-	glycyl-tRNA synthetase subunit beta
476	 51.49	0	502343..503383	+	346	15793522	lgtA	NMA0524	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
477	 55.83	0	503383..504222	+	279	15793523	lgtB	NMA0525	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
478	 55.51	0	504371..505177	+	268	15793524	lgtB2	NMA0527	-	lacto-N-neotetraose biosynthesis glycosyl tranferase
479	 59.64	+1	507126..507851	-	241	15793525	-	NMA0528	-	hypothetical protein
480	 56.10	0	508060..508854	+	264	15793526	-	NMA0529	-	hypothetical protein
481	 57.97	0	512369..513115	-	248	15793528	fabG	NMA0533	-	3-ketoacyl-(acyl-carrier-protein) reductase
482	 54.53	0	513177..514742	-	521	15793529	guaA	NMA0534	-	bifunctional GMP synthase/glutamine amidotransferase protein
483	 57.23	0	514842..516707	-	621	15793530	-	NMA0535	-	ABC transporter ATP-binding protein
484	 59.98	+1	516845..517771	-	308	15793531	fabD	NMA0536	-	acyl-carrier-protein S-malonyltransferase
485	 54.92	0	517957..518322	-	121	15793532	-	NMA0537	-	integral membrane protein
486	 57.11	0	518369..519331	-	320	15793533	fabH	NMA0538	-	3-oxoacyl-(acyl carrier protein) synthase III
487	 36.38	-2	519581..520006	-	141	15793534	-	NMA0540	-	hypothetical protein
51.77	MEAN

7.09	STD DEV
