IslandPath Analysis: Neisseria meningitidis Z2491

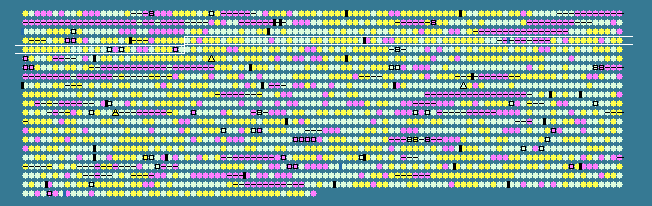

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.77   STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
328	 52.94	0	338926..339078	-	50	15793374	-	NMA0366	-	hypothetical protein
329	 61.40	+1	339126..340568	+	480	15793375	tldD	NMA0367	-	TLDD protein
330	 47.84	0	340819..341280	+	153	15793376	-	NMA0368	-	integral membrane protein
331	 57.30	0	341270..342091	+	273	15793377	hemK	NMA0369	-	HemK protein
332	 58.46	0	342177..343565	+	462	15793378	-	NMA0370	-	integral membrane protein
333	 55.56	0	343566..343790	+	74	15793379	slyX	NMA0371	-	hypothetical protein
334	 48.37	0	343870..344022	-	50	15793380	-	NMA0372	-	hypothetical protein
335	 61.35	+1	344185..344955	-	256	15793381	thiF	NMA0373	-	ThiF protein
336	 56.90	0	345121..347823	+	900	161353795	ppc	NMA0374	-	phosphoenolpyruvate carboxylase
337	 56.26	0	347946..348935	+	329	15793383	gpsA	NMA0375	-	glycerol-3-phosphate dehydrogenase
338	 51.21	0	348990..349319	+	109	15793384	-	NMA0376	-	hypothetical protein
339	 55.23	0	349330..349635	+	101	15793385	-	NMA0377	-	hypothetical protein
340	 51.16	0	349998..350429	+	143	15793386	rplM	NMA0378	-	50S ribosomal protein L13
341	 52.93	0	350439..350831	+	130	15793387	rpsI	NMA0379	-	30S ribosomal protein S9
342	 35.00	-2	350831..350950	+	39	15793388	-	NMA0380	-	hypothetical protein
343	 54.41	0	351086..352015	-	309	15793389	metR	NMA0381	-	transcriptional activator protein METR
344	 51.87	0	352146..352895	+	249	15793390	-	NMA0382	-	hypothetical protein
345	 56.36	0	353018..353599	+	193	15793391	petA	NMA0383	-	ubiquinol-cytochrome c reductase iron-sulfur subunit
346	 50.89	0	353618..354967	+	449	15793392	petB	NMA0384	-	cytochrome B
347	 48.80	0	354982..355770	+	262	15793393	petC	NMA0385	-	cytochrome C1 precursor
348	 53.56	0	356109..357893	+	594	15793394	-	NMA0386	-	periplasmic protein
349	 56.40	0	358099..358731	-	210	15793395	-	NMA0387	-	hydrolase
350	 57.45	0	358822..359646	+	274	15793396	-	NMA0388	-	DNA ligase
351	 55.14	0	359715..360278	+	187	15793397	hpt	NMA0389	-	hypoxanthine-guanine phosphoribosyltransferase
352	 57.76	0	360359..360796	+	145	15793398	-	NMA0390	-	sugar transport PTS system IIA component
353	 56.67	0	360865..361134	+	89	15793399	ptsH	NMA0391	-	sugar transport PTS system phosphocarrier protein HPr
354	 57.77	0	361134..362909	+	591	15793400	ptsI	NMA0392	-	phosphoenolpyruvate-protein phosphotransferase
355	 57.61	0	363353..364291	-	312	15793401	-	NMA0393	-	ABC-transport system ATP-binding protein
356	 58.22	0	364300..365175	-	291	15793402	-	NMA0394	-	hypothetical protein
357	 54.76	0	365227..365352	+	41	15793403	-	NMA0395	-	hypothetical protein
358	 33.33	-2	365494..365586	-	30	15793404	-	NMA0396	-	hypothetical protein
359	 56.52	0	365773..367674	+	633	15793405	thiC	NMA0397	-	thiamine biosynthesis protein ThiC
360	 51.92	0	369454..370443	-	329	15793406	porB	NMA0398	-	porin, major outer membrane protein P.I
361	 48.11	0	371688..372005	-	105	15793407	chpA	NMA0400	-	PEMK-like protein
362	 45.00	0	371999..372238	-	79	15793408	-	NMA0401	-	hypothetical protein
363	 60.53	+1	372361..373158	-	265	15793409	truA	NMA0402	-	tRNA pseudouridine synthase A
364	 60.46	+1	374566..375258	-	230	15793410	-	NMA0403	-	hypothetical protein
365	 55.91	0	375255..375998	-	247	15793411	nlaB	NMA0404	-	1-acyl-SN-glycerol-3-phosphate acyltransferase
366	 55.85	0	376027..376590	-	187	15793412	-	NMA0405	-	D,D-heptose 1,7-bisphosphate phosphatase
367	 53.96	0	377328..378980	+	550	15793413	-	NMA0408	-	integral membrane protein
368	 56.92	0	379050..380291	-	413	15793414	-	NMA0409	-	amino-acid transport protein
369	 55.37	0	380455..381171	+	238	15793415	ubiG	NMA0410	-	3-demethylubiquinone-9 3-methyltransferase
370	 54.76	0	381201..382124	+	307	15793416	thrB	NMA0411	-	homoserine kinase
371	 58.19	0	382463..382981	-	172	15793417	-	NMA0412	-	glucokinase
372	 60.03	+1	383001..384386	-	461	15793418	gntP	NMA0413	-	gluconate permease
373	 61.27	+1	384727..386319	+	530	15793419	-	NMA0414	-	permease
374	 55.67	0	386348..386947	+	199	15793420	-	NMA0415	-	hypothetical protein
375	 59.26	+1	386944..387537	+	197	15793421	-	NMA0416	-	hypothetical protein
376	 55.56	0	387596..387982	+	128	15793422	-	NMA0417	-	hypothetical protein
377	 60.30	+1	388036..388506	+	156	15793423	-	NMA0418	-	SPOUT methyltransferase superfamily protein
378	 55.06	0	388579..388845	+	88	15793424	-	NMA0419	-	hypothetical protein
379	 54.39	0	389002..389685	+	227	15793425	-	NMA0420	-	integral membrane protein
380	 52.83	0	389809..390321	+	170	15793426	coaD	NMA0421	-	phosphopantetheine adenylyltransferase
381	 48.27	0	390347..391009	+	220	15793427	-	NMA0422	-	psedouridine synthase
382	 54.41	0	396694..397158	+	154	15793428	-	NMA0423	-	DNA transport competence protein
383	 37.78	-1	397246..397695	+	149	15793429	-	NMA0424	-	pilin
384	 35.19	-2	397856..398125	-	89	15793430	-	NMA0425	-	hypothetical protein
385	 50.60	0	398238..398486	+	82	15793431	-	NMA0426A	-	hypothetical protein
386	 40.72	-1	398752..399807	+	351	15793432	-	NMA0427	-	modification methylase (cytosine-specific DNA methylase)
387	 37.52	-2	399821..401467	+	548	15793433	-	NMA0428	-	hypothetical protein
388	 36.64	-2	401471..401893	+	140	15793434	vsr	NMA0429	-	patch repair protein
389	 57.01	0	401916..405041	-	1041	15793435	-	NMA0430	-	DNA helicase
390	 48.86	0	405107..406381	-	424	15793436	-	NMA0431	-	inner membrane protein
391	 42.91	-1	406562..407689	-	375	15793437	-	NMA0432	-	hypothetical protein
392	 57.40	0	407790..409181	-	463	15793438	hrpA'	NMA0433	-	ATP-dependent DNA helicase
393	 61.49	+1	409371..410780	-	469	15793439	-	NMA0434	-	hypothetical protein
394	 61.51	+1	410943..412163	-	406	15793440	argJ	NMA0435	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
395	 57.86	0	412230..412922	-	230	15793441	-	NMA0436	-	hypothetical protein
396	 56.81	0	412922..413266	-	114	15793442	-	NMA0437	-	hypothetical protein
397	 46.99	0	413263..413445	-	60	15793443	-	NMA0438	-	hypothetical protein
398	 52.05	0	413411..413629	-	72	15793444	-	NMA0439	-	hypothetical protein
399	 61.09	+1	413648..414490	-	280	15793445	-	NMA0440	-	hypothetical protein
400	 58.75	0	414735..415643	+	302	161353794	hslO	NMA0441	-	Hsp33-like chaperonin
401	 56.98	0	415729..417183	-	484	15793447	-	NMA0442	-	hypothetical protein
402	 60.29	+1	417417..418169	-	250	15793448	-	NMA0444	-	hydroxyacylglutathione hydrolase
403	 55.97	0	418264..422226	-	1320	15793449	purL	NMA0445	-	phosphoribosylformylglycinamidine synthase
404	 56.93	0	422690..423028	+	112	15793450	glnB	NMA0447	-	nitrogen regulatory protein P-II 1
405	 58.76	0	423084..423842	-	252	15793451	-	NMA0448	-	ABC transporter ATP-binding subunit
406	 62.20	+1	423973..424554	-	193	15793452	-	NMA0449	-	hypothetical protein
407	 55.59	0	424599..425546	-	315	15793453	-	NMA0450	-	inner membrane transport protein
408	 55.62	0	425563..426531	-	322	15793454	-	NMA0451	-	inner membrane transport protein
409	 54.04	0	426802..427767	-	321	15793455	fetB	NMA0452	-	membrane transport solute-binding protein
410	 53.52	0	428465..430609	-	714	15793456	fetA	NMA0453	-	iron-regulated outer membrane protein
411	 59.99	+1	432471..433817	-	448	15793457	trmE	NMA0454	-	tRNA modification GTPase TrmE
412	 53.85	0	433948..434103	+	51	15793458	-	NMA0455	-	hypothetical protein
413	 56.25	0	434100..434531	+	143	15793459	-	NMA0456	-	hypothetical protein
414	 51.91	0	434665..439014	+	1449	15793460	iga2	NMA0457	-	IgA-specific serine endopeptidase
415	 51.48	0	439330..440442	-	370	15793461	-	NMA0458	-	IS1106A3 transposase
416	 45.98	0	440504..441175	-	223	15793462	-	NMA0459	-	hypothetical protein
417	 53.77	0	441460..441777	+	105	15793463	-	NMA0461	-	truncated IS1106A2 transposase
418	 56.98	0	441995..444811	-	938	15793464	polA	NMA0462	-	DNA polymerase I
419	 53.25	0	444957..445463	-	168	15793465	-	NMA0463	-	S-ribosylhomocysteinase
420	 44.76	0	445485..445904	-	139	15793466	-	NMA0464	-	hypothetical protein
421	 39.13	-1	445930..446946	-	338	15793467	-	NMA0465	-	hypothetical protein
422	 53.40	0	446973..447296	-	107	15793468	cyaY	NMA0466	-	frataxin-like protein
423	 55.56	0	447367..447537	+	56	15793469	-	NMA0467	-	lipoprotein
424	 55.77	0	447548..448768	+	406	15793470	lysA	NMA0468	-	diaminopimelate decarboxylase
425	 56.05	0	448917..450452	-	511	15793471	-	NMA0470	-	sodium-dependent inner membrane transport protein
426	 47.55	0	450665..451318	-	217	15793472	-	NMA0471	-	IS1016 transposase
427	 54.64	0	451547..451837	+	96	15793473	groES	NMA0472	-	co-chaperonin GroES
51.77	MEAN

7.09	STD DEV
