IslandPathversion 1.0

IslandPath Analysis: Neisseria meningitidis Z2491

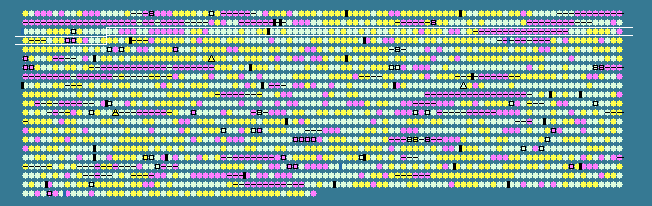

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
215	 54.92	0	216819..217661	+	280	15793250	-	NMA0228	-	hypothetical protein
216	 49.13	0	217651..218397	+	248	15793251	-	NMA0229	-	hypothetical protein
217	 47.28	0	218419..219006	+	195	15793252	-	NMA0230	-	RNA polymerase sigma factor
218	 41.84	-1	219450..219872	+	140	15793253	-	NMA0233	-	lipoprotein
219	 36.75	-2	221786..222019	-	77	15793254	-	NMA0236	-	hypothetical protein
220	 49.25	0	222047..222649	-	200	15793255	-	NMA0237	-	hypothetical protein
221	 50.08	0	222683..223954	-	423	15793256	purD	NMA0238	-	phosphoribosylamine--glycine ligase
222	 44.34	-1	224111..224428	+	105	15793257	-	NMA0239	-	hypothetical protein
223	 44.28	-1	224480..225091	-	203	15793258	-	NMA0240	-	hypothetical protein
224	 47.44	0	225154..226089	-	311	15793259	etfA	NMA0241	-	electron transfer flavoprotein alpha-subunit
225	 46.40	0	226100..226849	-	249	15793260	etfB	NMA0242	-	electron transfer flavoprotein beta-subunit
226	 46.54	0	227075..228043	-	322	15793261	-	NMA0243	-	lipopolysaccharide heptosyltransferase I
227	 44.81	0	228080..228715	-	211	15793262	pncA	NMA0244	-	nicotinamidase
228	 52.57	0	228830..229510	+	226	15793263	-	NMA0245	-	hypothetical protein
229	 55.32	0	229768..230772	-	334	15793264	-	NMA0246	-	glyceraldehyde 3-phosphate dehydrogenase C
230	 55.49	0	231216..233810	+	864	15793265	mutS	NMA0247	-	DNA mismatch repair protein
231	 47.97	0	233934..234425	-	163	15793266	-	NMA0248	-	acetyltransferase
232	 52.05	0	234429..234770	-	113	15793267	-	NMA0249	-	periplasmic protein
233	 55.20	0	234845..236239	-	464	15793268	gltX	NMA0250	-	glutamyl-tRNA synthetase
234	 55.10	0	236355..237011	-	218	15793269	-	NMA0251	-	periplasmic protein
235	 51.69	0	237008..237361	-	117	15793270	-	NMA0252	-	oxidoreductase
236	 52.59	0	237485..237967	+	160	15793271	-	NMA0253	-	periplasmic thiredoxin
237	 55.76	0	238162..238812	+	216	15793272	ftsE	NMA0254	-	ABC transporter ATP-binding protein
238	 54.90	0	238809..239726	+	305	15793273	ftsX	NMA0255	-	ABC transporter integral membrane protein
239	 53.01	0	239818..240066	+	82	15793274	-	NMA0256	-	hypothetical protein
240	 57.76	0	240133..241311	-	392	15793275	pgk	NMA0257	-	phosphoglycerate kinase
241	 58.53	0	241392..242645	-	417	15793276	murA	NMA0258	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
242	 49.44	0	243161..244135	-	324	15793277	-	NMA0259	-	transmembrane transport protein
243	 54.44	0	244168..244617	-	149	15793278	-	NMA0260	-	integral membrane protein
244	 59.12	+1	244658..245929	-	423	15793279	kdtA	NMA0261	-	3-deoxy-D-manno-octulosonic-acid transferase
245	 54.18	0	245992..247440	-	482	15793280	gnd	NMA0262	-	6-phosphogluconate dehydrogenase
246	 54.00	0	248626..249549	-	307	15793281	lpxC	NMA0263	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
247	 52.83	0	250476..250988	-	170	15793282	pilE	NMA0264	-	fimbrial protein precursor (pilin)
248	 55.10	0	256488..256850	-	120	15793290	pilS8	NMA0272	-	truncated pilin
249	 55.15	0	256879..257208	-	109	15793291	fbp	NMA0273	-	peptidyl-prolyl cis-trans isomerase
250	 54.93	0	257779..258732	+	317	124054302	-	NMA0274	-	glycerate dehydrogenase
251	 54.23	0	258807..260864	-	685	15793293	metG	NMA0275	-	methionyl-tRNA synthetase
252	 57.37	0	260980..262818	-	612	15793294	glmS	NMA0276	-	D-fructose-6-phosphate amidotransferase
253	 48.36	0	263100..263618	+	172	15793295	-	NMA0277	-	lipoprotein
254	 59.80	+1	264036..265361	-	441	15793296	-	NMA0279	-	membrane-bound lytic murein transglycosylase
255	 55.00	0	265572..266411	+	279	15793297	-	NMA0280	-	integral membrane protein
256	 53.73	0	266408..267574	+	388	15793298	-	NMA0281	-	hypothetical protein
257	 59.00	+1	267838..269103	+	421	15793299	-	NMA0282	-	hypothetical protein
258	 52.42	0	269175..269504	-	109	15793300	phnA	NMA0283	-	PhnA protein ortholog
259	 56.46	0	269581..270951	-	456	15793301	glmU	NMA0284	-	UDP-N-acetylglucosamine pyrophosphorylase
260	 52.75	0	271006..271278	-	90	15793302	-	NMA0285a	-	lipoprotein
261	 55.05	0	271254..271985	-	243	15793303	-	NMA0286	-	hydrolase
262	 59.38	+1	272044..273045	+	333	15793304	tbpA	NMA0287	-	thiamin-binding periplasmic protein
263	 53.71	0	273139..273987	+	282	15793305	-	NMA0288	-	integral membrane protein
264	 60.91	+1	274013..274498	+	161	15793306	-	NMA0289	-	hypothetical protein
265	 54.68	0	274600..276168	-	522	15793307	pilB	NMA0290	-	trifunctional thioredoxin/methionine sulfoxide reductase A/B protein
266	 55.77	0	276314..277579	+	421	15793308	pilA	NMA0291	-	signal recognition particle protein
267	 38.95	-1	278168..278452	+	94	15793309	-	NMA0292	-	hypothetical protein
268	 59.45	+1	283684..287799	-	1371	15793310	-	NMA0295	-	periplasmic protein
269	 58.55	0	287908..289755	-	615	15793311	-	NMA0296	-	hypothetical protein
270	 58.37	0	290320..291549	+	409	15793312	-	NMA0298	-	serine/threonine transporter SstT
271	 52.01	0	291661..293154	+	497	15793313	-	NMA0299	-	periplasmic protein
272	 46.76	0	293229..293444	-	71	15793314	-	NMA0300	-	integral membrane protein
273	 47.22	0	293437..293652	-	71	15793315	-	NMA0301	-	hypothetical protein
274	 54.54	0	293859..295202	-	447	15793316	argG	NMA0303	-	argininosuccinate synthase
275	 55.93	0	295327..296127	+	266	15793317	-	NMA0304	-	hypothetical protein
276	 57.85	0	296167..297153	+	328	15793318	-	NMA0305	-	protease
277	 27.73	-2	298657..299013	-	118	15793320	-	NMA0308	-	hypothetical protein
278	 23.19	-2	299156..299500	-	114	15793322	-	NMA0310	-	hypothetical protein
279	 28.61	-2	299659..300060	-	133	15793323	-	NMA0311	-	hypothetical protein
280	 36.71	-2	300064..300270	-	68	15793324	-	NMA0312	-	hypothetical protein
281	 47.76	0	300275..300787	-	170	15793325	mafB'	NMA0313	-	MAFB alternative C-terminus
282	 25.47	-2	300863..301180	-	105	15793326	-	NMA0314	-	hypothetical protein
283	 27.39	-2	301872..302174	-	100	15793328	-	NMA0316	-	hypothetical protein
284	 27.04	-2	302197..302466	-	89	15793329	-	NMA0317	-	hypothetical protein
285	 40.10	-1	302487..302693	-	68	15793330	-	NMA0318	-	hypothetical protein
286	 30.65	-2	303514..303885	-	123	15793332	-	NMA0320	-	hypothetical protein
287	 37.68	-1	303882..304088	-	68	15793333	-	NMA0321	-	hypothetical protein
288	 41.36	-1	304091..304252	-	53	15793334	-	NMA0322	-	hypothetical protein
289	 28.50	-2	304265..304471	-	68	15793335	-	NMA0323	-	hypothetical protein
290	 45.13	0	304481..305929	-	482	15793336	mafB	NMA0324	-	adhesin
291	 46.73	0	305969..306931	-	320	15793337	mafA	NMA0325	-	adhesin
292	 54.03	0	307114..307833	-	239	15793338	pyrH	NMA0326	-	uridylate kinase
293	 51.23	0	308156..309010	-	284	15793339	tsf	NMA0327	-	elongation factor Ts
294	 51.44	0	309139..309867	-	242	15793340	rpsB	NMA0328	-	30S ribosomal protein S2
295	 55.71	0	310068..310277	-	69	15793341	-	NMA0329	-	integral membrane protein
296	 59.11	+1	310355..310936	+	193	15793342	-	NMA0330	-	hypothetical protein
297	 55.50	0	310997..311587	+	196	15793343	-	NMA0331	-	hypothetical protein
298	 56.58	0	312124..313590	+	488	15793344	mqo	NMA0333	-	malate:quinone oxidoreductase
299	 50.27	0	313778..314338	-	186	15793345	-	NMA0335	-	adhesin component
300	 47.00	0	314390..314689	-	99	15793346	-	NMA0336	-	hypothetical protein
301	 57.44	0	314844..315623	-	259	15793347	map	NMA0337	-	methionine aminopeptidase
302	 56.73	0	315663..316256	-	197	15793348	-	NMA0338	-	periplasmic protein
303	 61.58	+1	316321..316929	-	202	15793349	-	NMA0339	-	lipoprotein
304	 57.74	0	316993..317586	-	197	15793350	gmhA	NMA0340	-	phosphoheptose isomerase
305	 52.59	0	317591..317938	-	115	15793351	-	NMA0341	-	hypothetical protein
306	 56.85	0	317991..318866	+	291	15793352	-	NMA0342	-	hypothetical protein
307	 59.75	+1	318901..319305	-	134	15793353	cybB	NMA0343	-	cytochrome B561
308	 39.51	-1	319596..320048	+	150	15793354	-	NMA0344	-	truncated IS1016 transposase
309	 35.94	-2	320047..320238	+	63	15793355	-	NMA0344A	-	truncated IS1016 transposase
310	 58.35	0	320559..321713	+	384	15793356	obgE	NMA0345	-	GTPase ObgE
311	 39.24	-1	321796..322845	+	349	15793357	-	NMA0346	-	ATP-binding protein
312	 48.43	0	322855..324954	+	699	15793358	cysS	NMA0347	-	cysteinyl-tRNA synthetase
313	 53.08	0	325037..325816	+	259	15793359	-	NMA0348	-	nuclease
314	 55.65	0	325803..326147	+	114	15793360	-	NMA0349	-	integral membrane protein
51.77	MEAN

7.09	STD DEV
