IslandPath Analysis: Neisseria meningitidis Z2491

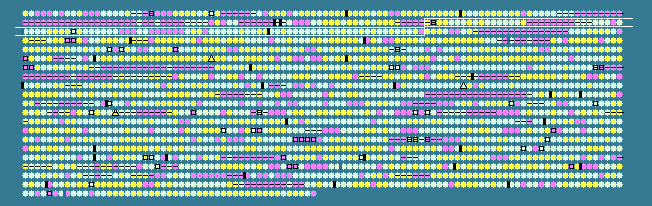

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
168	 59.24	+1	157181..157732	-	183	15793202	-	NMA0174	-	integral membrane protein
169	 39.96	-1	158005..158457	-	150	15793204	-	NMA0176	-	IS1016 transposase
170	 60.08	+1	158717..160189	+	490	15793205	pykA	NMA0177	-	pyruvate kinase
171	 56.49	0	160499..161893	+	464	15793206	-	NMA0178	-	hypothetical protein
172	 52.72	0	162205..162498	-	97	15793207	-	NMA0179	-	hypothetical protein
173	 50.00	0	162520..162627	-	35	15793208	-	NMA0180	-	hypothetical protein
174	 51.52	0	163021..163218	-	65	15793209	-	NMA0181	-	hypothetical protein
175	 57.42	0	163229..164245	-	338	15793210	-	NMA0182	-	lipoprotein
176	 53.25	0	164344..165558	-	404	15793211	gltS	NMA0183	-	sodium/glutamate symport carrier protein
177	 58.00	0	165776..167182	-	468	15793212	-	NMA0184	-	hypothetical protein
178	 48.73	0	167551..168810	-	419	15793213	lipB	NMA0185	-	capsule polysaccharide modification protein
179	 51.68	0	168947..171061	-	704	15793214	lipA	NMA0186	-	capsule polysaccharide modification protein
180	 52.79	0	171085..171639	-	184	15793215	rfbC2	NMA0187	-	dTDP-D-glucose 4,6-dehydratase
181	 53.06	0	171678..172544	-	288	15793216	rfbA2	NMA0188	-	glucose-1-phosphate thymidylyltransferase
182	 54.09	0	172650..173675	-	341	15793217	rfbB2	NMA0189	-	dTDP-glucose 4,6-dehydratase
183	 54.53	0	173791..174408	-	205	15793218	galE2'	NMA0190	-	truncated UDP-glucose 4-epimerase
184	 58.75	0	175860..178133	-	757	15793219	-	NMA0194	-	transcriptional accessory protein
185	 46.54	0	178197..178847	-	216	15793220	ctrD	NMA0195	-	capsule polysaccharide export ATP-binding protein
186	 45.36	0	178844..179641	-	265	15793221	ctrC	NMA0196	-	capsule polysaccharide export inner-membrane protein
187	 45.62	0	179641..180804	-	387	15793222	ctrB	NMA0197	-	capsule polysaccharide export inner-membrane protein
188	 47.16	0	180819..181982	-	387	15793223	ctrA	NMA0198	-	capsule polysaccharide export outer membrane protein
189	 34.85	-2	182201..183319	+	372	15793224	sacA	NMA0199	-	UDP-N-acetyl-D-glucosamine 2-epimerase
190	 30.46	-2	183321..184958	+	545	15793225	sacB	NMA0200	-	capsule biosynthesis protein
191	 27.69	-2	185031..185774	+	247	15793226	sacC	NMA0201	-	capsule biosynthesis protein
192	 24.54	-2	185776..186639	+	287	15793227	sacD	NMA0202	-	capsule biosynthesis protein
193	 51.76	0	186684..187703	+	339	15793228	galE	NMA0203	-	UDP-glucose 4-epimerase
194	 54.09	0	187819..188844	+	341	15793229	rfbB	NMA0204	-	dTDP-glucose 4,6-dehydratase
195	 53.06	0	188950..189816	+	288	15793230	rfbA	NMA0205	-	glucose-1-phosphate thymidylyltransferase
196	 53.75	0	189855..190427	+	190	15793231	rfbC	NMA0206	-	dTDP-4-dehydrorhamnose 3,5-epimerase
197	 54.78	0	190470..192488	-	672	15793232	-	NMA0207	-	integral membrane protein
198	 53.12	0	192683..193804	-	373	15793233	dnaJ	NMA0209	-	DnaJ protein
199	 40.12	-1	193851..194012	+	53	15793234	-	NMA0210	-	hypothetical protein
200	 53.98	0	194074..194538	-	154	15793235	-	NMA0211	-	DNA transport competence protein
201	 51.70	0	200192..200338	-	48	15793236	-	NMA0212	-	hypothetical protein
202	 49.64	0	200338..200754	-	138	15793237	dksA	NMA0213	-	DnaK suppressor protein
203	 53.66	0	200901..201692	-	263	15793238	proC	NMA0215	-	pyrroline-5-carboxylate reductase
204	 50.74	0	201741..202148	-	135	15793239	-	NMA0216	-	lipoprotein
205	 55.75	0	202148..202834	-	228	15793240	-	NMA0217	-	hypothetical protein
206	 56.90	0	202954..203997	+	347	15793241	pilT	NMA0218	-	pilus retraction protein
207	 56.07	0	204160..205386	+	408	15793242	pilU	NMA0219	-	pilT-like protein
208	 60.39	+1	205672..207822	+	716	15793243	-	NMA0220	-	integral membrane protein
209	 52.78	0	209578..210585	-	335	15793244	-	NMA0221	-	IS1106 transposase
210	 55.28	0	211062..212519	+	485	15793245	-	NMA0222	-	peptide transporter
211	 53.08	0	213431..214534	-	367	15793246	prfB	NMA0224	-	peptide chain release factor 2
212	 53.82	0	214637..215539	-	300	15793247	-	NMA0225	-	lipoprotein
213	 50.00	0	215872..216321	+	149	15793248	-	NMA0226	-	integral membrane protein
214	 54.69	0	216395..216703	+	102	15793249	-	NMA0227	-	periplasmic protein
215	 54.92	0	216819..217661	+	280	15793250	-	NMA0228	-	hypothetical protein
216	 49.13	0	217651..218397	+	248	15793251	-	NMA0229	-	hypothetical protein
217	 47.28	0	218419..219006	+	195	15793252	-	NMA0230	-	RNA polymerase sigma factor
218	 41.84	-1	219450..219872	+	140	15793253	-	NMA0233	-	lipoprotein
219	 36.75	-2	221786..222019	-	77	15793254	-	NMA0236	-	hypothetical protein
220	 49.25	0	222047..222649	-	200	15793255	-	NMA0237	-	hypothetical protein
221	 50.08	0	222683..223954	-	423	15793256	purD	NMA0238	-	phosphoribosylamine--glycine ligase
222	 44.34	-1	224111..224428	+	105	15793257	-	NMA0239	-	hypothetical protein
223	 44.28	-1	224480..225091	-	203	15793258	-	NMA0240	-	hypothetical protein
224	 47.44	0	225154..226089	-	311	15793259	etfA	NMA0241	-	electron transfer flavoprotein alpha-subunit
225	 46.40	0	226100..226849	-	249	15793260	etfB	NMA0242	-	electron transfer flavoprotein beta-subunit
226	 46.54	0	227075..228043	-	322	15793261	-	NMA0243	-	lipopolysaccharide heptosyltransferase I
227	 44.81	0	228080..228715	-	211	15793262	pncA	NMA0244	-	nicotinamidase
228	 52.57	0	228830..229510	+	226	15793263	-	NMA0245	-	hypothetical protein
229	 55.32	0	229768..230772	-	334	15793264	-	NMA0246	-	glyceraldehyde 3-phosphate dehydrogenase C
230	 55.49	0	231216..233810	+	864	15793265	mutS	NMA0247	-	DNA mismatch repair protein
231	 47.97	0	233934..234425	-	163	15793266	-	NMA0248	-	acetyltransferase
232	 52.05	0	234429..234770	-	113	15793267	-	NMA0249	-	periplasmic protein
233	 55.20	0	234845..236239	-	464	15793268	gltX	NMA0250	-	glutamyl-tRNA synthetase
234	 55.10	0	236355..237011	-	218	15793269	-	NMA0251	-	periplasmic protein
235	 51.69	0	237008..237361	-	117	15793270	-	NMA0252	-	oxidoreductase
236	 52.59	0	237485..237967	+	160	15793271	-	NMA0253	-	periplasmic thiredoxin
237	 55.76	0	238162..238812	+	216	15793272	ftsE	NMA0254	-	ABC transporter ATP-binding protein
238	 54.90	0	238809..239726	+	305	15793273	ftsX	NMA0255	-	ABC transporter integral membrane protein
239	 53.01	0	239818..240066	+	82	15793274	-	NMA0256	-	hypothetical protein
240	 57.76	0	240133..241311	-	392	15793275	pgk	NMA0257	-	phosphoglycerate kinase
241	 58.53	0	241392..242645	-	417	15793276	murA	NMA0258	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
242	 49.44	0	243161..244135	-	324	15793277	-	NMA0259	-	transmembrane transport protein
243	 54.44	0	244168..244617	-	149	15793278	-	NMA0260	-	integral membrane protein
244	 59.12	+1	244658..245929	-	423	15793279	kdtA	NMA0261	-	3-deoxy-D-manno-octulosonic-acid transferase
245	 54.18	0	245992..247440	-	482	15793280	gnd	NMA0262	-	6-phosphogluconate dehydrogenase
246	 54.00	0	248626..249549	-	307	15793281	lpxC	NMA0263	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
247	 52.83	0	250476..250988	-	170	15793282	pilE	NMA0264	-	fimbrial protein precursor (pilin)
248	 55.10	0	256488..256850	-	120	15793290	pilS8	NMA0272	-	truncated pilin
249	 55.15	0	256879..257208	-	109	15793291	fbp	NMA0273	-	peptidyl-prolyl cis-trans isomerase
250	 54.93	0	257779..258732	+	317	124054302	-	NMA0274	-	glycerate dehydrogenase
251	 54.23	0	258807..260864	-	685	15793293	metG	NMA0275	-	methionyl-tRNA synthetase
252	 57.37	0	260980..262818	-	612	15793294	glmS	NMA0276	-	D-fructose-6-phosphate amidotransferase
253	 48.36	0	263100..263618	+	172	15793295	-	NMA0277	-	lipoprotein
254	 59.80	+1	264036..265361	-	441	15793296	-	NMA0279	-	membrane-bound lytic murein transglycosylase
255	 55.00	0	265572..266411	+	279	15793297	-	NMA0280	-	integral membrane protein
256	 53.73	0	266408..267574	+	388	15793298	-	NMA0281	-	hypothetical protein
257	 59.00	+1	267838..269103	+	421	15793299	-	NMA0282	-	hypothetical protein
258	 52.42	0	269175..269504	-	109	15793300	phnA	NMA0283	-	PhnA protein ortholog
259	 56.46	0	269581..270951	-	456	15793301	glmU	NMA0284	-	UDP-N-acetylglucosamine pyrophosphorylase
260	 52.75	0	271006..271278	-	90	15793302	-	NMA0285a	-	lipoprotein
261	 55.05	0	271254..271985	-	243	15793303	-	NMA0286	-	hydrolase
262	 59.38	+1	272044..273045	+	333	15793304	tbpA	NMA0287	-	thiamin-binding periplasmic protein
263	 53.71	0	273139..273987	+	282	15793305	-	NMA0288	-	integral membrane protein
264	 60.91	+1	274013..274498	+	161	15793306	-	NMA0289	-	hypothetical protein
265	 54.68	0	274600..276168	-	522	15793307	pilB	NMA0290	-	trifunctional thioredoxin/methionine sulfoxide reductase A/B protein
266	 55.77	0	276314..277579	+	421	15793308	pilA	NMA0291	-	signal recognition particle protein
267	 38.95	-1	278168..278452	+	94	15793309	-	NMA0292	-	hypothetical protein
51.77	MEAN

7.09	STD DEV
