IslandPath Analysis: Neisseria meningitidis Z2491

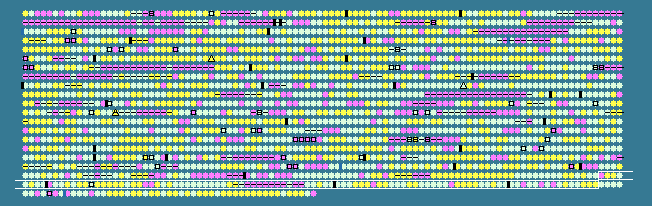

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1897	 45.90	0	2015789..2015971	-	60	15794945	-	NMA2067	-	periplasmic protein
1898	 55.26	0	2015968..2017326	-	452	15794946	murF	NMA2068	-	UDP-MurNAc-pentapeptide synthetase
1899	 56.66	0	2019121..2020599	-	492	15794947	murE	NMA2071	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1900	 54.75	0	2020624..2022369	-	581	15794948	penA	NMA2072	-	penicillin-binding protein 2
1901	 49.63	0	2022430..2022699	-	89	15794949	-	NMA2073	-	small periplasmic protein
1902	 57.55	0	2022690..2023676	-	328	15794950	mraW	NMA2074	-	S-adenosyl-methyltransferase MraW
1903	 53.73	0	2023673..2024128	-	151	15794951	-	NMA2075	-	cell division protein MraZ
1904	 50.08	0	2024407..2025624	+	405	15794952	-	NMA2076	-	hypothetical protein
1905	 46.35	0	2026199..2027020	-	273	15794953	-	NMA2077	-	integral membrane antobiotic resistance protein
1906	 48.99	0	2027053..2027697	-	214	15794954	-	NMA2078	-	thiol:disulphide interchange protein
1907	 50.80	0	2027700..2028569	-	289	15794955	-	NMA2079	-	hypothetical protein
1908	 59.65	+1	2028669..2030165	-	498	15794956	-	NMA2080	-	chelatase
1909	 50.56	0	2030179..2030532	-	117	15794957	-	NMA2081	-	hypothetical protein
1910	 55.60	0	2030982..2032508	+	508	15794958	putP	NMA2083	-	sodium/proline symporter
1911	 59.35	+1	2032759..2036364	+	1201	161353787	putA	NMA2084	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
1912	 51.72	0	2037591..2038172	-	193	15794960	-	NMA2085	-	putative transposase
1913	 56.55	0	2039124..2039894	-	256	15794961	xthA	NMA2086	-	exodeoxyribonuclease III
1914	 55.56	0	2039954..2040160	-	68	15794962	-	NMA2087	-	transcriptional regulator
1915	 61.56	+1	2040486..2041367	-	293	15794963	nadC	NMA2088	-	nicotinate-nucleotide pyrophosphorylase
1916	 60.92	+1	2041596..2042534	-	312	15794964	-	NMA2089	-	cytoplasmic membrane protein
1917	 58.49	0	2042839..2043951	+	370	15794965	nadA	NMA2090	-	quinolinate synthetase
1918	 48.81	0	2044102..2044437	+	111	15794966	-	NMA2091	-	integral membrane drug resistance protein
1919	 61.63	+1	2044486..2045994	+	502	15794967	nadB	NMA2092	-	L-aspartate oxidase
1920	 62.01	+1	2046172..2046837	-	221	15794968	pgm2	NMA2093	-	beta-phosphoglucomutase
1921	 31.72	-2	2047183..2048235	-	350	15794970	-	NMA2095	-	integral membrane efflux protein
1922	 33.87	-2	2048254..2048439	-	61	15794971	-	NMA2096	-	membrane pump-driving ATPase
1923	 61.11	+1	2048792..2049457	-	221	15794972	pgm1	NMA2097	-	beta-phosphoglucomutase
1924	 55.16	0	2049470..2051728	-	752	15794973	mapA	NMA2098	-	maltose phosphorylase
1925	 62.71	+1	2051961..2052971	-	336	15794974	galM	NMA2099	-	aldose 1-epimerase (mutarotase)
1926	 54.94	0	2052975..2054330	-	451	15794975	-	NMA2100	-	integral membrane transport protein
1927	 53.61	0	2054717..2056393	+	558	15794976	-	NMA2101	-	putative ABC transporter ATP-binding protein
1928	 52.88	0	2056453..2056938	-	161	15794977	pgpA	NMA2102	-	phosphatidylglycerophosphatase A
1929	 55.07	0	2056931..2057887	-	318	15794978	thiL	NMA2103	-	thiamine monophosphate kinase
1930	 52.67	0	2058708..2059436	-	242	15794979	rmpM	NMA2105	-	outer membrane protein class 4
1931	 52.16	0	2059800..2060750	+	316	15794980	-	NMA2106	-	transcriptional regulator CysB-like protein
1932	 52.93	0	2060863..2061597	-	244	15794981	-	NMA2107	-	anaerobic transcriptional regulatory protein
1933	 54.29	0	2061798..2063219	+	473	15794982	hemN	NMA2108	-	coproporphyrinogen III oxidase
1934	 52.70	0	2063572..2065146	-	524	15794983	-	NMA2109	-	phosphate permease
1935	 60.33	+1	2065468..2066571	+	367	15794984	anmK	NMA2111	-	anhydro-N-acetylmuramic acid kinase
1936	 59.45	+1	2066691..2067632	+	313	15794985	mafA2	NMA2112	-	adhesin MafA2
1937	 52.44	0	2067636..2069132	+	498	15794986	mafB2	NMA2113	-	adhesin MafB2
1938	 30.30	-2	2069147..2069377	+	76	15794987	-	NMA2114	-	hypothetical protein
1939	 44.74	0	2069526..2070200	+	224	15794988	-	NMA2115	-	hypothetical protein
1940	 33.33	-2	2070178..2070459	+	93	15794989	-	NMA2116	-	hypothetical protein
1941	 34.16	-2	2070639..2071124	+	161	15794990	-	NMA2117	-	hypothetical protein
1942	 34.92	-2	2071193..2071570	+	125	15794991	-	NMA2118	-	hypothetical protein
1943	 25.62	-2	2071875..2072276	+	133	15794992	-	NMA2120	-	hypothetical protein
1944	 40.89	-1	2072376..2072891	+	171	15794993	-	NMA2121	-	hypothetical protein
1945	 49.87	0	2073056..2074180	+	374	15794994	-	NMA2122	-	hypothetical protein
1946	 40.94	-1	2074267..2074542	-	91	15794995	-	NMA2123	-	hypothetical protein
1947	 39.32	-1	2074559..2075326	-	255	15794996	-	NMA2124	-	hypothetical protein
1948	 53.26	0	2075713..2075988	-	91	15794997	-	NMA2126	-	hypothetical protein
1949	 54.05	0	2075985..2077268	-	427	15794998	-	NMA2127	-	integral membrane signal transducer protein
1950	 55.46	0	2077423..2078841	-	472	15794999	glnA	NMA2128	-	glutamine synthetase
1951	 55.02	0	2079146..2079961	+	271	15795000	aroE	NMA2129	-	shikimate dehydrogenase
1952	 54.84	0	2079964..2080665	+	233	15795001	mtgA	NMA2130	-	monofunctional biosynthetic peptidoglycan transglycosylase
1953	 53.33	0	2081256..2082020	-	254	15795002	-	NMA2131	-	ABC transporter ATP-binding protein
1954	 53.30	0	2082064..2082594	-	176	15795003	-	NMA2132	-	hypothetical protein
1955	 48.97	0	2082575..2083156	-	193	15795004	-	NMA2133	-	hypothetical protein
1956	 57.54	0	2083153..2083689	-	178	15795005	-	NMA2134	-	hypothetical protein
1957	 59.38	+1	2083907..2084881	-	324	15795006	-	NMA2135	-	hypothetical protein
1958	 57.95	0	2084978..2086033	+	351	15795007	tal	NMA2136	-	transaldolase
1959	 36.43	-2	2086186..2086476	+	96	15795008	-	NMA2137	-	hypothetical protein
1960	 61.60	+1	2086493..2087380	+	295	15795009	-	NMA2138	-	glutamyl-Q tRNA(Asp) synthetase
1961	 59.25	+1	2087450..2088460	-	336	15795010	-	NMA2139	-	tRNA-dihydrouridine synthase A
1962	 54.47	0	2088491..2088982	-	163	15795011	-	NMA2140	-	D-tyrosyl-tRNA deacylase
1963	 53.19	0	2089056..2089775	-	239	15795012	-	NMA2141	-	hypothetical protein
1964	 51.21	0	2089885..2090751	-	288	15795013	-	NMA2142	-	hypothetical protein
1965	 58.78	0	2090800..2091078	-	92	15795014	-	NMA2143	-	hypothetical protein
1966	 55.67	0	2091078..2091368	-	96	15795015	-	NMA2144	-	YciI-like protein
1967	 48.40	0	2091371..2091901	-	176	15795016	-	NMA2145	-	morphogene
1968	 55.16	0	2092107..2094749	+	880	15795017	tspA	NMA2146	-	antigen protein TspA
1969	 53.00	0	2094922..2095338	-	138	15795018	gloA	NMA2147	-	lactoylglutathione lyase
1970	 52.99	0	2095362..2096531	-	389	15795019	-	NMA2148	-	hypothetical protein
1971	 51.11	0	2096542..2096856	-	104	15795020	-	NMA2149	-	hypothetical protein
1972	 44.07	-1	2096959..2097135	+	58	15795021	-	NMA2150	-	hypothetical protein
1973	 56.96	0	2097166..2098164	+	332	15795022	ilvE	NMA2151	-	branched-chain amino acid aminotransferase
1974	 57.38	0	2098349..2099134	-	261	15795023	fabI	NMA2152	-	enoyl-(acyl carrier protein) reductase
1975	 56.33	0	2099289..2100110	-	273	15795024	dapD	NMA2153	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1976	 59.06	+1	2100277..2101920	-	547	15795025	pgi2	NMA2154	-	glucose-6-phosphate isomerase 2
1977	 52.88	0	2102277..2103509	+	410	15795026	pilG	NMA2155	-	pilus-assembly protein
1978	 53.31	0	2103583..2104443	+	286	15795027	pilD	NMA2156	-	type IV prepilin leader peptidase
1979	 55.77	0	2104445..2105077	+	210	15795028	-	NMA2157	-	hypothetical protein
1980	 53.33	0	2105070..2105279	+	69	15795029	-	NMA2158	-	hypothetical protein
1981	 52.77	0	2105364..2107040	-	558	15795030	pilF	NMA2159	-	type IV pilus assembly protein
1982	 50.11	0	2107484..2107930	-	148	15795031	-	NMA2160	-	hypothetical protein
1983	 51.49	0	2107935..2108909	-	324	15795032	-	NMA2161	-	octaprenyl-diphosphate synthase
1984	 48.22	0	2109133..2109441	+	102	15795033	rplU	NMA2162	-	50S ribosomal protein L21
1985	 52.01	0	2109466..2109738	+	90	15795034	rpmA	NMA2163	-	50S ribosomal protein L27
1986	 52.91	0	2110077..2111261	+	394	15795035	-	NMA2164	-	hypothetical protein
1987	 40.38	-1	2111532..2111687	-	51	15795036	rpmG	NMA2165	-	50S ribosomal protein L33
1988	 52.14	0	2111719..2111952	-	77	15795037	rpmB	NMA2166	-	50S ribosomal protein L28
1989	 45.50	0	2112024..2112212	-	62	15795038	-	NMA2167	-	hypothetical protein
1990	 53.90	0	2112202..2113752	-	516	15795039	emrB	NMA2168	-	multidrug resistance translocase
1991	 59.92	+1	2113752..2114936	-	394	15795040	emrA	NMA2169	-	multidrug resistance translocase
1992	 51.69	0	2115348..2115821	+	157	15795041	-	NMA2170	-	7-cyano-7-deazaguanine reductase
1993	 53.86	0	2115898..2116584	+	228	15795042	-	NMA2171	-	hypothetical protein
1994	 60.71	+1	2117120..2118412	-	430	15795043	-	NMA2172	-	hypothetical protein
1995	 59.13	+1	2118490..2119458	+	322	15795044	-	NMA2173	-	hypothetical protein
1996	 55.33	0	2119659..2121131	-	490	15795045	-	NMA2174	-	hypothetical protein
51.77	MEAN

7.09	STD DEV
