IslandPathversion 1.0

IslandPath Analysis: Neisseria meningitidis Z2491

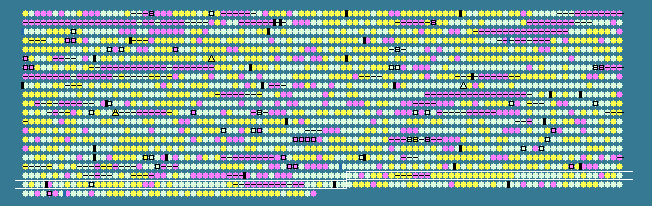

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1855	 53.37	0	1959380..1960522	+	380	15794903	-	NMA2023	-	polyamine permease substrate-binding protein
1856	 53.93	0	1962649..1965381	-	910	15794904	tbpA	NMA2024	-	transferrin-binding protein A
1857	 46.35	0	1965468..1967564	-	698	15794905	tbpB	NMA2025	-	transferrin-binding protein B
1858	 54.00	0	1969683..1970495	-	270	15794906	glr	NMA2026	-	glutamate racemase
1859	 58.66	0	1970697..1971158	+	153	15794907	-	NMA2027	-	hypothetical protein
1860	 59.63	+1	1971155..1972405	+	416	15794908	amiC	NMA2028	-	N-acetylmuramoyl-L-alanine amidase
1861	 45.02	0	1972431..1973303	+	290	15794909	-	NMA2029	-	hypothetical protein
1862	 56.17	0	1973599..1974741	-	380	15794910	-	NMA2030	-	hypothetical protein
1863	 55.56	0	1974790..1975212	-	140	15794911	-	NMA2031	-	secreted protein
1864	 59.51	+1	1975205..1976014	-	269	15794912	-	NMA2032	-	MutT-related protein
1865	 56.35	0	1976091..1976468	-	125	15794913	acpS	NMA2033	-	holo-(acyl-carrier protein) synthase
1866	 42.36	-1	1976465..1976608	-	47	15794914	-	NMA2034	-	hypothetical protein
1867	 35.16	-2	1976669..1977436	-	255	15794915	-	NMA2035	-	hypothetical protein
1868	 30.77	-2	1977446..1978225	-	259	15794916	-	NMA2036	-	hypothetical protein
1869	 58.30	0	1978272..1979000	-	242	15794917	pdxJ	NMA2037	-	pyridoxal phosphate biosynthetic protein PdxJ
1870	 60.75	+1	1979024..1979818	-	264	15794918	recO	NMA2038	-	DNA repair protein (recombination protein o)
1871	 59.93	+1	1979849..1980976	-	375	15794919	pheA	NMA2039	-	chorismate mutase
1872	 57.10	0	1981015..1982247	-	410	15794920	-	NMA2040	-	integral membrane efflux protein
1873	 58.36	0	1982766..1983620	-	284	15794921	-	NMA2041	-	hypothetical protein
1874	 61.13	+1	1987822..1988634	-	270	15794922	-	NMA2044	-	hypothetical protein
1875	 60.71	+1	1988719..1989591	+	290	15794923	-	NMA2045	-	oxidoreductase
1876	 57.19	0	1989648..1990850	-	400	15794924	-	NMA2046	-	hypothetical protein
1877	 55.83	0	1990847..1991215	-	122	15794925	-	NMA2047	-	hypothetical protein
1878	 57.21	0	1991389..1991832	+	147	15794926	-	NMA2048	-	hypothetical protein
1879	 55.39	0	1991959..1992579	-	206	15794927	-	NMA2049	-	hypothetical protein
1880	 55.92	0	1992937..1994136	-	399	15794928	ackA2	NMA2050	-	acetate kinase
1881	 57.01	0	1994550..1995719	-	389	15794929	-	NMA2051	-	hypothetical protein
1882	 56.23	0	1996523..1999129	-	868	15794930	acnA	NMA2052	-	aconitate hydratase
1883	 49.43	0	1999207..1999995	-	262	15794931	-	NMA2053	-	hypothetical protein
1884	 52.12	0	2000156..2001310	-	384	15794932	prpC	NMA2054	-	methylcitrate synthase
1885	 53.47	0	2001396..2002274	-	292	15794933	prpB	NMA2055	-	2-methylisocitrate lyase
1886	 52.86	0	2002897..2004207	-	436	15794934	-	NMA2056	-	hypothetical protein
1887	 54.11	0	2004346..2005524	-	392	15794935	ftsZ	NMA2057	-	cell division protein FtsZ
1888	 53.09	0	2005643..2006887	-	414	15794936	ftsA	NMA2058	-	cell division protein
1889	 53.22	0	2006973..2007701	-	242	15794937	ftsQ	NMA2059	-	cell division protein
1890	 52.68	0	2007691..2008605	-	304	15794938	ddl	NMA2060	-	D-alanine--D-alanine ligase
1891	 55.96	0	2008718..2010127	-	469	161353788	murC	NMA2061	-	UDP-N-acetylmuramate--L-alanine ligase
1892	 59.46	+1	2010282..2011349	-	355	15794940	murG	NMA2062	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentape pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
1893	 53.36	0	2011353..2012660	-	435	15794941	ftsW	NMA2063	-	cell division protein
1894	 56.80	0	2012804..2014141	-	445	15794942	murD	NMA2064	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1895	 54.95	0	2014226..2014498	-	90	15794943	-	NMA2065	-	periplasmic protein
1896	 54.66	0	2014613..2015695	-	360	15794944	mraY	NMA2066	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1897	 45.90	0	2015789..2015971	-	60	15794945	-	NMA2067	-	periplasmic protein
1898	 55.26	0	2015968..2017326	-	452	15794946	murF	NMA2068	-	UDP-MurNAc-pentapeptide synthetase
1899	 56.66	0	2019121..2020599	-	492	15794947	murE	NMA2071	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1900	 54.75	0	2020624..2022369	-	581	15794948	penA	NMA2072	-	penicillin-binding protein 2
1901	 49.63	0	2022430..2022699	-	89	15794949	-	NMA2073	-	small periplasmic protein
1902	 57.55	0	2022690..2023676	-	328	15794950	mraW	NMA2074	-	S-adenosyl-methyltransferase MraW
1903	 53.73	0	2023673..2024128	-	151	15794951	-	NMA2075	-	cell division protein MraZ
1904	 50.08	0	2024407..2025624	+	405	15794952	-	NMA2076	-	hypothetical protein
1905	 46.35	0	2026199..2027020	-	273	15794953	-	NMA2077	-	integral membrane antobiotic resistance protein
1906	 48.99	0	2027053..2027697	-	214	15794954	-	NMA2078	-	thiol:disulphide interchange protein
1907	 50.80	0	2027700..2028569	-	289	15794955	-	NMA2079	-	hypothetical protein
1908	 59.65	+1	2028669..2030165	-	498	15794956	-	NMA2080	-	chelatase
1909	 50.56	0	2030179..2030532	-	117	15794957	-	NMA2081	-	hypothetical protein
1910	 55.60	0	2030982..2032508	+	508	15794958	putP	NMA2083	-	sodium/proline symporter
1911	 59.35	+1	2032759..2036364	+	1201	161353787	putA	NMA2084	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
1912	 51.72	0	2037591..2038172	-	193	15794960	-	NMA2085	-	putative transposase
1913	 56.55	0	2039124..2039894	-	256	15794961	xthA	NMA2086	-	exodeoxyribonuclease III
1914	 55.56	0	2039954..2040160	-	68	15794962	-	NMA2087	-	transcriptional regulator
1915	 61.56	+1	2040486..2041367	-	293	15794963	nadC	NMA2088	-	nicotinate-nucleotide pyrophosphorylase
1916	 60.92	+1	2041596..2042534	-	312	15794964	-	NMA2089	-	cytoplasmic membrane protein
1917	 58.49	0	2042839..2043951	+	370	15794965	nadA	NMA2090	-	quinolinate synthetase
1918	 48.81	0	2044102..2044437	+	111	15794966	-	NMA2091	-	integral membrane drug resistance protein
1919	 61.63	+1	2044486..2045994	+	502	15794967	nadB	NMA2092	-	L-aspartate oxidase
1920	 62.01	+1	2046172..2046837	-	221	15794968	pgm2	NMA2093	-	beta-phosphoglucomutase
1921	 31.72	-2	2047183..2048235	-	350	15794970	-	NMA2095	-	integral membrane efflux protein
1922	 33.87	-2	2048254..2048439	-	61	15794971	-	NMA2096	-	membrane pump-driving ATPase
1923	 61.11	+1	2048792..2049457	-	221	15794972	pgm1	NMA2097	-	beta-phosphoglucomutase
1924	 55.16	0	2049470..2051728	-	752	15794973	mapA	NMA2098	-	maltose phosphorylase
1925	 62.71	+1	2051961..2052971	-	336	15794974	galM	NMA2099	-	aldose 1-epimerase (mutarotase)
1926	 54.94	0	2052975..2054330	-	451	15794975	-	NMA2100	-	integral membrane transport protein
1927	 53.61	0	2054717..2056393	+	558	15794976	-	NMA2101	-	putative ABC transporter ATP-binding protein
1928	 52.88	0	2056453..2056938	-	161	15794977	pgpA	NMA2102	-	phosphatidylglycerophosphatase A
1929	 55.07	0	2056931..2057887	-	318	15794978	thiL	NMA2103	-	thiamine monophosphate kinase
1930	 52.67	0	2058708..2059436	-	242	15794979	rmpM	NMA2105	-	outer membrane protein class 4
1931	 52.16	0	2059800..2060750	+	316	15794980	-	NMA2106	-	transcriptional regulator CysB-like protein
1932	 52.93	0	2060863..2061597	-	244	15794981	-	NMA2107	-	anaerobic transcriptional regulatory protein
1933	 54.29	0	2061798..2063219	+	473	15794982	hemN	NMA2108	-	coproporphyrinogen III oxidase
1934	 52.70	0	2063572..2065146	-	524	15794983	-	NMA2109	-	phosphate permease
1935	 60.33	+1	2065468..2066571	+	367	15794984	anmK	NMA2111	-	anhydro-N-acetylmuramic acid kinase
1936	 59.45	+1	2066691..2067632	+	313	15794985	mafA2	NMA2112	-	adhesin MafA2
1937	 52.44	0	2067636..2069132	+	498	15794986	mafB2	NMA2113	-	adhesin MafB2
1938	 30.30	-2	2069147..2069377	+	76	15794987	-	NMA2114	-	hypothetical protein
1939	 44.74	0	2069526..2070200	+	224	15794988	-	NMA2115	-	hypothetical protein
1940	 33.33	-2	2070178..2070459	+	93	15794989	-	NMA2116	-	hypothetical protein
1941	 34.16	-2	2070639..2071124	+	161	15794990	-	NMA2117	-	hypothetical protein
1942	 34.92	-2	2071193..2071570	+	125	15794991	-	NMA2118	-	hypothetical protein
1943	 25.62	-2	2071875..2072276	+	133	15794992	-	NMA2120	-	hypothetical protein
1944	 40.89	-1	2072376..2072891	+	171	15794993	-	NMA2121	-	hypothetical protein
1945	 49.87	0	2073056..2074180	+	374	15794994	-	NMA2122	-	hypothetical protein
1946	 40.94	-1	2074267..2074542	-	91	15794995	-	NMA2123	-	hypothetical protein
1947	 39.32	-1	2074559..2075326	-	255	15794996	-	NMA2124	-	hypothetical protein
1948	 53.26	0	2075713..2075988	-	91	15794997	-	NMA2126	-	hypothetical protein
1949	 54.05	0	2075985..2077268	-	427	15794998	-	NMA2127	-	integral membrane signal transducer protein
1950	 55.46	0	2077423..2078841	-	472	15794999	glnA	NMA2128	-	glutamine synthetase
1951	 55.02	0	2079146..2079961	+	271	15795000	aroE	NMA2129	-	shikimate dehydrogenase
1952	 54.84	0	2079964..2080665	+	233	15795001	mtgA	NMA2130	-	monofunctional biosynthetic peptidoglycan transglycosylase
1953	 53.33	0	2081256..2082020	-	254	15795002	-	NMA2131	-	ABC transporter ATP-binding protein
1954	 53.30	0	2082064..2082594	-	176	15795003	-	NMA2132	-	hypothetical protein
51.77	MEAN

7.09	STD DEV
