IslandPath Analysis: Neisseria meningitidis Z2491

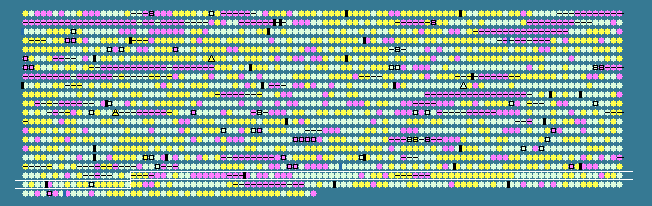

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1819	 55.35	0	1923905..1924567	-	220	15794866	exbB	NMA1984	-	biopolymer transport protein
1820	 56.11	0	1924633..1925475	-	280	15794867	tonB	NMA1985	-	TonB protein
1821	 55.87	0	1925730..1926368	+	212	15794868	-	NMA1986	-	hypothetical protein
1822	 36.97	-2	1926572..1926901	+	109	15794869	-	NMA1987	-	hypothetical protein
1823	 37.45	-2	1926820..1927620	-	266	15794870	-	NMA1988	-	integral membrane protein
1824	 30.25	-2	1927756..1928274	-	172	15794871	-	NMA1989	-	hypothetical protein
1825	 51.71	0	1928596..1929237	-	213	15794872	grxB	NMA1990	-	glutaredoxin 2
1826	 56.58	0	1929458..1931767	+	769	15794873	relA	NMA1991	-	GTP pyrophosphokinase
1827	 52.35	0	1933011..1934414	-	467	15794874	natC	NMA1994	-	periplasmic type I secretion system protein
1828	 50.25	0	1934483..1934683	-	66	15794875	natD'	NMA1995	-	periplasmic type I secretion system protein
1829	 45.39	0	1936559..1936840	+	93	15794877	-	NMA1997	-	hypothetical protein
1830	 44.91	0	1936911..1937126	+	71	15794878	-	NMA1998	-	hypothetical protein
1831	 45.99	0	1937519..1938553	+	344	15794879	-	NMA1999	-	hypothetical protein
1832	 47.54	0	1938544..1938888	+	114	15794880	-	NMA2000	-	hypothetical protein
1833	 42.42	-1	1938893..1939090	+	65	15794881	-	NMA2001	-	hypothetical protein
1834	 47.37	0	1939098..1939382	+	94	15794882	-	NMA2002	-	hypothetical protein
1835	 45.88	0	1939389..1939667	+	92	15794883	-	NMA2003	-	hypothetical protein
1836	 32.73	-2	1939780..1940112	+	110	15794884	-	NMA2004	-	hypothetical protein
1837	 45.45	0	1940096..1940491	+	131	15794885	-	NMA2005	-	cell-surface protein
1838	 46.67	0	1941209..1941568	-	119	15794886	-	NMA2006	-	hypothetical protein
1839	 48.68	0	1941591..1942235	-	214	15794887	-	NMA2007	-	hypothetical protein
1840	 44.32	-1	1942237..1942773	-	178	15794888	-	NMA2008	-	hypothetical protein
1841	 47.09	0	1942785..1943882	-	365	15794889	-	NMA2009	-	hypothetical protein
1842	 49.71	0	1943885..1945276	-	463	15794890	-	NMA2010	-	hypothetical protein
1843	 42.02	-1	1945541..1946323	-	260	15794891	-	NMA2011	-	hypothetical protein
1844	 44.29	-1	1946311..1946958	-	215	15794892	-	NMA2012	-	hypothetical protein
1845	 44.09	-1	1946968..1948110	-	380	15794893	bioF	NMA2013	-	8-amino-7-oxononanoate synthase
1846	 53.30	0	1948333..1949409	+	358	15794894	-	NMA2014	-	hypothetical protein
1847	 50.37	0	1949616..1951082	-	488	15794895	-	NMA2015	-	integral membrane transport protein
1848	 52.92	0	1951280..1952203	-	307	15794896	speB	NMA2016	-	agmatinase
1849	 49.76	0	1952302..1954194	-	630	15794897	speA	NMA2017	-	arginine decarboxylase
1850	 49.82	0	1954361..1954645	-	94	15794898	-	NMA2018	-	hypothetical protein
1851	 54.01	0	1954796..1956604	-	602	15794899	aspS	NMA2019	-	aspartyl-tRNA synthetase
1852	 51.76	0	1956662..1957399	-	245	15794900	-	NMA2020	-	integral membrane protein
1853	 53.98	0	1957506..1958735	-	409	15794901	-	NMA2021	-	phopholipase
1854	 53.79	0	1958814..1959077	-	87	15794902	rpsT	NMA2022	-	30S ribosomal protein S20
1855	 53.37	0	1959380..1960522	+	380	15794903	-	NMA2023	-	polyamine permease substrate-binding protein
1856	 53.93	0	1962649..1965381	-	910	15794904	tbpA	NMA2024	-	transferrin-binding protein A
1857	 46.35	0	1965468..1967564	-	698	15794905	tbpB	NMA2025	-	transferrin-binding protein B
1858	 54.00	0	1969683..1970495	-	270	15794906	glr	NMA2026	-	glutamate racemase
1859	 58.66	0	1970697..1971158	+	153	15794907	-	NMA2027	-	hypothetical protein
1860	 59.63	+1	1971155..1972405	+	416	15794908	amiC	NMA2028	-	N-acetylmuramoyl-L-alanine amidase
1861	 45.02	0	1972431..1973303	+	290	15794909	-	NMA2029	-	hypothetical protein
1862	 56.17	0	1973599..1974741	-	380	15794910	-	NMA2030	-	hypothetical protein
1863	 55.56	0	1974790..1975212	-	140	15794911	-	NMA2031	-	secreted protein
1864	 59.51	+1	1975205..1976014	-	269	15794912	-	NMA2032	-	MutT-related protein
1865	 56.35	0	1976091..1976468	-	125	15794913	acpS	NMA2033	-	holo-(acyl-carrier protein) synthase
1866	 42.36	-1	1976465..1976608	-	47	15794914	-	NMA2034	-	hypothetical protein
1867	 35.16	-2	1976669..1977436	-	255	15794915	-	NMA2035	-	hypothetical protein
1868	 30.77	-2	1977446..1978225	-	259	15794916	-	NMA2036	-	hypothetical protein
1869	 58.30	0	1978272..1979000	-	242	15794917	pdxJ	NMA2037	-	pyridoxal phosphate biosynthetic protein PdxJ
1870	 60.75	+1	1979024..1979818	-	264	15794918	recO	NMA2038	-	DNA repair protein (recombination protein o)
1871	 59.93	+1	1979849..1980976	-	375	15794919	pheA	NMA2039	-	chorismate mutase
1872	 57.10	0	1981015..1982247	-	410	15794920	-	NMA2040	-	integral membrane efflux protein
1873	 58.36	0	1982766..1983620	-	284	15794921	-	NMA2041	-	hypothetical protein
1874	 61.13	+1	1987822..1988634	-	270	15794922	-	NMA2044	-	hypothetical protein
1875	 60.71	+1	1988719..1989591	+	290	15794923	-	NMA2045	-	oxidoreductase
1876	 57.19	0	1989648..1990850	-	400	15794924	-	NMA2046	-	hypothetical protein
1877	 55.83	0	1990847..1991215	-	122	15794925	-	NMA2047	-	hypothetical protein
1878	 57.21	0	1991389..1991832	+	147	15794926	-	NMA2048	-	hypothetical protein
1879	 55.39	0	1991959..1992579	-	206	15794927	-	NMA2049	-	hypothetical protein
1880	 55.92	0	1992937..1994136	-	399	15794928	ackA2	NMA2050	-	acetate kinase
1881	 57.01	0	1994550..1995719	-	389	15794929	-	NMA2051	-	hypothetical protein
1882	 56.23	0	1996523..1999129	-	868	15794930	acnA	NMA2052	-	aconitate hydratase
1883	 49.43	0	1999207..1999995	-	262	15794931	-	NMA2053	-	hypothetical protein
1884	 52.12	0	2000156..2001310	-	384	15794932	prpC	NMA2054	-	methylcitrate synthase
1885	 53.47	0	2001396..2002274	-	292	15794933	prpB	NMA2055	-	2-methylisocitrate lyase
1886	 52.86	0	2002897..2004207	-	436	15794934	-	NMA2056	-	hypothetical protein
1887	 54.11	0	2004346..2005524	-	392	15794935	ftsZ	NMA2057	-	cell division protein FtsZ
1888	 53.09	0	2005643..2006887	-	414	15794936	ftsA	NMA2058	-	cell division protein
1889	 53.22	0	2006973..2007701	-	242	15794937	ftsQ	NMA2059	-	cell division protein
1890	 52.68	0	2007691..2008605	-	304	15794938	ddl	NMA2060	-	D-alanine--D-alanine ligase
1891	 55.96	0	2008718..2010127	-	469	161353788	murC	NMA2061	-	UDP-N-acetylmuramate--L-alanine ligase
1892	 59.46	+1	2010282..2011349	-	355	15794940	murG	NMA2062	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentape pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
1893	 53.36	0	2011353..2012660	-	435	15794941	ftsW	NMA2063	-	cell division protein
1894	 56.80	0	2012804..2014141	-	445	15794942	murD	NMA2064	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1895	 54.95	0	2014226..2014498	-	90	15794943	-	NMA2065	-	periplasmic protein
1896	 54.66	0	2014613..2015695	-	360	15794944	mraY	NMA2066	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1897	 45.90	0	2015789..2015971	-	60	15794945	-	NMA2067	-	periplasmic protein
1898	 55.26	0	2015968..2017326	-	452	15794946	murF	NMA2068	-	UDP-MurNAc-pentapeptide synthetase
1899	 56.66	0	2019121..2020599	-	492	15794947	murE	NMA2071	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1900	 54.75	0	2020624..2022369	-	581	15794948	penA	NMA2072	-	penicillin-binding protein 2
1901	 49.63	0	2022430..2022699	-	89	15794949	-	NMA2073	-	small periplasmic protein
1902	 57.55	0	2022690..2023676	-	328	15794950	mraW	NMA2074	-	S-adenosyl-methyltransferase MraW
1903	 53.73	0	2023673..2024128	-	151	15794951	-	NMA2075	-	cell division protein MraZ
1904	 50.08	0	2024407..2025624	+	405	15794952	-	NMA2076	-	hypothetical protein
1905	 46.35	0	2026199..2027020	-	273	15794953	-	NMA2077	-	integral membrane antobiotic resistance protein
1906	 48.99	0	2027053..2027697	-	214	15794954	-	NMA2078	-	thiol:disulphide interchange protein
1907	 50.80	0	2027700..2028569	-	289	15794955	-	NMA2079	-	hypothetical protein
1908	 59.65	+1	2028669..2030165	-	498	15794956	-	NMA2080	-	chelatase
1909	 50.56	0	2030179..2030532	-	117	15794957	-	NMA2081	-	hypothetical protein
1910	 55.60	0	2030982..2032508	+	508	15794958	putP	NMA2083	-	sodium/proline symporter
1911	 59.35	+1	2032759..2036364	+	1201	161353787	putA	NMA2084	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
1912	 51.72	0	2037591..2038172	-	193	15794960	-	NMA2085	-	putative transposase
1913	 56.55	0	2039124..2039894	-	256	15794961	xthA	NMA2086	-	exodeoxyribonuclease III
1914	 55.56	0	2039954..2040160	-	68	15794962	-	NMA2087	-	transcriptional regulator
1915	 61.56	+1	2040486..2041367	-	293	15794963	nadC	NMA2088	-	nicotinate-nucleotide pyrophosphorylase
1916	 60.92	+1	2041596..2042534	-	312	15794964	-	NMA2089	-	cytoplasmic membrane protein
1917	 58.49	0	2042839..2043951	+	370	15794965	nadA	NMA2090	-	quinolinate synthetase
1918	 48.81	0	2044102..2044437	+	111	15794966	-	NMA2091	-	integral membrane drug resistance protein
51.77	MEAN

7.09	STD DEV
