IslandPath Analysis: Neisseria meningitidis Z2491

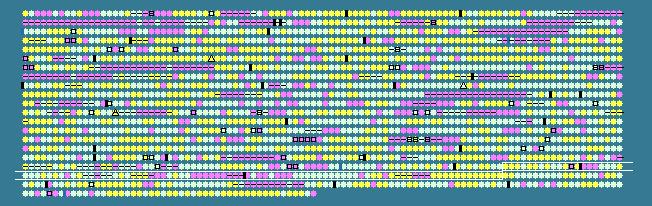

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.77   STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1781	 58.40	0	1878816..1879892	-	358	15794828	prfA	NMA1945	-	peptide chain release factor 1
1782	 55.79	0	1879996..1880850	-	284	15794829	-	NMA1946	-	hypothetical protein
1783	 58.59	0	1880890..1881879	-	329	15794830	ans	NMA1947	-	L-asparaginase
1784	 53.18	0	1881946..1882731	-	261	15794831	-	NMA1948	-	DedA family integral membrane protein
1785	 56.78	0	1882819..1884153	-	444	15794832	-	NMA1949	-	phosphoglucomutase/phosphomannomutase
1786	 58.33	0	1884283..1885134	-	283	15794833	dhpS	NMA1950	-	dihydropteroate synthase
1787	 54.57	0	1885301..1887523	+	740	15794834	-	NMA1951	-	hypothetical protein
1788	 56.46	0	1887587..1889065	-	492	15794835	-	NMA1952	-	hypothetical protein
1789	 50.78	0	1889085..1889600	-	171	15794836	-	NMA1953	-	hypothetical protein
1790	 55.17	0	1889607..1890041	-	144	15794837	-	NMA1954	-	integral membrane protein
1791	 58.39	0	1890339..1890773	-	144	15794838	-	NMA1955	-	hypothetical protein
1792	 47.09	0	1890948..1891616	+	222	15794839	-	NMA1956	-	IS1016 transposase
1793	 59.72	+1	1891823..1892959	+	378	15794840	fabF2	NMA1957	-	3-oxoacyl-(acyl carrier protein) synthase II
1794	 44.71	0	1893157..1893921	+	254	15794841	lgtF	NMA1958	-	beta-1,4-glucosyltransferase
1795	 47.04	0	1893922..1894986	+	354	15794842	rfaK	NMA1959	-	alpha 1,2 N-acetylglucosamine transferase
1796	 42.69	-1	1895025..1895195	+	56	15794843	-	NMA1960	-	hypothetical protein
1797	 51.79	0	1895373..1896710	+	445	15794844	-	NMA1961	-	integral membrane ion transporter
1798	 53.94	0	1896882..1897541	-	219	15794845	-	NMA1962	-	hypothetical protein
1799	 53.08	0	1897550..1898344	-	264	15794846	thyA	NMA1963	-	thymidylate synthase
1800	 56.18	0	1898767..1900101	+	444	15794847	gdhA	NMA1964	-	glutamate dehydrogenase
1801	 53.90	0	1900390..1901172	-	260	15794848	-	NMA1965	-	GntR family transcriptional regulator
1802	 53.00	0	1901600..1901899	+	99	15794849	-	NMA1966	-	integral membrane protein
1803	 50.00	0	1901926..1902075	+	49	15794850	-	NMA1967	-	hypothetical protein
1804	 56.13	0	1902277..1903680	-	467	15794851	mtrE	NMA1968	-	outer membrane lipoprotein
1805	 54.06	0	1903735..1906938	-	1067	15794852	mtrD	NMA1969	-	drug efflux protein
1806	 58.27	0	1906950..1908188	-	412	15794853	mtrC	NMA1970	-	membrane fusion protein
1807	 51.50	0	1908596..1909228	+	210	15794854	mtrR	NMA1971	-	transcriptional regulato
1808	 29.46	-2	1909507..1909764	-	85	15794855	-	NMA1972	-	hypothetical protein
1809	 48.31	0	1910053..1911621	+	522	15794856	-	NMA1973	-	hypothetical protein
1810	 55.76	0	1911691..1914900	-	1069	15794857	recC	NMA1974	-	exodeoxyribonuclease V
1811	 54.04	0	1915001..1916410	-	469	15794858	-	NMA1975	-	integral membrane protein
1812	 50.73	0	1916846..1917943	-	365	15794859	-	NMA1977	-	cytochrome c
1813	 38.60	-1	1917967..1918137	-	56	15794860	-	NMA1978	-	hypothetical protein
1814	 51.96	0	1918142..1918753	-	203	15794861	-	NMA1979	-	cytochrome oxidase subunit
1815	 51.38	0	1918780..1920225	-	481	15794862	-	NMA1980	-	cytochrome c oxidase subunit
1816	 51.42	0	1920531..1922288	+	585	15794863	-	NMA1981	-	hypothetical protein
1817	 55.34	0	1922314..1922781	+	155	15794864	-	NMA1982	-	hypothetical protein
1818	 51.72	0	1923468..1923902	-	144	15794865	exbD	NMA1983	-	biopolymer transport protein
1819	 55.35	0	1923905..1924567	-	220	15794866	exbB	NMA1984	-	biopolymer transport protein
1820	 56.11	0	1924633..1925475	-	280	15794867	tonB	NMA1985	-	TonB protein
1821	 55.87	0	1925730..1926368	+	212	15794868	-	NMA1986	-	hypothetical protein
1822	 36.97	-2	1926572..1926901	+	109	15794869	-	NMA1987	-	hypothetical protein
1823	 37.45	-2	1926820..1927620	-	266	15794870	-	NMA1988	-	integral membrane protein
1824	 30.25	-2	1927756..1928274	-	172	15794871	-	NMA1989	-	hypothetical protein
1825	 51.71	0	1928596..1929237	-	213	15794872	grxB	NMA1990	-	glutaredoxin 2
1826	 56.58	0	1929458..1931767	+	769	15794873	relA	NMA1991	-	GTP pyrophosphokinase
1827	 52.35	0	1933011..1934414	-	467	15794874	natC	NMA1994	-	periplasmic type I secretion system protein
1828	 50.25	0	1934483..1934683	-	66	15794875	natD'	NMA1995	-	periplasmic type I secretion system protein
1829	 45.39	0	1936559..1936840	+	93	15794877	-	NMA1997	-	hypothetical protein
1830	 44.91	0	1936911..1937126	+	71	15794878	-	NMA1998	-	hypothetical protein
1831	 45.99	0	1937519..1938553	+	344	15794879	-	NMA1999	-	hypothetical protein
1832	 47.54	0	1938544..1938888	+	114	15794880	-	NMA2000	-	hypothetical protein
1833	 42.42	-1	1938893..1939090	+	65	15794881	-	NMA2001	-	hypothetical protein
1834	 47.37	0	1939098..1939382	+	94	15794882	-	NMA2002	-	hypothetical protein
1835	 45.88	0	1939389..1939667	+	92	15794883	-	NMA2003	-	hypothetical protein
1836	 32.73	-2	1939780..1940112	+	110	15794884	-	NMA2004	-	hypothetical protein
1837	 45.45	0	1940096..1940491	+	131	15794885	-	NMA2005	-	cell-surface protein
1838	 46.67	0	1941209..1941568	-	119	15794886	-	NMA2006	-	hypothetical protein
1839	 48.68	0	1941591..1942235	-	214	15794887	-	NMA2007	-	hypothetical protein
1840	 44.32	-1	1942237..1942773	-	178	15794888	-	NMA2008	-	hypothetical protein
1841	 47.09	0	1942785..1943882	-	365	15794889	-	NMA2009	-	hypothetical protein
1842	 49.71	0	1943885..1945276	-	463	15794890	-	NMA2010	-	hypothetical protein
1843	 42.02	-1	1945541..1946323	-	260	15794891	-	NMA2011	-	hypothetical protein
1844	 44.29	-1	1946311..1946958	-	215	15794892	-	NMA2012	-	hypothetical protein
1845	 44.09	-1	1946968..1948110	-	380	15794893	bioF	NMA2013	-	8-amino-7-oxononanoate synthase
1846	 53.30	0	1948333..1949409	+	358	15794894	-	NMA2014	-	hypothetical protein
1847	 50.37	0	1949616..1951082	-	488	15794895	-	NMA2015	-	integral membrane transport protein
1848	 52.92	0	1951280..1952203	-	307	15794896	speB	NMA2016	-	agmatinase
1849	 49.76	0	1952302..1954194	-	630	15794897	speA	NMA2017	-	arginine decarboxylase
1850	 49.82	0	1954361..1954645	-	94	15794898	-	NMA2018	-	hypothetical protein
1851	 54.01	0	1954796..1956604	-	602	15794899	aspS	NMA2019	-	aspartyl-tRNA synthetase
1852	 51.76	0	1956662..1957399	-	245	15794900	-	NMA2020	-	integral membrane protein
1853	 53.98	0	1957506..1958735	-	409	15794901	-	NMA2021	-	phopholipase
1854	 53.79	0	1958814..1959077	-	87	15794902	rpsT	NMA2022	-	30S ribosomal protein S20
1855	 53.37	0	1959380..1960522	+	380	15794903	-	NMA2023	-	polyamine permease substrate-binding protein
1856	 53.93	0	1962649..1965381	-	910	15794904	tbpA	NMA2024	-	transferrin-binding protein A
1857	 46.35	0	1965468..1967564	-	698	15794905	tbpB	NMA2025	-	transferrin-binding protein B
1858	 54.00	0	1969683..1970495	-	270	15794906	glr	NMA2026	-	glutamate racemase
1859	 58.66	0	1970697..1971158	+	153	15794907	-	NMA2027	-	hypothetical protein
1860	 59.63	+1	1971155..1972405	+	416	15794908	amiC	NMA2028	-	N-acetylmuramoyl-L-alanine amidase
1861	 45.02	0	1972431..1973303	+	290	15794909	-	NMA2029	-	hypothetical protein
1862	 56.17	0	1973599..1974741	-	380	15794910	-	NMA2030	-	hypothetical protein
1863	 55.56	0	1974790..1975212	-	140	15794911	-	NMA2031	-	secreted protein
1864	 59.51	+1	1975205..1976014	-	269	15794912	-	NMA2032	-	MutT-related protein
1865	 56.35	0	1976091..1976468	-	125	15794913	acpS	NMA2033	-	holo-(acyl-carrier protein) synthase
1866	 42.36	-1	1976465..1976608	-	47	15794914	-	NMA2034	-	hypothetical protein
1867	 35.16	-2	1976669..1977436	-	255	15794915	-	NMA2035	-	hypothetical protein
1868	 30.77	-2	1977446..1978225	-	259	15794916	-	NMA2036	-	hypothetical protein
1869	 58.30	0	1978272..1979000	-	242	15794917	pdxJ	NMA2037	-	pyridoxal phosphate biosynthetic protein PdxJ
1870	 60.75	+1	1979024..1979818	-	264	15794918	recO	NMA2038	-	DNA repair protein (recombination protein o)
1871	 59.93	+1	1979849..1980976	-	375	15794919	pheA	NMA2039	-	chorismate mutase
1872	 57.10	0	1981015..1982247	-	410	15794920	-	NMA2040	-	integral membrane efflux protein
1873	 58.36	0	1982766..1983620	-	284	15794921	-	NMA2041	-	hypothetical protein
1874	 61.13	+1	1987822..1988634	-	270	15794922	-	NMA2044	-	hypothetical protein
1875	 60.71	+1	1988719..1989591	+	290	15794923	-	NMA2045	-	oxidoreductase
1876	 57.19	0	1989648..1990850	-	400	15794924	-	NMA2046	-	hypothetical protein
1877	 55.83	0	1990847..1991215	-	122	15794925	-	NMA2047	-	hypothetical protein
1878	 57.21	0	1991389..1991832	+	147	15794926	-	NMA2048	-	hypothetical protein
1879	 55.39	0	1991959..1992579	-	206	15794927	-	NMA2049	-	hypothetical protein
1880	 55.92	0	1992937..1994136	-	399	15794928	ackA2	NMA2050	-	acetate kinase
51.77	MEAN

7.09	STD DEV
