IslandPath Analysis: Neisseria meningitidis Z2491

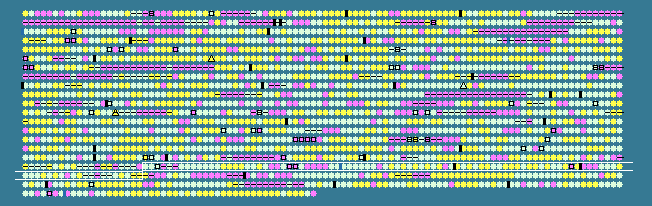

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1721	 53.50	0	1802934..1803176	-	80	15794768	-	NMA1880	-	hypothetical protein
1722	 51.37	0	1803252..1804166	-	304	15794769	-	NMA1881	-	DNA-binding protein
1723	 54.79	0	1804208..1806253	-	681	15794770	-	NMA1882	-	transposase
1724	 48.11	0	1806331..1806594	-	87	15794771	-	NMA1883	-	Ner-like DNA-binding protein
1725	 50.50	0	1806811..1807515	+	234	15794772	-	NMA1884	-	regulator
1726	 35.22	-2	1807617..1807775	-	52	15794773	-	NMA1885	-	hypothetical protein
1727	 53.41	0	1807779..1810034	-	751	15794774	nor	NMA1886	-	nitric oxide reductase
1728	 53.75	0	1810404..1811564	+	386	15794775	aniA	NMA1887	-	nitrite reductase, major outer membrane copper-containing protein
1729	 54.10	0	1811744..1812499	+	251	15794776	-	NMA1888	-	hypothetical protein
1730	 53.23	0	1816250..1816807	-	185	15794777	-	NMA1891	-	hypothetical protein
1731	 52.11	0	1816883..1818517	-	544	15794778	-	NMA1892	-	hypothetical protein
1732	 53.57	0	1818798..1819904	-	368	15794779	serC	NMA1894	-	phosphoserine aminotransferase
1733	 51.33	0	1820251..1820700	+	149	15794780	-	NMA1895	-	hypothetical protein
1734	 57.29	0	1820728..1822230	+	500	161353789	nusA	NMA1896	-	transcription elongation factor NusA
1735	 56.77	0	1822242..1825130	+	962	15794782	infB	NMA1897	-	translation initiation factor IF-2
1736	 59.57	+1	1825341..1826735	-	464	15794783	-	NMA1898	-	integral membrane protein
1737	 58.22	0	1826797..1828146	-	449	15794784	-	NMA1899	-	integral membrane protein
1738	 51.36	0	1828289..1828915	+	208	15794785	-	NMA1900	-	haemolysin
1739	 51.66	0	1828979..1830397	-	472	15794786	-	NMA1901	-	sodium:alanine symporter
1740	 56.24	0	1830724..1831452	+	242	15794787	-	NMA1902	-	hypothetical protein
1741	 52.83	0	1831511..1832110	-	199	15794788	-	NMA1903	-	disulphide bond formation protein
1742	 38.74	-1	1832166..1832387	-	73	15794789	-	NMA1904	-	hypothetical protein
1743	 46.02	0	1832690..1833154	-	154	15794790	-	NMA1905	-	transcription regulator AsnC
1744	 53.26	0	1833479..1834537	+	352	15794791	alr	NMA1906	-	alanine racemase
1745	 37.50	-2	1835214..1835405	-	63	15794792	-	NMA1907A	-	IS1016 transposase
1746	 40.18	-1	1835404..1835856	-	150	15794793	-	NMA1907b	-	IS1016 transposase
1747	 54.57	0	1835999..1837354	-	451	15794794	-	NMA1908	-	hypothetical protein
1748	 44.69	0	1837369..1837641	-	90	15794795	-	NMA1909	-	hypothetical protein
1749	 43.90	-1	1837767..1838504	-	245	15794796	-	NMA1911	-	periplasmic protein
1750	 46.38	0	1838785..1839696	-	303	15794797	-	NMA1912	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1751	 46.97	0	1839829..1840422	+	197	15794798	-	NMA1913	-	hypothetical protein
1752	 53.46	0	1840534..1841154	+	206	15794799	-	NMA1914	-	hypothetical protein
1753	 54.62	0	1841085..1841549	-	154	15794800	-	NMA1915	-	DNA transport competence protein
1754	 48.95	0	1847422..1848606	+	394	15794801	-	NMA1916	-	hypothetical protein
1755	 49.45	0	1848673..1850850	-	725	15794802	spoT	NMA1917a	-	guanosine-3',5'-bis(diphosphate) 3'-pyrophophohydrolase
1756	 51.69	0	1850922..1851128	-	68	15794803	rpoZ	NMA1918	-	DNA-directed RNA polymerase omega chain
1757	 54.21	0	1851187..1851804	-	205	15794804	gmk	NMA1919	-	guanylate kinase
1758	 53.67	0	1851932..1852531	+	199	15794805	apt	NMA1920	-	adenine phosphoribosyltransferase
1759	 53.83	0	1852577..1853386	-	269	15794806	-	NMA1921	-	hypothetical protein
1760	 45.95	0	1853419..1853529	+	36	15794807	-	NMA1922	-	hypothetical protein
1761	 54.13	0	1853690..1855045	+	451	15794808	-	NMA1923	-	protease
1762	 59.33	+1	1855179..1855655	+	158	15794809	-	NMA1924	-	hypothetical protein
1763	 52.38	0	1858414..1859106	-	230	15794810	hemO	NMA1927	-	haem utilisation protein
1764	 55.56	0	1859536..1860840	+	434	15794811	-	NMA1928	-	hypothetical protein
1765	 52.89	0	1860833..1862494	+	553	15794812	-	NMA1929	-	hypothetical protein
1766	 58.77	0	1862494..1863012	+	172	15794813	-	NMA1930	-	lipoprotein
1767	 51.27	0	1863016..1863567	+	183	15794814	tag	NMA1931	-	DNA-3-methyladenine glycosylase I
1768	 55.30	0	1863557..1864198	+	213	15794815	-	NMA1932	-	lipase
1769	 54.44	0	1864473..1864832	+	119	15794816	-	NMA1933	-	integral membrane protein
1770	 56.26	0	1864863..1867715	+	950	15794817	gcvP	NMA1934	-	glycine dehydrogenase
1771	 36.73	-2	1867786..1867932	+	48	15794818	-	NMA1935	-	hypothetical protein
1772	 55.24	0	1868180..1869019	-	279	15794819	-	NMA1936	-	cytochrome
1773	 55.78	0	1869444..1870637	-	397	15794820	tyrB	NMA1937	-	aromatic amino acid aminotransferase
1774	 49.59	0	1870658..1871746	-	362	15794821	trmA	NMA1938	-	tRNA (uracil-5-)-methyltransferase
1775	 58.95	+1	1871893..1872993	+	366	15794822	aroC	NMA1939	-	chorismate synthase
1776	 51.88	0	1873085..1873510	+	141	15794823	-	NMA1940	-	hypothetical protein
1777	 57.70	0	1873584..1875569	-	661	15794824	parE	NMA1941	-	DNA topoisomerase IV subunit B
1778	 56.19	0	1875636..1876160	-	174	15794825	-	NMA1942	-	dinucleoside polyphosphate hydrolase
1779	 53.55	0	1876325..1877620	+	431	15794826	serS	NMA1943	-	seryl-tRNA synthetase
1780	 52.75	0	1877693..1878691	-	332	15794827	ldhA	NMA1944	-	D-lactate dehydrogenase
1781	 58.40	0	1878816..1879892	-	358	15794828	prfA	NMA1945	-	peptide chain release factor 1
1782	 55.79	0	1879996..1880850	-	284	15794829	-	NMA1946	-	hypothetical protein
1783	 58.59	0	1880890..1881879	-	329	15794830	ans	NMA1947	-	L-asparaginase
1784	 53.18	0	1881946..1882731	-	261	15794831	-	NMA1948	-	DedA family integral membrane protein
1785	 56.78	0	1882819..1884153	-	444	15794832	-	NMA1949	-	phosphoglucomutase/phosphomannomutase
1786	 58.33	0	1884283..1885134	-	283	15794833	dhpS	NMA1950	-	dihydropteroate synthase
1787	 54.57	0	1885301..1887523	+	740	15794834	-	NMA1951	-	hypothetical protein
1788	 56.46	0	1887587..1889065	-	492	15794835	-	NMA1952	-	hypothetical protein
1789	 50.78	0	1889085..1889600	-	171	15794836	-	NMA1953	-	hypothetical protein
1790	 55.17	0	1889607..1890041	-	144	15794837	-	NMA1954	-	integral membrane protein
1791	 58.39	0	1890339..1890773	-	144	15794838	-	NMA1955	-	hypothetical protein
1792	 47.09	0	1890948..1891616	+	222	15794839	-	NMA1956	-	IS1016 transposase
1793	 59.72	+1	1891823..1892959	+	378	15794840	fabF2	NMA1957	-	3-oxoacyl-(acyl carrier protein) synthase II
1794	 44.71	0	1893157..1893921	+	254	15794841	lgtF	NMA1958	-	beta-1,4-glucosyltransferase
1795	 47.04	0	1893922..1894986	+	354	15794842	rfaK	NMA1959	-	alpha 1,2 N-acetylglucosamine transferase
1796	 42.69	-1	1895025..1895195	+	56	15794843	-	NMA1960	-	hypothetical protein
1797	 51.79	0	1895373..1896710	+	445	15794844	-	NMA1961	-	integral membrane ion transporter
1798	 53.94	0	1896882..1897541	-	219	15794845	-	NMA1962	-	hypothetical protein
1799	 53.08	0	1897550..1898344	-	264	15794846	thyA	NMA1963	-	thymidylate synthase
1800	 56.18	0	1898767..1900101	+	444	15794847	gdhA	NMA1964	-	glutamate dehydrogenase
1801	 53.90	0	1900390..1901172	-	260	15794848	-	NMA1965	-	GntR family transcriptional regulator
1802	 53.00	0	1901600..1901899	+	99	15794849	-	NMA1966	-	integral membrane protein
1803	 50.00	0	1901926..1902075	+	49	15794850	-	NMA1967	-	hypothetical protein
1804	 56.13	0	1902277..1903680	-	467	15794851	mtrE	NMA1968	-	outer membrane lipoprotein
1805	 54.06	0	1903735..1906938	-	1067	15794852	mtrD	NMA1969	-	drug efflux protein
1806	 58.27	0	1906950..1908188	-	412	15794853	mtrC	NMA1970	-	membrane fusion protein
1807	 51.50	0	1908596..1909228	+	210	15794854	mtrR	NMA1971	-	transcriptional regulato
1808	 29.46	-2	1909507..1909764	-	85	15794855	-	NMA1972	-	hypothetical protein
1809	 48.31	0	1910053..1911621	+	522	15794856	-	NMA1973	-	hypothetical protein
1810	 55.76	0	1911691..1914900	-	1069	15794857	recC	NMA1974	-	exodeoxyribonuclease V
1811	 54.04	0	1915001..1916410	-	469	15794858	-	NMA1975	-	integral membrane protein
1812	 50.73	0	1916846..1917943	-	365	15794859	-	NMA1977	-	cytochrome c
1813	 38.60	-1	1917967..1918137	-	56	15794860	-	NMA1978	-	hypothetical protein
1814	 51.96	0	1918142..1918753	-	203	15794861	-	NMA1979	-	cytochrome oxidase subunit
1815	 51.38	0	1918780..1920225	-	481	15794862	-	NMA1980	-	cytochrome c oxidase subunit
1816	 51.42	0	1920531..1922288	+	585	15794863	-	NMA1981	-	hypothetical protein
1817	 55.34	0	1922314..1922781	+	155	15794864	-	NMA1982	-	hypothetical protein
1818	 51.72	0	1923468..1923902	-	144	15794865	exbD	NMA1983	-	biopolymer transport protein
1819	 55.35	0	1923905..1924567	-	220	15794866	exbB	NMA1984	-	biopolymer transport protein
1820	 56.11	0	1924633..1925475	-	280	15794867	tonB	NMA1985	-	TonB protein
51.77	MEAN

7.09	STD DEV
