IslandPath Analysis: Neisseria meningitidis Z2491

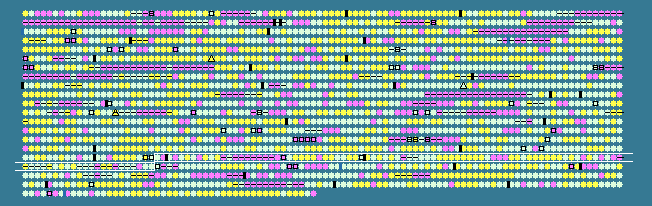

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1623	 54.40	0	1721483..1722346	+	287	15794670	-	NMA1777	-	integral membrane protein
1624	 47.96	0	1722397..1723449	-	350	15794671	-	NMA1778	-	putative periplasmic protease
1625	 48.76	0	1724296..1724859	-	187	15794672	pgsA	NMA1779	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1626	 46.53	0	1724965..1725108	-	47	15794673	-	NMA1780	-	hypothetical protein
1627	 50.50	0	1725086..1725388	-	100	15794674	-	NMA1781	-	hypothetical protein
1628	 56.55	0	1725670..1726005	-	111	15794675	-	NMA1782	-	hypothetical protein
1629	 52.87	0	1726134..1727039	+	301	15794676	-	NMA1783	-	AraC family transcription regulator
1630	 47.40	0	1727101..1727676	-	191	15794677	-	NMA1784	-	hypothetical protein
1631	 55.92	0	1727736..1728638	+	300	15794678	-	NMA1785	-	hypothetical protein
1632	 51.55	0	1728679..1729809	-	376	15794679	-	NMA1786	-	polyamine permease substrate-binding protein
1633	 55.28	0	1730014..1732638	+	874	15794680	alaS	NMA1788	-	alanyl-tRNA synthetase
1634	 29.64	-2	1732700..1733431	+	243	15794681	-	NMA1789	-	hypothetical protein
1635	 55.06	0	1734140..1736551	+	803	15794682	-	NMA1791	-	hypothetical protein
1636	 38.06	-1	1737566..1738834	+	422	15794683	-	NMA1792	-	hypothetical protein
1637	 40.38	-1	1738846..1739157	+	103	15794684	-	NMA1793	-	hypothetical protein
1638	 35.82	-2	1739161..1739361	+	66	15794685	-	NMA1794	-	hypothetical protein
1639	 45.02	0	1739599..1739829	+	76	15794686	-	NMA1795	-	hypothetical protein
1640	 41.91	-1	1739857..1740159	+	100	15794687	-	NMA1796	-	hypothetical protein
1641	 46.91	0	1740491..1742110	+	539	15794688	tspB	NMA1797	-	TspB protein
1642	 44.91	0	1742413..1742697	+	94	15794689	-	NMA1798	-	integral membrane protein
1643	 44.78	0	1742698..1743885	+	395	15794690	-	NMA1799	-	hypothetical protein
1644	 39.29	-1	1744100..1745056	+	318	15794691	-	NMA1800	-	invertase/transposase
1645	 54.97	0	1745395..1746078	-	227	15794692	gpm	NMA1801	-	phosphoglyceromutase
1646	 56.57	0	1746380..1748677	+	765	15794693	parC	NMA1802	-	DNA topoisomerase IV subunit A
1647	 58.17	0	1748697..1750214	+	505	15794694	-	NMA1803	-	two component sensor kinase
1648	 57.69	0	1750266..1750733	+	155	15794695	-	NMA1805	-	two component response regulator
1649	 60.42	+1	1750837..1751589	+	250	15794696	-	NMA1806	-	hypothetical protein
1650	 42.51	-1	1752623..1752829	-	68	15794697	-	NMA1807	-	hypothetical protein
1651	 56.92	0	1752924..1754093	-	389	15794698	metZ	NMA1808	-	O-succinylhomoserine sulfhydrolase
1652	 55.77	0	1754391..1755152	-	253	15794699	-	NMA1809	-	hypothetical protein
1653	 53.57	0	1755252..1755503	+	83	15794700	-	NMA1810	-	hypothetical protein
1654	 51.30	0	1755555..1756361	+	268	15794701	hisJ	NMA1811	-	histidine-binding periplasmic protein
1655	 55.82	0	1756551..1758191	+	546	15794702	fumA	NMA1812	-	fumarate hydratase
1656	 58.46	0	1758289..1759701	+	470	15794703	trkA	NMA1813	-	potassium transporter peripheral membrane component
1657	 51.14	0	1760005..1760970	+	321	15794704	-	NMA1814	-	IS1655 transposase
1658	 57.13	0	1762484..1763290	+	268	15794705	thiD	NMA1815	-	phosphomethylpyrimidine kinase
1659	 54.27	0	1763340..1764194	-	284	15794706	-	NMA1816	-	tellurite resistance protein TehB
1660	 57.53	0	1764323..1764760	+	145	15794707	rnhA	NMA1817	-	ribonuclease HI
1661	 54.07	0	1766062..1766466	+	134	15794708	-	NMA1818	-	hypothetical protein
1662	 56.79	0	1766506..1767690	+	394	15794709	-	NMA1819	-	hypothetical protein
1663	 48.31	0	1767753..1768286	-	177	15794710	gpxA	NMA1820	-	glutathione peroxidase
1664	 47.14	0	1768546..1769385	-	279	15794711	-	NMA1821	-	hypothetical protein
1665	 52.35	0	1769733..1770221	-	162	15794712	-	NMA1822	-	hypothetical protein
1666	 52.56	0	1770222..1770845	-	207	15794713	-	NMA1823	-	hypothetical protein
1667	 49.85	0	1770842..1773124	-	760	15794714	-	NMA1824	-	hypothetical protein
1668	 54.32	0	1773127..1773693	-	188	15794715	-	NMA1825	-	hypothetical protein
1669	 54.69	0	1773690..1774265	-	191	15794716	-	NMA1826	-	hypothetical protein
1670	 57.61	0	1774268..1774753	-	161	15794717	-	NMA1827	-	hypothetical protein
1671	 56.78	0	1774750..1775103	-	117	15794718	-	NMA1828	-	hypothetical protein
1672	 57.62	0	1775164..1775793	-	209	15794719	-	NMA1829	-	hypothetical protein
1673	 58.16	0	1775794..1776933	-	379	15794720	-	NMA1830	-	hypothetical protein
1674	 57.60	0	1776917..1778284	-	455	15794721	-	NMA1831	-	hypothetical protein
1675	 56.79	0	1778284..1778526	-	80	15794722	-	NMA1832	-	hypothetical protein
1676	 56.67	0	1778654..1780333	-	559	15794723	-	NMA1833	-	DNA-binding protein
1677	 58.63	0	1780330..1780578	-	82	15794724	-	NMA1834	-	hypothetical protein
1678	 54.10	0	1780536..1780925	-	129	15794725	-	NMA1835	-	hypothetical protein
1679	 40.40	-1	1781054..1781251	-	65	15794726	-	NMA1836	-	hypothetical protein
1680	 38.28	-1	1781415..1781879	-	154	15794727	-	NMA1837	-	hypothetical protein
1681	 40.31	-1	1781866..1782252	-	128	15794728	-	NMA1838	-	DNA-binding protein
1682	 57.07	0	1782428..1782802	-	124	15794729	-	NMA1840	-	hypothetical protein
1683	 58.96	+1	1782816..1784243	-	475	15794730	-	NMA1841	-	hypothetical protein
1684	 54.50	0	1784243..1784431	-	62	15794731	-	NMA1842	-	hypothetical protein
1685	 58.30	0	1784428..1785096	-	222	15794732	-	NMA1843	-	hypothetical protein
1686	 59.15	+1	1785080..1785505	-	141	15794733	-	NMA1844	-	hypothetical protein
1687	 58.23	0	1785502..1785975	-	157	15794734	-	NMA1845	-	hypothetical protein
1688	 55.81	0	1786013..1786915	-	300	15794735	-	NMA1847	-	hypothetical protein
1689	 58.97	+1	1786937..1788001	-	354	15794736	-	NMA1848	-	hypothetical protein
1690	 57.63	0	1788210..1788707	-	165	15794737	-	NMA1849	-	hypothetical protein
1691	 54.86	0	1788811..1790157	-	448	15794738	-	NMA1850	-	hypothetical protein
1692	 56.79	0	1790150..1791709	-	519	15794739	-	NMA1851	-	hypothetical protein
1693	 55.25	0	1791788..1793407	-	539	15794740	-	NMA1852	-	hypothetical protein
1694	 35.90	-2	1793419..1793613	+	64	15794741	-	NMA1853	-	hypothetical protein
1695	 61.14	+1	1793610..1794116	-	168	15794742	-	NMA1854	-	DNA-binding protein
1696	 55.09	0	1794119..1794334	-	71	15794743	-	NMA1855	-	hypothetical protein
1697	 44.68	-1	1794334..1794615	-	93	15794744	-	NMA1856	-	hypothetical protein
1698	 54.68	0	1794612..1794953	-	113	15794745	-	NMA1857	-	hypothetical protein
1699	 42.01	-1	1794950..1795168	-	72	15794746	-	NMA1858	-	hypothetical protein
1700	 46.20	0	1795181..1795351	+	56	15794747	-	NMA1859	-	hypothetical protein
1701	 59.56	+1	1795396..1795578	-	60	15794748	-	NMA1860	-	hypothetical protein
1702	 52.62	0	1795598..1796017	-	139	15794749	-	NMA1861	-	hypothetical protein
1703	 54.43	0	1795989..1796225	-	78	15794750	-	NMA1862	-	hypothetical protein
1704	 51.52	0	1796228..1796392	-	54	15794751	-	NMA1863	-	hypothetical protein
1705	 56.23	0	1796598..1797143	-	181	15794752	-	NMA1864	-	hypothetical protein
1706	 50.44	0	1797275..1797952	-	225	15794753	-	NMA1865	-	hypothetical protein
1707	 56.60	0	1797964..1798410	-	148	15794754	-	NMA1866	-	integral membrane protein
1708	 52.50	0	1798407..1798886	-	159	15794755	-	NMA1867	-	hypothetical protein
1709	 56.88	0	1798917..1799192	-	91	15794756	hupB2	NMA1868	-	DNA-binding protein HU-beta
1710	 49.25	0	1799241..1799441	-	66	15794757	-	NMA1869	-	hypothetical protein
1711	 49.16	0	1799442..1800092	-	216	15794758	-	NMA1870	-	hypothetical protein
1712	 51.96	0	1800098..1800709	-	203	15794759	-	NMA1871	-	hypothetical protein
1713	 36.92	-2	1800702..1800896	-	64	15794760	-	NMA1872	-	hypothetical protein
1714	 55.48	0	1800868..1801323	-	151	15794761	-	NMA1873	-	hypothetical protein
1715	 55.29	0	1801307..1801684	-	125	15794762	-	NMA1874	-	hypothetical protein
1716	 43.17	-1	1801803..1802117	-	104	15794763	-	NMA1875	-	hypothetical protein
1717	 48.61	0	1802114..1802329	-	71	15794764	-	NMA1876	-	hypothetical protein
1718	 52.12	0	1802310..1802474	-	54	15794765	-	NMA1877	-	small secreted protein
1719	 51.63	0	1802490..1802642	-	50	15794766	-	NMA1878	-	hypothetical protein
1720	 41.00	-1	1802645..1802944	-	99	15794767	-	NMA1879	-	hypothetical protein
1721	 53.50	0	1802934..1803176	-	80	15794768	-	NMA1880	-	hypothetical protein
1722	 51.37	0	1803252..1804166	-	304	15794769	-	NMA1881	-	DNA-binding protein
51.77	MEAN

7.09	STD DEV
