IslandPath Analysis: Neisseria meningitidis Z2491

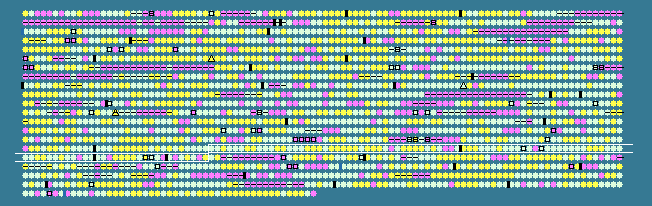

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.77 STD DEV: 7.09
Neisseria meningitidis Z2491, complete genome - 1..2184406
2049 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1532	 54.28	0	1610328..1611134	+	268	15794579	-	NMA1686	-	hypothetical protein
1533	 52.76	0	1611192..1612457	-	421	15794580	-	NMA1687	-	glutamate dehydrogenase
1534	 56.50	0	1612864..1613571	+	235	15794581	-	NMA1688	-	phosphoglycolate phosphatase
1535	 53.90	0	1613639..1614100	+	153	15794582	recX	NMA1689	-	recombination regulator RecX
1536	 50.93	0	1614120..1614335	+	71	15794583	-	NMA1690	-	hypothetical protein
1537	 55.07	0	1614488..1614970	+	160	15794584	-	NMA1691	-	acyl-CoA hydrolase
1538	 57.85	0	1615331..1616578	-	415	15794585	-	NMA1692	-	membrane peptidase
1539	 56.89	0	1616681..1617427	-	248	15794586	surE	NMA1693	-	SurE protein
1540	 54.46	0	1617444..1619000	-	518	15794587	-	NMA1694	-	hypothetical protein
1541	 53.23	0	1619368..1620156	-	262	15794588	-	NMA1695	-	fimbrial assembly protein
1542	 54.88	0	1620265..1621698	-	477	15794589	gabD	NMA1696	-	succinate semialdehyde dehydrogenase
1543	 59.84	+1	1622362..1622742	-	126	15794590	-	NMA1697	-	lipoprotein
1544	 55.72	0	1623218..1625299	+	693	15794591	-	NMA1698	-	integral membrane protein (CstA-like)
1545	 54.87	0	1625289..1625483	+	64	15794592	-	NMA1699	-	hypothetical protein
1546	 49.87	0	1627036..1629804	+	922	15794593	-	NMA1700	-	outer membrane substrate binding protein
1547	 54.68	0	1630967..1632184	-	405	15794594	lysC	NMA1701	-	aspartate kinase
1548	 55.83	0	1632386..1633114	-	242	15794595	rph	NMA1702	-	ribonuclease PH
1549	 55.91	0	1633196..1633660	-	154	15794596	-	NMA1703	-	hypothetical protein
1550	 56.37	0	1633877..1634653	+	258	15794597	-	NMA1704	-	hypothetical protein
1551	 54.39	0	1634898..1635752	+	284	15794598	-	NMA1705	-	hypothetical protein
1552	 55.63	0	1635742..1637001	+	419	15794599	pncB	NMA1706	-	nicotinate phosphoribosyltransferase
1553	 56.95	0	1637093..1638811	+	572	15794600	argS	NMA1707	-	arginyl-tRNA synthetase
1554	 56.03	0	1639365..1640783	+	472	15794601	-	NMA1708	-	hypothetical protein
1555	 55.29	0	1641720..1642466	-	248	15794602	-	NMA1709	-	binding-protein-dependent transport systems inner membrane protein
1556	 59.12	+1	1642645..1643346	-	233	15794603	-	NMA1710	-	nuclease
1557	 51.64	0	1643385..1644056	-	223	15794604	rpiA	NMA1711	-	ribose-5-phosphate isomerase A
1558	 56.31	0	1644133..1644615	-	160	15794605	ispF	NMA1712	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
1559	 57.83	0	1644647..1645336	-	229	15794606	-	NMA1713	-	hypothetical protein
1560	 58.64	0	1645333..1646067	-	244	15794607	dnaQ	NMA1714	-	DNA polymerase III, epsilon chain
1561	 52.71	0	1646223..1647533	-	436	15794608	-	NMA1715	-	integral membrane protein
1562	 46.56	0	1647523..1647711	-	62	15794609	-	NMA1716	-	inner membrane protein
1563	 49.67	0	1647708..1648007	-	99	15794610	-	NMA1717	-	hypothetical protein
1564	 57.70	0	1648328..1649554	+	408	15794611	ackA1	NMA1718	-	acetate kinase
1565	 55.27	0	1650068..1651909	-	613	15794612	dipZ	NMA1719	-	thiol:disulfide interchange protein precursor
1566	 57.11	0	1652000..1652470	+	156	15794613	-	NMA1720	-	hypothetical protein
1567	 55.35	0	1652541..1653371	-	276	15794614	-	NMA1721	-	transferase
1568	 54.24	0	1653440..1653922	-	160	15794615	-	NMA1722	-	peptidyl-prolyl isomerase
1569	 59.46	+1	1654411..1654743	+	110	15794616	-	NMA1723	-	hypothetical protein
1570	 52.05	0	1654801..1656168	+	455	15794617	-	NMA1724	-	hypothetical protein
1571	 40.75	-1	1656349..1658277	-	642	15794618	-	NMA1725	-	virulence associated protein
1572	 46.80	0	1658738..1659190	-	150	15794619	smpB	NMA1726	-	SsrA-binding protein
1573	 54.01	0	1659239..1660249	-	336	15794620	rfaF	NMA1727	-	ADP-heptose:LPS heptosyltransferase II
1574	 55.40	0	1660646..1661515	-	289	15794621	-	NMA1728	-	methylated-DNA-protein-cysteine methyltransferase
1575	 59.36	+1	1661673..1662233	+	186	15794622	-	NMA1729	-	hypothetical protein
1576	 55.58	0	1663067..1664212	-	381	15794623	dapE	NMA1730	-	succinyl-diaminopimelate desuccinylase
1577	 51.21	0	1664326..1664946	-	206	15794624	-	NMA1731	-	hypothetical protein
1578	 52.55	0	1664980..1665489	-	169	15794625	-	NMA1732	-	hypothetical protein
1579	 53.26	0	1665584..1666135	-	183	15794626	-	NMA1733	-	H.8 outer membrane protein
1580	 55.32	0	1666416..1666838	-	140	15794627	-	NMA1734	-	hypothetical protein
1581	 54.82	0	1666969..1669719	+	916	15794628	secA	NMA1735	-	preprotein translocase subunit SecA
1582	 52.74	0	1669864..1671636	+	590	15794629	dnaG	NMA1736	-	DNA primase
1583	 51.94	0	1671823..1673751	+	642	15794630	rpoD	NMA1737	-	RNA polymerase sigma factor RpoD
1584	 52.11	0	1673919..1674770	+	283	15794631	-	NMA1738	-	insertion element IS1106 transposase
1585	 53.23	0	1676324..1679158	-	944	15794632	lbpA	NMA1739	-	lactoferrin binding protein A
1586	 46.36	0	1679155..1681380	-	741	15794633	lbpB	NMA1740	-	lactoferrin-binding protein
1587	 52.20	0	1683921..1684238	-	105	15794634	-	NMA1741	-	remnant of insertion element IS1106 transposase
1588	 54.68	0	1684464..1686098	-	544	15794635	pyrG	NMA1742	-	CTP synthetase
1589	 51.41	0	1686210..1687880	-	556	15794636	fadD	NMA1743	-	long-chain-fatty-acid--CoA-ligase
1590	 53.39	0	1687951..1689102	-	383	15794637	trmU	NMA1744	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1591	 53.16	0	1689179..1689652	-	157	15794638	-	NMA1745	-	hypothetical protein
1592	 54.95	0	1689789..1690172	-	127	15794639	dgk	NMA1746	-	diacylglycerol kinase
1593	 54.96	0	1690484..1691440	-	318	15794640	gshB	NMA1747	-	glutathione synthetase
1594	 54.01	0	1691533..1693254	-	573	15794641	glnS	NMA1748	-	glutaminyl-tRNA synthetase
1595	 57.62	0	1693333..1694106	-	257	15794642	glpR	NMA1749	-	glycerol 3-phosphate regulon repressor
1596	 56.81	0	1694149..1695051	-	300	15794643	-	NMA1750	-	hypothetical protein
1597	 56.07	0	1695200..1695916	-	238	15794644	-	NMA1751	-	GntR family transcriptional regulator
1598	 48.89	0	1696335..1696469	-	44	15794645	-	NMA1752	-	hypothetical protein
1599	 54.70	0	1696485..1696835	-	116	15794646	-	NMA1753	-	hypothetical protein
1600	 53.72	0	1697025..1697696	-	223	15794647	-	NMA1754	-	hypothetical protein
1601	 55.18	0	1697712..1698338	-	208	15794648	purN	NMA1755	-	phosphoribosylglycinamide transformylase
1602	 53.97	0	1698445..1699263	-	272	15794649	-	NMA1756	-	peptidyl-prolyl isomerase
1603	 57.37	0	1699522..1699962	-	146	15794650	holC	NMA1757	-	DNA polymerase III chi subunit
1604	 55.37	0	1700025..1701431	-	468	15794651	pepA	NMA1758	-	aminopeptidase A
1605	 54.21	0	1701601..1702716	+	371	15794652	-	NMA1759	-	hypothetical protein
1606	 55.09	0	1702713..1703783	+	356	15794653	-	NMA1760	-	hypothetical protein
1607	 56.11	0	1704093..1706678	+	861	15794654	acnB	NMA1761	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1608	 54.32	0	1706820..1707815	+	331	15794655	argF	NMA1762	-	ornithine carbamoyltransferase
1609	 51.68	0	1708039..1709052	-	337	15794656	ilvC	NMA1763	-	ketol-acid reductoisomerase
1610	 46.94	0	1709132..1709425	-	97	15794657	-	NMA1764	-	hypothetical protein
1611	 49.39	0	1709492..1709983	-	163	15794658	ilvH	NMA1765	-	acetolactate synthase 3 regulatory subunit
1612	 52.37	0	1709994..1711721	-	575	15794659	ilvI	NMA1766	-	acetolactate synthase isozyme III large subunit
1613	 54.59	0	1712842..1713495	+	217	15794660	-	NMA1767	-	lipoprotein
1614	 55.05	0	1713574..1714227	+	217	15794661	hisG	NMA1768	-	ATP phosphoribosyltransferase catalytic subunit
1615	 43.78	-1	1714331..1715230	+	299	15794662	-	NMA1769	-	hypothetical protein
1616	 58.06	0	1715227..1716516	+	429	15794663	hisD	NMA1770	-	histidinol dehydrogenase
1617	 56.47	0	1716562..1717659	+	365	15794664	hisC	NMA1771	-	histidinol-phosphate aminotransferase
1618	 57.69	0	1717839..1718573	+	244	161353790	hisB	NMA1772	-	imidazoleglycerol-phosphate dehydratase
1619	 57.70	0	1718668..1719537	+	289	15794666	-	NMA1773	-	hypothetical protein
1620	 51.52	0	1719815..1720177	+	120	15794667	-	NMA1774	-	transcriptional regulator
1621	 55.79	0	1720208..1720544	+	111	15794668	-	NMA1775	-	insertion element IS1106A3 transposase
1622	 52.59	0	1720540..1721214	+	224	15794669	-	NMA1776	-	insertion element IS1106A3 transposase
1623	 54.40	0	1721483..1722346	+	287	15794670	-	NMA1777	-	integral membrane protein
1624	 47.96	0	1722397..1723449	-	350	15794671	-	NMA1778	-	putative periplasmic protease
1625	 48.76	0	1724296..1724859	-	187	15794672	pgsA	NMA1779	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1626	 46.53	0	1724965..1725108	-	47	15794673	-	NMA1780	-	hypothetical protein
1627	 50.50	0	1725086..1725388	-	100	15794674	-	NMA1781	-	hypothetical protein
1628	 56.55	0	1725670..1726005	-	111	15794675	-	NMA1782	-	hypothetical protein
1629	 52.87	0	1726134..1727039	+	301	15794676	-	NMA1783	-	AraC family transcription regulator
1630	 47.40	0	1727101..1727676	-	191	15794677	-	NMA1784	-	hypothetical protein
1631	 55.92	0	1727736..1728638	+	300	15794678	-	NMA1785	-	hypothetical protein
51.77	MEAN

7.09	STD DEV
